High quality JFM245 Hydraulic ride on concrete power trowel /concrete ride on power trowel

Share on (60834506785):


Price:$7,500.00 - $7,600.00

Quantity:


Product Overview

Description

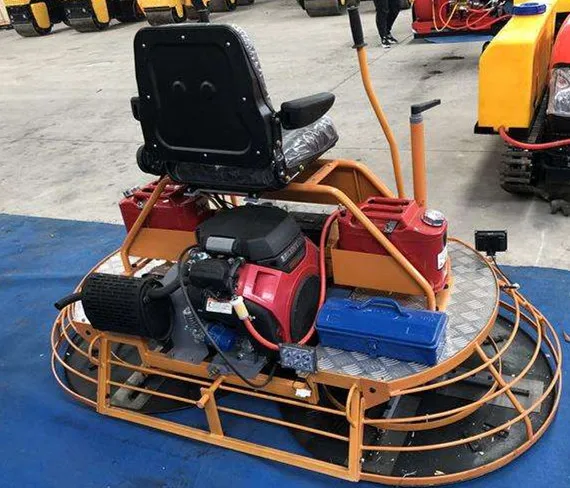

High-quality JFM245 Hydraulic ride on concrete power trowel /concrete ride on power trowel



Product Description


    Introduction and usage of power trowel:



   The power trowel, has the main structure of an engine-driven spatula rotor with a spatula on the bottom of the cross in the middle of the rotor. The tilt direction of the spatula is consistent with the rotation direction of the rotor, and the triangle belt of the cutter is rotated by the engine. When you are operating, first hit the fire and hold the control handle. Pushing two forward together is moving forward and pulling back together is to move back. Compared with artificial power trowel, it can improve the efficiency of more than 30 times times.

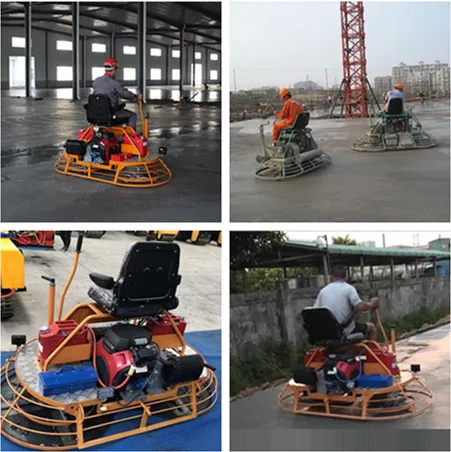

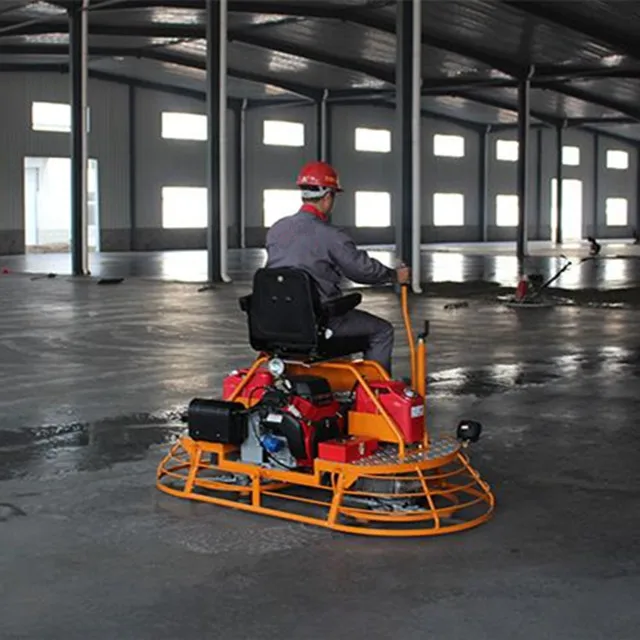

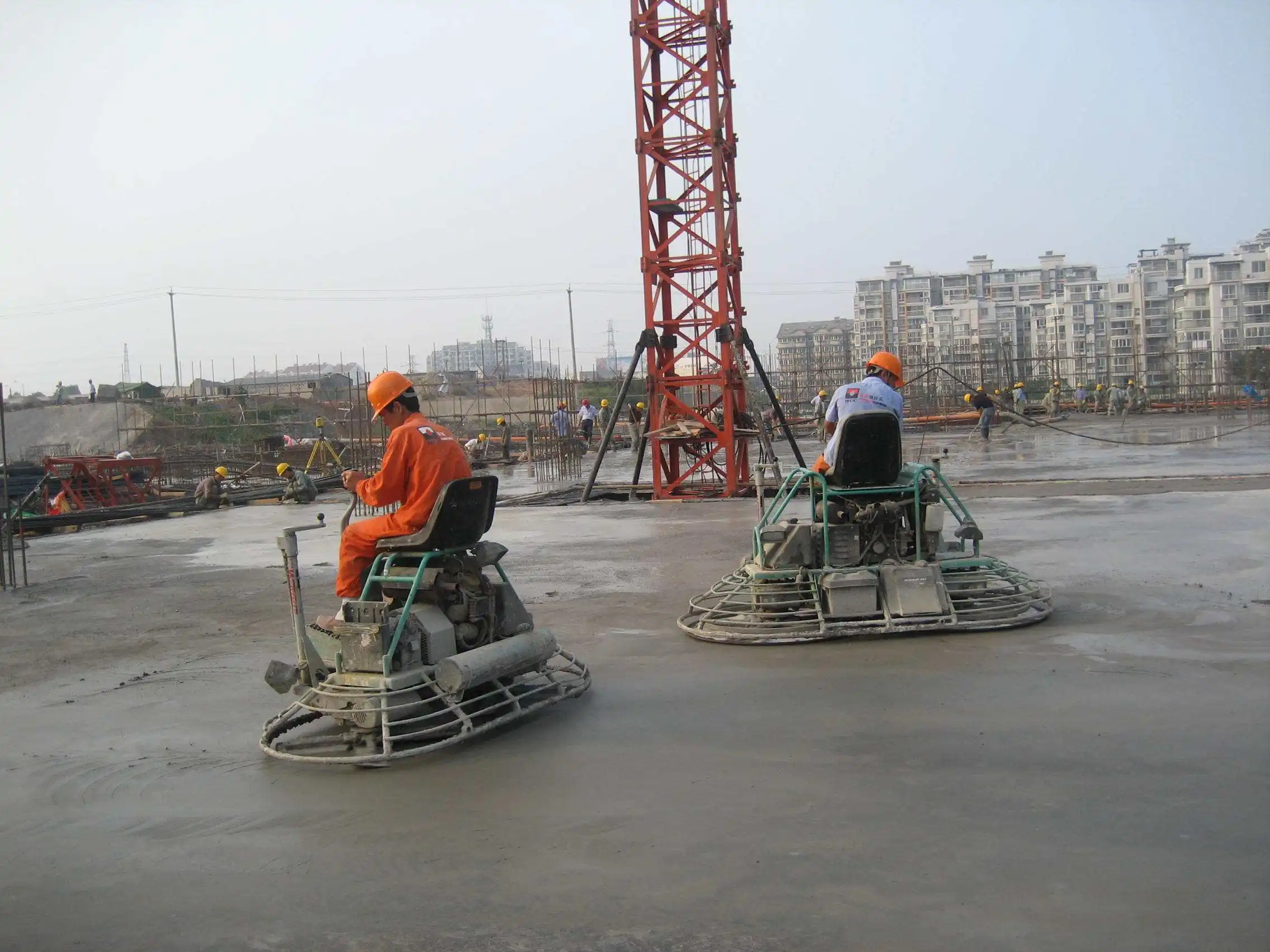

   The power trowel can be widely used in high standard plant, warehouse, parking lot, Plaza, airport and frame building of the concrete surface of the slurry, flattening, wiping light. It is the preferred tool in concrete construction.














































































JFM245 Ride on Concret Trowel Technical Data
Working Power35hp/3600rpm
Operationg moderide-onFuel tank23L
Working Width96.4 inch(2450 mm)Fuel comsumption10.7L/h
Working speed40-180rpmDimension
Blade Total length2560mm
Blade quantity10Total width1300mm
Blade size450*150mmTotal height1450mm
Fixed hole distance4.75 inPacking size2660*1400*1730mm
Engine Weight
ModelVanguard 6134Weight500kg
TypeGasoline,air cooled, single cylinder

Concrete Power Superior Ride On Remote Control Price Mini Diesel Sale Screed Finishing 30 Inch Used Trowel Machine Ride On Sale Double 24 Used Concrete Power Trowel Machine

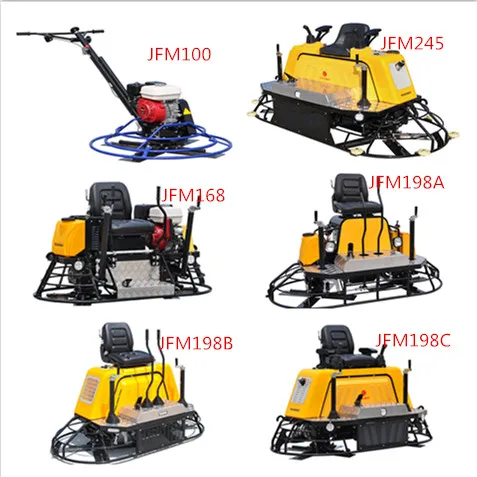

JFM100JFM245JFM168JFM198AJFM198BJFM198C





Other spare parts


electric-tamping-rammer-500x5001545540123(1)JFP10_8HG%4IN861[U`NI(B(B2$7_JFM100Q__20181214143758_JFG11C1545530683(1)__





QQ20181213160236





Other spare parts
