Price:$275,000.00 - $278,000.00

Quantity:


Product Overview

Description


Product Description

Product Application

The Heat Setting Stenter Machine is used for cotton/chemical fiber/mixed knitted woven fabric in open width status.

According to the width size of the fabric, we can offer the following models with different normal work width:

FSLD2400/2600/2800,which are popular sales according to customer's usage.

The machine is equipped with horizontal rollers, single padder, mechanic weft straightener. All parts and components are applied some famous brand in order to keep excellent quality.


\t
Main Parameter and Requirements
\t
BRAND NAME
\t
DEGUAN/ DG
\t
MODEL
\t
DGLD HEAT SETTING STENTER
\t
ORIGION
\t
CHINA
\t
YEAR OF MANUFACTURE
\t
ACCORDING TO ORDER
\t
Main Matching Fabric
\t
open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and other blended fibers
\t
Heat source
\t
Natural gas/oil/steam
\t
Stentering type
\t
Hot air circulating
\t
Chain type
\t
Pin+Clip
\t
Rail type
\t
Pitch 60mm;Oil-free lubricated
\t
Holding type
\t
Carbon Steel+Polymer wearing strip
\t
Working type
\t
Horizontal return chain
\t
Working width
\t
1000~3600mm
\t
Working speed
\t
5-60m/min
\t
Chamber width
\t
3000mm
\t
Insulating board thickness
\t
150mm
\t
Pinning & brush overfeed ratio
\t
20%~40%
\t
Temp.& Breadth adjustment type
\t
Adjustment on each chamber
\t
Standard machine power supply
\t
380V/3PH/50HZ
\t
Control power supply
\t
220V/24V
\t
Steam specification of steam box
\t
3-6kg/cm²
\t
Steam consumption of steam
\t
100-150kg/h

Main Features

Functions of Stenter Machines

Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric.
Width of the fabric is controlled by the stenter.
Finishing chemical apply on fabric by the stenter.
Loop of the knit fabric is controlled.
Moisture of the fabric is controlled by the stenter.
Spirility controlled by the stenter.
GSM of the fabric is controlled by stenter.
Fabric is dried by the stentering process.
Shrinkage property of the fabric is controlled.
Curing treatment for resin, water repellent fabric is done by the stenter.

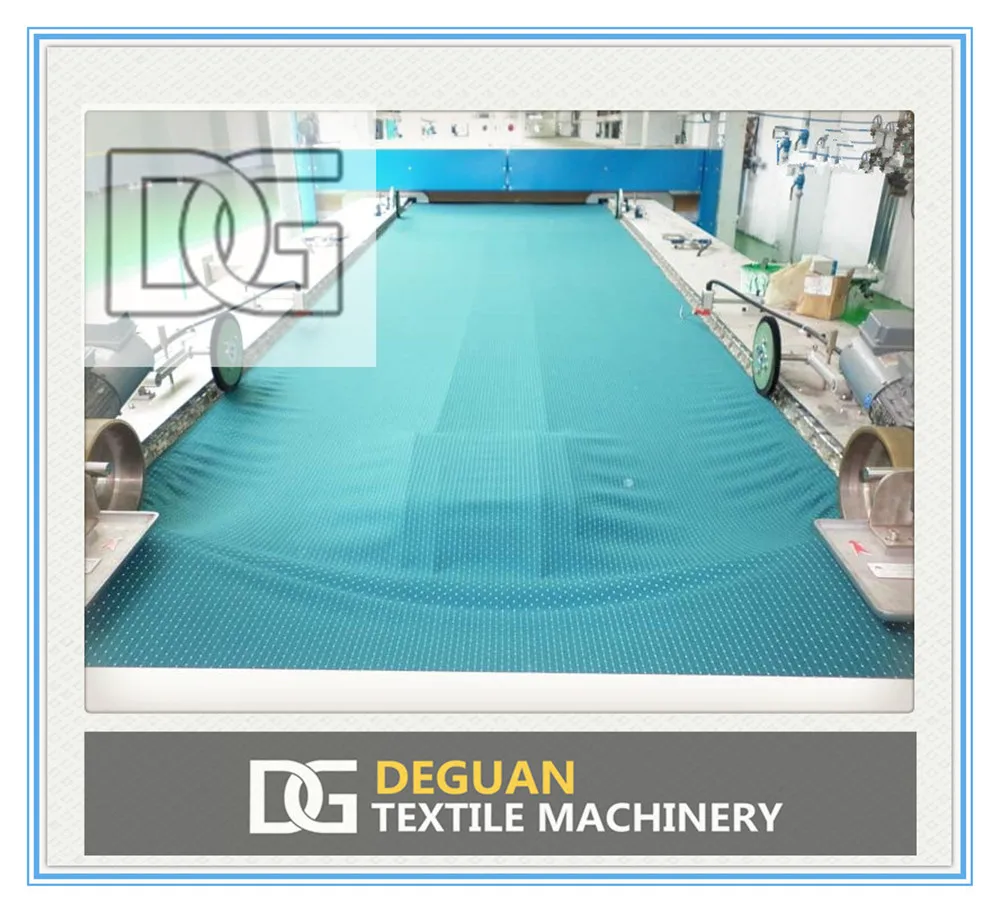

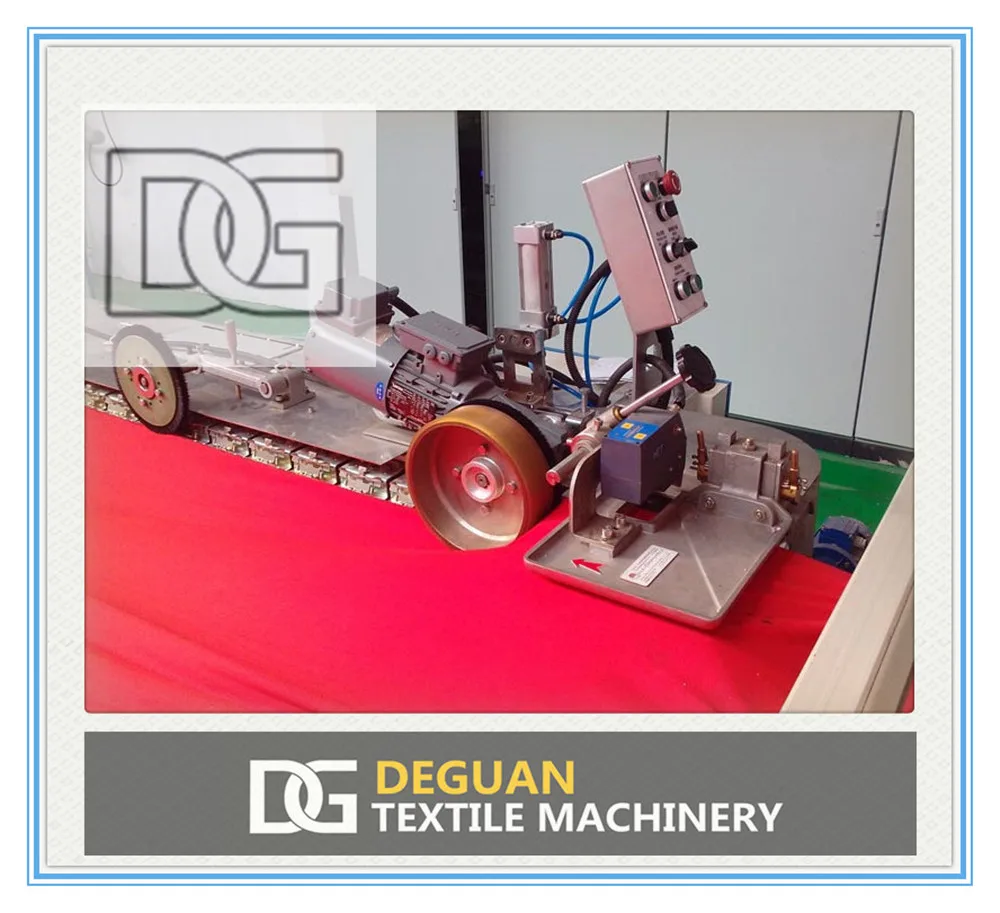

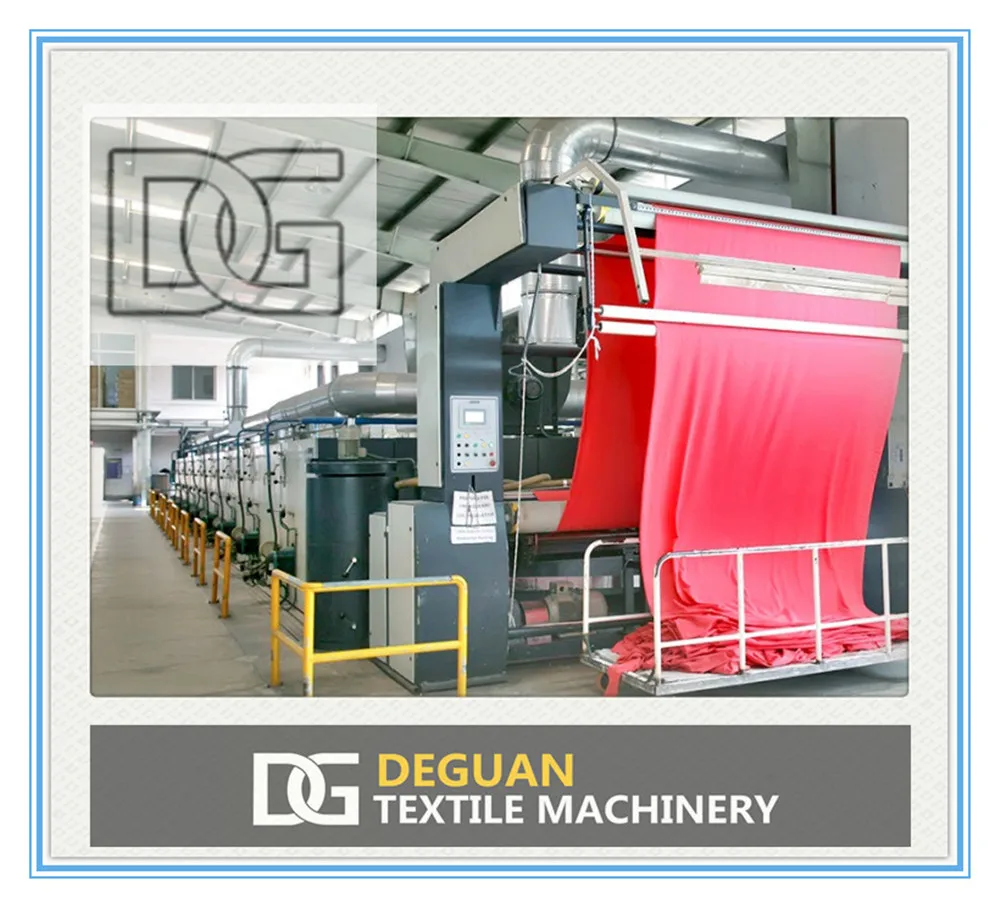

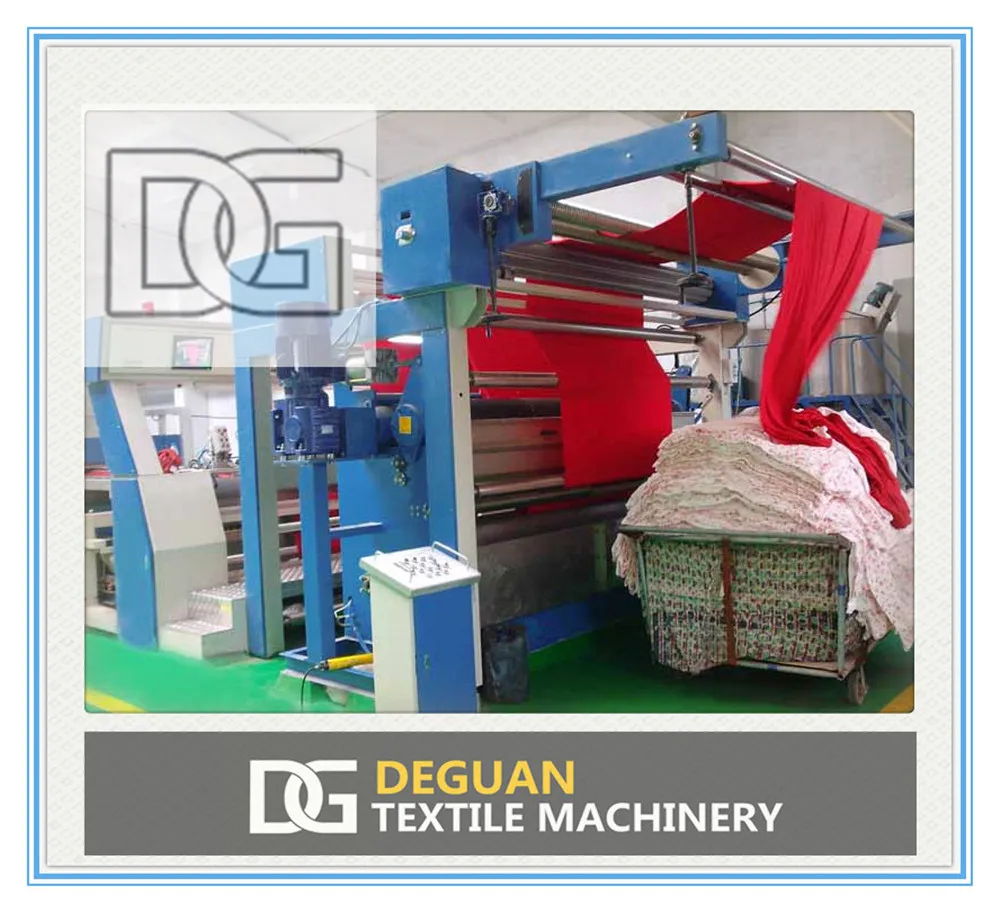

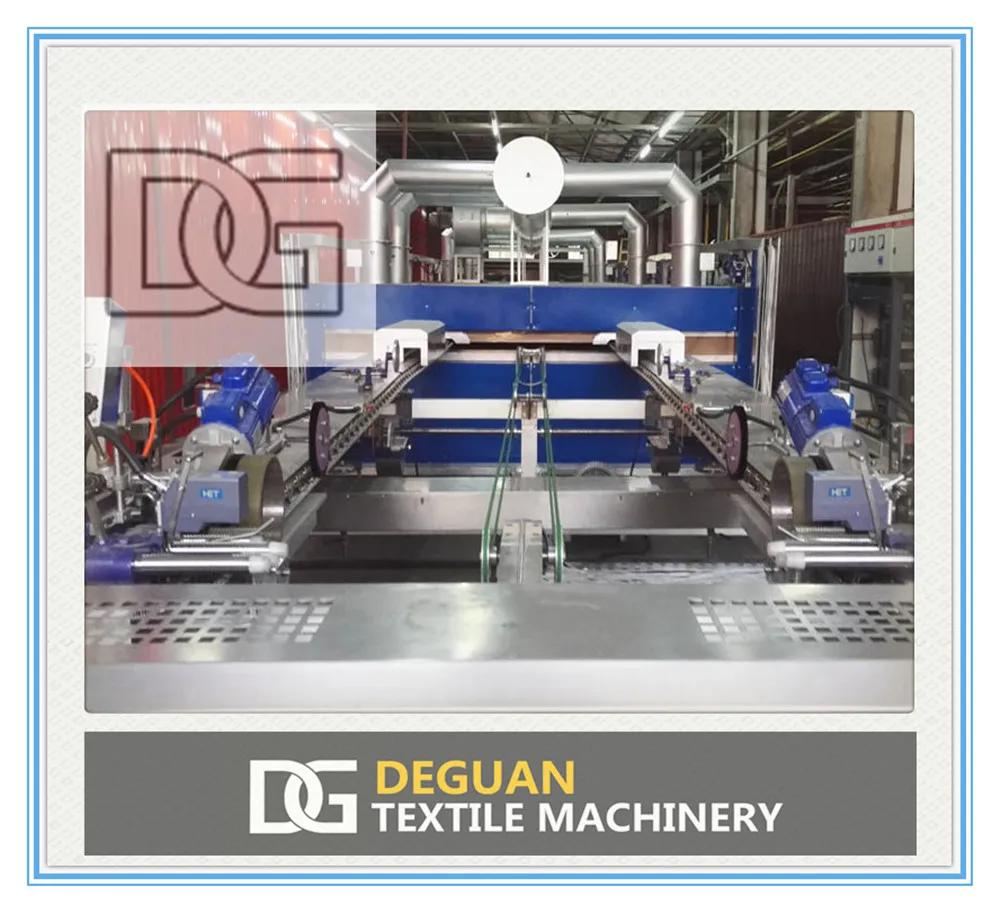

Detailed Images

Why Should We Choose DEGUAN?


1. Original manufacturer and reliable supplier
2.. Good price with good quality
3. Expert could design with your request
4. Excellent after-sale service and long term spare parts offered
6. Professional salesman help you anytime


Stenter--Then Role Part in Textile Finishing Processing

Stenter machine, also called Heat Setting Stenter, is the most powerful equipment during the whole processing line. As the necessary and mult-function machine, Stenter always play the role part of textile finishing machinery series products.

1. Finishing For woven fabrics
2. Drying For knitting fabrics
3. Curing For woven and Knitting fabrics
4. Heat setting of woven and knitting fabrics

Methods of Chamber Heating

1. Thermal Oil
2. Natural Gas
3. Steam

The stenter machine is equipped with horizontal rollers, single padder, and mechanic weft straightener, burners,etc. Parts and components are applied with Schneider/Honeywell/Siemens / Delta / Omron / Hankfeuer and other famous brands in order to keep machine in excellent quality.



Your choice will never let you down!

The production base of Textile Machinery is founded by the professional technicians and stuff, who have more than ten years' experience in this industry.
Our market and clients come from Southeast Asia, Middle-East Asia, East Europe, Middle Asia, South America and Africa. We take pleasure in offering textile finishing machine products series with excellent quality and the best service.
High standard textile finishing machines along with warm service, we hope your choice will never let you down, and we cherish every opportunity to cooperate with you.


Cooperation with DG

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Deguan Factory
Packing & Delivery
\t
Packaging
\t



Packaging Details
\t
Our market and clients come from Southeast Asia, Middle-East Asia, East Europe, Middle Asia, South America and Africa. Deguan takes pleasure in offering textile finishing machine products series with excellent quality and the best service.

High standard textile finishing machines along with warm service, we hope your choice will never let you down, and we cherish every opportunity to cooperate with you.
\t
Packaging
\t



Packaging Details
\t
1.The normal package is Naked.

2. If export to european countries,the wooden box will be fumigated.

3. If container is too tigher,we will use pe film for packing or pack it according to customers special request.

4.  All of your requirements could be considered and met upon early notice.
