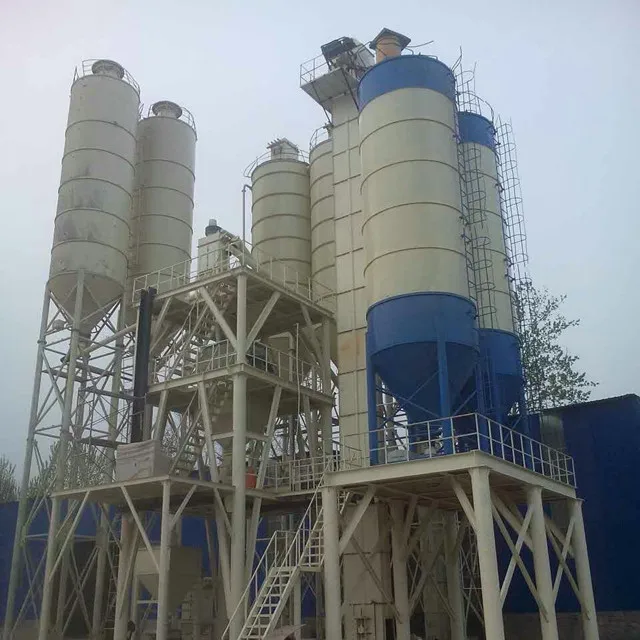

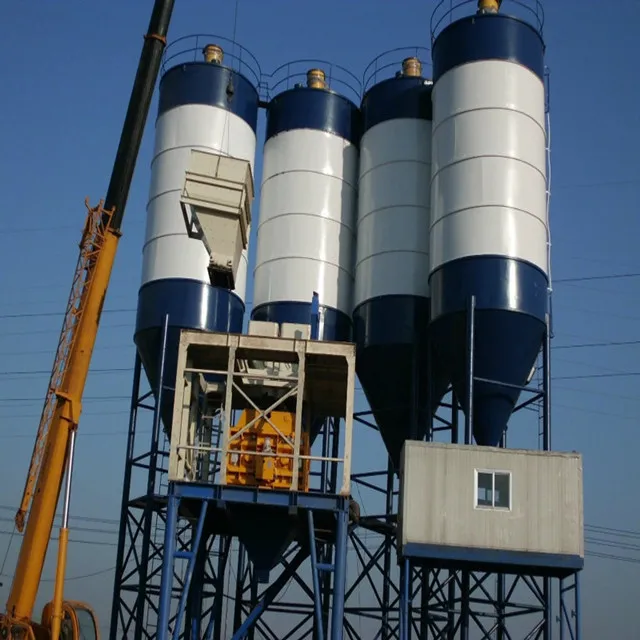

Cement silo used full automatic dry mortar production line

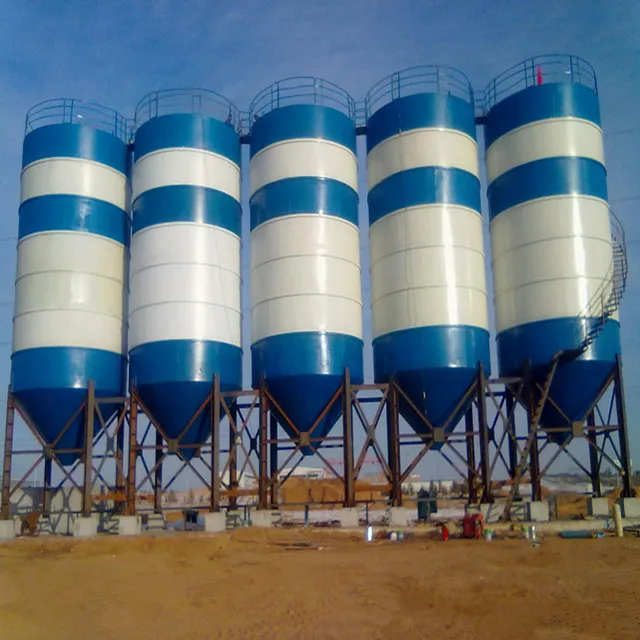

The cement bin (cement tank) is cylindrical structure, and the bottom is made of four round pipe legs supporting the entire bunker, which is all made of steel structure and welded.The top is provided with a dust collector and pressure relief valve.

The cement bin (cement tank) consists of: steel structure part, ladder, guardrail, loading pipe, dust collector, pressure relief valve, high and low material level gauge, unloading valve, etc.
Description of dust removal system, arch breaking device and material level device:

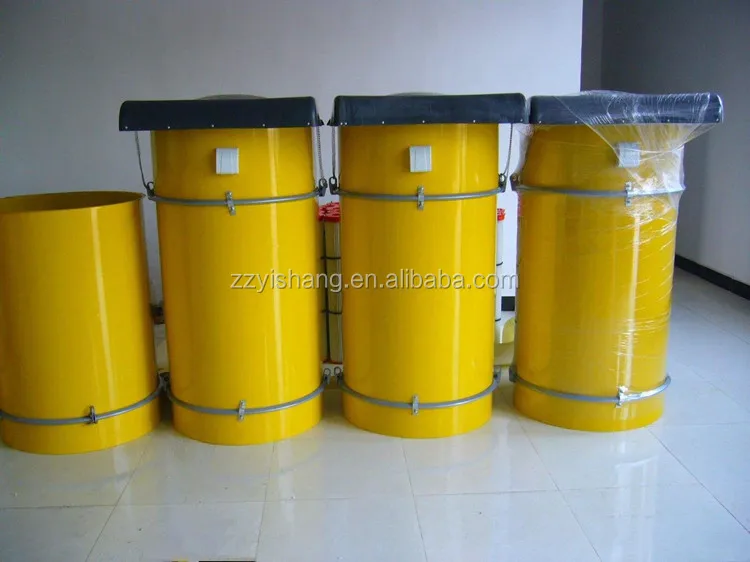

1. Dust removal system: an electric dust removal device is installed on the top of the cement chamber, which can effectively absorb suspended particles in the chamber and reduce pollution to the surrounding environment.
2. Arch-breaking device: the lower cone of the cement chamber is equipped with a blow-air arch-breaking device, which USES the small electromagnetic reversing valve located in the air control chamber to control the release of compressed air to break the arch of cement and various powder materials, so as to avoid the blockage caused by powder accumulation.
3. Material level device: the material level device of cement silo can sense the storage height of material in the silo.

Any change of technical data shall not be advised additionally

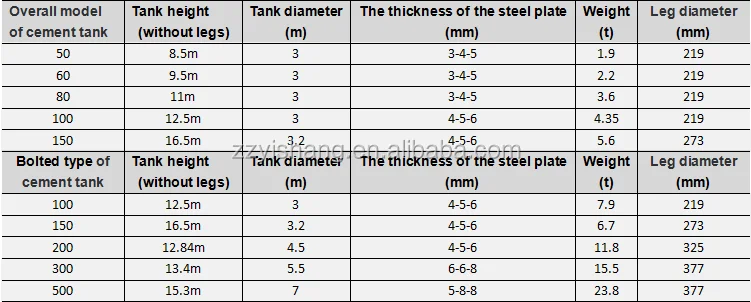

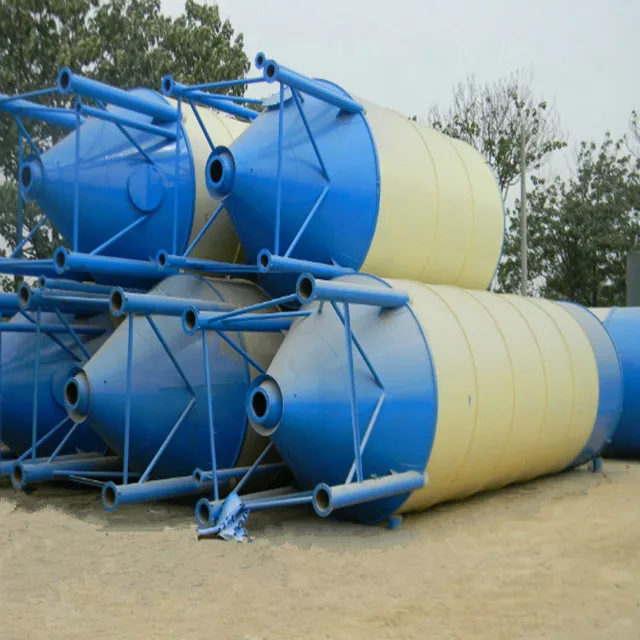

For cement silos 50T or under, we recommend non-detachable welded type becasue they can be loaded into 40 feet container.

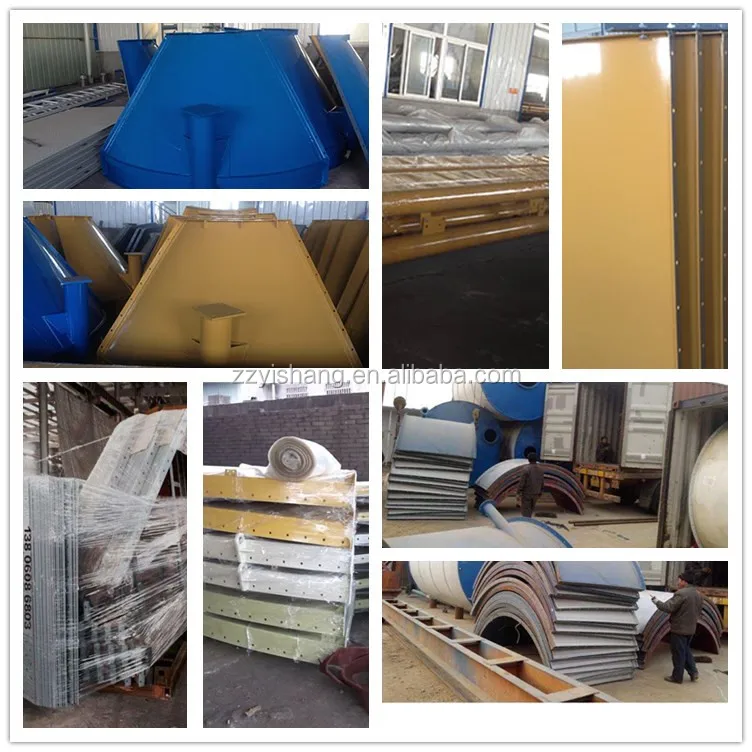

For cement silios above 50T, we recommend detachable bolted type due to its advantage of money-saving during transportation.
