FC splice on connector conector de empalme de fusion conector SOC
- Category: >>>
- Supplier: Shanghai Govo Telecom Co. Ltd.
Share on (60834532044):
Product Overview
Description

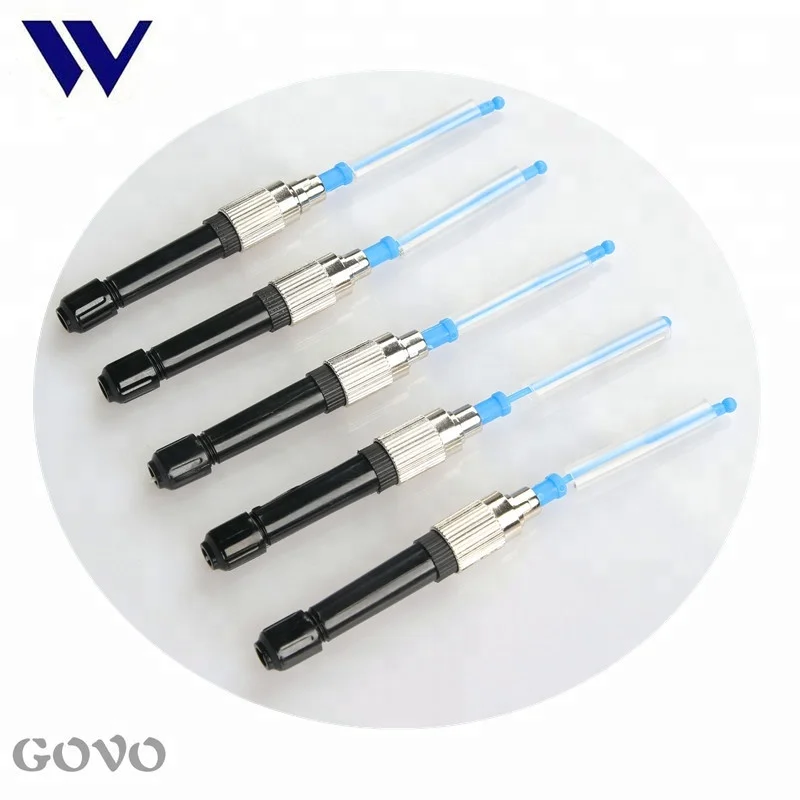

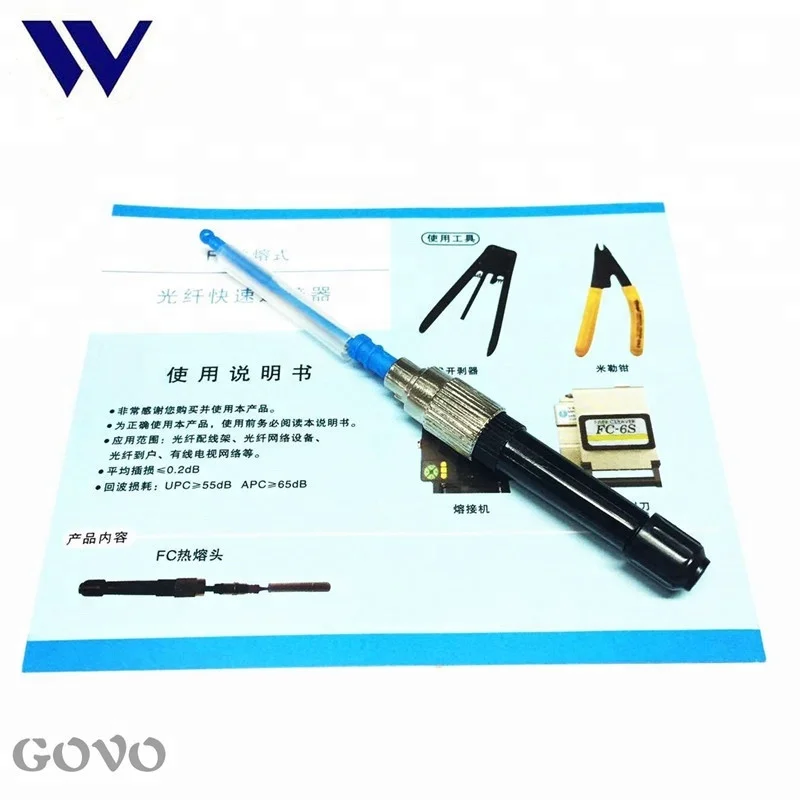

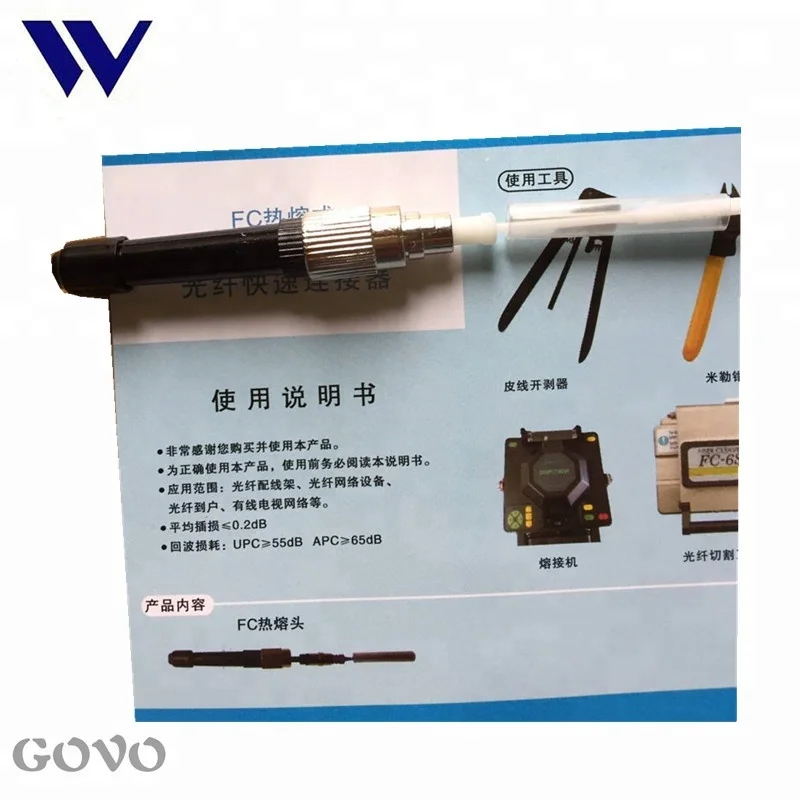

FC splice on connector conector de empalme de fusion conector SOC
Product Description
Features
- Field-termination connector with no epoxy or polishing required
- No matching gel enables low reflection and high reliability
- Splicing point is inside of the connector. No additional splicing work required
- Easily assembled with one-touch, push-pull system
- Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken100% qualified, prolong use life, reduce the Maintenance cost
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability
Application
Fiber optic equipment, Fiber optic communication system
FTTH optic fiber terminal connection
Optical access network
Fiber optic data transmission, CATV
Central office connector replacement
Data center installation
Specification
Item | Technical Parameters |
Suitable Cable OD | 2.0mm, 3.0mm, 0.9mm |
Optical fiber diameter | 125μm |
Tight buffer diameter (μm) | 900μm |
Fiber mode | Single & multi mode |
Operation time | About 120s ( no fiber cut ) |
Insert loss | ≤ 0.3dB(1310nm & 1550nm) |
Return loss | > 40dB |
Fastening strength of naked fiber | >5 N |
Fastening strength of naked fiber holder | >10 N |
Tensile strength | >50 N |
Using temperature | -40~+75°C |
On-line tensile strength (20 N) | IL ≤ 0.2dB |
Mechanical durability (500 times) | IL ≤ 0.2dB |
Drop-off test (drop-off height 4m, once per direction, totally 3 times) | IL ≤ 0.2dB |
Packaging & Shipping

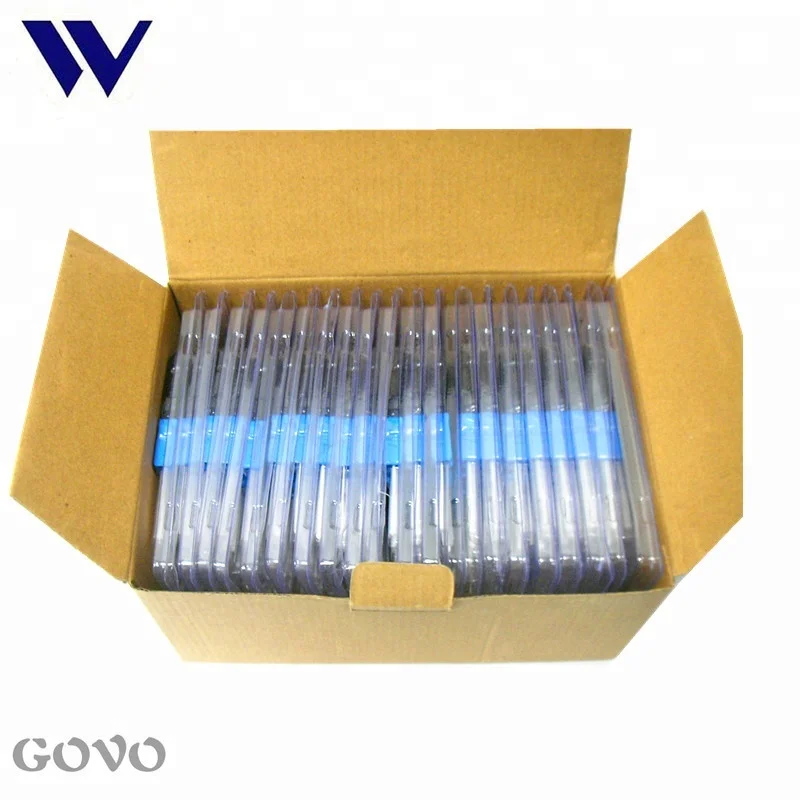

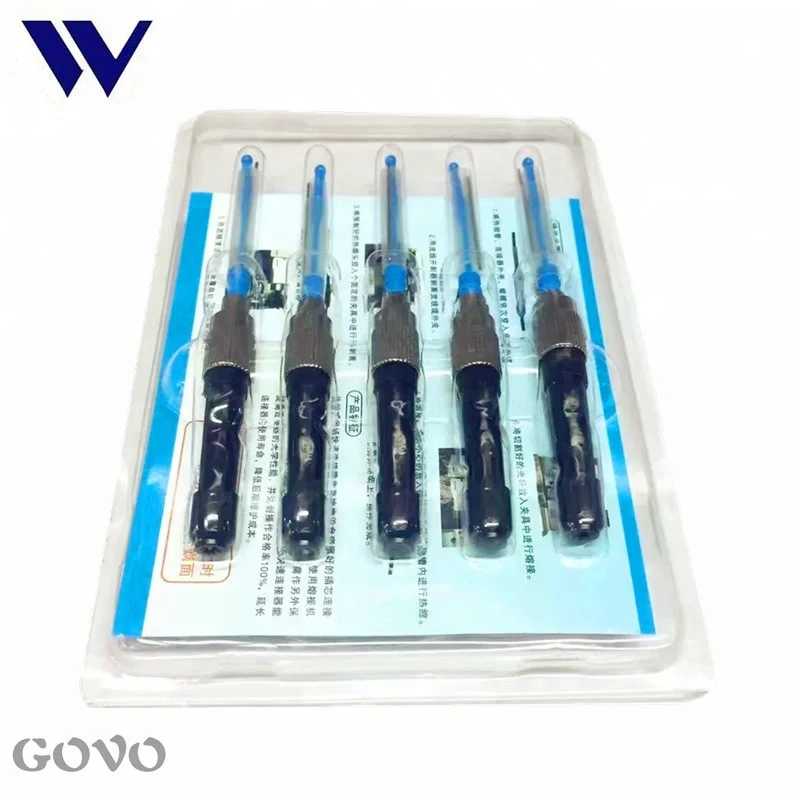

100 pieces per small carton box
Fiber Tool Kits
Alcohol Dispenser, Kimwipes, Fiber Splice Proetective Sleeve, Piler, Dummy Fiber
Kevlar Scissors, Buffer Tube Slitter, Ribbon Buffer Tube Slitter
Ideal Loose Coaz Stripper, Strength Member Cutter, Kelba Wire Clamp, Plier, Steel Wire Cutter.
Miller , Clauss , Drop Cable Stripper, Cable Sheath Slitter
- Fiber Optic Tool Kit -Proskit 1PK-940KN
GW12B Fiber Optic FTTH Tool Kits
