50 Ом 3/8 дюйма пенопластовый Диэлектрический коаксиальный кабель гофрированный медный
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (60834587916):
Product Overview
Description
Product Description

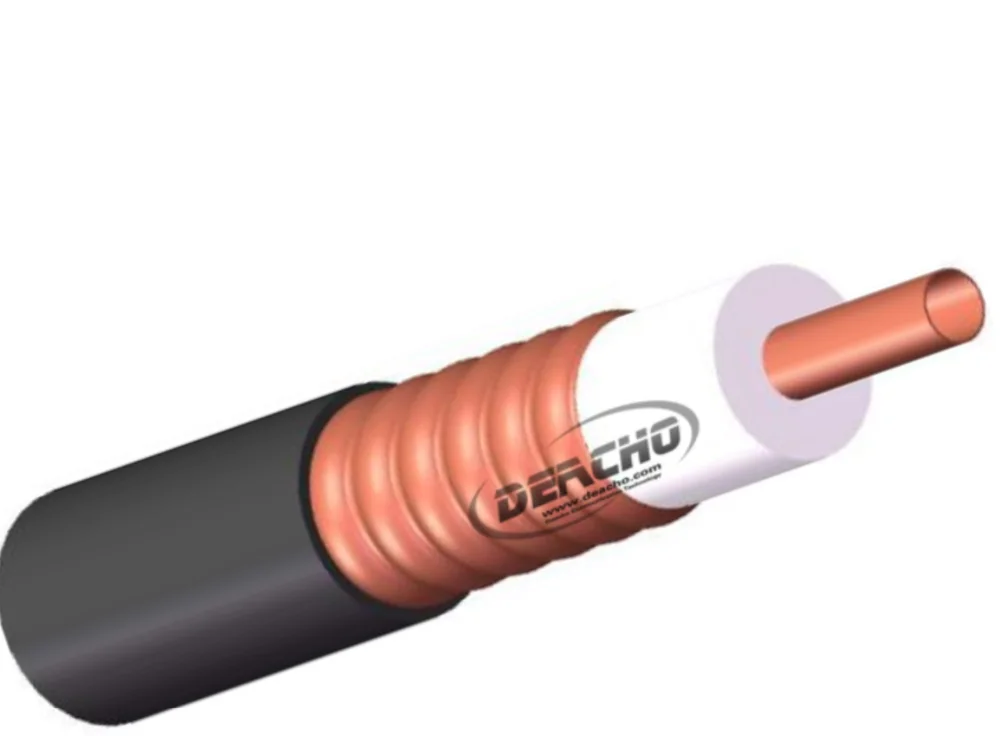

50 Ohm 3/8" inch coaxial copper feeder cable
Description.
50 ohms corrugated copper tube coaxial cable is made on advanced physical foaming insulation production line and argon arc welding, corrugating and slotting production line.
50 ohms corrugated copper tube coaxial cable is mainly used for the connection of transmitter, receiver and antenna and also connection between wireless communication equipments or other low loss and VSWR signal transmission at high frequency application. The cables is featured with low attenuation, low VSWR, small coefficient of temperature, strong corrosion resistance, good longitudinally water seal and high power capacity.
_____________________________________ Cable Construction _________________________________________
Inner Conductor | copper clad aluminum | Φ 3.15mm |
Insulation | Physically foamed PE | Φ 8.2mm |
Outer Conductor | Ring corrugated copper | Φ 9.53mm |
BJacket | Black PE | Φ 11.2mm |
________________________________________ Mechanical Characteristics _______________________________________
Min. single bending radius | mm | 50 |
Min. repeated bending radius | mm | 95 |
Max. tensile force | N | 800 |
Recommended clamp spacing | m | 1 |
________________________________________ Electrical Properties ____________________________________________
Impedance | Ω | 50±1 |
Nominal capacitance | pF/m | 75 |
Nominal inductance | µH/m | 0.2 |
Propagation velocity | % | 85 |
DC breakdown voltage | KV | 2.5 |
Insulation resistance | MΩ.km | >5000 |
Peak power rating | KW | 15.6 |
Cut-off frequency | GHz | 13.5 |
Screening attenuation | dB | >120 |
PIM | dBc@(2x20W) | ≤-160 |
________________________________________ Transmission Properties _________________________________________
Frequency MHz | Attenuation @20℃, dB/100m (dB/100ft) | Power @20℃, KW |
100 | 3.42 (1.04) | 2.24 |
450 | 7.51 (2.29) | 1.00 |
690 | 9.42 (2.87) | 0.86 |
800 | 10.20 (3.11) | 0.75 |
900 | 10.90 (3.32) | 0.70 |
1000 | 11.6 (3.54) | 0.66 |
1800 | 16.00 (4.88) | 0.46 |
2000 | 17.00 (5.18) | 0.45 |
2200 | 18.54 (5.65) | 0.42 |
2400 | 19.63 (5.98) | 0.40 |
2500 | 19.95 (6.08) | 0.39 |
2600 | 20.25 (6.17) | 0.38 |
2700 | 20.55 (6.27) | 0.37 |
3000 | 21.40 (6.52) | 0.35 |
_______________________________________________ VSWR __________________________________________________
690 - 960 MHz | ≤ 1.13 |
1700 - 2200 MHz | ≤ 1.13 |
2300 - 2400 MHz | ≤ 1.13 |
2500 - 2700 MHz | ≤ 1.15 |
________________________________________ Environmental Properties ________________________________________
Flame retardant | IEC 60332-1, IEC60332-3C, UL CMR |
2011/65EU(ROHS) | Compliant |
Related Products

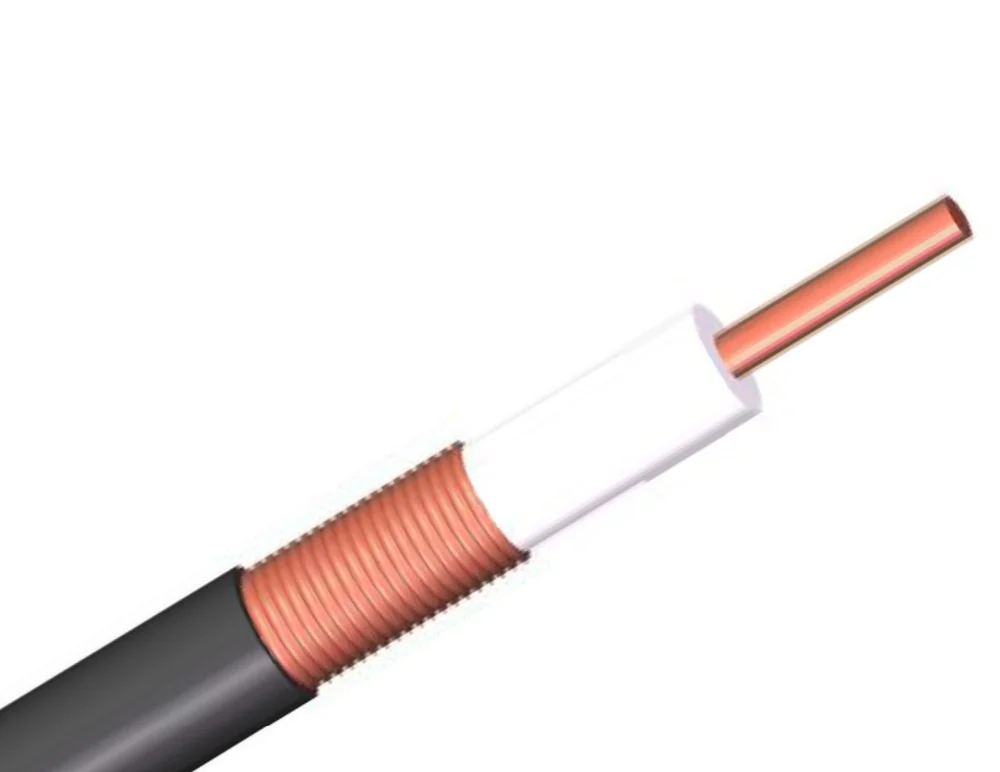

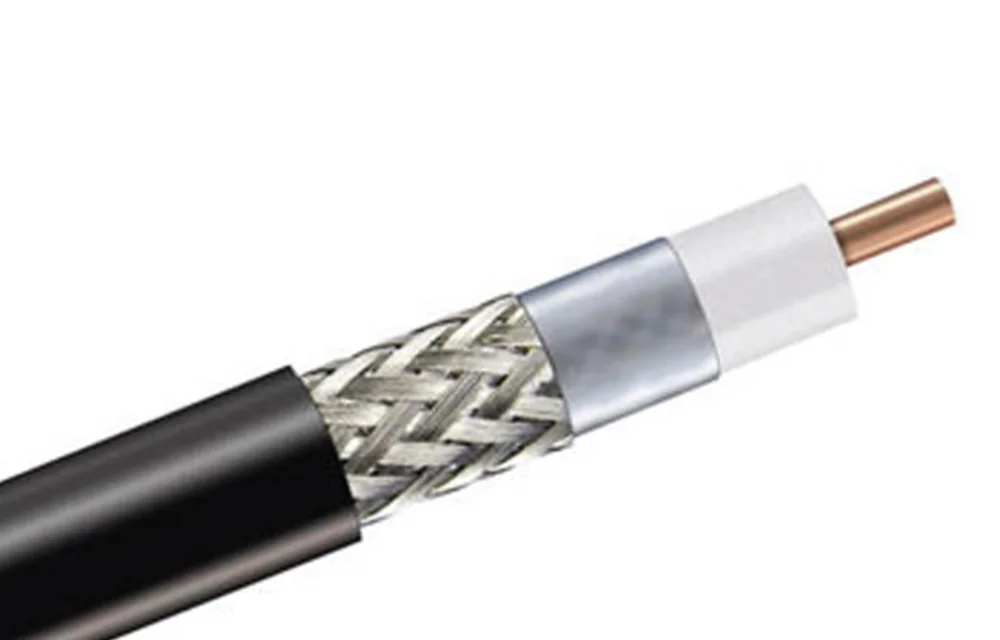

1/2" 1/2" Super Flexible 7/8" LMR 400
