Product Overview

Description

Introduction

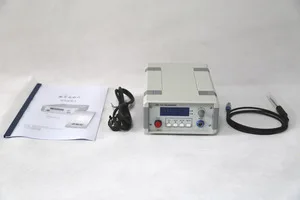

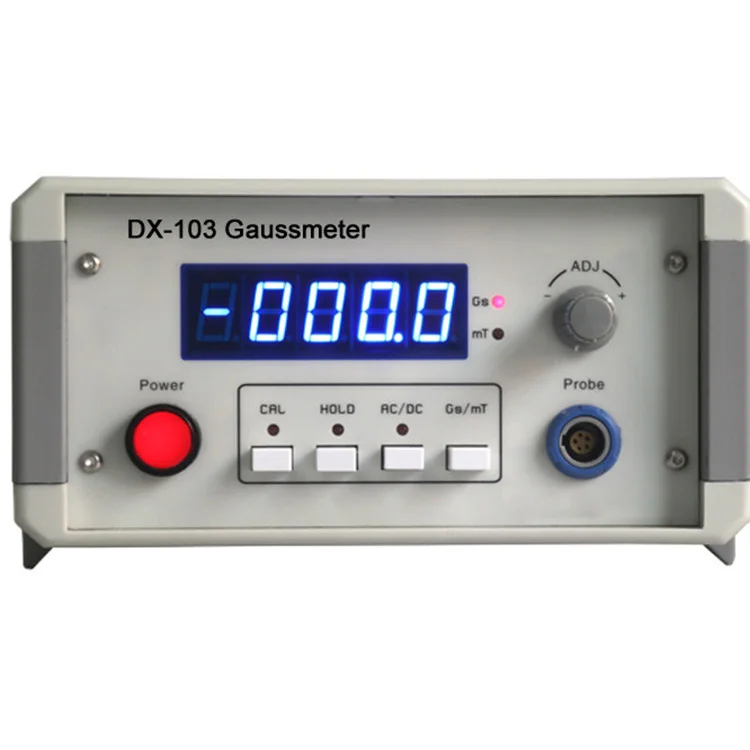

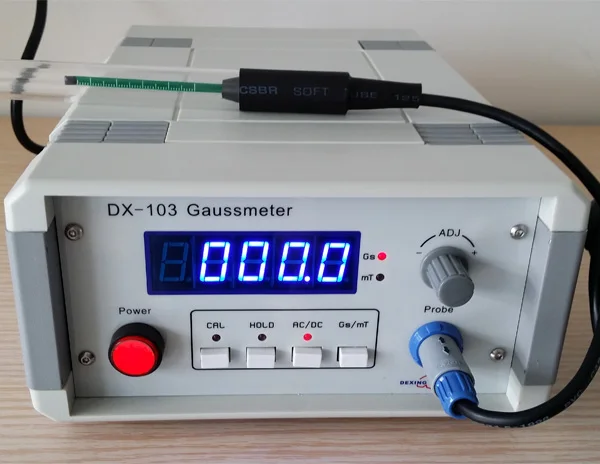

DX-103 Gaussmeter is a desktop gaussmeter.
Which is based on he latest progress of the the Hall Effect magnetic field measuring instrument.
Adapt the high stability constant current source circuit technology to design and manufacture.
Test probes adapt imported GaAs linear Hall-chip, the difference between probes is small,
which can be replaced directly when it is damaged, and is an ideal AC & DC magnetic field test instrument.

  Functions

1. DC and AC magnetic field measurement and peak value measurement;
2. DC and AC magnetic field distribution measurement;
3. The magnetizing measurement of the permanent magnets;
4. The magnetic field distribution measurement inside the AC and DC coils;
5. The air gap magnetic field measurement of electromagnets;
6. Normal DC and AC magnetic field measurement.

Parameters

1. Power supply: 220V ± 20V/0.5A, 50Hz
2. Range: 200.0mT, 2000mT two gears
3. Accuracy: better than 1.0% (0 ~ ±1000mT); better than 2.0% (1000mT ~ ±2000mT);
4. DC/AC field measurement and peak vlaue locking
5. Minimum resolution: 0.01mT (0.1Gs)
6. Dimension: 248mm × 180mm × 90mm
7. Weight: 2kg

Probe options:

DX-103 Gaussmeter can be matched with one of following three probes according to actual measurement:
1. Axial probe: L60mm,Dia. 3.0mm,Sensitive area:0.5mm×0.5mm;
2. Transverse probe(Standard probe): L60mm,W3.5mm,T0.6mm,Senstive area:0.5mm×0.5mm;
3. Superthin probe:L40mm,W1.2mm,T0.35mm,Senstive area:0.25mm×0.25mm.
