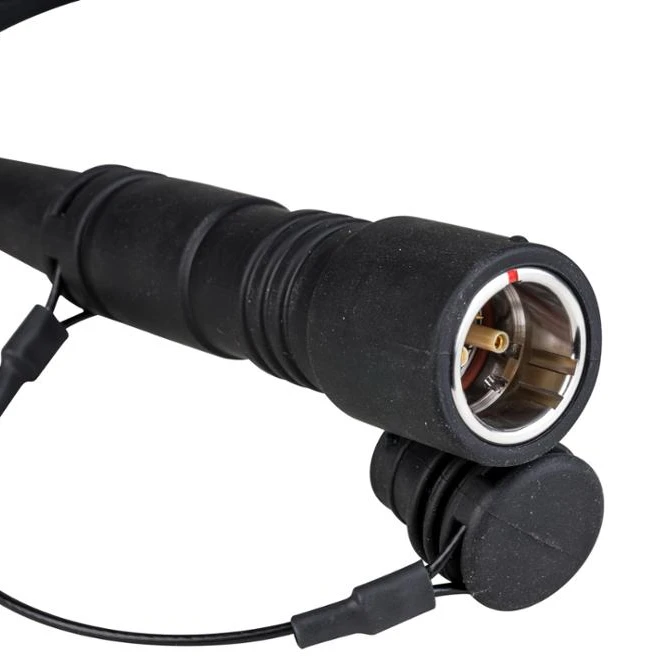

FUW PUW 300m /Model: PUW.3K.93C.TLCC96 FUW.3K.93C.TLMC96 / HDTV 3K.93C Series/ Custom Cable Length available
FUW-PUW-300m /Model: PUW.3K.93C.TLCC96+FUW.3K.93C.TLMC96 / HDTV 3K.93C Series/ Custom Cable Length available
FUW-PUW-300m /Model: PUW.3K.93C.TLCC96+FUW.3K.93C.TLMC96 / HDTV 3K.93C Series/ Custom Cable Length available
FUW-PUW-300m /Model: PUW.3K.93C.TLCC96+FUW.3K.93C.TLMC96 / HDTV 3K.93C Series/ Custom Cable Length available
FUW-PUW-300m /Model: PUW.3K.93C.TLCC96+FUW.3K.93C.TLMC96 / HDTV 3K.93C Series/ Custom Cable Length available

FUW PUW 300m /Model: PUW.3K.93C.TLCC96 FUW.3K.93C.TLMC96 / HDTV 3K.93C Series/ Custom Cable Length available

Share on (60834601147):


Price:RUB 1,840.21

Quantity:


Product Overview

Description

Overview

Camera Cable/15M/FUW-PUW- 3K.93C/FCT-FCLB /HAIRWER/OEM/15M/ 50Feet/LENGTH CUSTOMIZED/FUW-PUW

Hairwer Fiber Optical

The 3K.93C Series connectors are the only connectors in the world that are fully compatible with the SMPTE, ARIB and EBU standards. It has a life of more than 20,000 times of plugging and unplugging, and has excellent performance with an insertion loss of only 0.1 dB. The HAIRWER 3K.93C series connectors are used as standard interfaces for high-definition camera systems by well-known broadcasters at domestical and abroad.

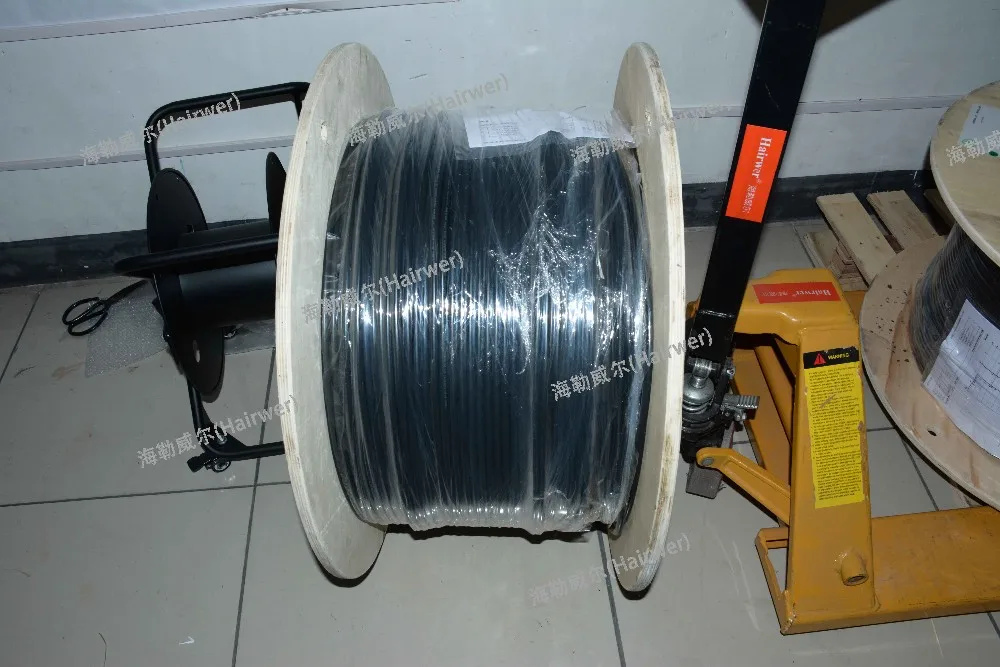

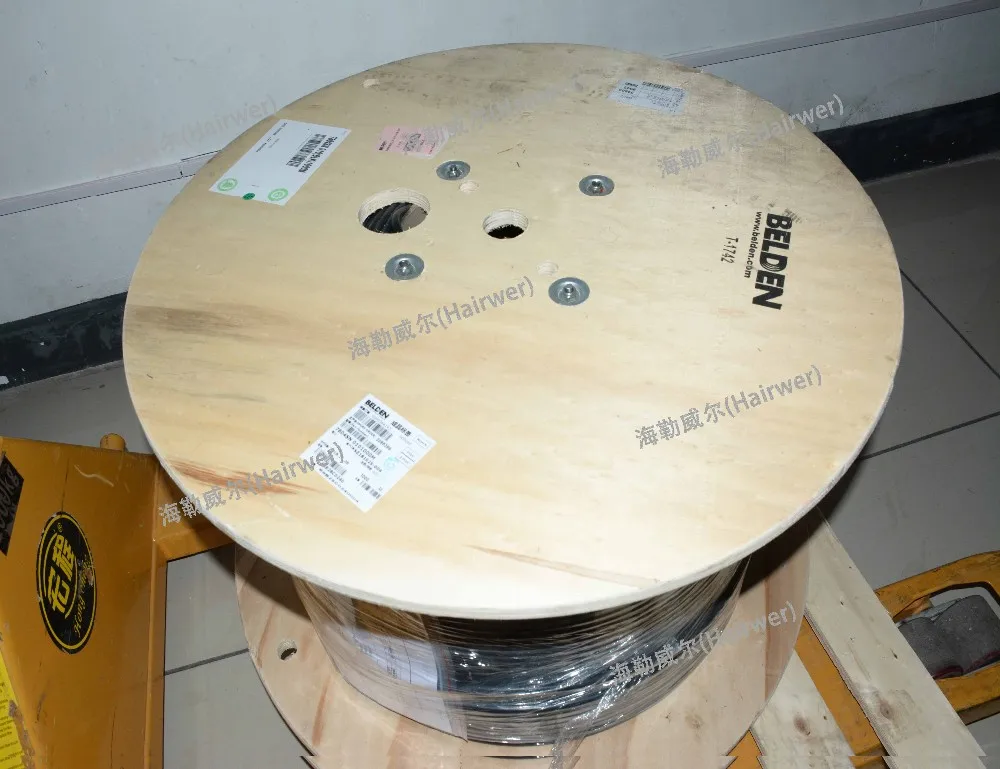

BELDEN CABLE

ALL OUR CABLE WAS MADE UP BY BELDEN.

HIGH QULITY AND STABLE CONNECTION.

Product Details

Main Features

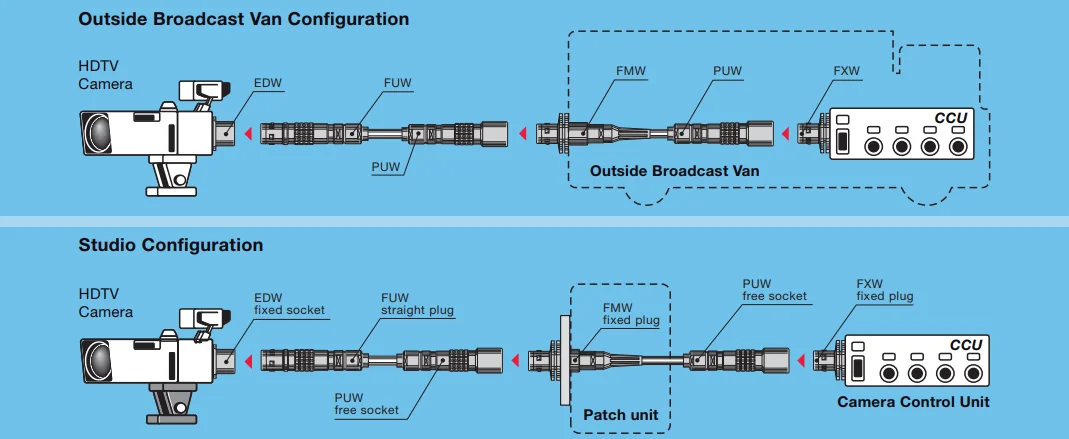

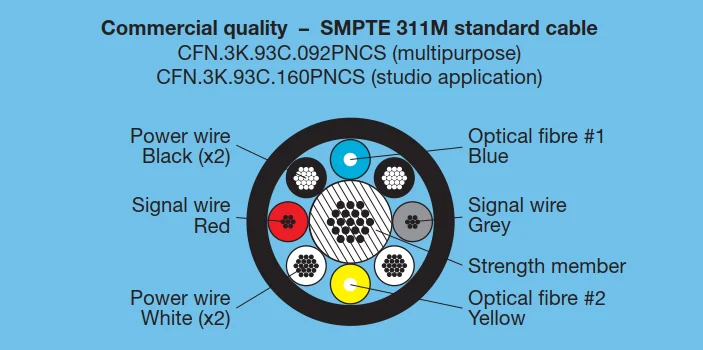

The opto-electric composite cable consists of four power supply lines (20AWG) for two HDTV cameras, two signal control lines (24AWG) and two single-mode fibers for video and audio transmission. The core of this composite cable runs through a 1.8mm high. The strength of the steel wire, the overall woven mesh shield, this design will ensure the structural integrity, while maintaining good winding, which can extend the life of the cable. Such a composite cable can be used to connect different cameras for live broadcast of outdoor work, and can also be used in a fixture of a control room to which a studio camera is connected.

Applications

●Live Broadcasing Applications
●Sports Live Broadcasting Applications
●Studio applications
●Concert

Features

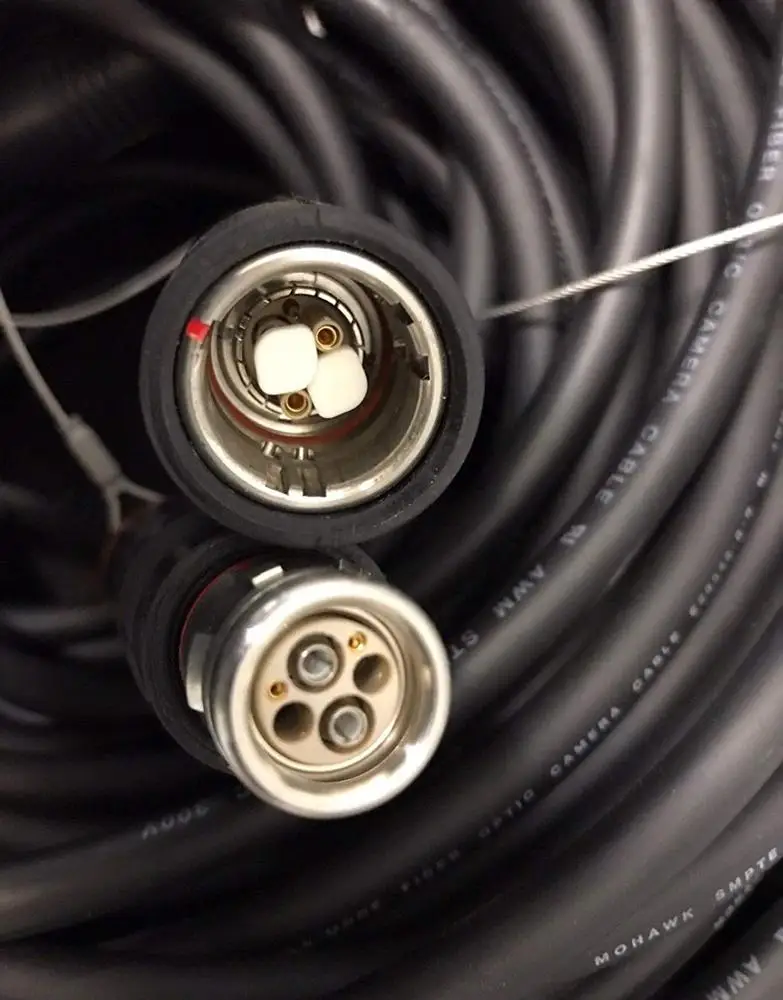

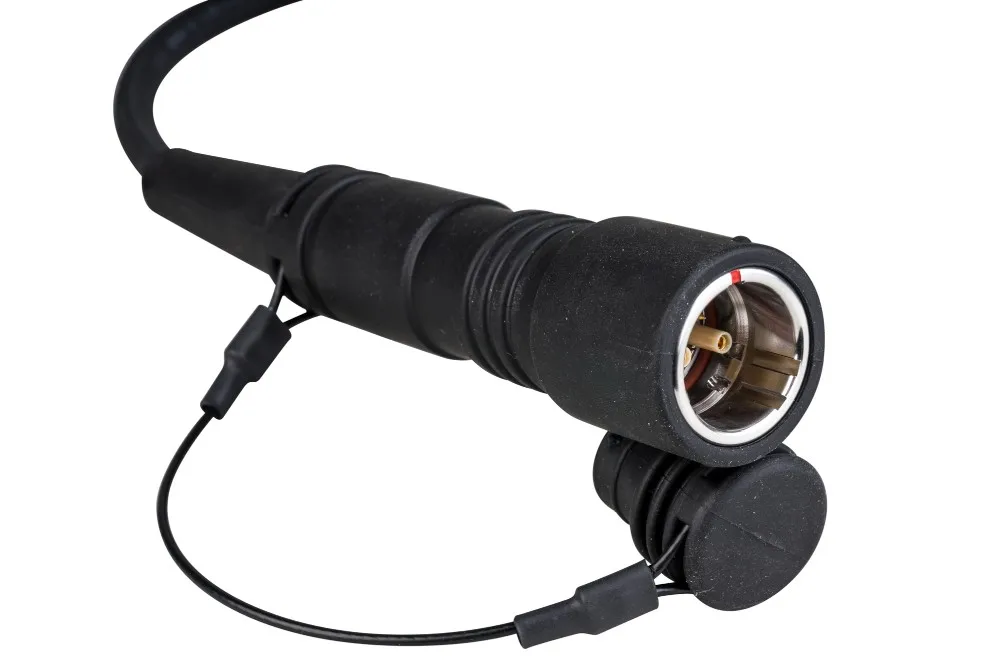

●Push-pull self-latching system for quick and easy mating.
●Compact design with 2 fibres, 2 power contacts and 2 signal contacts.
●Easy cleaning of the fibre optic contact ferrules.
●Tested to the requirements of IEC 61300.
●Very low optical losses (<0.10dB).
●Reliable design, sealed to IP68.
●Optional pre-terminated F2 fiber ferrule, quick and easy on-site installation.
●Comply with SMPTE,ARIB & EBU Standrad

Points

● Quick-connect plug-and-pull self-locking system with insertion loss ≤0.1dB;
● Two-way fiber, two-way power supply and two-pin signal core configuration;
● Stainless steel casing is suitable for various 20,000 times of insertion and removal, especially in harsh environments;
● It can withstand 1.5m water depth immersion after connection (protection grade IP68);
● Fiber core cleaning is simple and convenient;
● High and low temperature resistance, working temperature range -40 ° C to +80 ° C;
● Comply with SMPTE, ARIB and EBU standards;

Why Choose Us

HAIRWER

HAIRWER (CHANGSHA) Tech Pty Ltd. The company is motivated by the development of studio equipment in China. With its strong R&D capability and high-precision and low-cost manufacturing technology, it has produced a series of broadcast-level professional equipment for mobile studios and TV broadcast vehicles.





The company has a core advantage in fiber-optic hybrid transmission technology for multi-format broadcast-quality image and sound signals. Its multi-channel SDI/ASI (TS stream) signal technology has been patented and approved in May 2004. . The current high-end products can deliver 128 channels of multi-program TS streams (approximately 750 digital TV programs) in a single fiber, and the technology is leading the industry in the world.


About us

The company professional to do 3k.93c broadcasting connection and EFP system

Equipment & technology

The company is committed to the broadcast and television industry for years and has excellent R&D department

Service

The company can satisfied OEM and custom special order requirements. Customer always first.

Dear customer ,
This is Henry from Hairwer , Hairwer (Changsha) Electronic Technology Ltd is a professional manufacturer and exporter , which is concerned with R&D , and production of Broadcasting equipment ,and we also do OEM , all of our products have the best price and high quality , our main products is Camera ENG system , SMPTE Camera fiber optical and telecom communication equipment .

Hairwer (Changsha) Electronic Technology Ltd established in 2003.
Our R&D department is located in Shenzhen and factory have move to Changsha.


Our products were been used in many live broadcasting event. We have been corporate with many Stated owned television station for more than 10 years. It has proved that our products is most cost –effective with high quality in this industry.

We are happy to do OEM and develop any related products as customer design. If you have any other questions , juts feel free let me know , thanks for reading !
