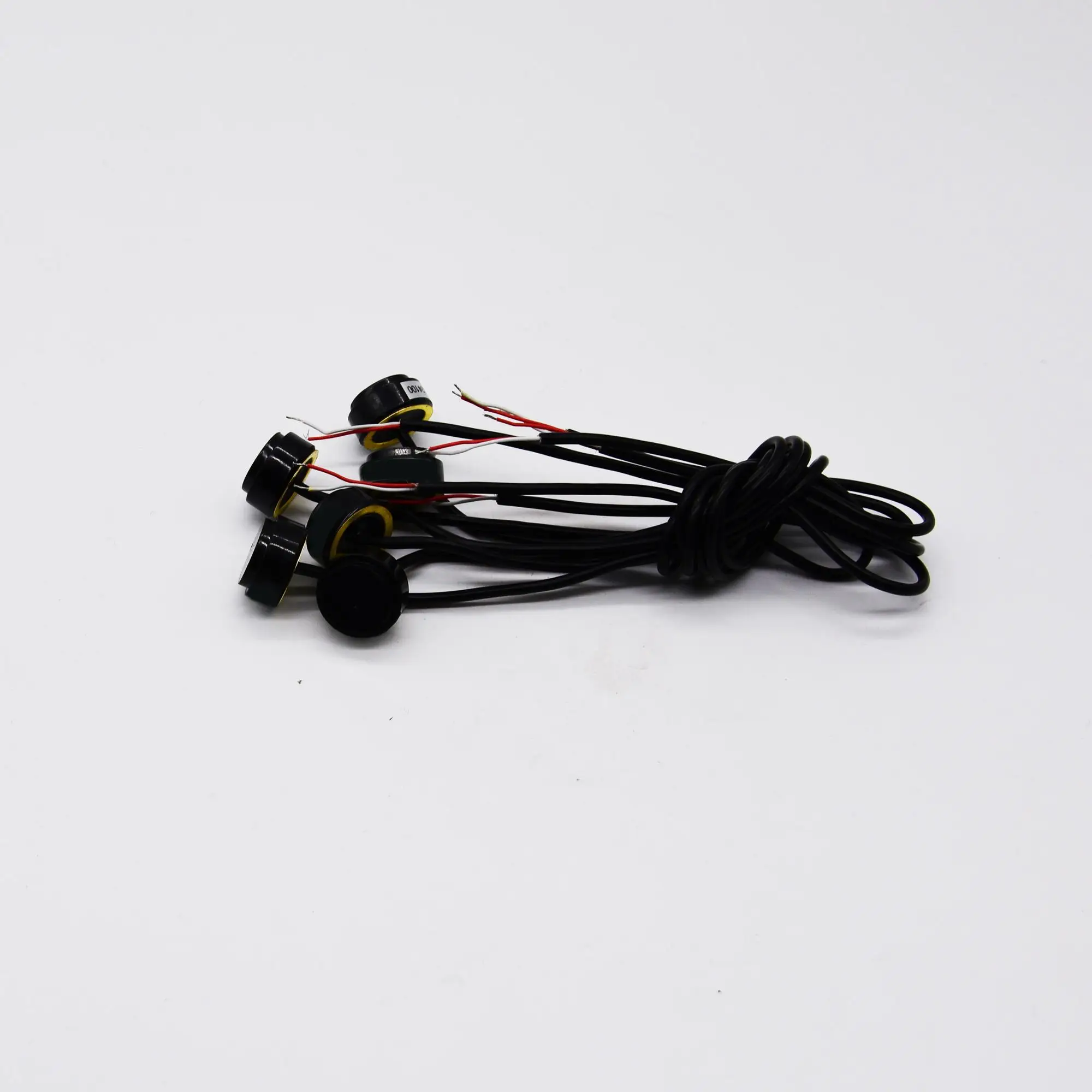

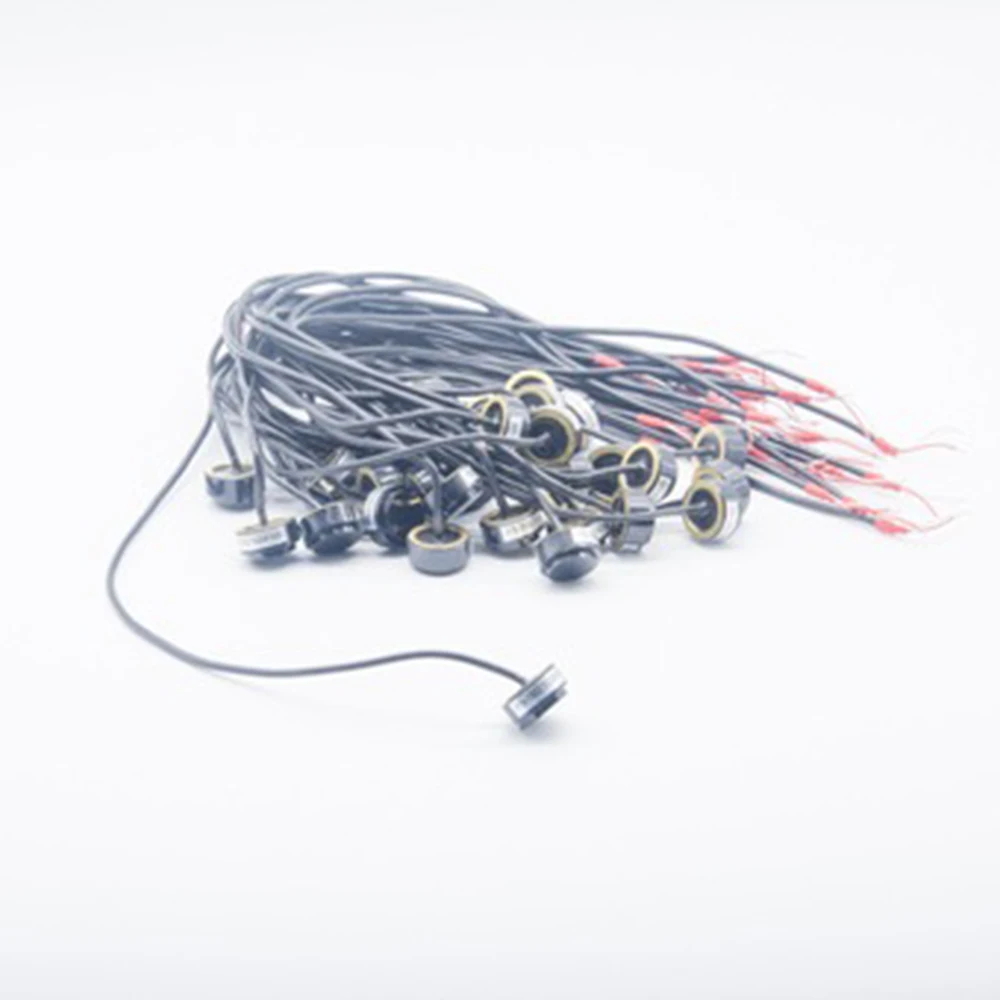

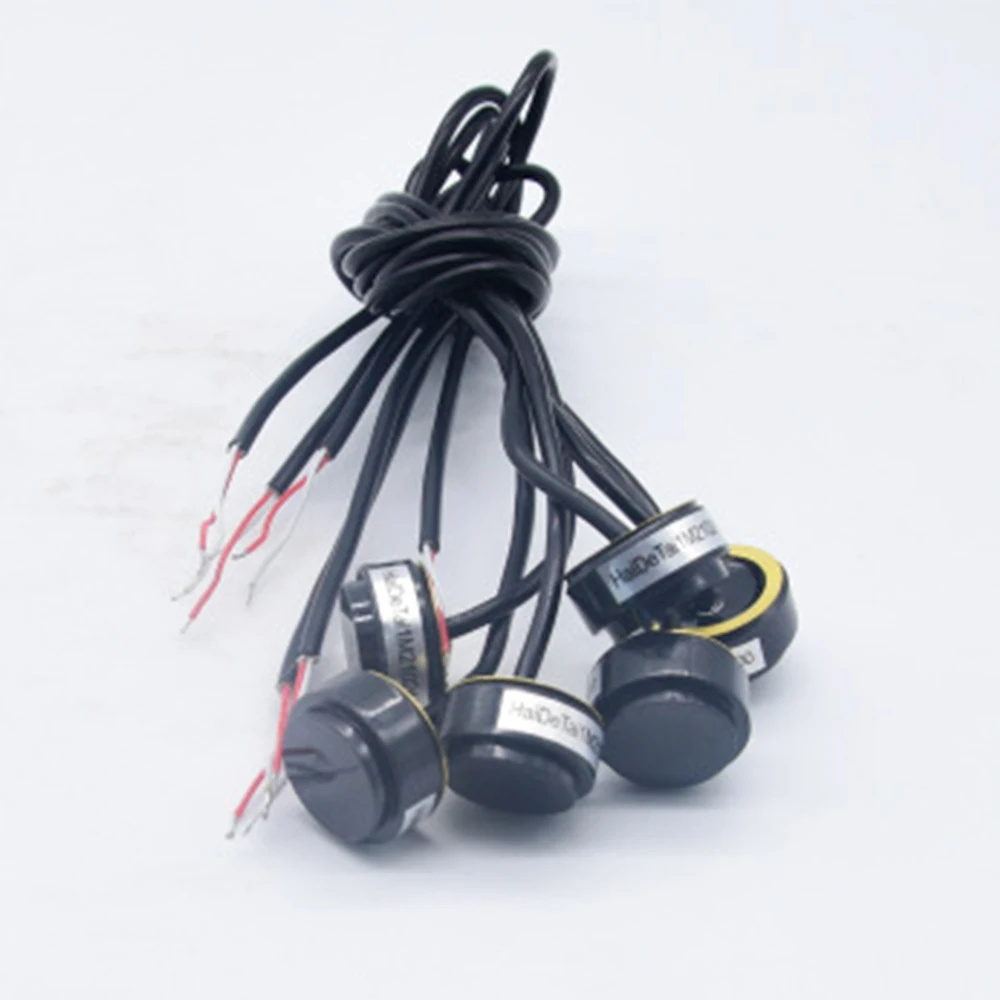

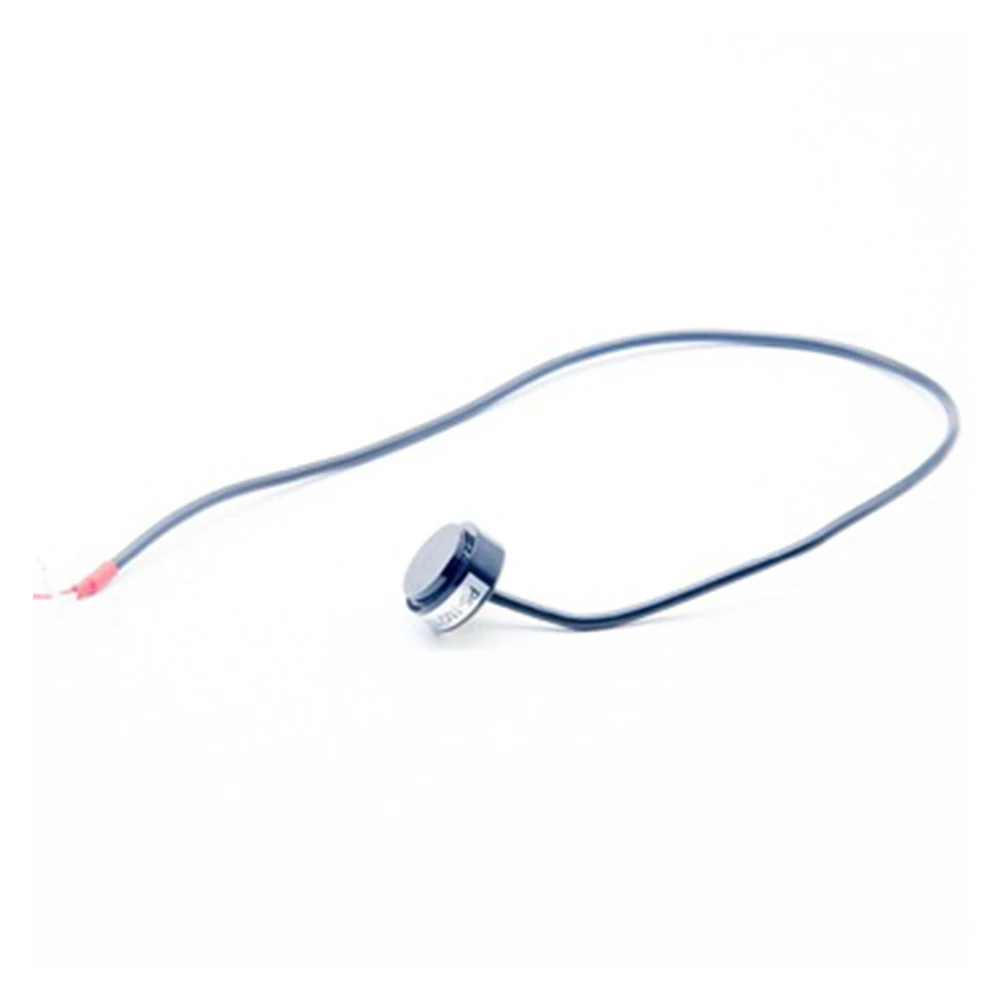

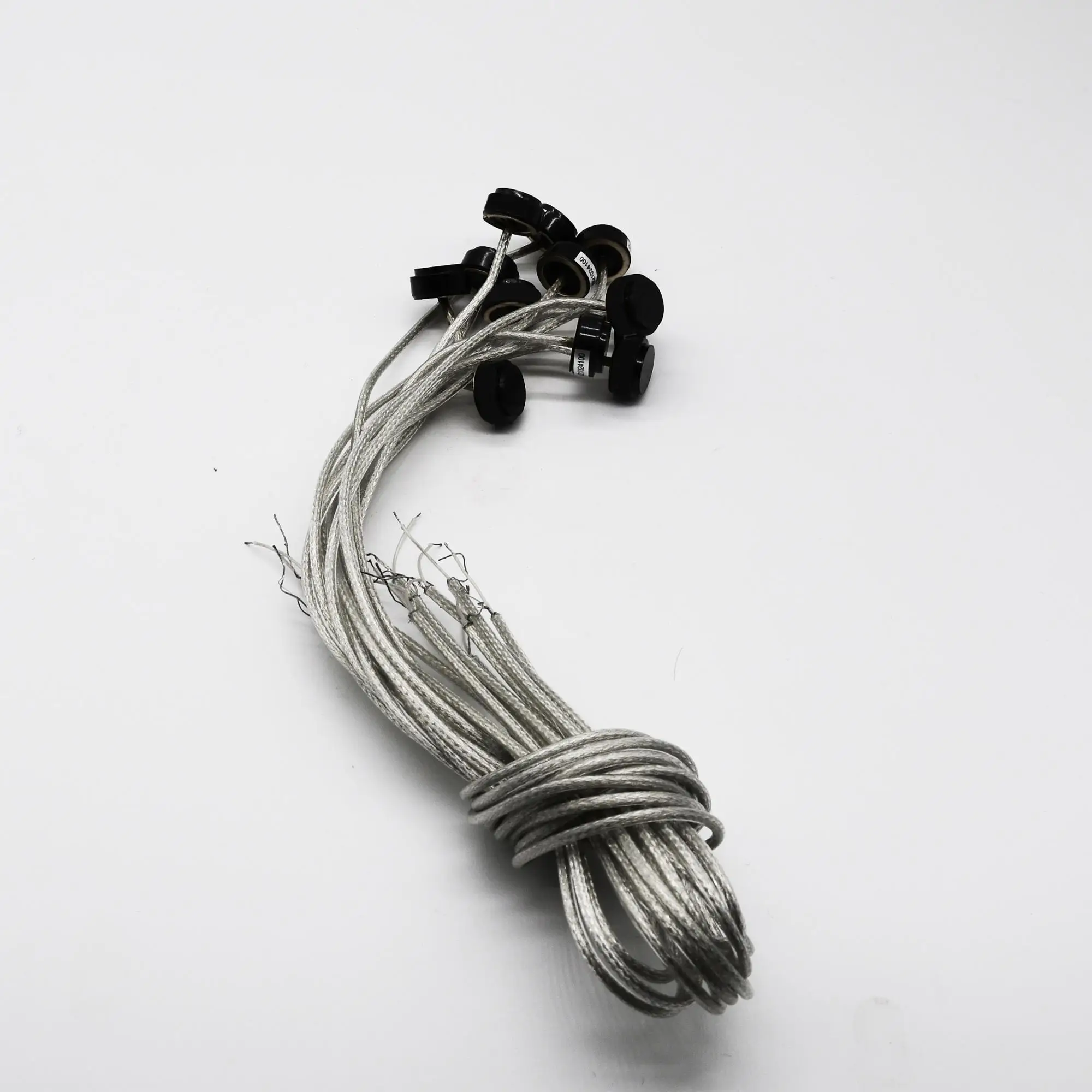

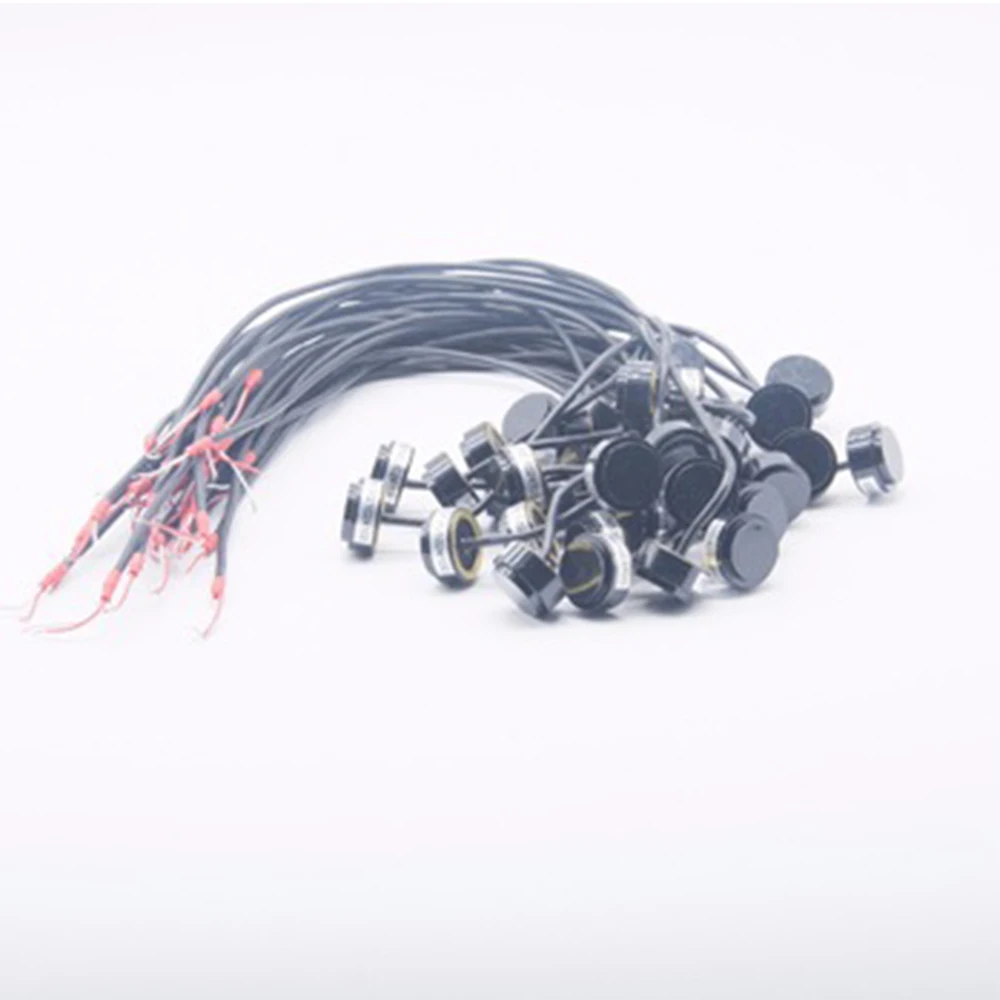

China high quality waterproof 1 MHz Piezoelectric transducer ultrasonic water meter

Share on (60834633803):


Price:US$2.30

Quantity:


Product Overview

Description


Product Description
\t
Product Details
\t
Detail parameters
\t
Sensitivity
\t
-21.6DB
\t
Recieving Frequency
\t
1.0MHz
\t

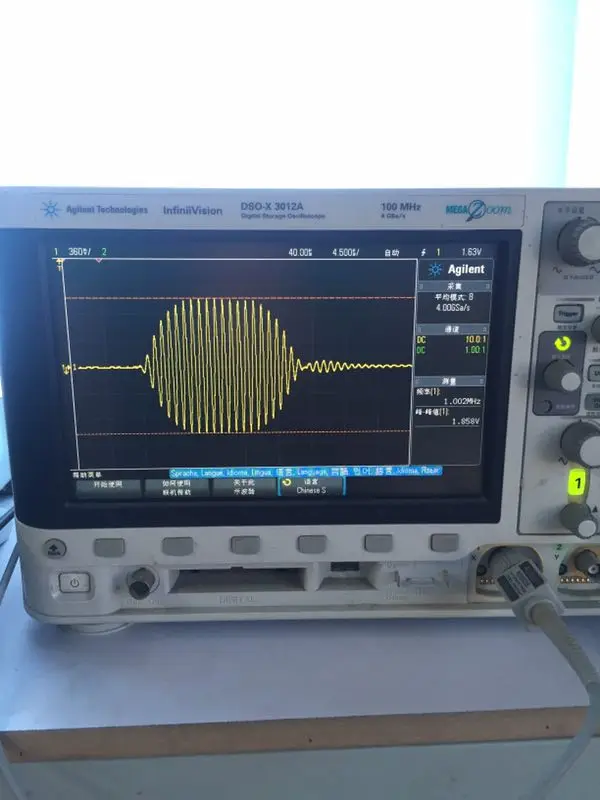

Pulse Length
\t
7.68uS
\t
Peak Frequency
\t
1.048MHz
\t
Bandwidth
\t
39.5%
\t
Center Frequency
\t
1MHz
\t
Static Capacitnce
\t
1100pF~1400pF
\t
Resonant Impedance
\t
150Ω~300Ω
\t
Waterproof Grade
\t
IP68
\t
Operating Temperature
\t
-40℃~120℃
\t
Temperature Drift
\t
<20KHz
\t
Ultrasonic Delay
\t
1.5uS
\t
QM
\t
3.0~4.5
\t
Launch Beam Angle
\t
5°~10°
\t
Recieving Sensitivity
\t
>1.7V(3V , 10pulse , 20mm)
\t
Shell Material
\t
Engineering Plastics(temperature resistance 150℃)
\t
Lead Position
\t
Sensor Center

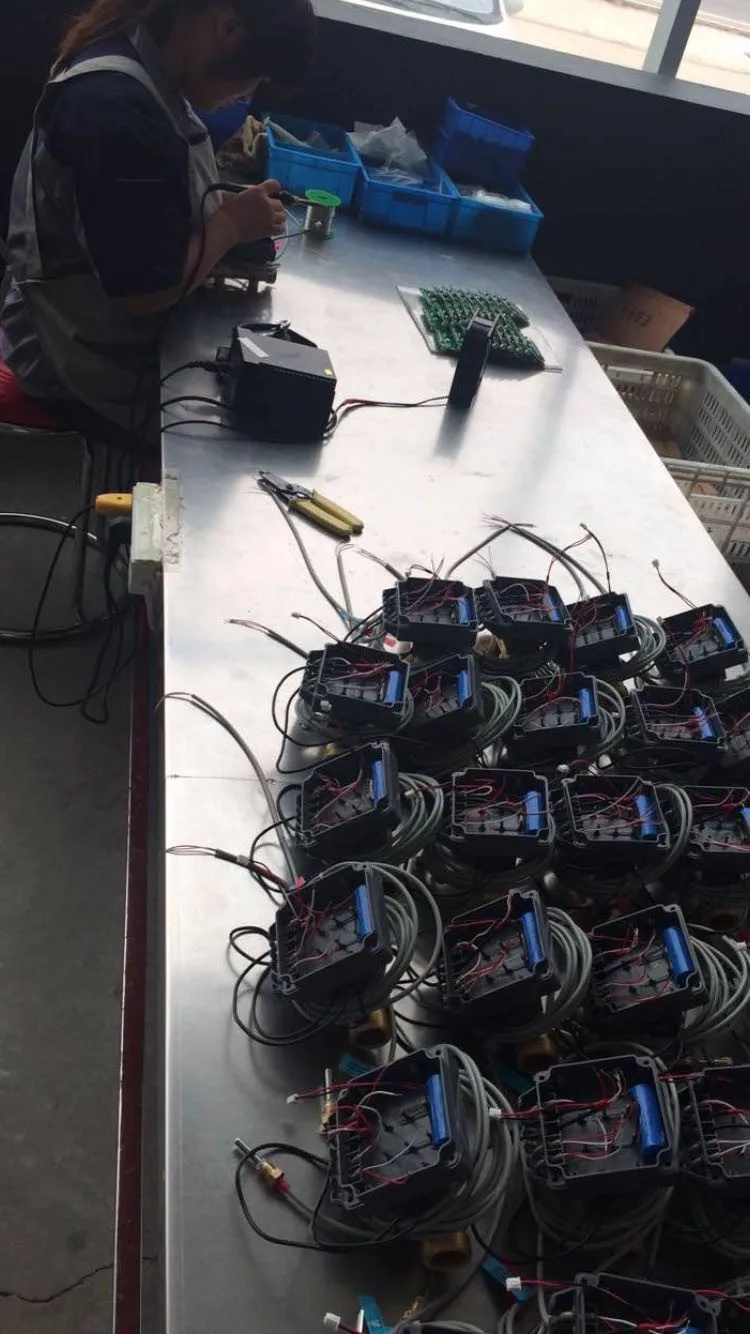

Production shop

Company Profile

  JIAHAO is a professional manufacturer of Smart valves,Ultrasonic Heat meter,Ultrasonic Water meter,as well as the meter for prepaid system. The goods are widely used in HVAC system, Water treatment system, Industrial equipment.With superior quality,competitive price,have been enjoyed a high popularity and approval among Russia,Turkey,Poland and other Euro-market.


Warehouse
Exhibition

    ISK-Sodex 2018 Istanbul - HALL9 Sierjia D12 on 7th-10th February

  On 7th--10th February, we participate in the exhibition in the Istanbul. We will show our latest products, such as Ultrosonic meter, transducer, temperature sensor, motorized valve, etc. There must be something catch your eyes!

Welcome to it!

Aqua-Therm 2018 Moscow C649A in 6th-9th February

Our products vary from HVAC system and water treatment system to industrial equipment.
There will always be surprising products for you.
We are looking forward to your coming.

Waiting for you in Moscow!
Other products

Ultrasonic heat meter

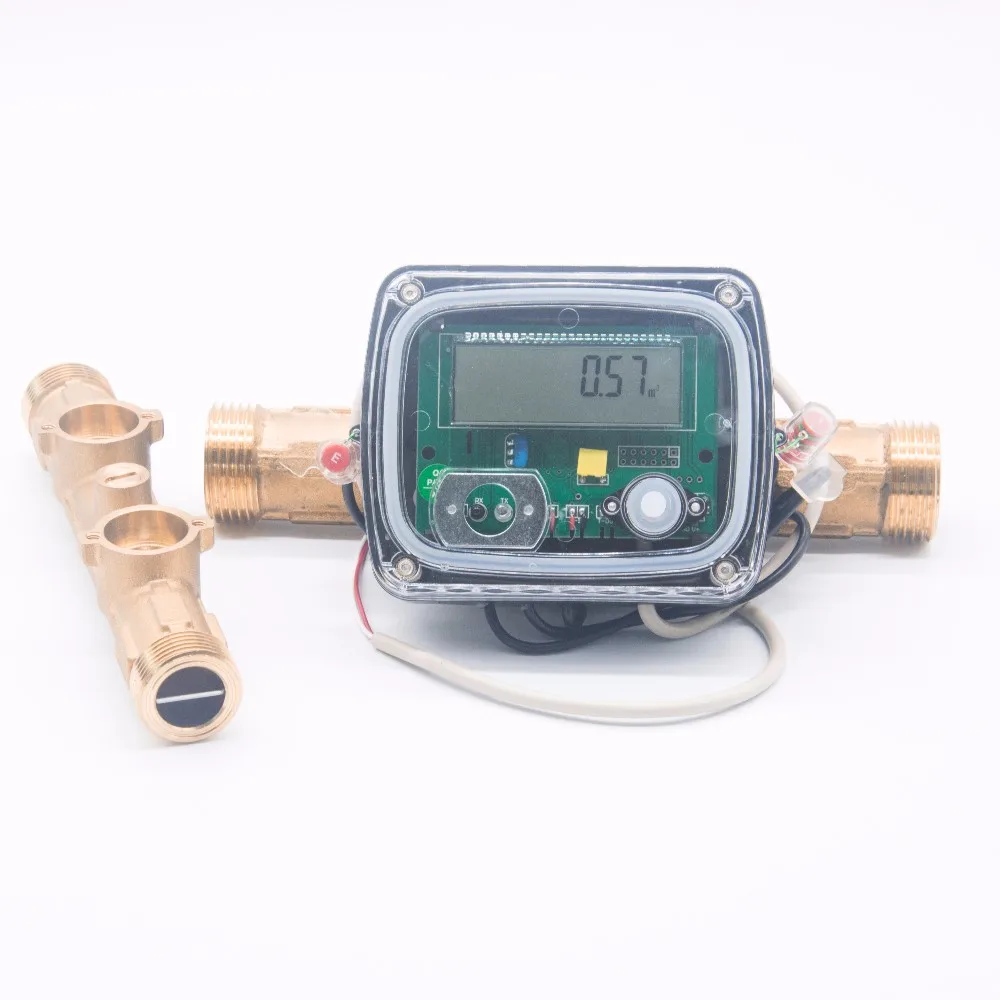

Ultrasonic water meter

Prepaid water meter

Electric Valve

Actuator

Pt1000 Temperature sensor

Packing & Delivery
FAQ

Q:Are you manufactory?
A: Yes, we are professional manufacturer for brass fittings and valves and smart meter.

Q:What is MOQ for this product in your company?
A:MOQ is 200 pcs, if less, please check with us firstly.

Q:What delivery time is in your company for this product?
A:Delivery time is 30 days in general. If tight, please check us. We will arrange production for you as per mutual benefit.

Q:What payment is it in your company after order?
A:Payment is T/T or L/C at sight. Another payment can be accepted after confirmation.

Q:Can you pack this product with our color card and our brand logo?
A:Customized color card is welcome with design in PDF,AI,CDR form.

Q:We are one big company, and want to design our special package for this product, is it ok?
A:Sure. Another customized package is welcome with design as gift box, display box and so on.

Q:What shipment is it to our destination?
A:In general, we deliver goods by sea for saving cost. If urgent, we can consider by air.
