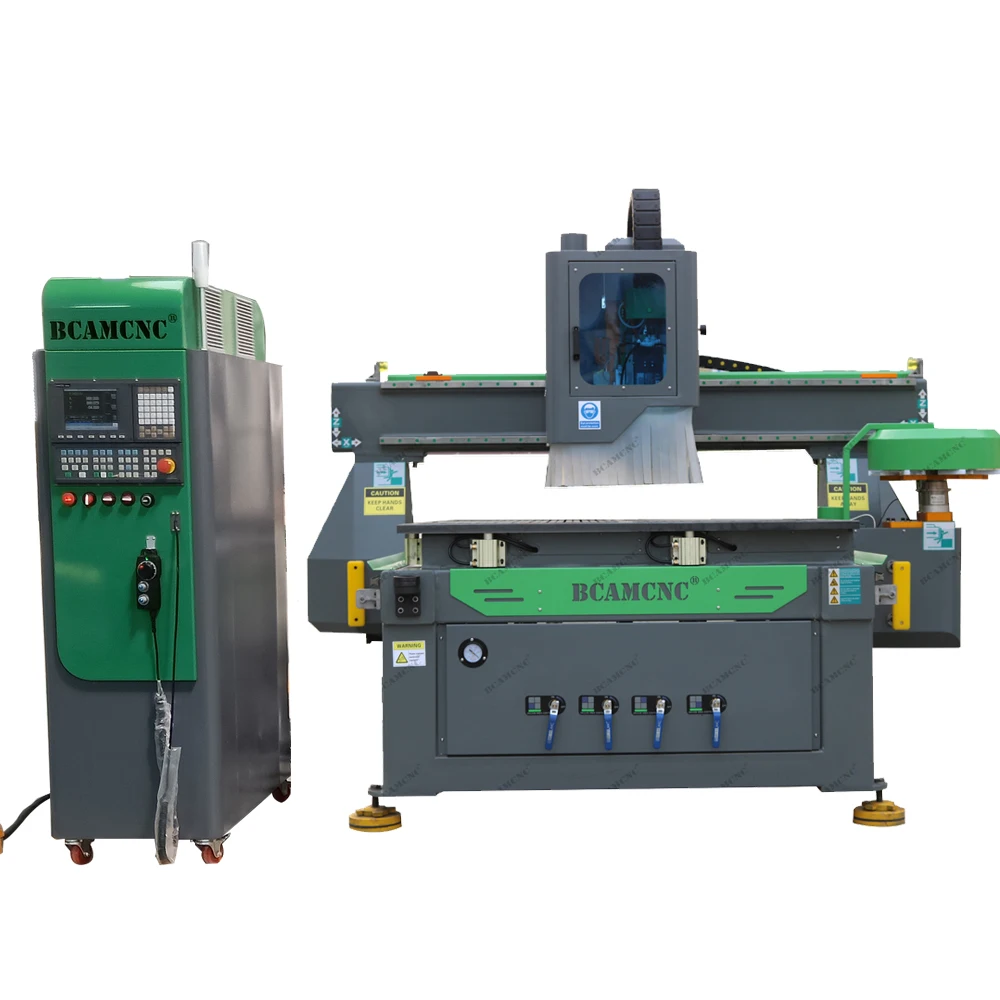

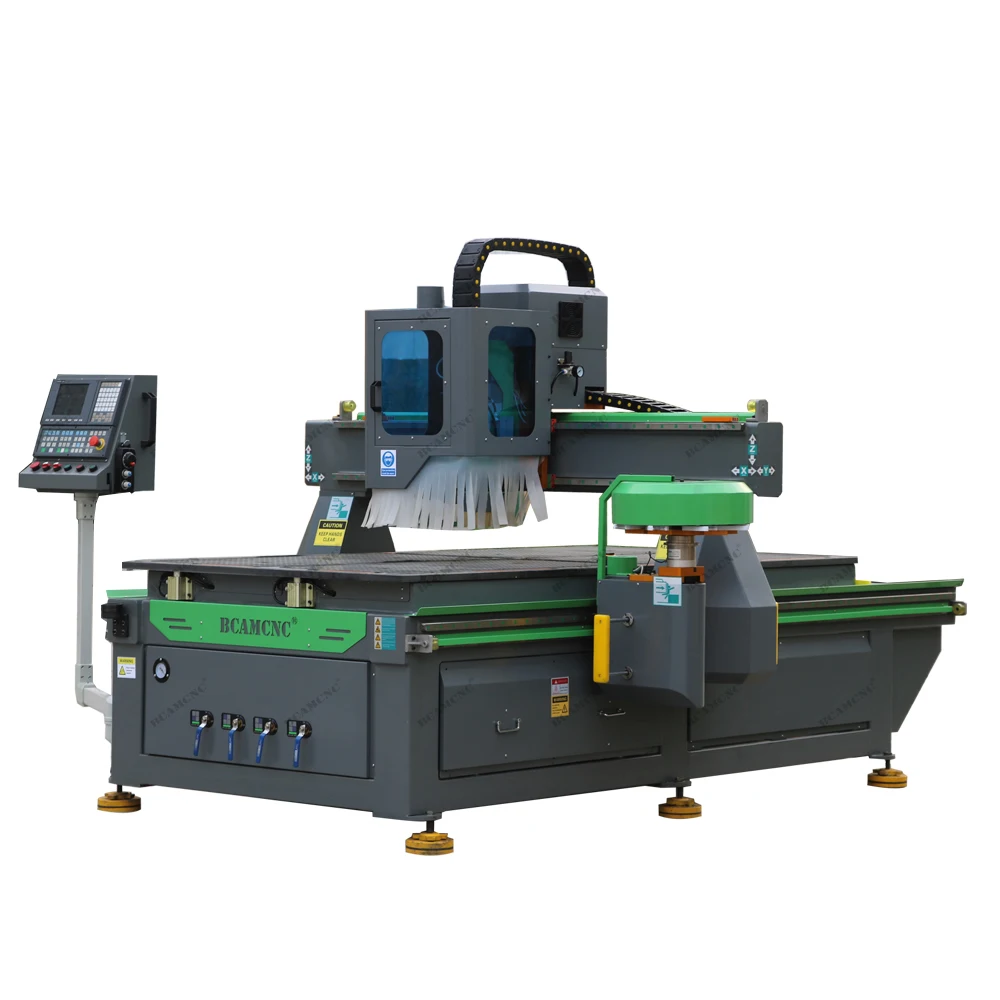

CNC milling machine 3 axis woodworking machine 1325 1530 2040 2060 with big size table wood router machinery

Product Overview

Description

CNC milling machine 3 axis woodworking machine 1325 1530 2040 2060 with big size table wood router



Packaging & Delivery

Packaging Detail: water-proof paper on machine and standard plywood box

Delivery Detail: 5 days after received your payment

Brief Description

CE, ISO9001,TUV standard

Disk ATC-Magazine

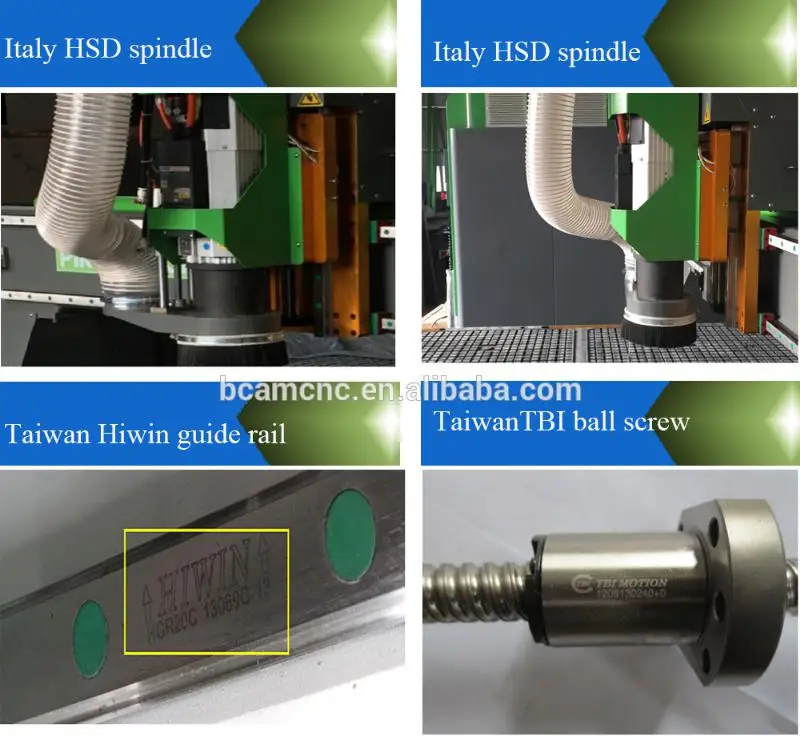

Italy HSD 9kw spindle

Taiwan Hiwin 30 linear guide rail

X Y axis gear transmission, Z axis Taiwan TBI screw transmission

Taiwan Syntec control system

Japan Yaskawa servo motor and driver

Vacuum table and vacuum pump

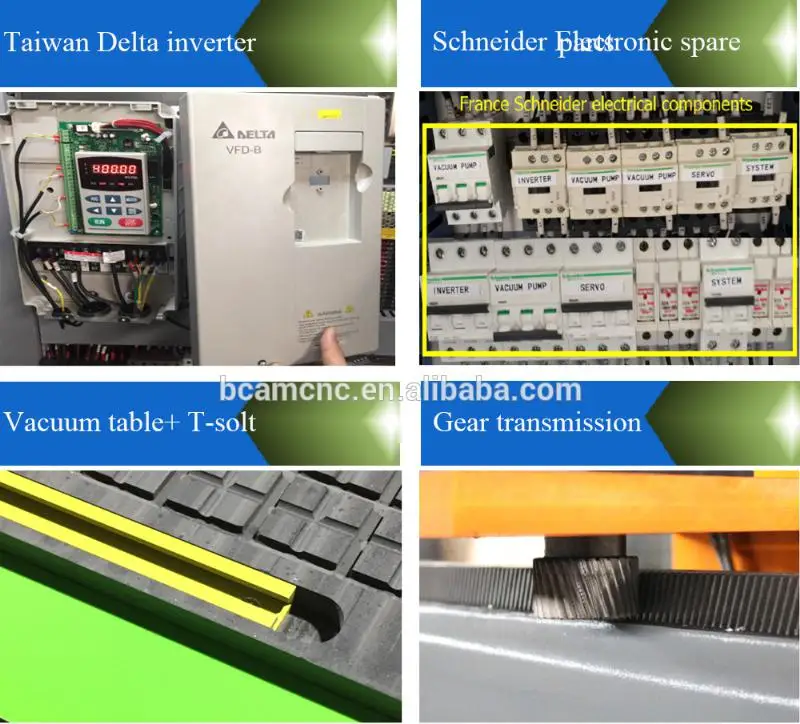

Delta inverter

Tool sensor

Heavy duty

Application

* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.

* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.

* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.

* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Features

* This machine is suitable for diverse complexity products processing, wide functions: engraving  and milling, drilling, cutting, side milling, chamfering edge and so on.

* All mechanical, electrical components adopts international top brand products, Taiwan Hiwin 30 rail, servo motor system from Japan, Italy Air Cooling spindle.

*Bamboohat ATC system, tool changer capacity is 8 pieces, tool changing time just need 8 seconds.

* Two-track and bilateral conveyor table, belong to heavy type cutting machine.

* Besides, SKM25 and other variety of models are available for you to choose.

Technical Specification

Parameters	Standard Specifications
X,Y,Z Working Area	1300*2500*200mm|4*8ft
Optional Working Area	1300*1300*200mm|4*4ft
	1500*3000*200mm|5*10ft
	2000*3000*200mm|6*10ft
	2000*4000*200mm|6*13ft
	2000*6000*200mm|6*20ft
Spindle Power	9.5kw Italy HSD air cooling  spindle
X,Y,Z Traveling Positioning Accuracy	±0.02/2000mm
Table Surface	Vacuum table+T-solt table
X,Y,Z Rail and Trasmission	X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate	90m/min
Max. Working Speed	70m/min
Cutting thickness	According materials
Spindle Speed	6000-24000RPM
Drive Motors	Japanese Yaskawa servo motor and drivers
Working Voltage	AC380v/50HZ/3 phase
Command Language	G code
Operating System	Taiwan Syntec 6MB control system
Interface	USB
Software Compatibility	Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment	Temperature: -20℃~45℃ Relative Humidity: 5%~75%

cnc milling machine 3 axis woodworking machine 1325  2040 2060

Samples

The machine can do cutting,engraving,milling,drilling. Delivery time only 5 days!

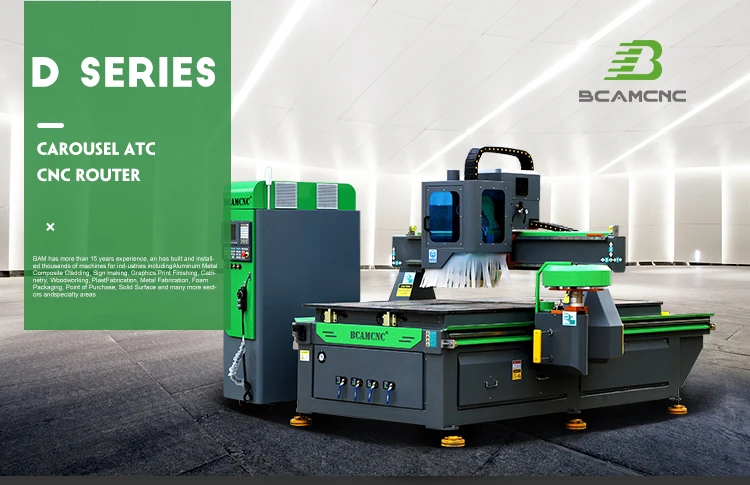

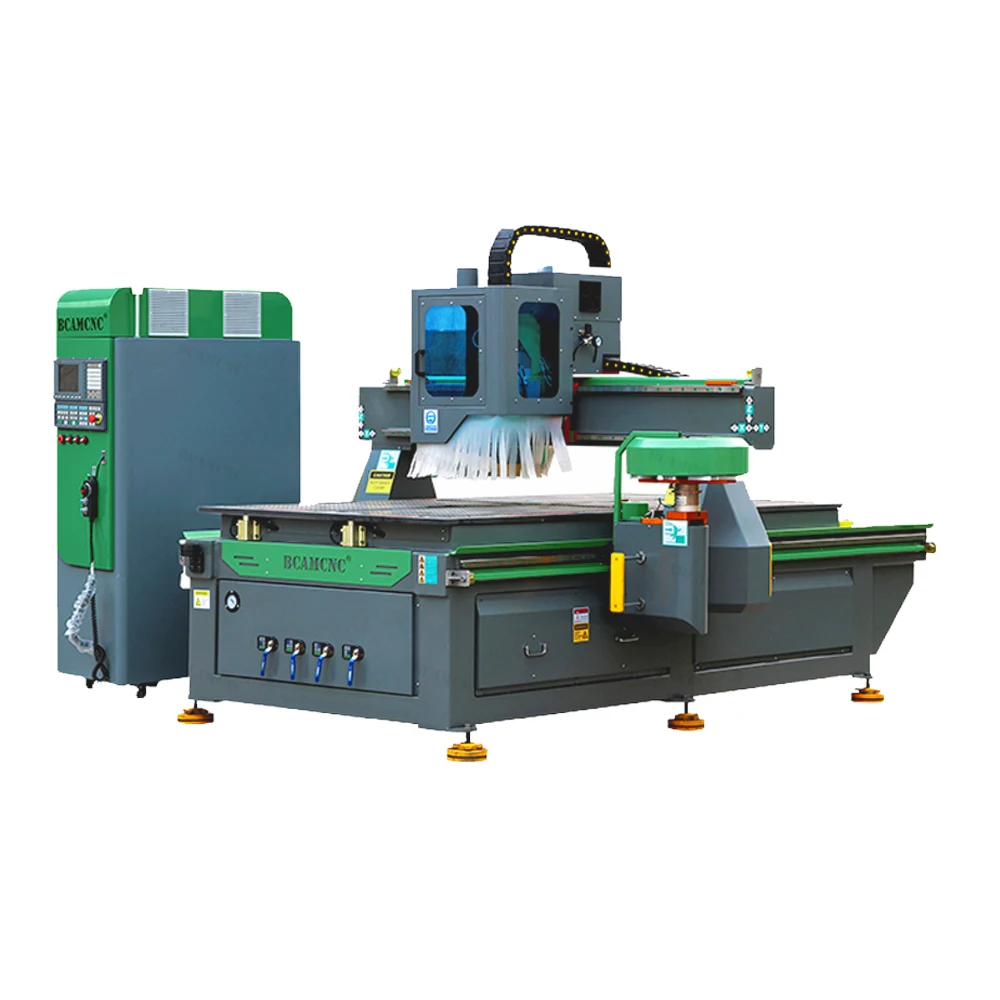

The D series is a Disc Automatic CNC Router designed by BCAM. Compared to the BCAM C series, the D series will be more intelligent. The C series needs to go back to the original point for tool change, and the D series will be more suitable for the working environment with a larger processing area.BCM1325D can help ensure part repeatability and sufficient factory output.cnc milling machine 3 axis woodworking machine 1325  2040 2060

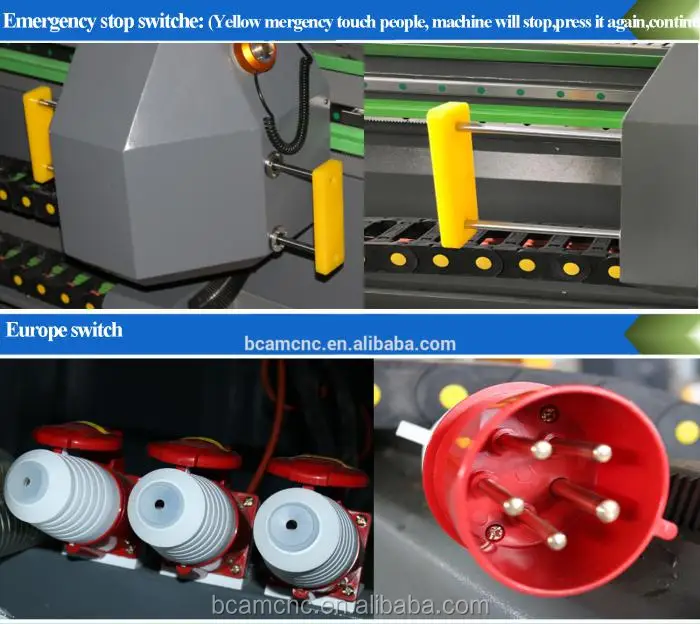

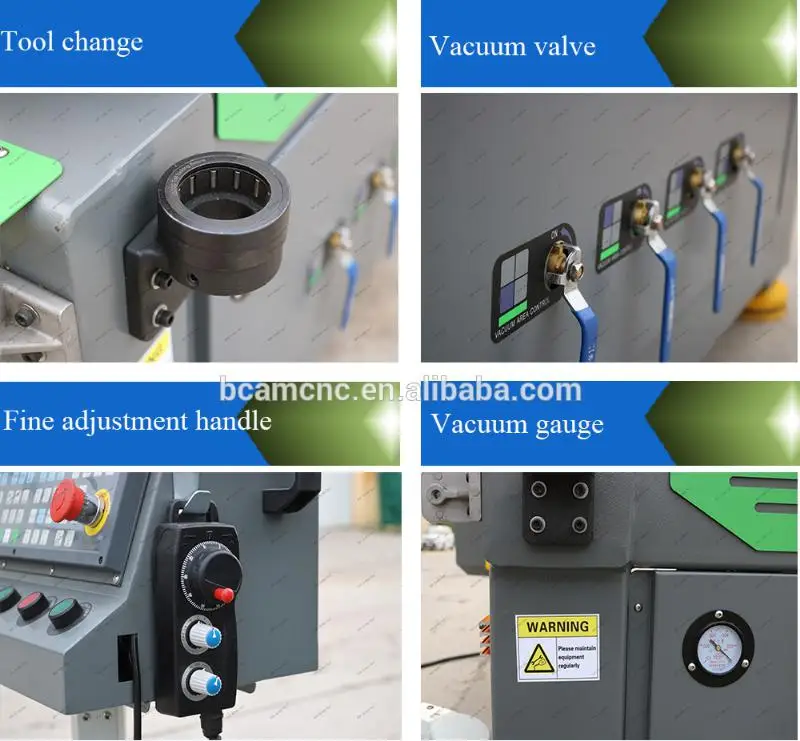

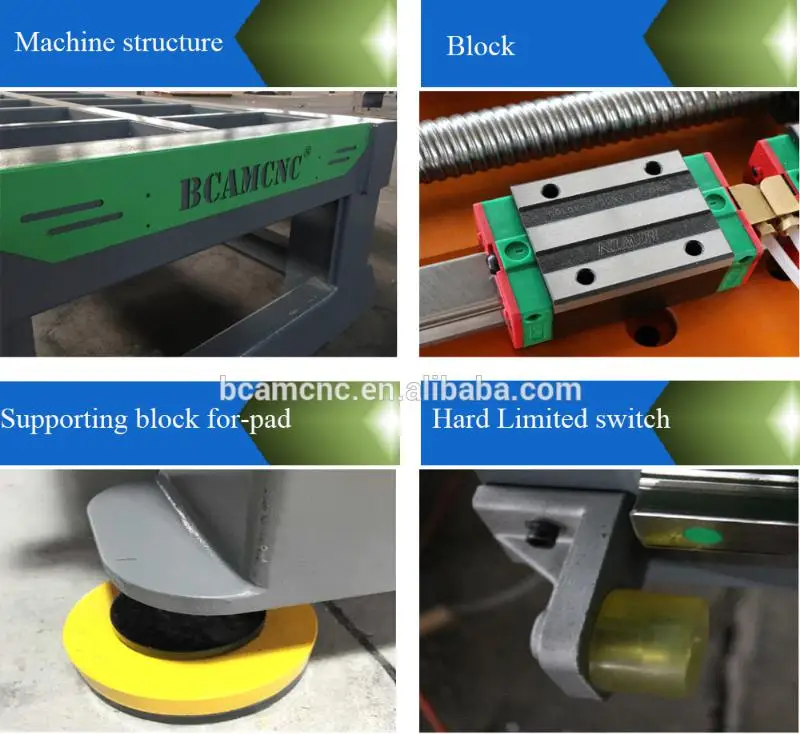

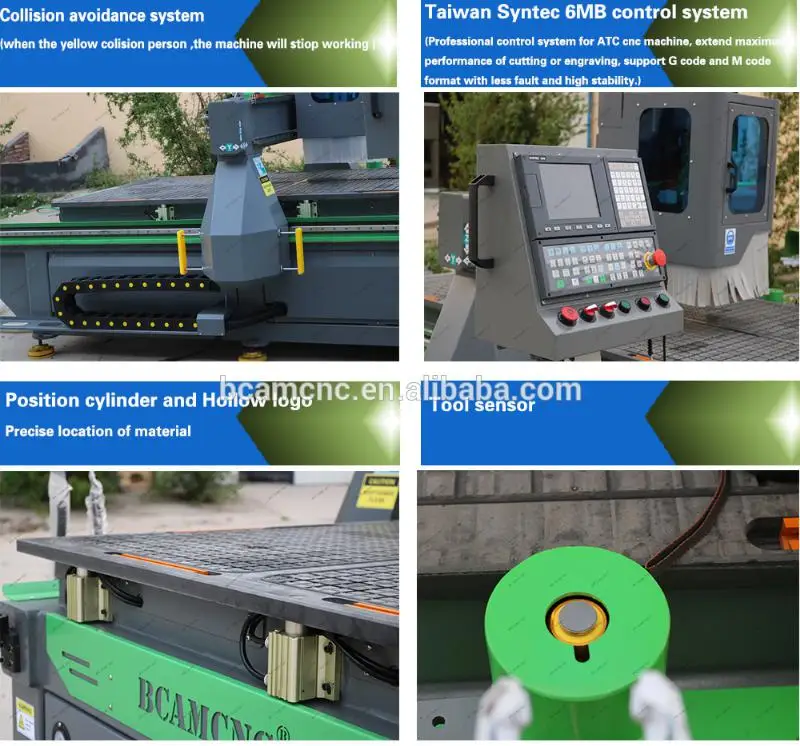

Parts Details

cnc milling machine 3 axis woodworking machine 1325  2040 2060

Why choose bcamcnc ?

1.BCAMCNC product is widely used in almost all the materials which you can think of.

2. BCAMCNC company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.

3.CAMCNC machine with high precision and high reputation is the most reliable goods you can choose.

4.CAMCNC company has all kinds machines in store, the delivery time is much shorter than other companies.

5.BCAMCNC Company has international tech service office and provides 24 hours online service and tech support for customers.

 BCM1325D Automatically Changing Tools Wood Engraving Machine China CNC Router With CE Certificate

FAQ:

1. This is the first time I use this kind of machine, is it easy to operate?

1) English guide video and instruction book are sent to you free together with the CNC router.

2) Free training course in our factory. Engineers are available to serve overseas.

3) 24 hours technical support by calling, video and email.

2. Do you have a setup and equipment commissioning service?

Yes, we have.

The machine was installed and debugged before delivery.You can use themachine directly after receiving it.Of course, we also could let our technologists go to your country to install and debug the machine.

3.How to choose a suitable machine?

You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. Or we can customize one for you.

4.What is the warranty period for the equipment?

3 years warranty and machine whole life 24 hours online professional technical support.

5.Payment terms,There are 3 ways to pay money.

1) T/T, means international bank transfer. 30% deposit, we produce the machine for you after received your deposit . 70% before shipping the machine. It is convenient and fast for your money.

2) Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee.

 cnC router made in china cnc router wood milling machine cnc milling machine 3 axis woodworking machine 1325  2040 2060 AMCNC cnc machine 1625 wood price

Final price, please contct with me
