12kW 18kW 24kW 36kW 42kW 70kW 90 180kW Capacity High temperature Heat Pumps,air to water heater, Air source Hot Water heat pump

Product Overview

Description

12kW 18kW 24kW 36kW 42kW 70kW 90-180kW Capacity High temperature Heat Pumps,air to water heater, Air source Hot Water heat pump

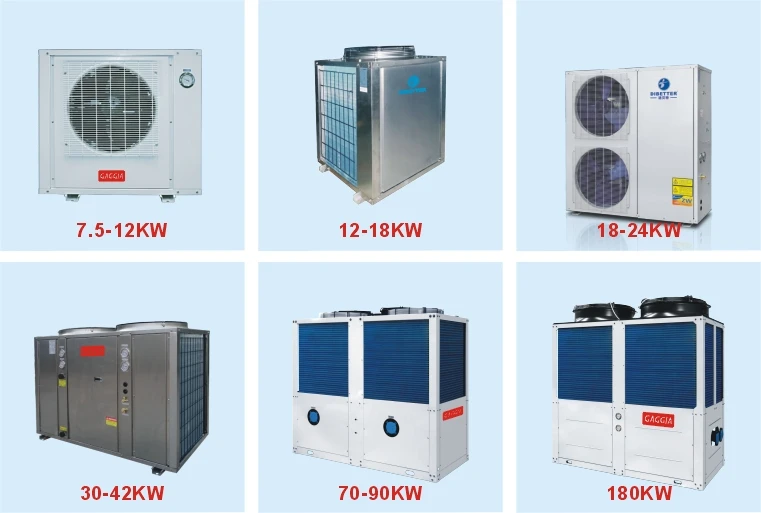

        Heat pump dryer        Swimming pool Heat pump     High temp. heat pump(80℃)





 Water Ground Heat pump        All in one heat pump        EVI Heat pump(-25℃)



Product features:

1. Safety:water and electric separately.

2. Hot water(75 degree) can be provided directly

3. Patent mixed refrigerant using for high temperature&high pressure system.

4. Convenient: Intelligent microprocessor with touch screen display.Trouble shoot shows on display board autmatically.

5. World famous brand compressor,4way valve,motor,PCB,heat exchanger,Emerson ALCO expansion valve used to ensure top quality an high efficiency(Energy-Saving as much as 75%).

6. Multiple protection function:High pressure,low pressur,overheating,overload anti-freezing,phase sequence, discharge temperature,suction temperature and so on.

7.All weather operation: stable operation without being influenced by weather.

8.Metal case and stainless steel case are available.

9.Refrigerant of R22,R407C,R134A  are for optional.

10. Automatically defrosting function included.



MAINPARAMETERS

MODEL	DBT-12WH	DBT-18WH	DBT-24WH	DBT-36WH	DBT-42WH	DBT-70WH	DBT-90WH	DBT-180WH
Heating Capcity	12.0KW	18.0KW	24.0KW	36.0KW	42.0KW	70.0KW	90.0KW	180.0KW
COP	4.2	4.2	4.2	3.91	3.75	3.75	3.5	3.5
Refrigerant	R407C&R410A&R32
Power supply	220v/1Ph/50-60Hz	380v/3Ph/50-60Hz
Dimensions (W*D*H)cm	71.5*71.5*83	71.5*71.5*105 &118.5*43*125.5		140.5*80*105		200*100.5*197.5		200*200*197.5
Gross/Net Weight	90/100kg	120/150kg	133/158kg	270/300kg	300/330kg	500/550kg	570/620kg	1150/1350Kg

 PRODUCT FEATURES

Compressor	COPELAND,SANYO or HITACHI EVI special compressor will be used,Patent technlogy,reliable quality with high performance.
Constant hot water	Patent technology to provide high Hot water(75-80℃)
Intelligent control  system	Intelligent microprocessor with touch screen display. Trouble shoot on display board automatically
World famous parts	World famous brand compressor,4-way valve, motor, PCB, heat exchanger, Emerson ALCO expansion valve used to ensure top quality an high efficiency (Energy-Saving as much as 75%).
Multiple protection function	High pressure, low pressur, overheating, overload anti freezing, phase sequence, discharge temperature, suction temperature and so on. All weather operation: stable operation without being influenced by weather.
Cabinet	Metal case and stainless steel case are available.
Environmental gas	Refrigerant of R22,R407C,R410a and R417a are for optional.
Automatically defrosting	Automatically defrosting function included.
