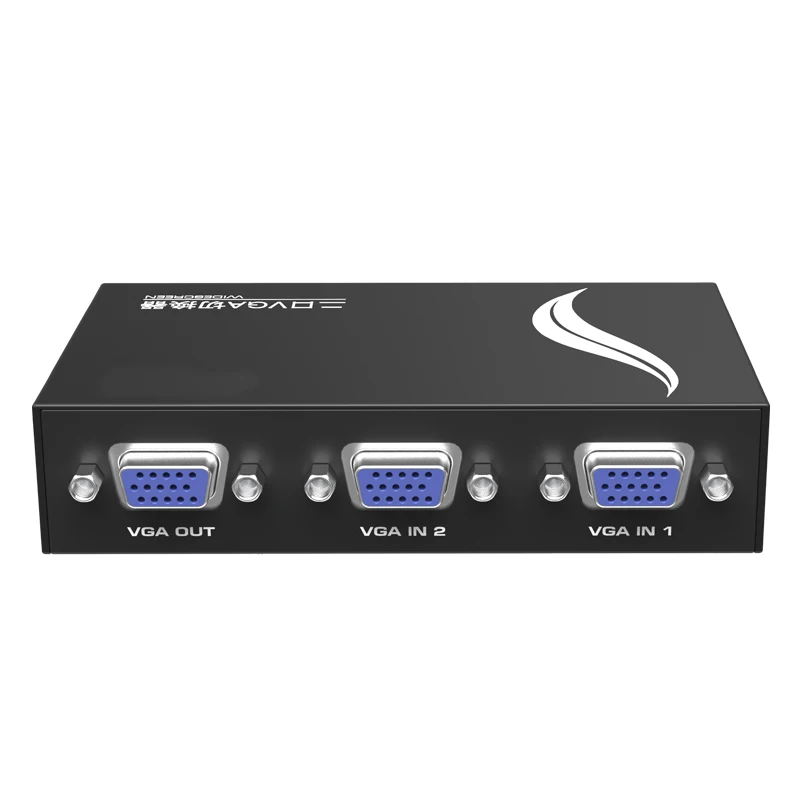

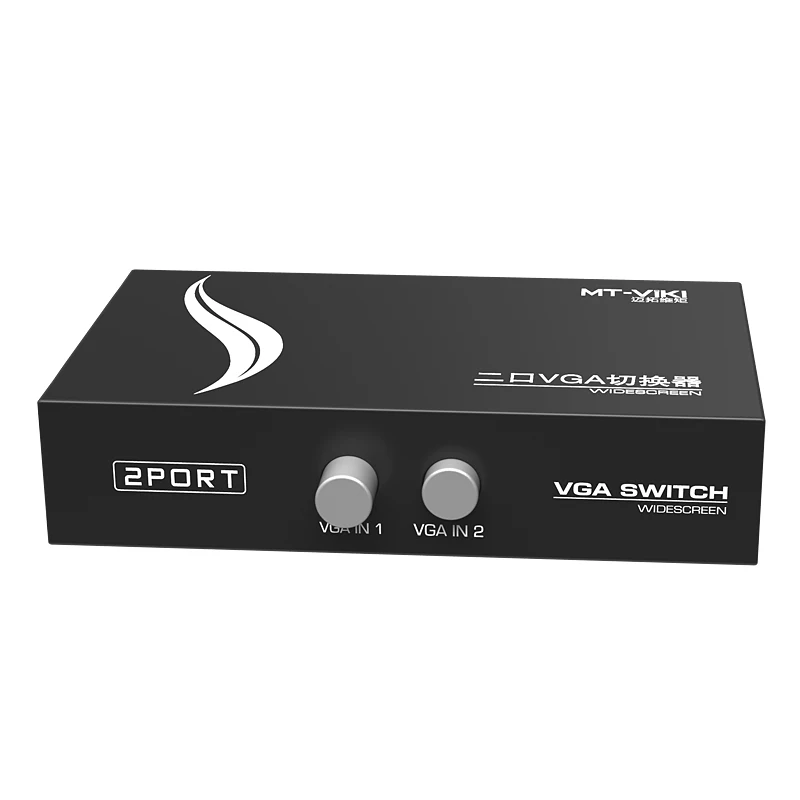

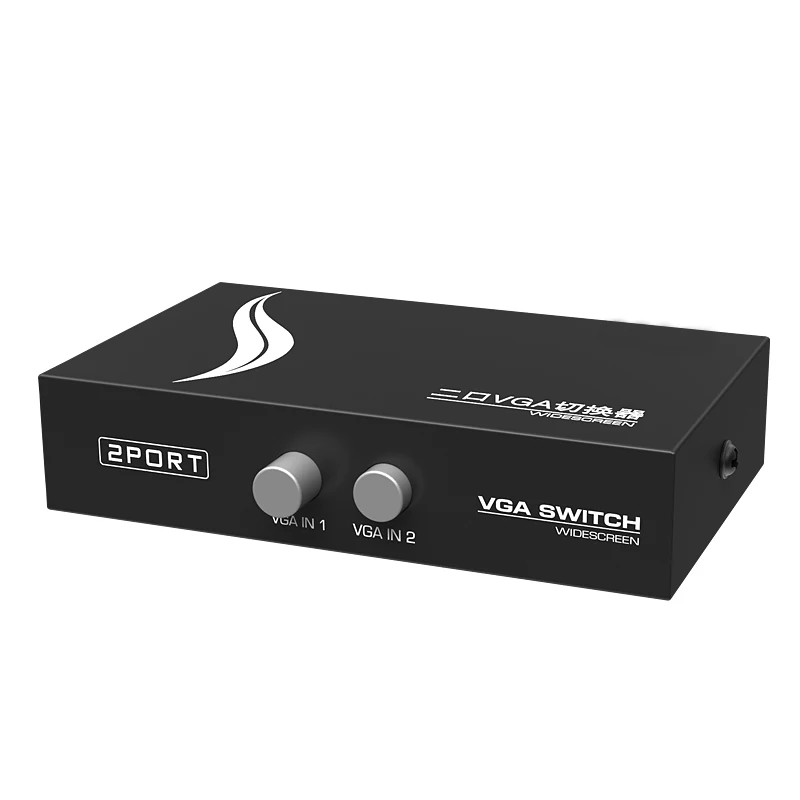

Hot sale audio video auto 2 port vga switch 2 input 1 output
- Category: >>>
- Supplier: Guangdong Mt-Viki Electronics Technology Co. Ltd.
Share on (60834678610):
Product Overview
Description
Product Specification:
Support resolution up to 1920*1440
Suitable for ordinary LCD monitor
Non-full pin interface
Panel button switch
Support bidirectional switching
No power required
| Video Input | Interface | 2 x HDB-15 Female (Blue) | ||
| Impedance | 75 Ω | |||
| Max. Distance | 1.8 m | |||
| Video Output | Interface | 1 x HDB-15 Female (Blue) | ||
| Impedance | 75 Ω | |||
| Max. Distance | 10 m | |||
| Video | Max Bandwidth | 150 MHz | ||
| Max. Resolution | Up to 1920 x 1440 | |||
| Max. Distance | Up to 10 m | |||
| Power | Connector: 1 x DC Jack | |||
| Consumption: 9 VDC, 0.9W | ||||
| Environment | Operating Temp. | 0 - 50°C | ||
| Storage Temp. | -20 - 60°C | |||
| Humidity | 0-80% RH, Non-Condensing | |||
| Housing | Metal | |||
| Weight | 0.16kg | |||
| Dimensions | 11*6.5*2.5cm | |||
| (L x W x H) | ||||
| Carton Lot | 150pcs | |||
Product image
