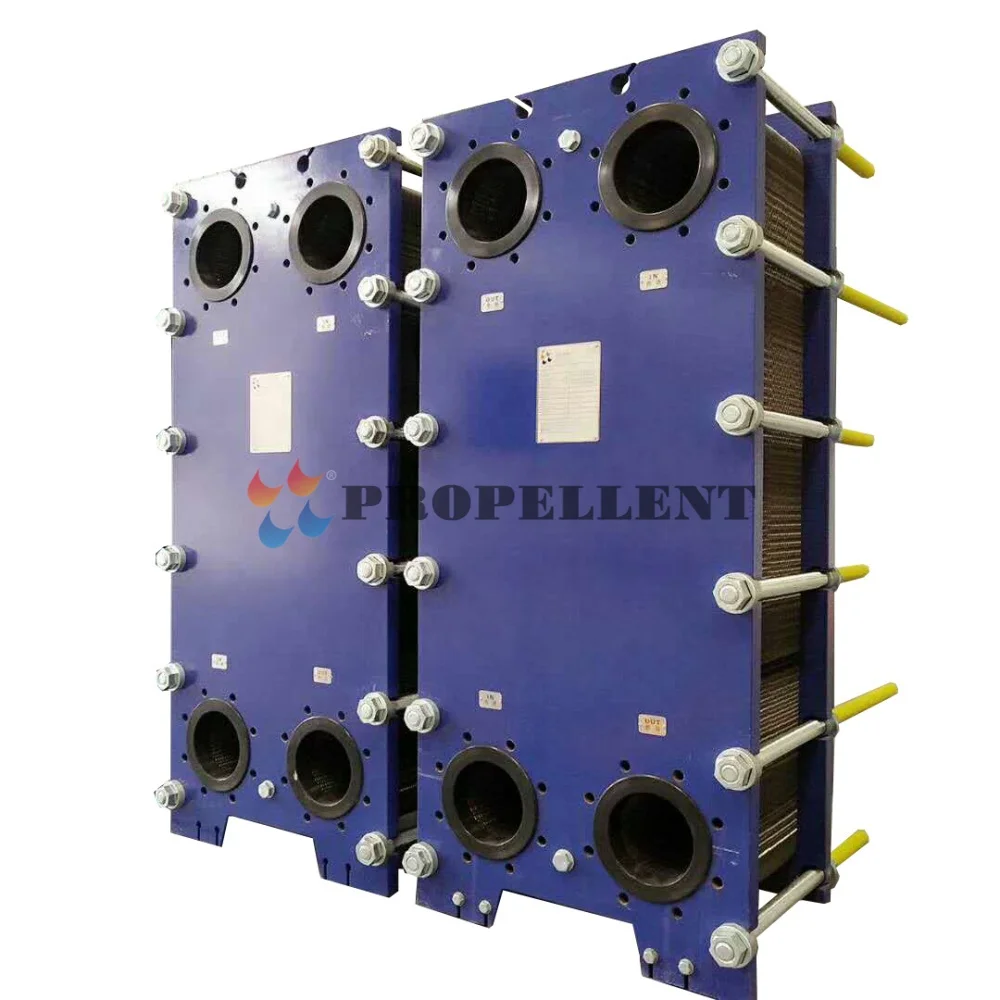

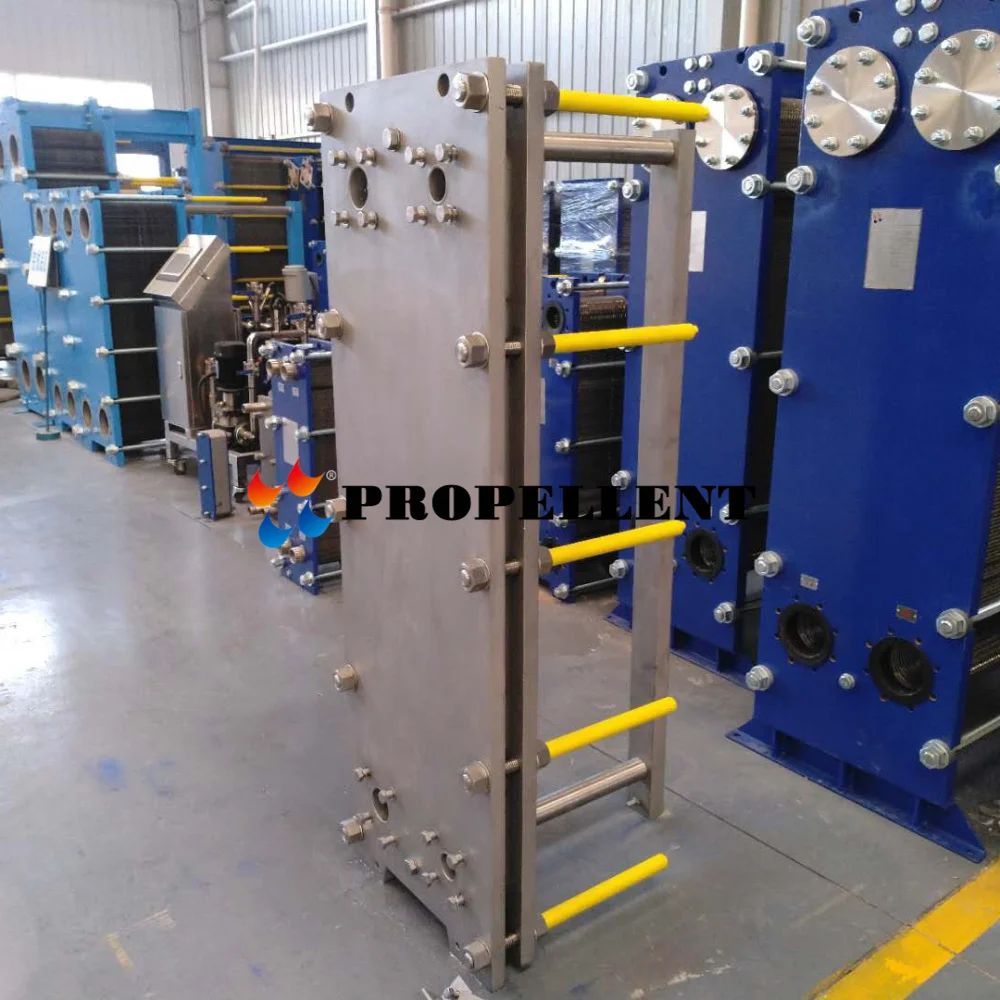

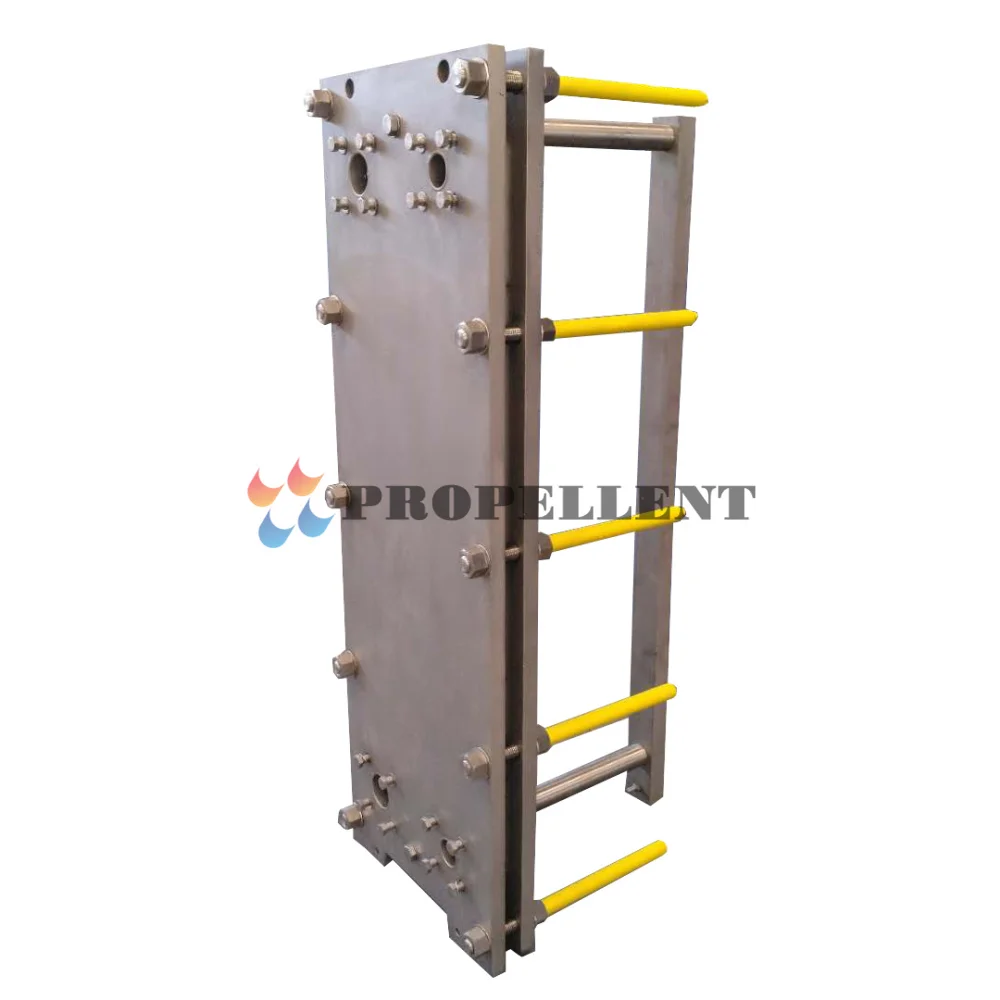

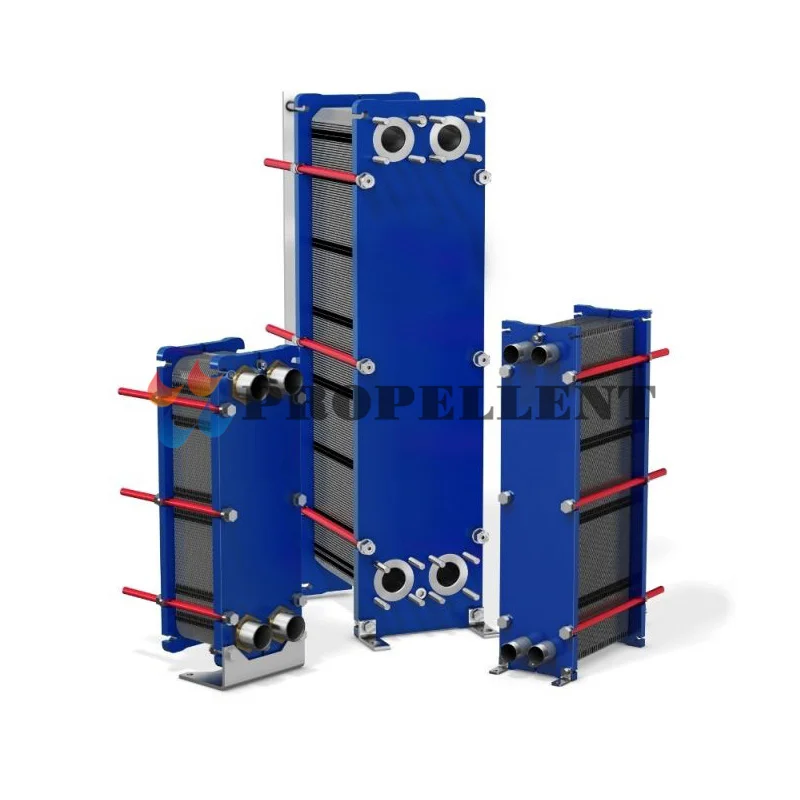

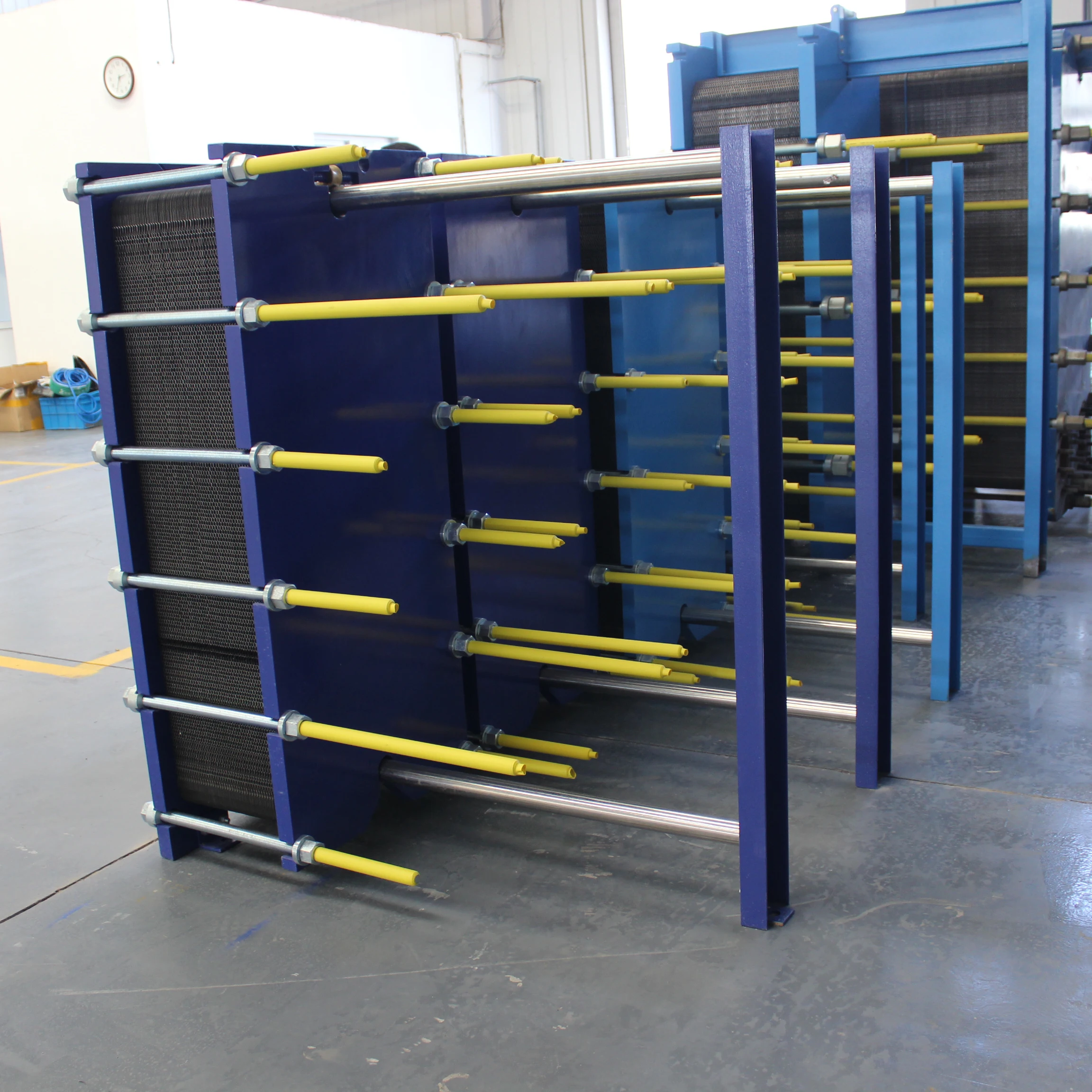

Hastelloy plate heat exchanger for Sodium Hydroxide NaOH
- Category: >>>
- Supplier: Shandong Propellent Energy Technology Co. Ltd.
Share on (60834678936):
Product Overview
Description
american plate heat exchanger for air condition
Before order
Due to the uncertainty of heat exchanger selection and design, the price displayed is a range. For details, please contact customer service. If you do not communicate in the previous period, the customer service cannot accept it.
Product Description
Technical specific
| Plate heat exchanger PRO-196L | |
| Plates | |
| Type | Single plate |
| Free channel | 3.5 mm-12.0 mm |
| Plate thickness | 0.5 mm-1.0 mm |
| Materials | |
| Heat transfer plates | Stainless steel – 304/304L, 316/316L, 254 |
| Titanium | |
| Hastelloy C-276 | |
| Gaskets | NBR |
| HNBR | |
| EPDM | |
| Flange connections | Carbon steel |
| Metal lined: stainless steel Alloy 316 | |
| Frame and pressure plate | Carbon steel |
| Epoxy painted | |
| Dimensions | |
| Height | 650 mm |
| Width | 330 mm |
| Length | up to 1025 mm |
| Connection diameter | DN50 |
| Technical specifications | |
| Pressure | 16 bar |
| Temperature | 180 ℃ |
| Area | 0.15 m2 |
Advantage

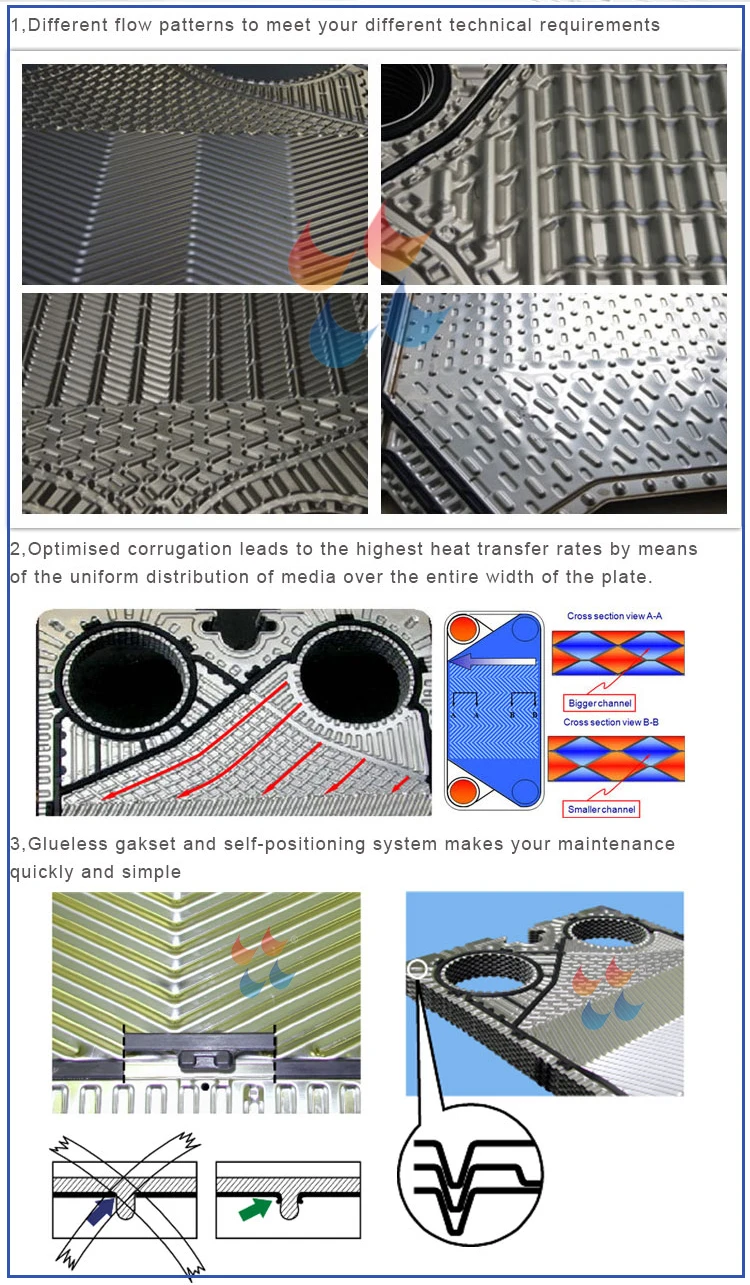

structure
Feature
1.High heat transfer coefficient
2.Light weight, small footprint, easy installation,
3.Easy to change heat exchange area or process combination
4.Easy to clean and easy to maintain
5. It can contain all kinds of products to prevent blockage
6. No metal contact point between the plates, absolutely avoiding the occurrence of dead Angle
7. The thickness of 0.4mm-1.0mm plate is conducive to strengthening the rigidity of plate
8. Minimize fouling rate, plate number and cost.
Plate material
Suitable for | ||
Stainless Steel | Pure water, standard sea water, edible oil, mineral oil, petroleum, non-high chloride liquid | clean water, standard sea water, edible oil, mineral oil, petroleum, non-high chloride liquid |
Sea water, salt water, mineral water, alkali, brine, sea solution, sodium chloride solution | ||
SMO254 | Dilute sulfuric acid, organic dilute solution, Cl+>1500ppm | |
Hastelloy C276 | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid | |
Gasket material
Applications

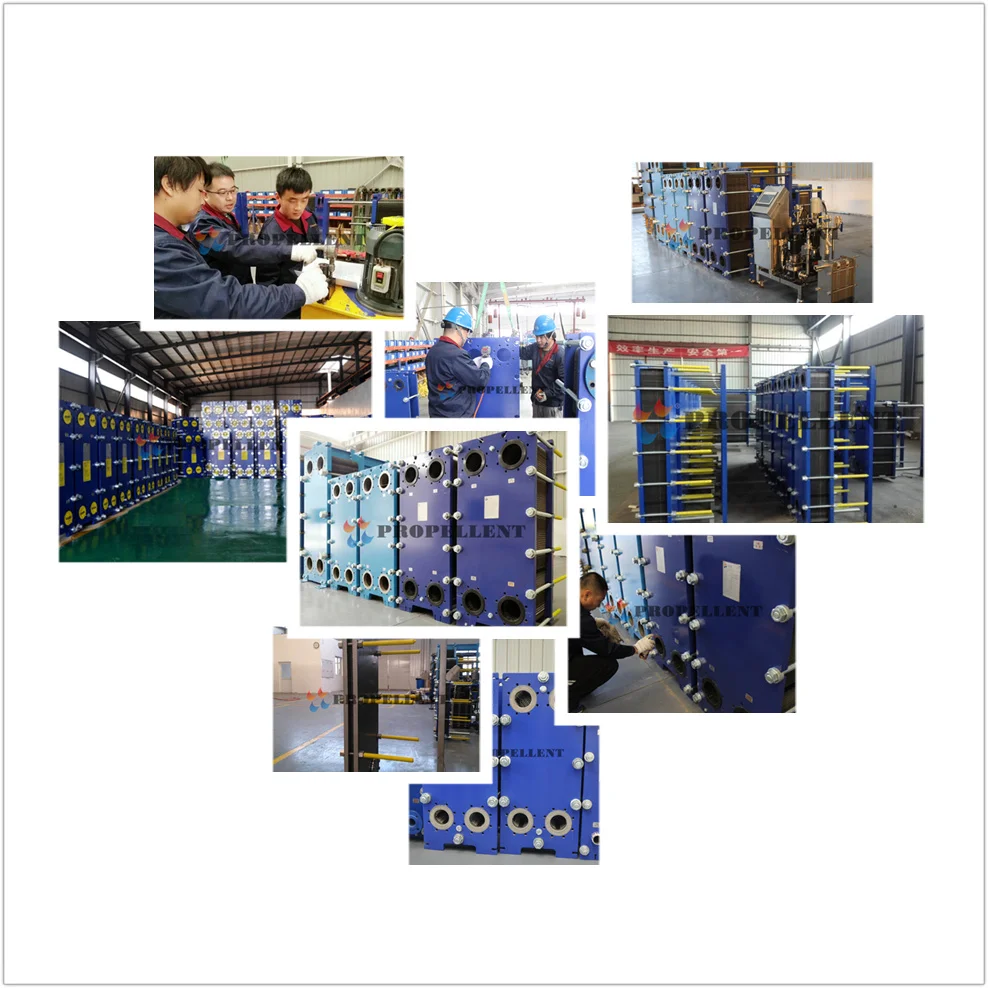

Company Information
Propellent is the booster and leader of effective heat exchanger technology in all industries.Our branch companied located in Beijing,Tianjin and Anhui province provide one-step heat exchanger technology service to industrial and enterprise users all over the world.Meanwhile,Propellent actively explore the global industrial market,we have achieved industrial heat exchanger technology and finish turn-key projects in the African market such as Ethiopia , Zambia,and Southeast Asian markets such as Vietnam, Thailand, Laos, Cambodia. Also,we have realized heat exchanger equipment sales in industrial markets of developed countries, such as Germany, the United States, Hungary, the Czech republic.
Modularized and systematic process design concept to guarantee meeting final demand of clients in full working condition.To reduce the cost of purchase, operate and maintenance to bring more vale .
We are not only heat exchanger supplier, we are your experts on the solution for the heat transfer.
Propellent patents
Propellent service
FAQ
1. Do you have your own factory?
Yes, welcome to visit our factory and check our products.
2. What is your leading time for the products I need?
Generally 7 working days. It depends on the quantities you request.
3. What is the warranty for your products?
We provide one year warranty for all the items we sold.
4. What payment terms do you accept?
Trade Assurance/TT/ Letter of Credit/ Western Union
Any other questions,Feel free to contact us!
