3000kg mezzanine machineroom freight elevator price

Product Overview

Description



Real Pictures



Product Highlights





• LIFPALIFT's exclusive Fully-Support lifting mechanism.







• 0° / 90° / 180° loading & unloading configuration.







• Self-supporting frame structure.



 Features & Benefits

• LIFPALIFT's exclusive Fully-Support lifting mechanism that can efficiently to

  response uneven load distribution

• 0° / 90° / 180° loading & unloading configuration

• High-Precision machining, it needs only a few welding for installation

• Dual lifting Leaf Chains system provides addtional strength and safety

• Self-supporting frame structure

• Safe gates fitted with mechanical interlocks

• Emergency stop button fitted to all control stations

• standard equipped 2000mm high double gates at each floor

• Safe gates with Hazard warning safety signs

• Floor mounted, no pit required

• Comprehensive Installation / O&M manual in English version

• AC 110/220/380/460V, 50/60Hz power supply

• Custom size and specs available







Standard Equipment

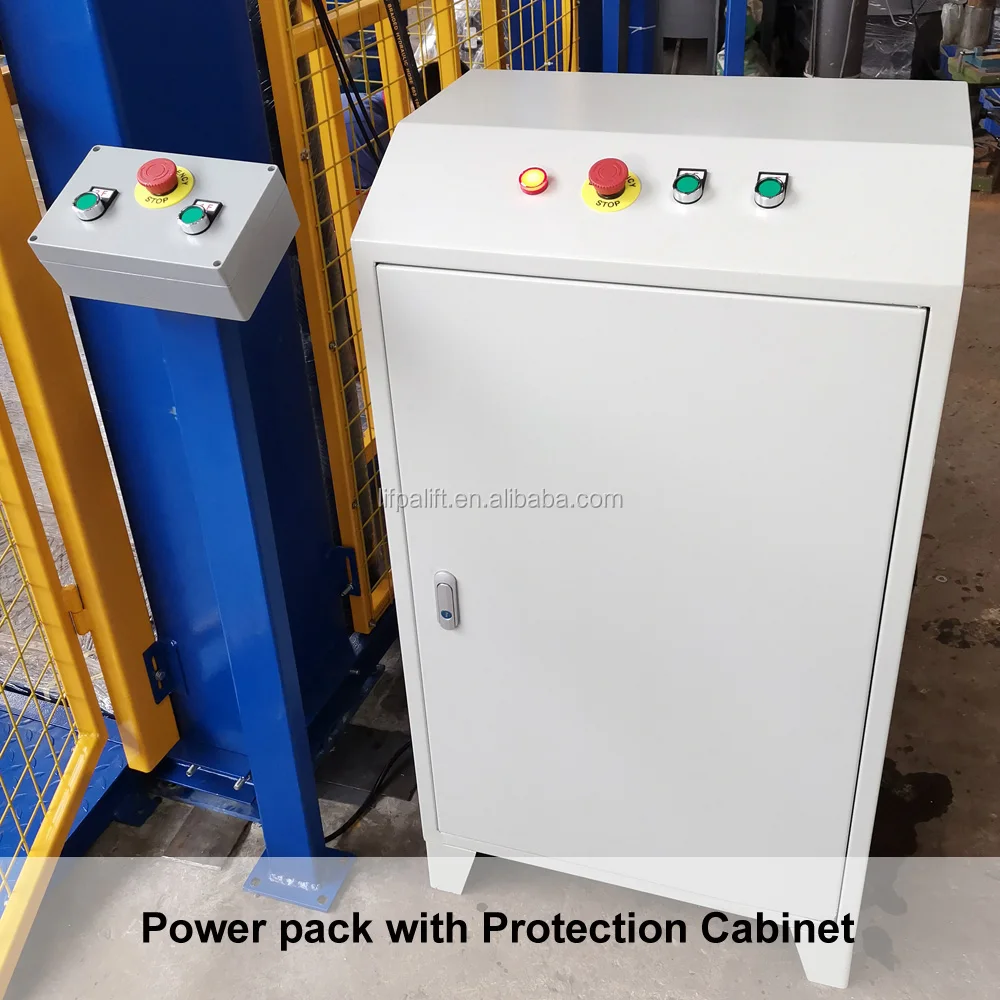

• Power station with Protection Cabinet

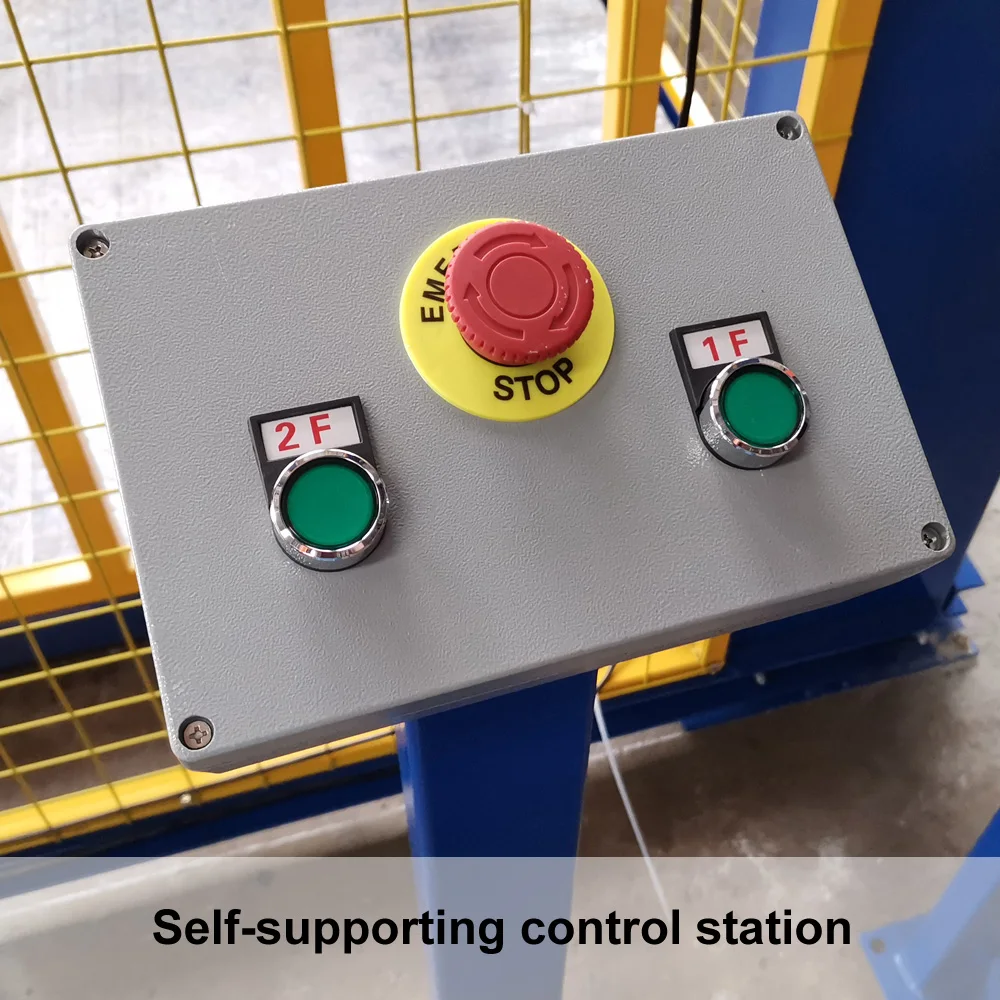

• Self-supporting control station

• 2000mm high double safe gates at each floor

• 1000mm high platform guardrails on non-loading sides

• Anti-rust plastic coated safety mesh enclosure

• Comprehensive Installation / O&M manual in English version

• Same side or Through Loading



Optional Equipment

• Bespoke platform sizes

• Trolley stop barriers on platform

• Working flashing alarm beacon

• Clad enclosure

• American/UK/European standard power input

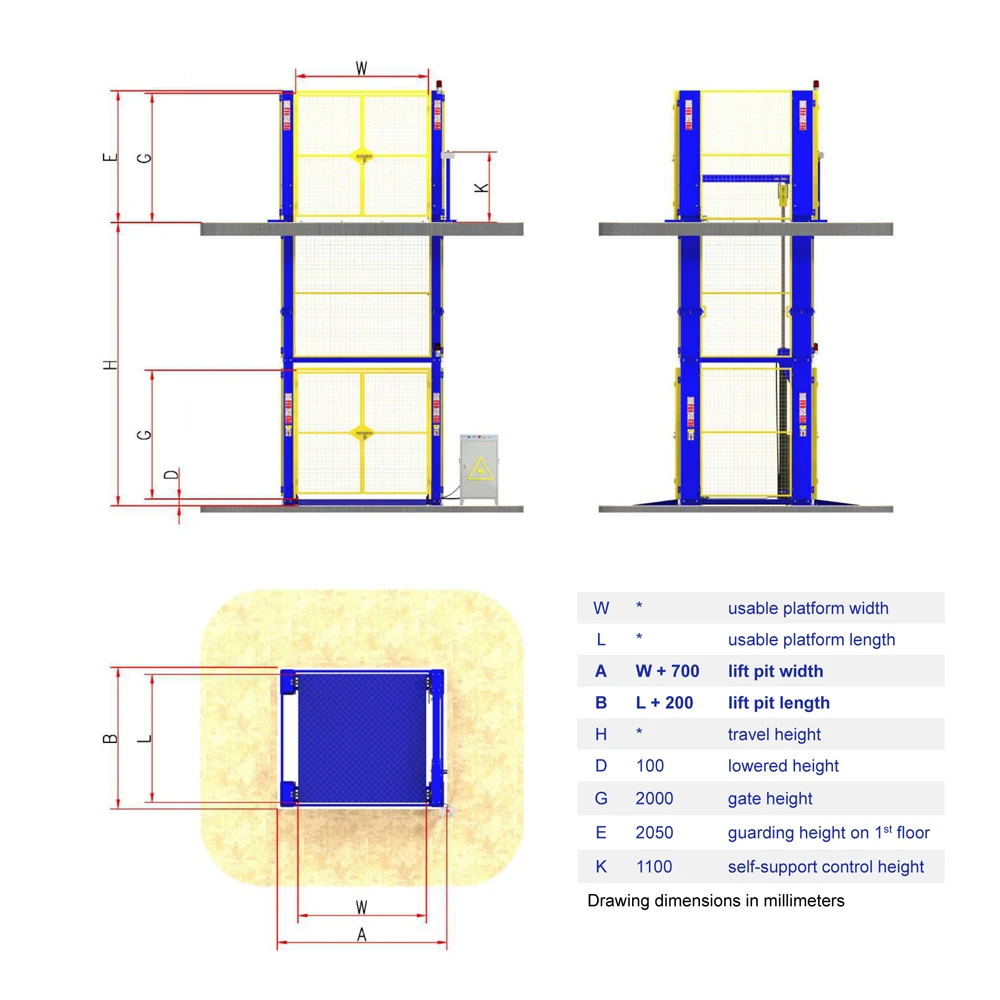

Main Parameters

Model		GL-1041-1820-T	GL-1070-1820-T
capacity	kg	1000	1000
no. of stops		2	3
travel height	mm	4100	7000
lowered height	mm	100	100
power input	V	AC 110 - 380	AC 110 - 380
lift motor	kW	3.00	3.70
lift speed - w. o. load	mm/s	100	100
lowered speed - w. o. load	mm/s	80	80
loading & unloading side		0° / 90° / 180°	0° / 90° / 180°
standard platform guarding	mm	1000	1000
standard gate height	mm	2000	2000
standard ramp length	mm	1260	1260
