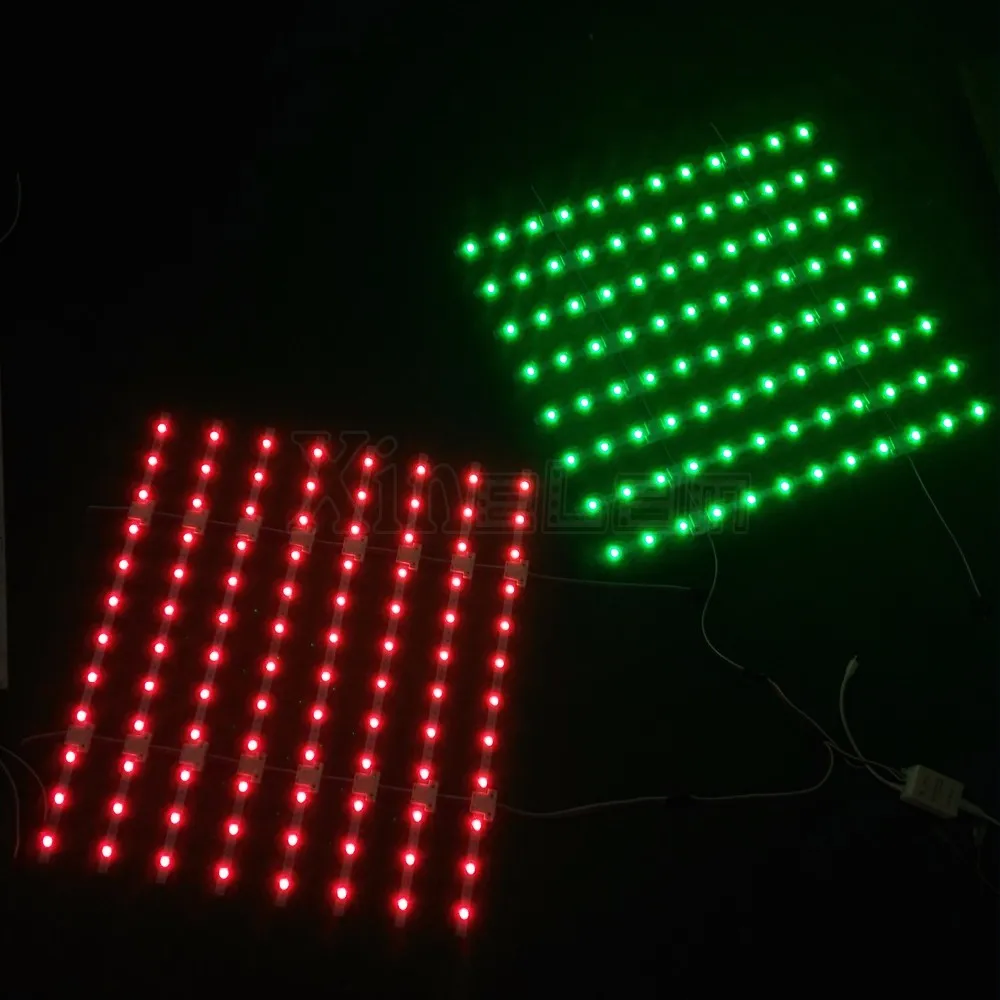

LED Lattice Backlight LED Hard and Flexible RGB RGBW SMD 5050 LED Strip Light for Back Lighting Source
- Category: >>>
- Supplier: Zhongshan Ruixian Electronics Factory
Share on (60834719109):
Product Overview
Description
LED Lattice Backlight LED Hard and Flexible RGB RGBW SMD 5050 LED Strip Light for Back Lighting Source
Description

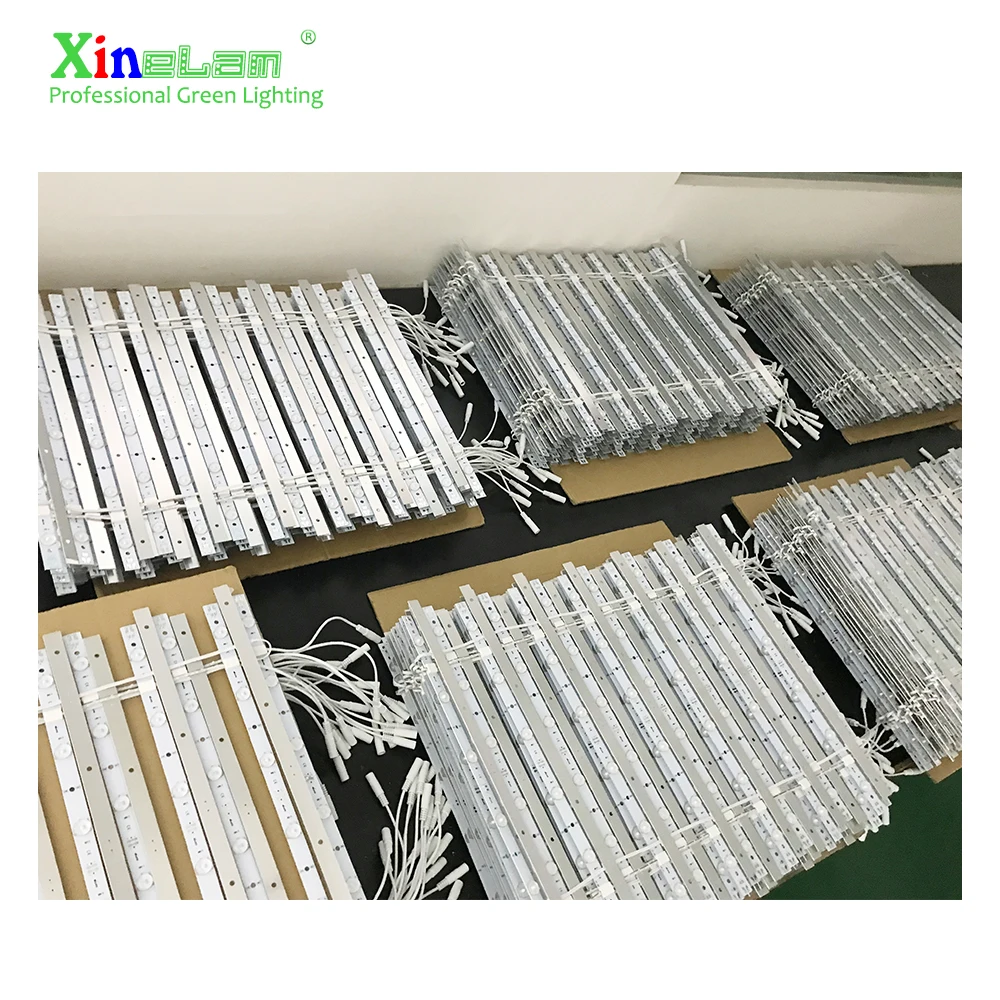

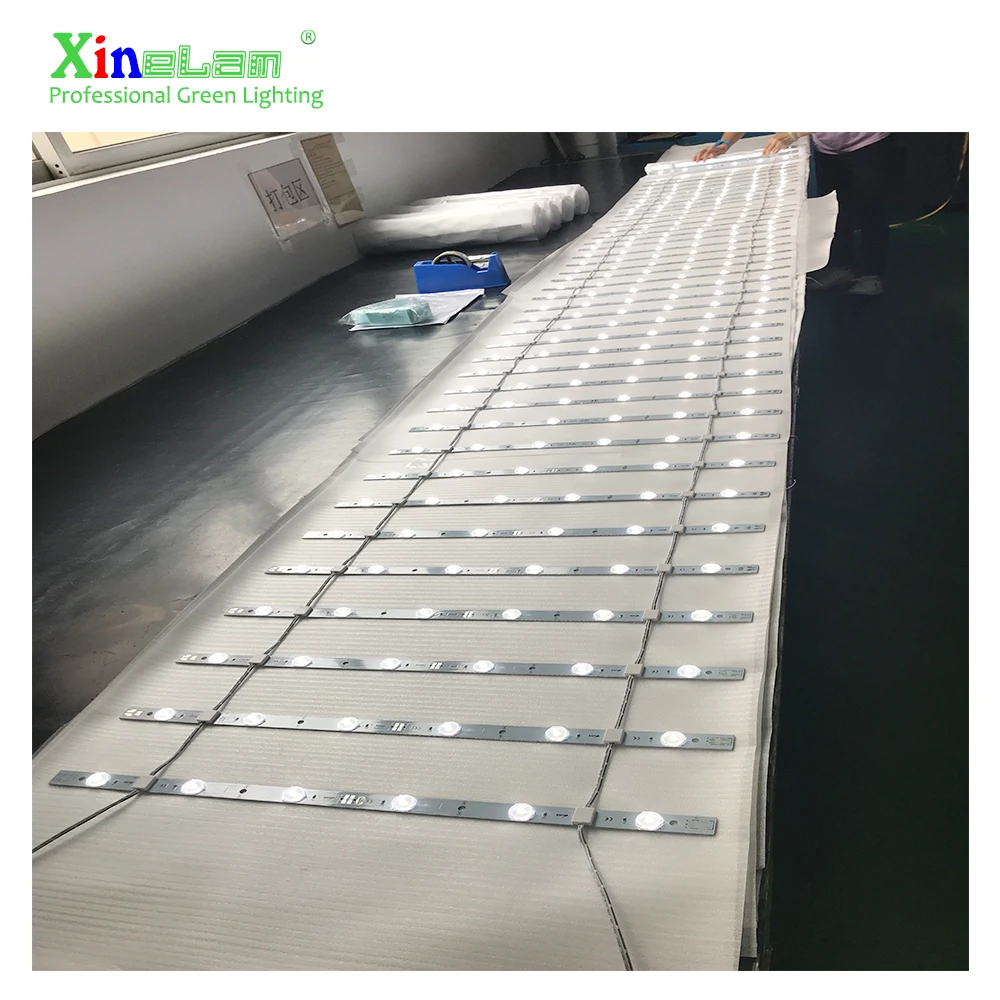

RX-BKT41X2-500 LED lattice backlight (LED curtain, LED bamboo slips) Patent No.:ZL201220134846. LATTICE LED Matrix Lighting System is the most versatile and practical illumination solution for indoor and outdoor sign cabinets and large area illumination. Innovative design of LATTICE system comes in lightweight easy-to-install rolls, which allows for easy population of perfectly spaced LEDs in minutes for uniform backlit lighting.
 | Features: 1. Highest luminous efficiency 90Lm/W; The actual test in excess of 50% optical efficiency than similar products.
Scope of applications: |
 | LED to LED 83mm | Luminous efficiency 90Lm/W DC24V |
Bar to Bar 93mm | Brightness 9000Lm/m2 | |
LED to facedistance > 45mm | Power Consumption 90W/m2 |
Technical Data:
| MODEL | Strip Dimension | Lumen | Power | Voltage | LED s pacing | Strip spacing | Series connection | Comment |
| RX-BKT41X2-500 | 496x18x7mm | 400Lm 6LED | 4.2W | DC 24V | 83mm | 93mm | Max: 50pcs/Roll | Non-waterproof |
The above data testing at room temperature is 25°C, Test TCP 38 °C Test voltage DC24V; LED color temperature 6000-6500K, CRI > 80 *Tolerance range for optical and electrical data: ±10 %. Life 50000hours@25 °C | ||||||||
Note: Warm White 2800~3200K, Neutral White 3800~4250K, brightness is reduced by 7%.
Highest luminous efficiency 90Lm/W; The actual test in excess of 50% optical efficiency than similar products
High quality SMD 2835 chips Large viewing angle Strict installation

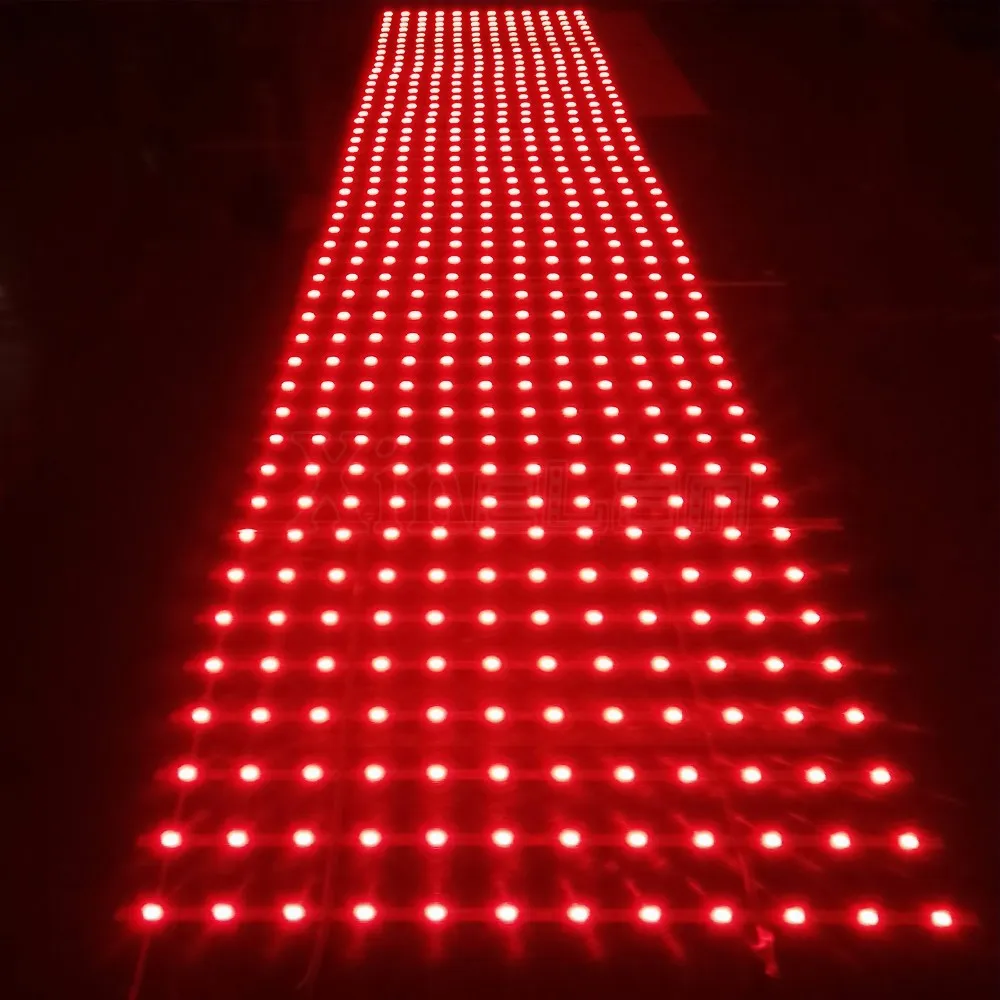

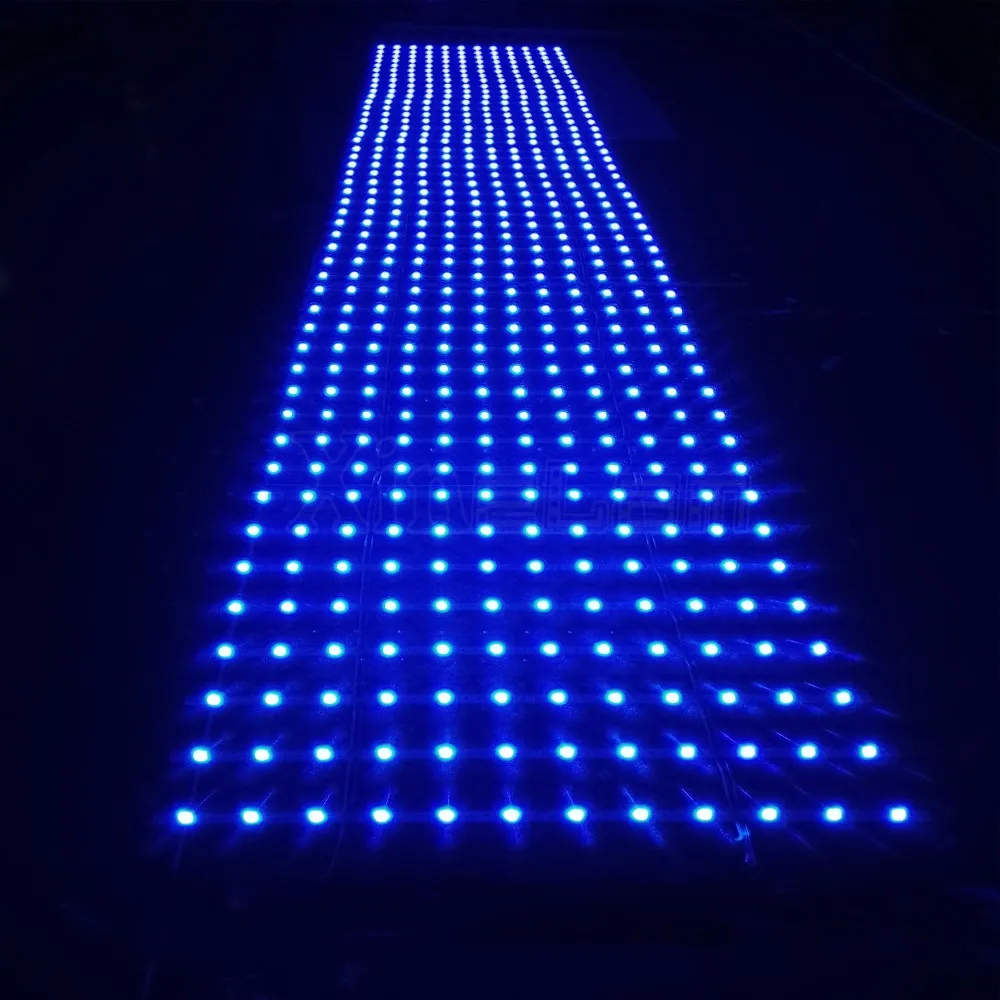

Perfect square Matrix
Minimal depth required at 45mm distance no hot spots on the graphic!
Application Shows
Indoor LED light box
Outdoor large advertising LED light box
Company Information
XineLam - Ruixian Electronics Factory was founded in 2003, focusing on designing, developing and producing green LED lighting products.
Our team having strong R&D capabilities and 11 product patents included the invention, utility model and appearance design etc.
Company Culture: Technical Innovation, Quality-oriented, Credit Foremost, Professional Focus, Creating Value for Customers.
