Desktop mini metal PCB jewelry jade stone stainless steel dog name tag engraving cutting cnc router machine 6090 6012 1212

Product Overview

Description



Desktop mini metal PCB jewelry jade stone stainless steel dog name tag engraving cutting cnc router machine 6090 6012 1212

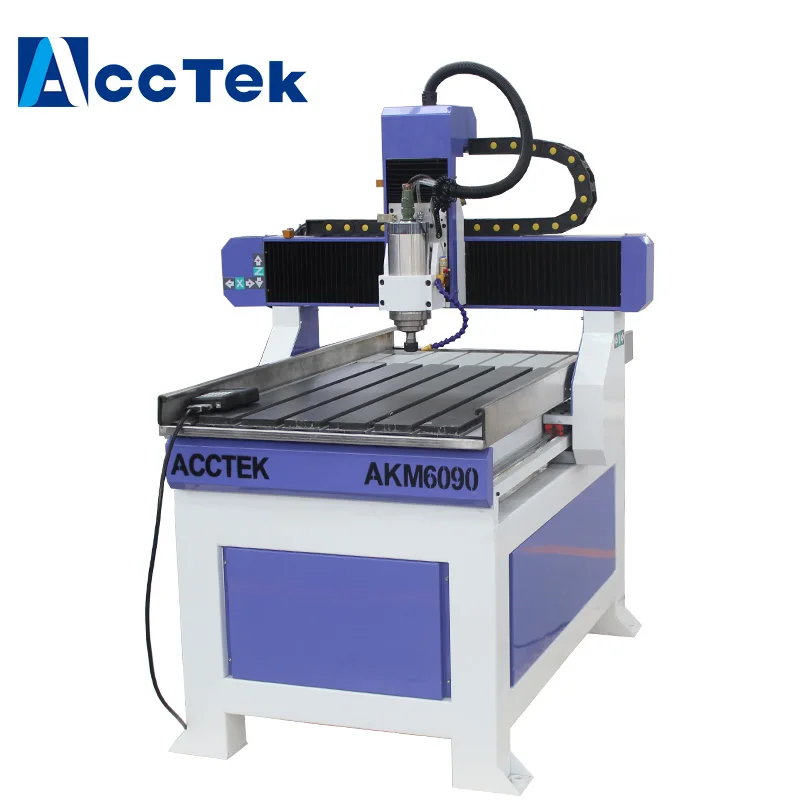

- AKM6090 cnc router machine configurations:

# Iron cast steel structure
# AC 220V-single phase, 50/60HZ
# Working area: 600*900*200mm
# 1.5kw Changsheng water cooled spindle (24000rpm)
# DSP controller with USB port
# NEMA34 Stepper motor and Leadshine M860 drivers
# Transmission: X,Y,Z axis by Taiwan TBI ball screw
# Taiwan high accuracy 20mm linear square guide rails
# Table: T slot table
# Shanghai Fuling inverter
# Tool sensor
# Standard tools box for installation and maintence
# Manual book and 8GB flash disk for manual instruction
# ArtCAM and Type3 software for the machine



- Main Features:



- Technical parameters:

Description	Parameter
X,Y ,ZWorking Area	600*900*200mm
Resolution	+0.01mm
Lathe Structure	Cast-iron structure
X,Y,Z Structure	Taiwan TBI Ball screw transmission
Max. Idling Speed	8000/min
Spindle	1.5KW/2.2kw(optional)
Spindle Rotate Speed	0-24000r/min
Inverter	Shanghai Fuling
Working Voltage	AC220V/50Hz,Single Phase
Driver	Leadshine M860
Command	G code,HPGL,U00,mmg,plt
Operating System	Mach3/DSP controller
Cooling Mode	Water-cooling
N/G Weight	320/400KG
Package	Plywood box
Lead time	Within 12 working days



- Machine applications:

1. Application Industries: For advertisement engraving and cutting, billboard industry, cutting plate production,

LED/ neon light through, literally shaped hole cut, stone processing,mold manufacturing, wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting,light equipment mold processing,

sign manufacturing, acrylic board processing, etc.

2. Application Materials: PVC, Rubber, ABS plate, Acrylic, double color sheet, wood, MDF, Organic glass, copper,

ACP, plastic, metal and so on.

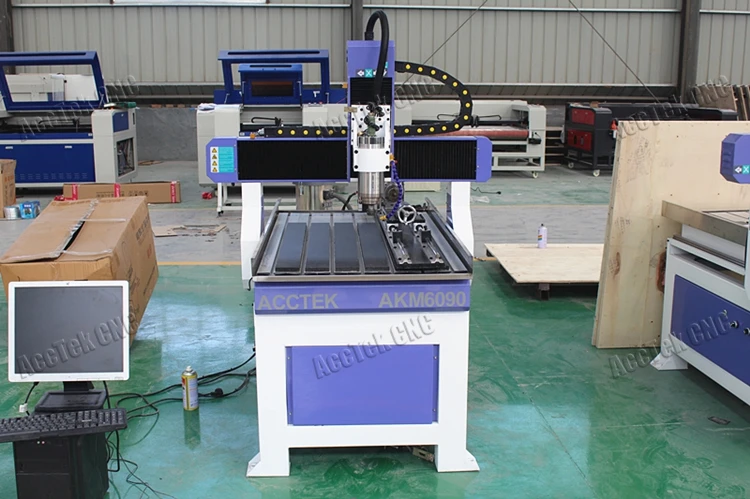

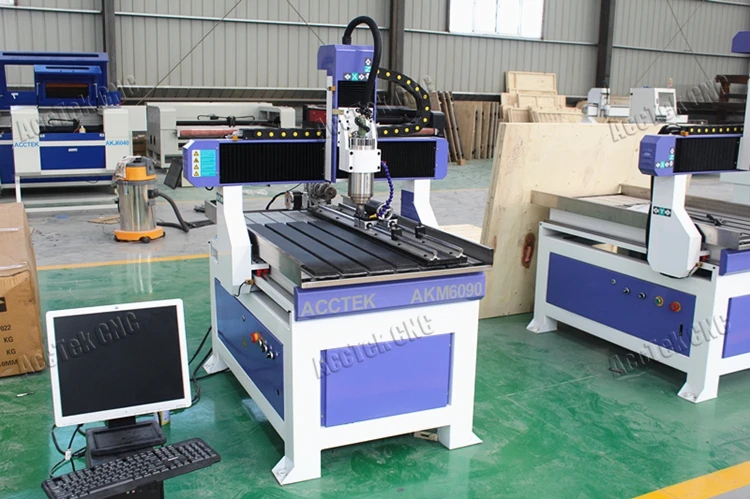

- Details image:

More details,welcome feel free to contact me:

Email: export20 at acctekcnc.com

Whatsapp:+86-15153147699

Skype:Acctek hannah cnc



-Payment:

1. We accept: Western Union , Trade assurance on alibaba, T/T, Western Union , Paypel , MoneyGram.
2. You can pay 30% in advance, 70% before delivery.
3. Most customers choose Trade assdurance,becs it is maximize the protection of the interests of buyers.

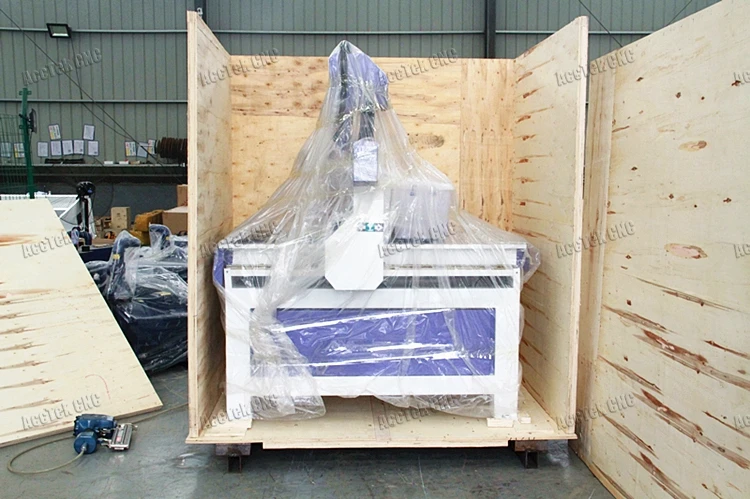

- Package:

1. The machine will be produced after received your deposit.after the machine is ready, we will show you the machine photos and the testing video.then you pay 70% balance payment,we arrange shipping for you.
2. The package is tandard exporrt plywood box,customized for every size machine.
