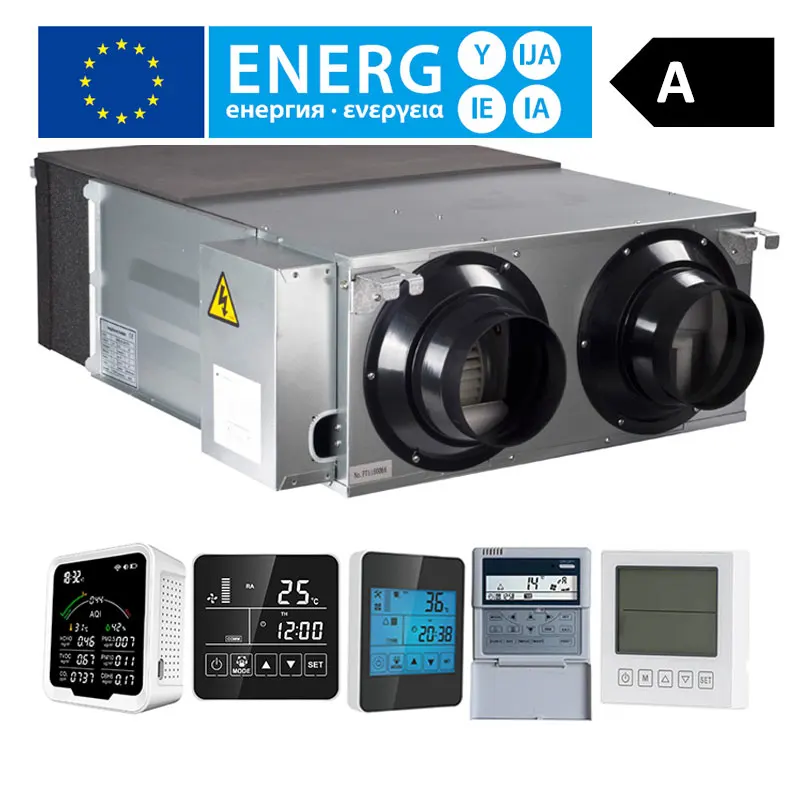

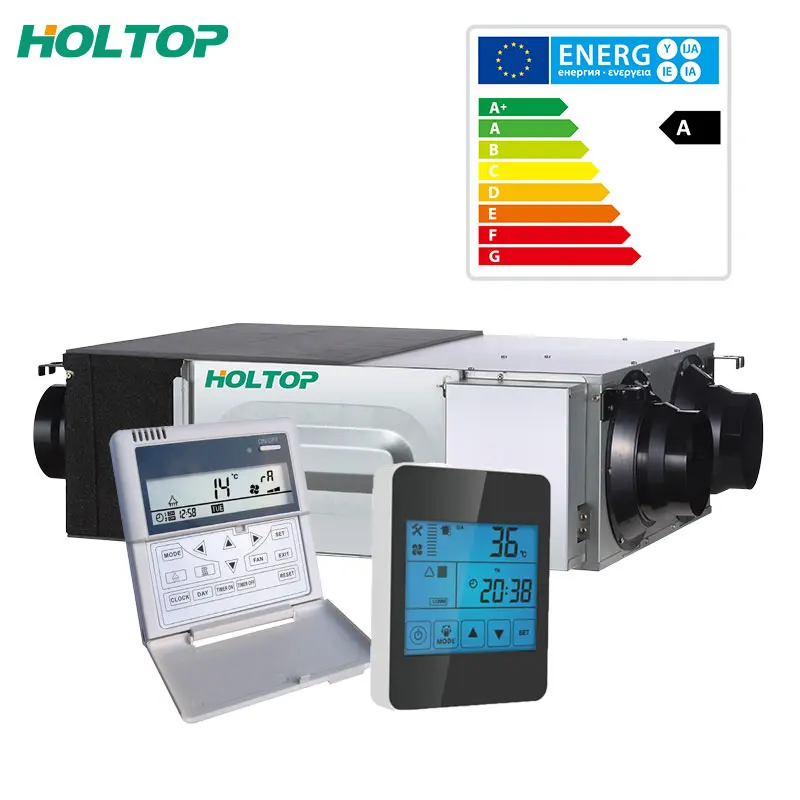

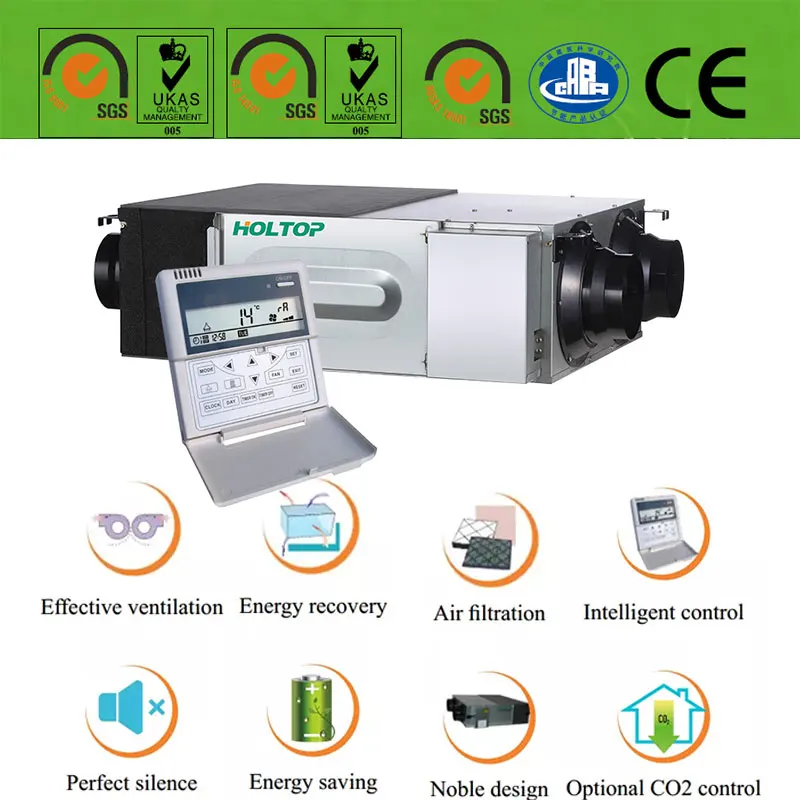

Erp 2018 compliant DMTH series energy recovery ventilation system with high efficiency

Modern buildings are being built tightly to improve energy efficiency. Eco-smart ERV is ideal

ventilation solution for energy efficient buildings to reduce ecological footprint and improve human health. The energy can be saved by using DC motors and improving energy efficiency with smart control system, to achieve eco friendly climatic experience.

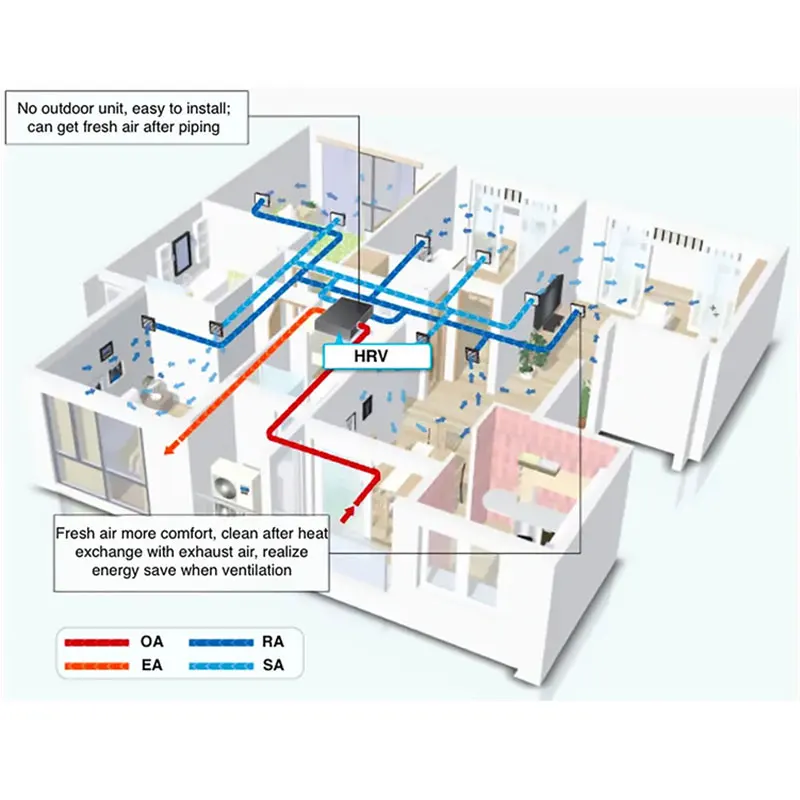

1. Choose the proper installation types based on the building structure

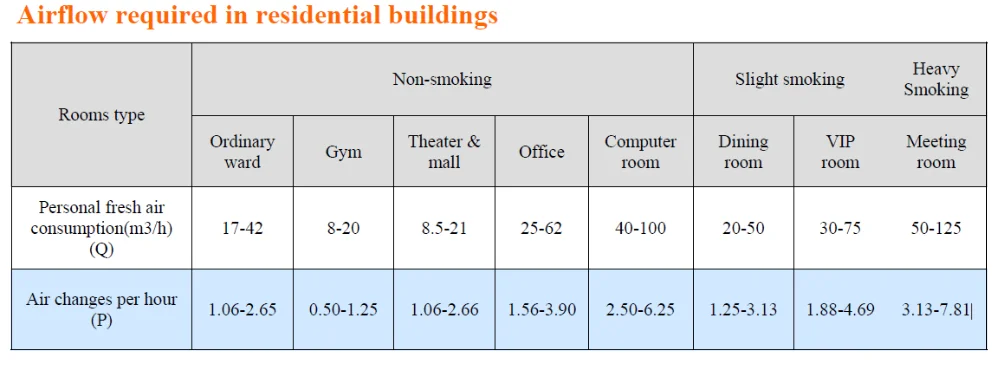

2. Determine the fresh airflow required according to the use, size and number of persons

3. Select the right specifications and quantity according to the determined fresh airflow

Example

The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.

If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is

Q1 =N*Q=10*70=700(m3/h)

If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is

Q2 =P*S*H=5*60*3=900(m3)

Since Q2 > Q1 , Q2 is better for selecting the unit.

As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.

Specification

PLEASE Click the following link to get more product information:

1) ECO-SMART HEPA ERV , ErP2018 eco design DMTH series

2) ECO-SMART Plus ERV , Eco design DCTP series

3) Ductless Eco Clean Wall Mounted ERV

4) Ductles Eco Clean  Floor standing ERV

5) Slim design ERV, thinner design to save installation space

6) Convention TH series ERV, cheap and simple

7) Plate heat exchanger: counterflow sensible heat exchanger

8) Cross counterflow sensible heat exchanger

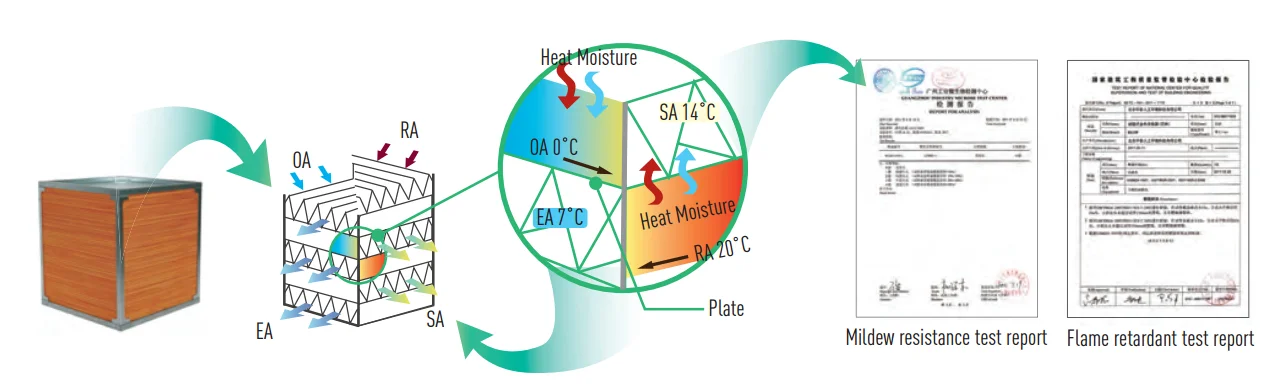

9) Total heat exchanger _enthalpy type

10) Rotary heat exchanger

11) Air handling units

 Click to Send Inquiry and Get the Best Quotation

1. How to select the suitable models?
Based on the fresh airflow you need. Please send us the room area, room type or application and number of persons, our team will help you select the suitable units.

2. What’s the difference between Miss Slim series, TH series and TP series?
1)Miss Slim series is specially design for the residential houses which required slim size for installation, the airflow rate for Miss Slim series is from 100-350cmh. The access door position and configurations are different with TH series and TP series.
2)TH series is equipped with crossflow heat exchangers, the airflow ranges from 150-1300cmh, with features of silent operation and cost effective.
3)TP series is equipped with cross counterflow heat exchangers with higher heat exchange efficient.

3. Why choose Holtop as business partner?
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments for more than 10 years.
Holtop can supply a full range of products, up to 20 series and 200 specifications. The product range mainly covers heat and energy recovery ventilators, rotary heat exchangers, plate heat exchangers and air handling units.
Holtop has 400 employees and covers an area of more than 30,000 square meters. Annual production ability of heat recovery equipment reaches 100,000 sets. Holtop supplies OEM products for Midea, LG, Hitachi, McQuay, York, Trane and Carrier. As an honor, Holtop was the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.
Holtop has established business relationships with major countries in Asia, Europe and North America, and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services.

4. How about the product quality?
Holtop assures high quality products with professional R&D team, first-class production facilities and advanced management system.
Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.
All our products are tested 100% before ex-factory to ensure high quality.
