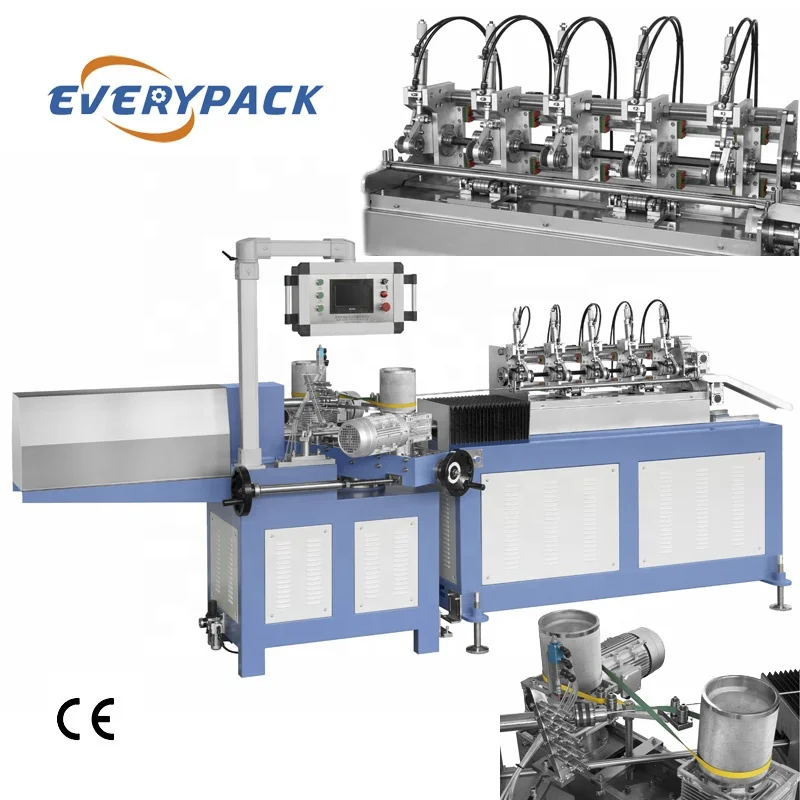

high speed automatic paper straw making machine,paper straw making machine
- Category: Straw Making Machines >>>
- Supplier: Wenzhou Ouhai Nanbaixiang Xin Yi De Packing Machine Factory
Share on (60834788609):
Product Overview
Description
Technical Parameter | Control System | ||
Paper Layer | 3 layers | Motor | 3.0kw (1.5kw * 2pcs) |
Inner Diameter | 5-12mm | Motion Controller | Panel Master |
Wall Thickness | 0.3-1mm | Operating Panel | Panel Master |
Stable Speed | 1-40m/min. | Language | English |
Winding Nose | Two noses single belt | Inverter | 3.7kw Schneider |
Machine & parts | Painting | Electric Components | Schneider |
Length fixing | Encoder | Pneumatic Components | Jingwei |
Speed Control | By Inverter | Servo Motor | Schneider |
Cutting System | Multi-blades; 5 pcs online | Servo Driver | Schneider |
Synchronism tracking cutting system | Servo motor synchronism tracking | Screw Rod | Shangyin |
Slider | Shangyin | ||
Paper straw collecting | Manually (Optional) | Bearing | Haerbin |
Operator | 1-2 person | Configuration | |

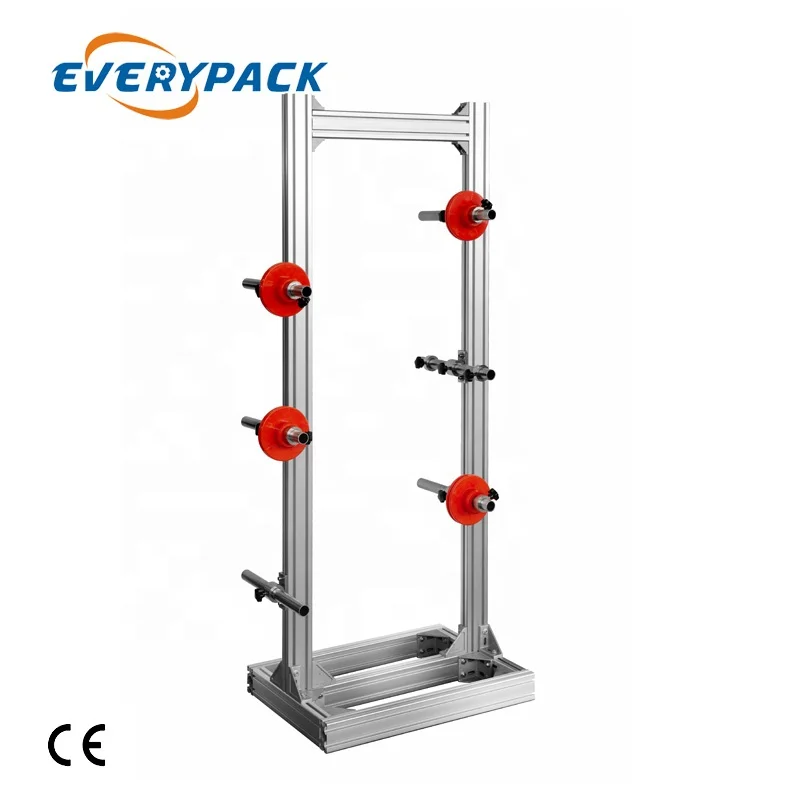

Working Air Pressure | 0.6Mpa | Paper Reel Stand | 3 Layers |

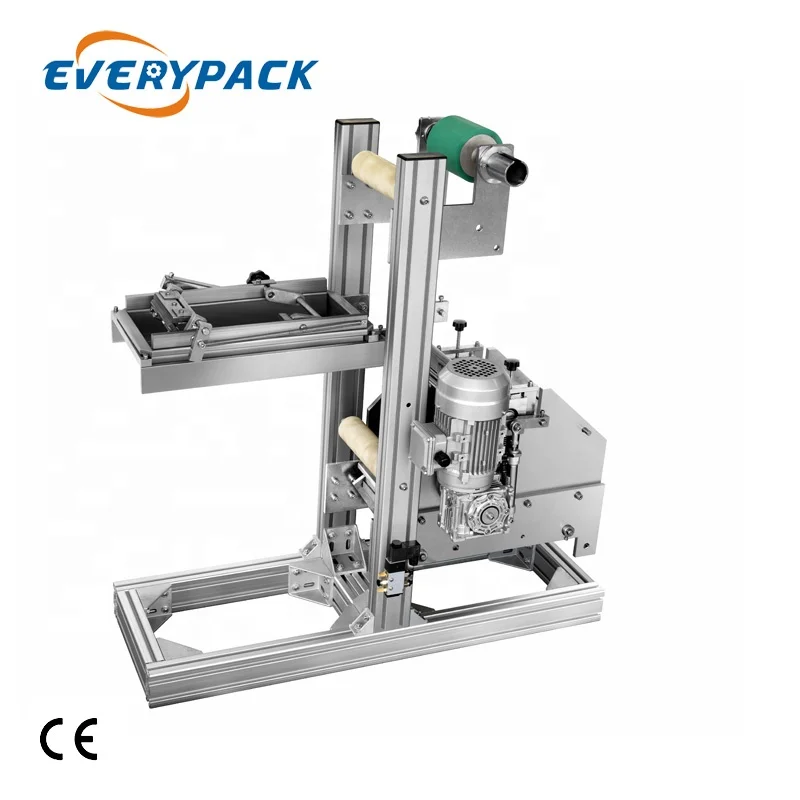

Power Supply | 380V / 3phases / 50 Hz | Gluing Unit | 3 Layers |
Measurement & Weight | Belt | 5 Pieces | |
Measurement | 3500*1500*1200mm | Mandrel Shaft | 2 Pieces |
Working Space | 7000*5000mm | Extra blades | 5 Pieces |
Weight | 1300kgs | Useful Tool | 1 Set |
This Machine is suitable for producing different sizes of paper straws.
1. It adopted with Motion controller, expecially for high speed running of machine; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
2. Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
