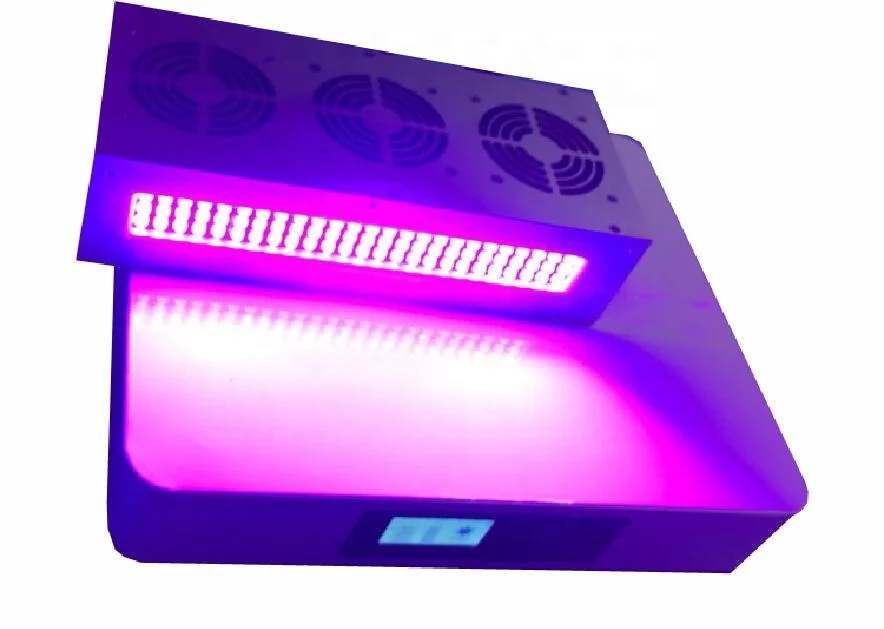

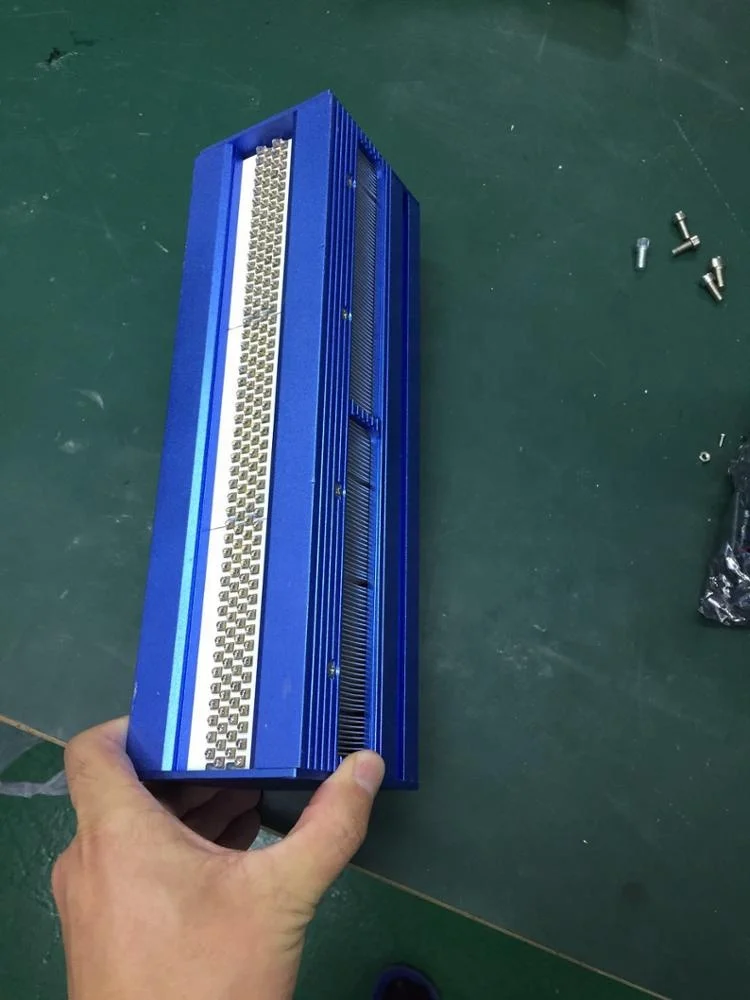

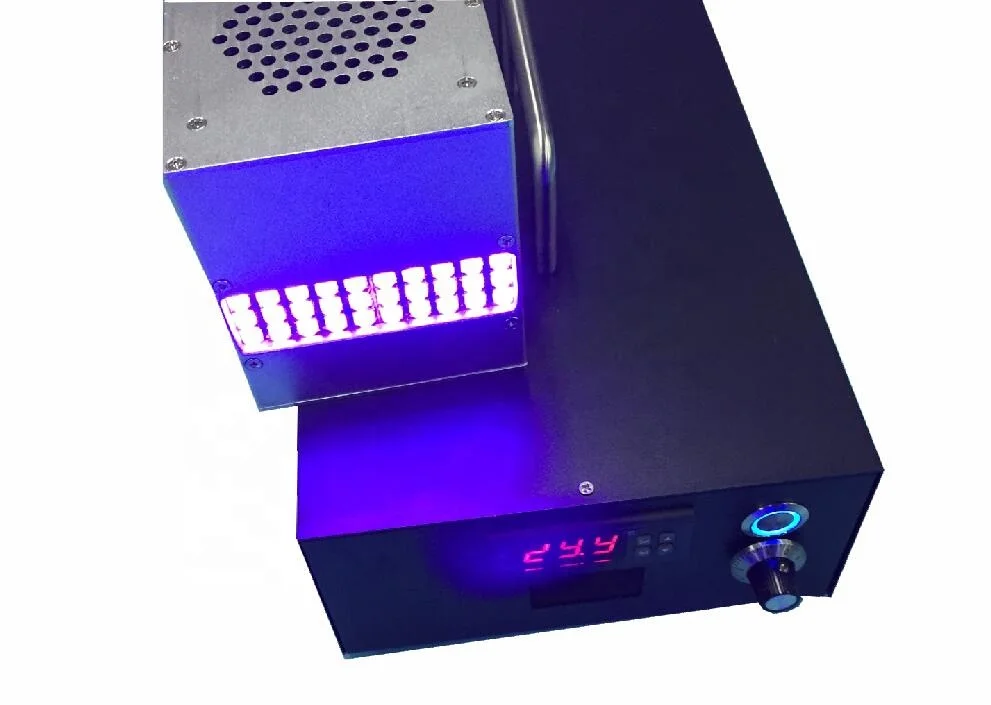

uv led curing lamp for uv glue coating paint ink uv material

Product Overview

Description

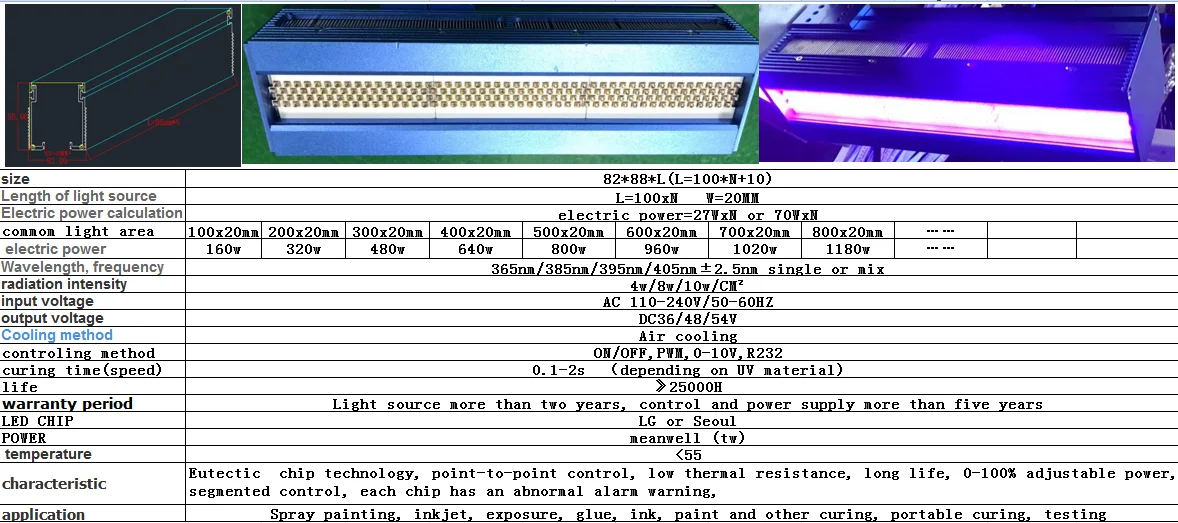

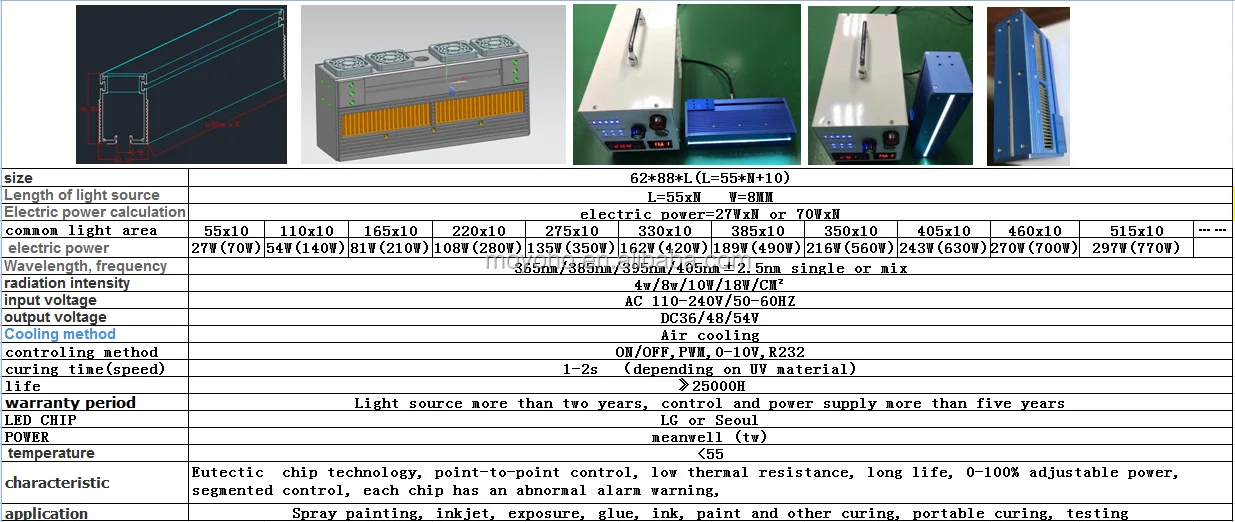

Technical Data of the uv led light head(FOR UV glue/coating/uv material )

Wavelength(±2.5nm)	365nm /385nm/395nm/405nm single  or mix wavelenght
Curing area(light area)	220x10mm/165x10mm/110*10mm/55*10mm/ / (other sizes available  L=55*N)
Electronic power	300W/225W/150W/75W(Other Customized/)
Input voltage	AC110/220V,50/ 60HZ
Output voltage	DC12/24/48v
Cooling method	Air cooling
Life	>25000h
Curing time	0.1-2S
Irradiation distance	10-30mm
Radiation intenstiy	0-18w/cm2(0-100%/ adjustable)
controling method	ON/OFF,PWM,0-10V,R232
warranty period	Light source more than two years, control and power supply more than five years

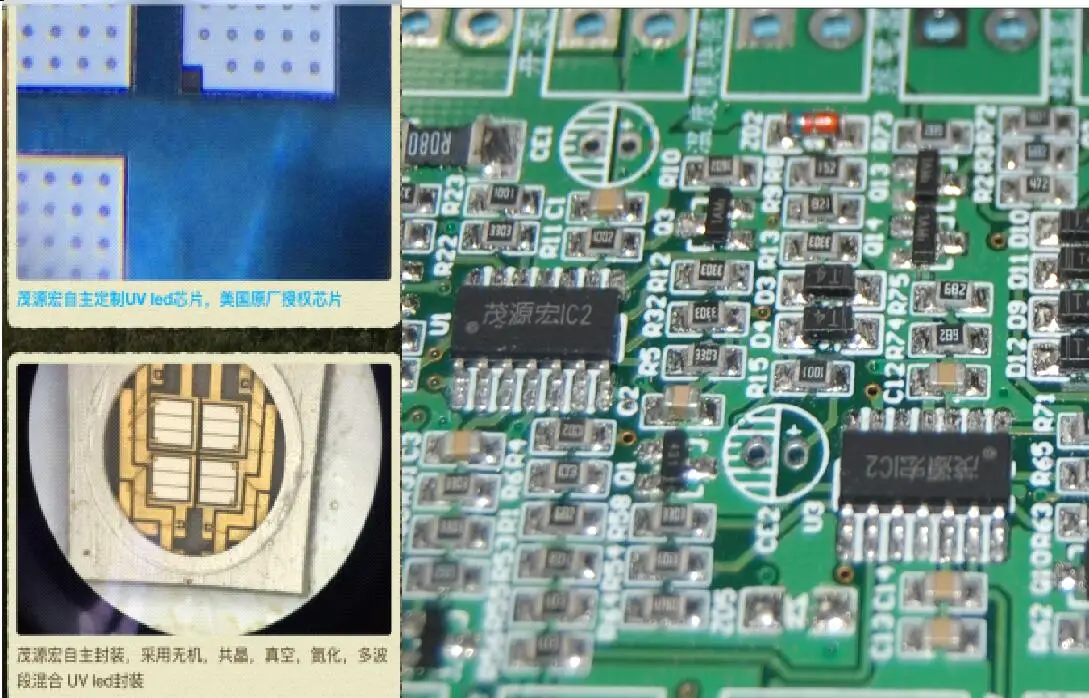

LED CHIP	LG/SEOUL
POWER	MEANWELL
