China manufacture circular self latching push pull connector

Product Overview

Description

China manufacture circular self-latching push pull connector



Full EMC shielding
00/0B/1B/2B/3B/0k/1k/2k/3k /0S/1S/2S shell size are available



1. Technical data:

Main feature:

1) Smart push-pull self-latching system;

2) Multi-core types with 2 to 32 pins;

3) Solder or PCB contacts (straight and   elbow);

4) High packing density for space saving;

5) Different kinds of keying options to   avoid mismatching;

6) 360 degree screening for full EMC   shielding;

7) Waterproof connecter (IP68);

8) Rugged housing for extreme working   conditions.

9) Keying system(G is standard key) for   connector alignment.

10)fully ROHS,ISO9001 certificated

Technical characteristic

1-endurance: >5000 cycles

2-Humidity: Up to 95% at 60 degree   centigrade

3-Operating Temperature Range: -55 to 200

4-Machinical concussion: 100g. 6ms

5-Oscillate Frequency: 10-2000Hz, 15g

6- Salt spray tests: >144h

7-IP Rating: IP68





2. Customized demands are welcome!

If you have any customized requirements, please send us details drawing, we will do for you.





3. Application fields:



Medical, Industry, Defense Security, Energy, Instrumentation, Broadcast, Transportation, Extreme environment…..

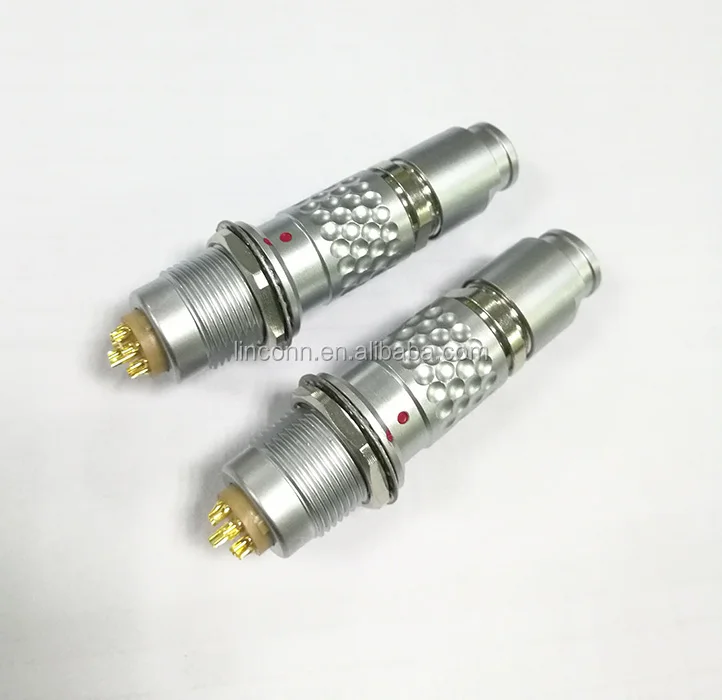

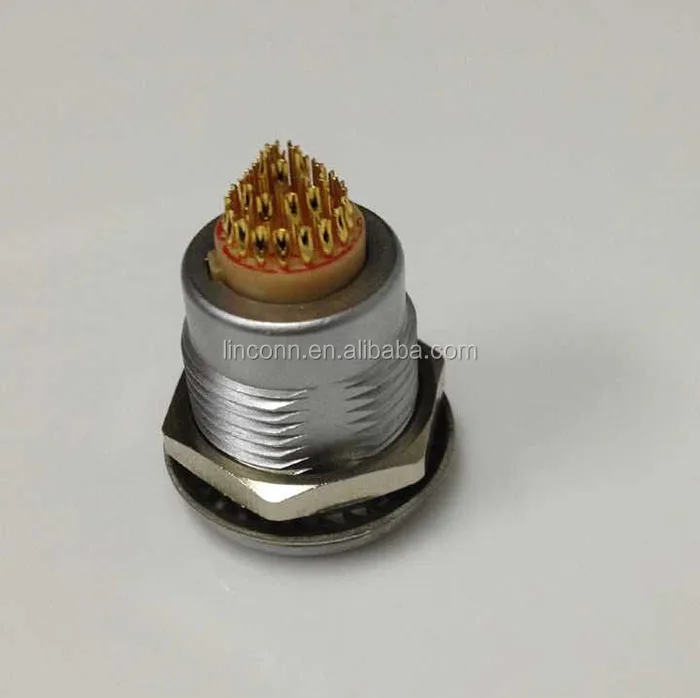

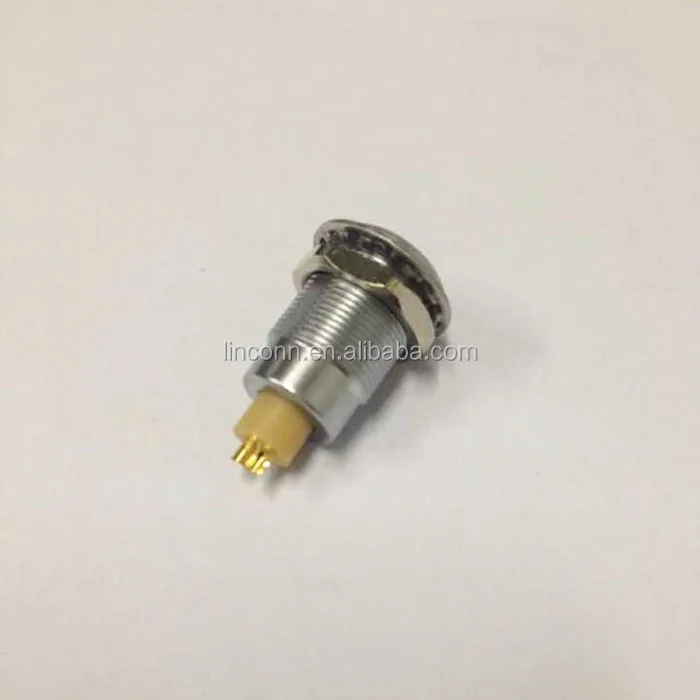

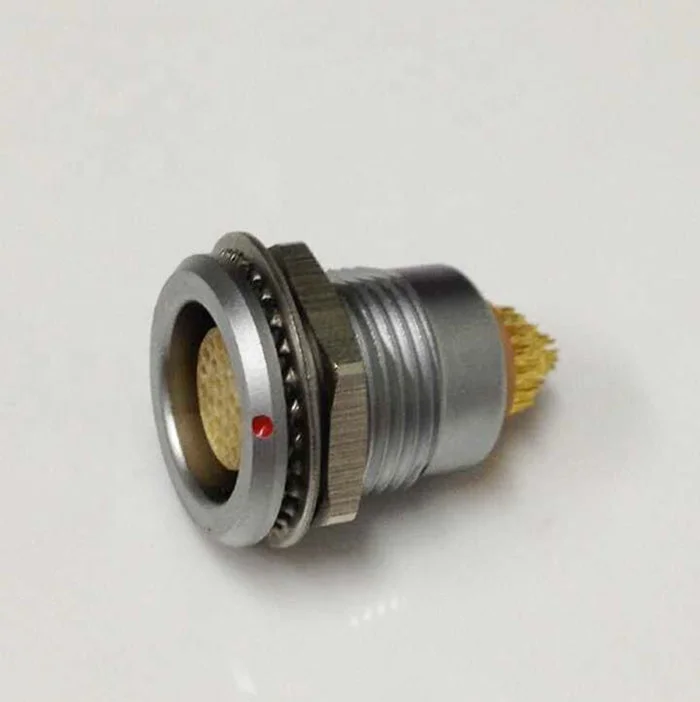

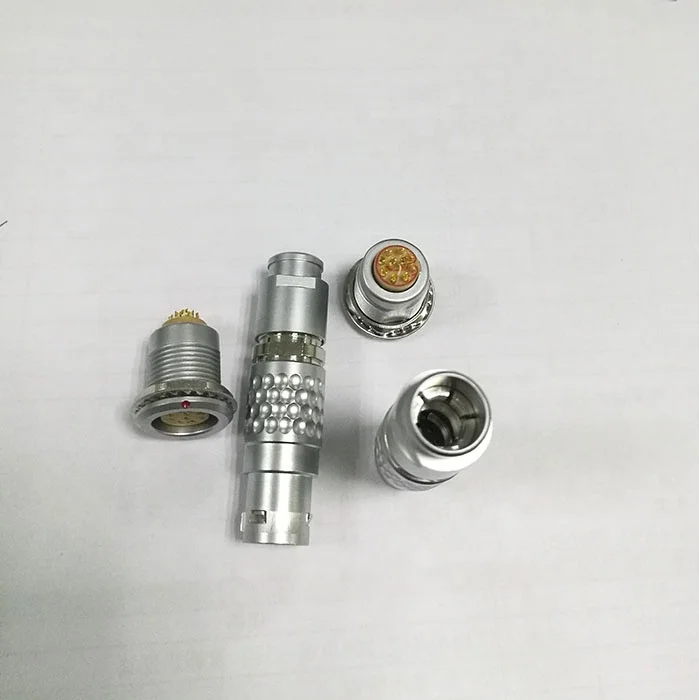

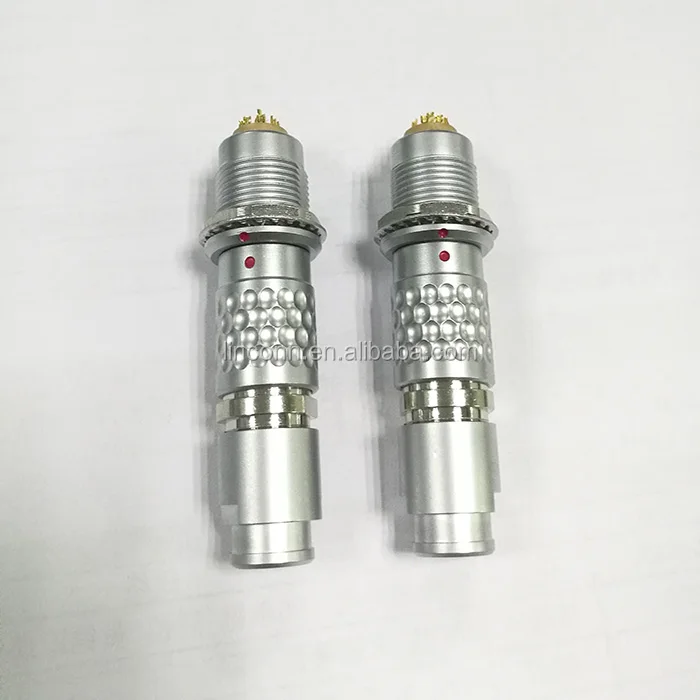

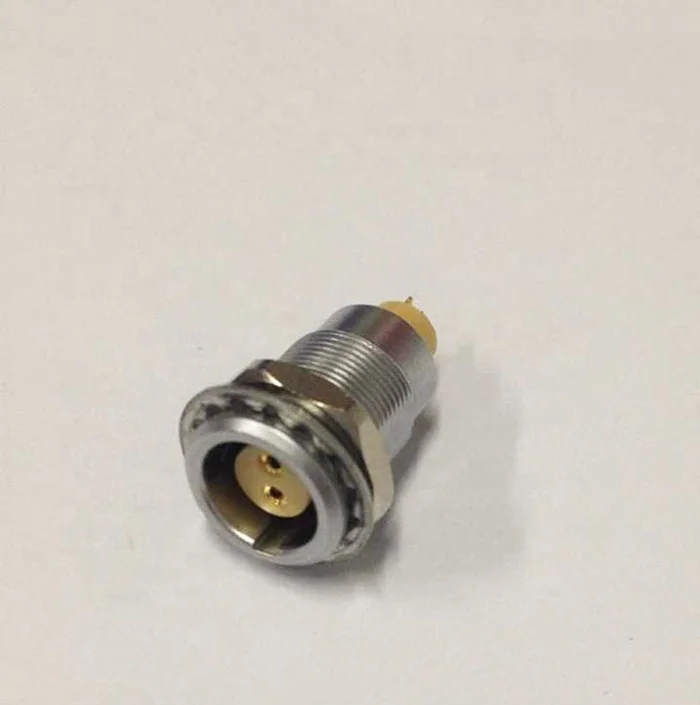

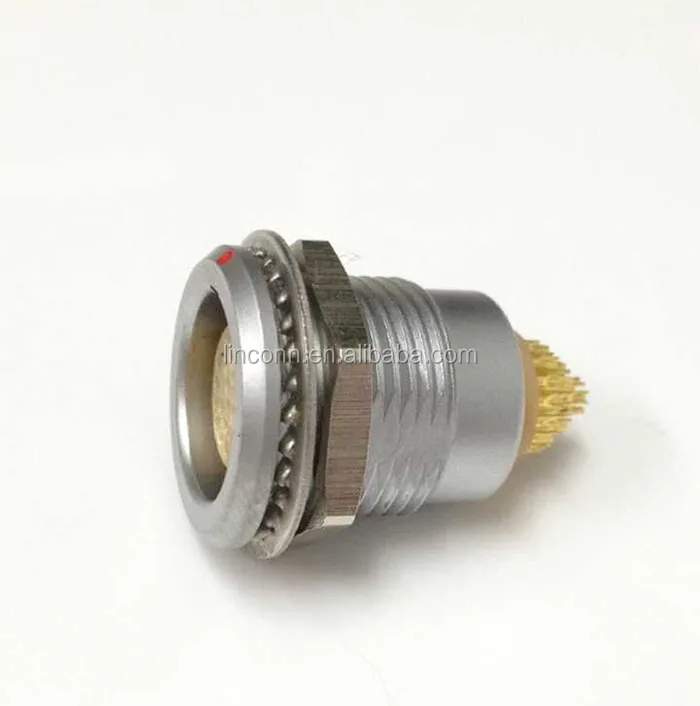

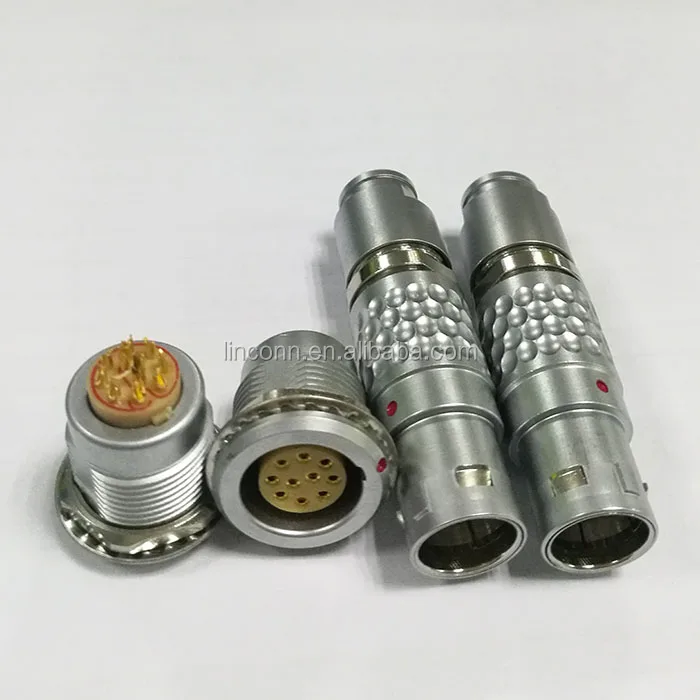

4. Products Show!





5. Why choose LINCONN connector?



A. Designed for Easy Connect/Disconnect Operations

Easy mating, can be blind-mated: guiding mechanism ensures precise alignment.

Increased safety and user friendliness: Mechanical and color coding prevent misconnection.

Convenient grip even with gloves: Circular connectors with ribbed housing profile

Increased equipment life span: Guiding mechanism optimally protects the contacts



B. Proven Rugged, Lightweight and Compact Solutions

Robust and shock resistant designs: Ideal for equipment used in the filed

Compact and lightweight construction: Ideal for miniature and portable devices

High Pin density and hybrid contacts: Contributing to equipment miniaturization

Long product durability: More than 5,000 mating cycles guaranteed



C. Operational in Demanding and harsh environments

High performance connectors: Designed and tested to withstand extreme conditions

Sealed up to IP68 and corrosion resistant: Usable underwater

360° EMC shielded: Preventing electromagnetic interferences

Functional in a wide temperature range: From -65°C to +200°C







Producing Line:











Packaging & Shipping:
