VMC850 BT40 Vertical CNC Milling Machine CNC Machining Center for sale
- Category: Machine Centre & Parts >>>
- Supplier: Tengzhou Topway Machinery Co. Ltd.
Share on (60834875953):
Product Overview
Description
VMC850 CNC MILLING MACHINE & MACHINING CENTER
This kind machine is suitable for the mechanical processing and mold making. And it can adapt to the processing requirement from rough machining to finish machining . It can also finish many working procedures like milling, drilling, tapping, boring etc.
Features :
* High quality resin sand , ensure machine driven stability
* Taiwan high precision and speed spindle
* Taiwan Armless/Arm type ATC with 16/24 tools
* Coolant system with high flow and high head pump, ensure sufficient cooling at high speed running.
* Totally enclosed, safety and beautiful
Specification | Unit | VMC850 | VMC855 |
Table size | mm | 1000×500 | 1000×550 |
T-slot(NO.x width x pitch) | mm | 3×18×100 | 3×18×100 |
Max.table load | kg | 580 | 600 |
Guide rail type |
| X/Y/Z axis Linear way | X/Y/Z axis Linear way |
X/Y/Z axis travel | mm | 800×500×510 | 850×550×600 |
Distance from spindle nose to worktable | mm | 150-660 | 100-700 |
Distance from spindle center to column | mm | 610 | 620 |
Spindle taper |
| BT40 | |
Spindle Speed | rpm | 100-8000 | |
Spindle Motor | kw | 7.5/11 | |
X/Y/Z axis motor | Nm | 18/18/22 | |
X/Y/Z Ballscrew(diameter*pitch) | mm | 4008/4008/4008 | |
X/Y/Z axis rapid feed speed | m/min | 15/15/12 | |
X/Y/Z axis cutting feed rate | m/min | 1-5 | |
Magazine type |
| Arm type / Armless type | |
Magazine capactiy |
| BT40-16/24 | |
Max.Tool length | mm | 300 | |
Max.Tool weight | kg | 7.5 | |
Electricitty supply required | KVA | 25 | |
Air pressure required | kgf/cm2 | 5-7 | |
Positioning accuracy | mm | ±0.008 | |
reposttioning accuracy | mm | ±0.005 | |
Machine dimensions(L*W*H) | mm | 2800×2700×2560 | 2800×2800×2650 |
Machine weight(N.W/G.W) | T | 5.5/6 | 5.8/6.3 |
Main parts Brands:

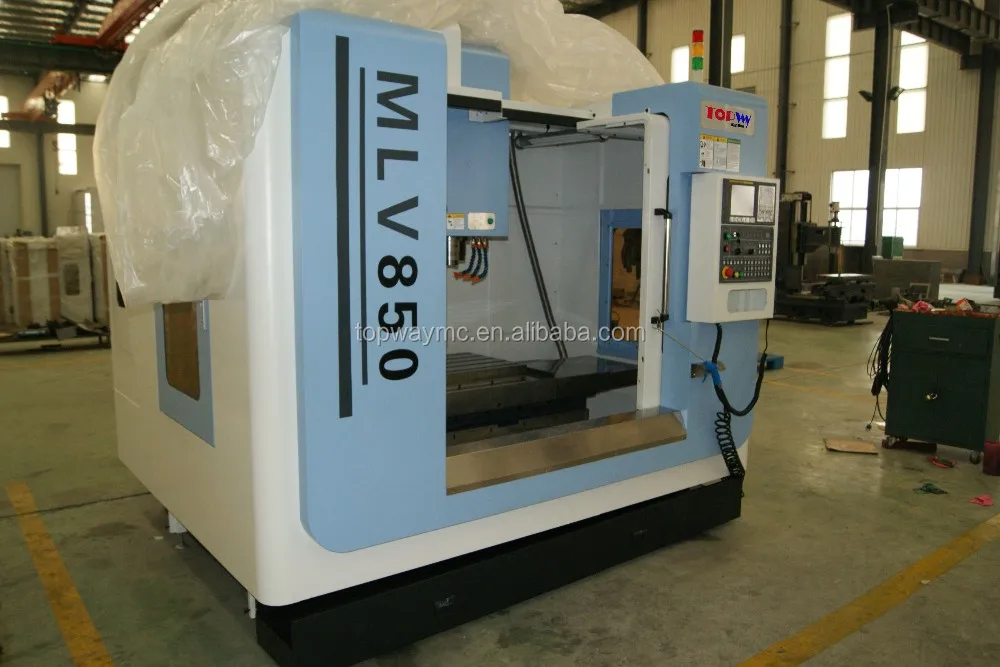

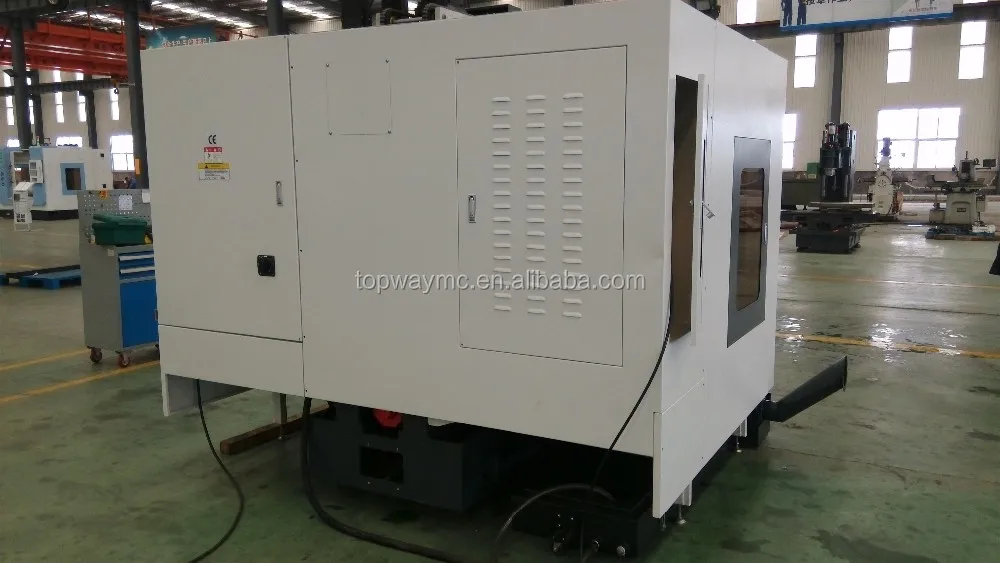

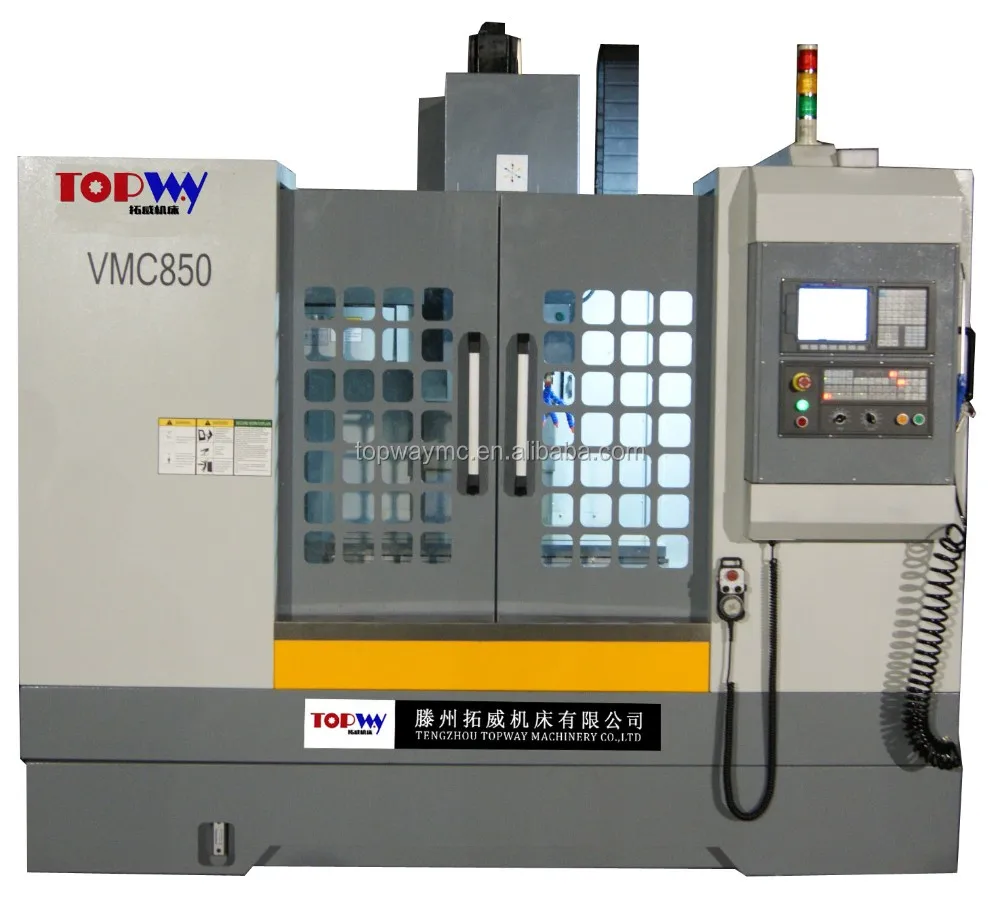

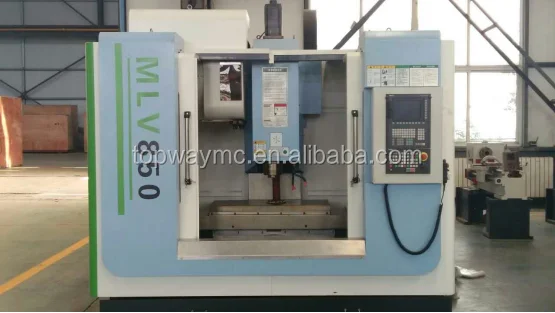

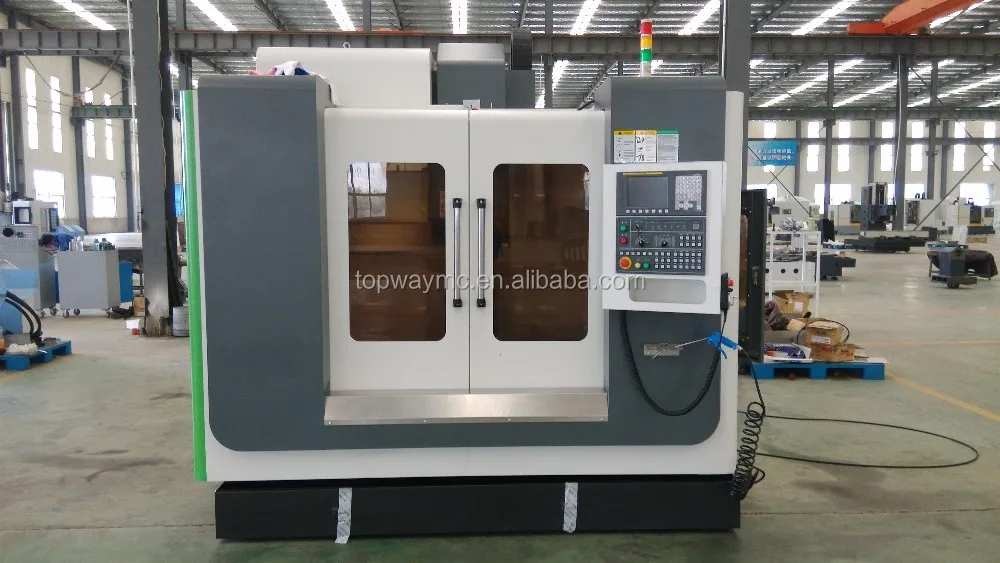

Photos:
 |  | |
 |  | |
 |  |
