Ultra slim waterproof eddystone beacon with button and accelerometer
- Category: >>>
- Supplier: Shenzhen AnkhMaway Electronic Technology Co. Ltd.
Share on (60834907275):
Product Overview
Description
Chipset: nRF52 series
Battery type: Panasonic CR2032 battery
Ble range: 70 meters in open air
Battery life: 24 months based on broadcasting rate 1 second
Motion sensor: Yes
Button: yes
Support: iBeacon Eddystone
Tool app: CheckBlue
-All the parameters can be configured (UUID, Major, Minor, Measured Power, TX Power, etc.)
-We will provide you with a tool APP and API document to configure beacon data, and IOS/Android SDK and Android Source Code to develop your APP.

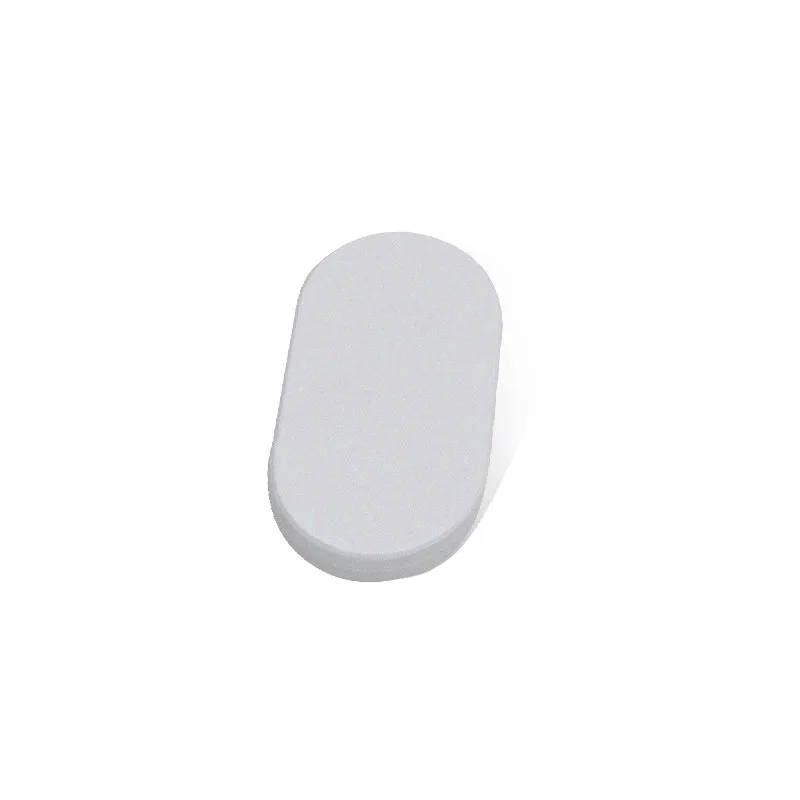

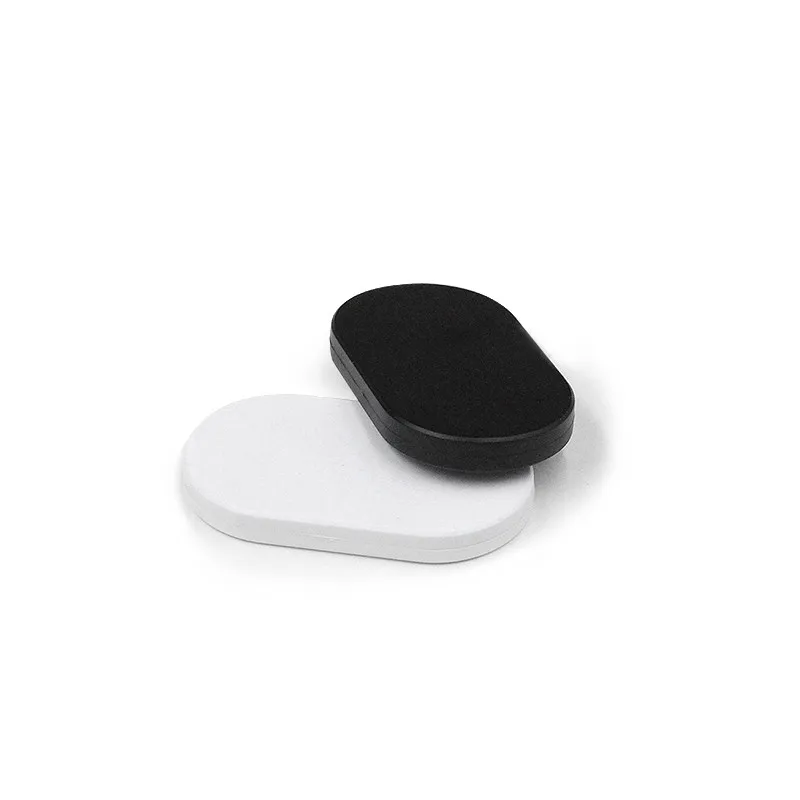

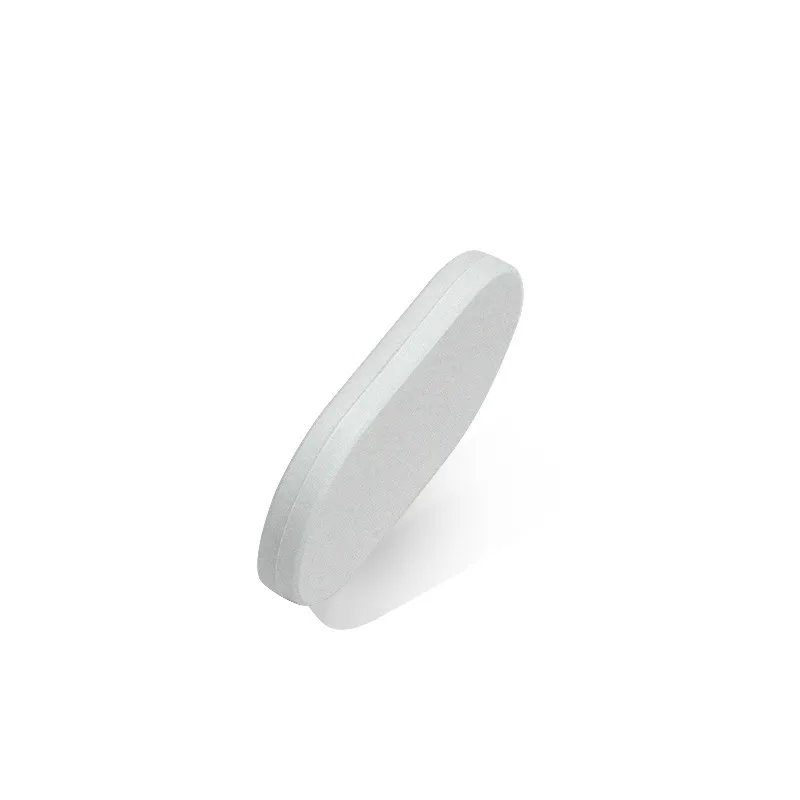

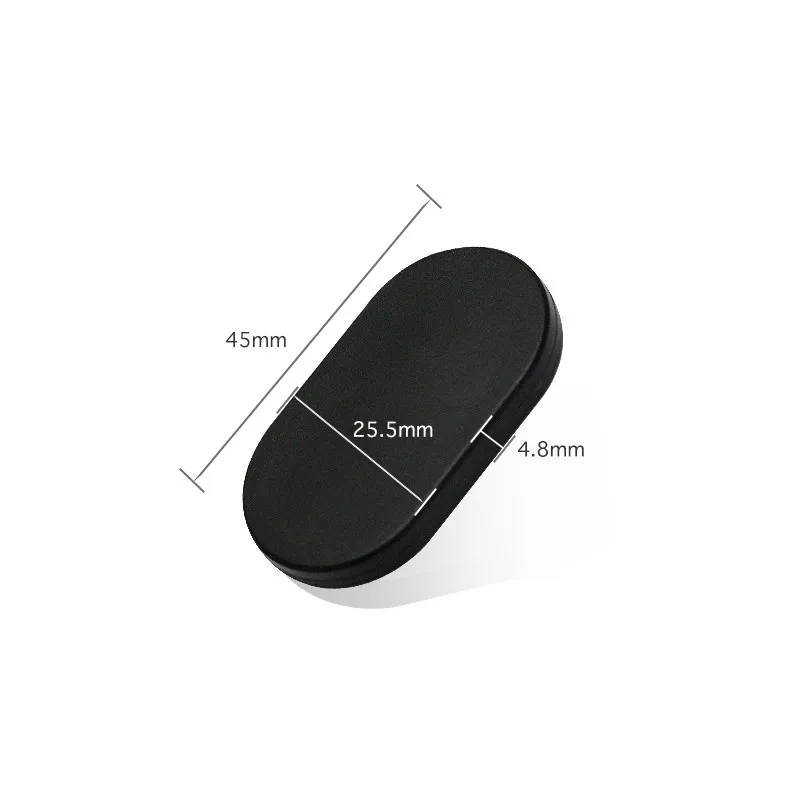

Detailed Images
iBeacon Parameters
Item | Test Data | Remarks |
Chip | NRF52 | Nordic |
Battery model | CR2032 | Null |
Operation Voltage | 2.0-3.6V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz | Null |
Modulation | Q-QPSK | Null |
Standby current | 12uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 70m | BER<0.1%, Open space |
Antenna | 50ohm | Onboard |
State | Operation Current (uA) |
Sleeping Mode | 3.6 |
Connectable Mode | 142 |
Non-Connectable Mode | 22.5 |
Other Models
M52-S
Sensor: Temperature and humidity
Ble range: 100m
Battery type: CR2450
Size: 42mm*42mm*12mm
Chipset: Nrf52832
M52-ST
Ble range: 100m
Battery type: CR2477
Sound Buzzer: Yes
LED light: Yes
Chipset: N52832
W1 Gateway
Ble range: 100m
Battery type: USB cable
Support: BLE, WIFI
Chipset: Nrf52832
S1
Chipset: N52810
Ble range: 40m in open air
Battery type: USB
Color: black
iB001M
Ble range: 70m
Sensor: vibration, LED, touch button
Battery type: rechargeable, 7-15 days after each charge
Chipset: N52832
UWB
Ble range:70m
Powered by: USB
Support: UWB and BLE
Wearable: Yes
Certifications
About Us
Our Service
Case customization
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.
Logo printing customization
We can print your own logo on the case in any color .
Firmware customization
We provide the firmware customization according to your requirements.
For the bulk quantity, we provide the case customization and even the eletronic design for your customized housing only.
Logo printing customization
We can print your own logo on the case in any color .
Firmware customization
We provide the firmware customization according to your requirements.
