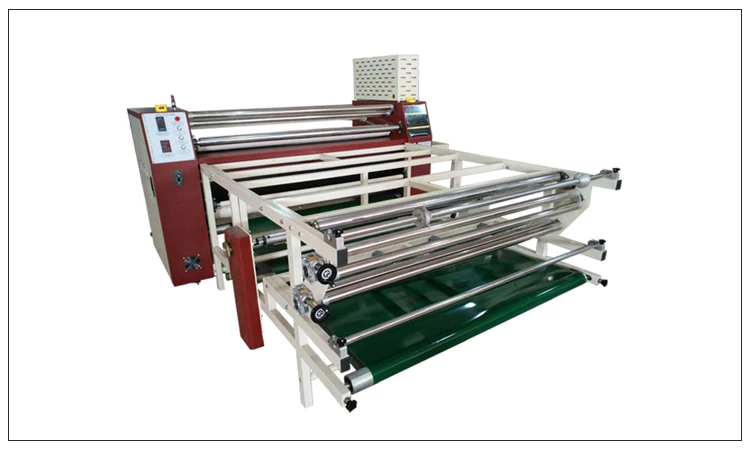

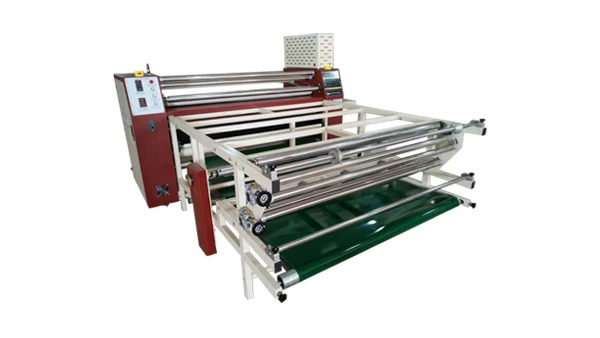

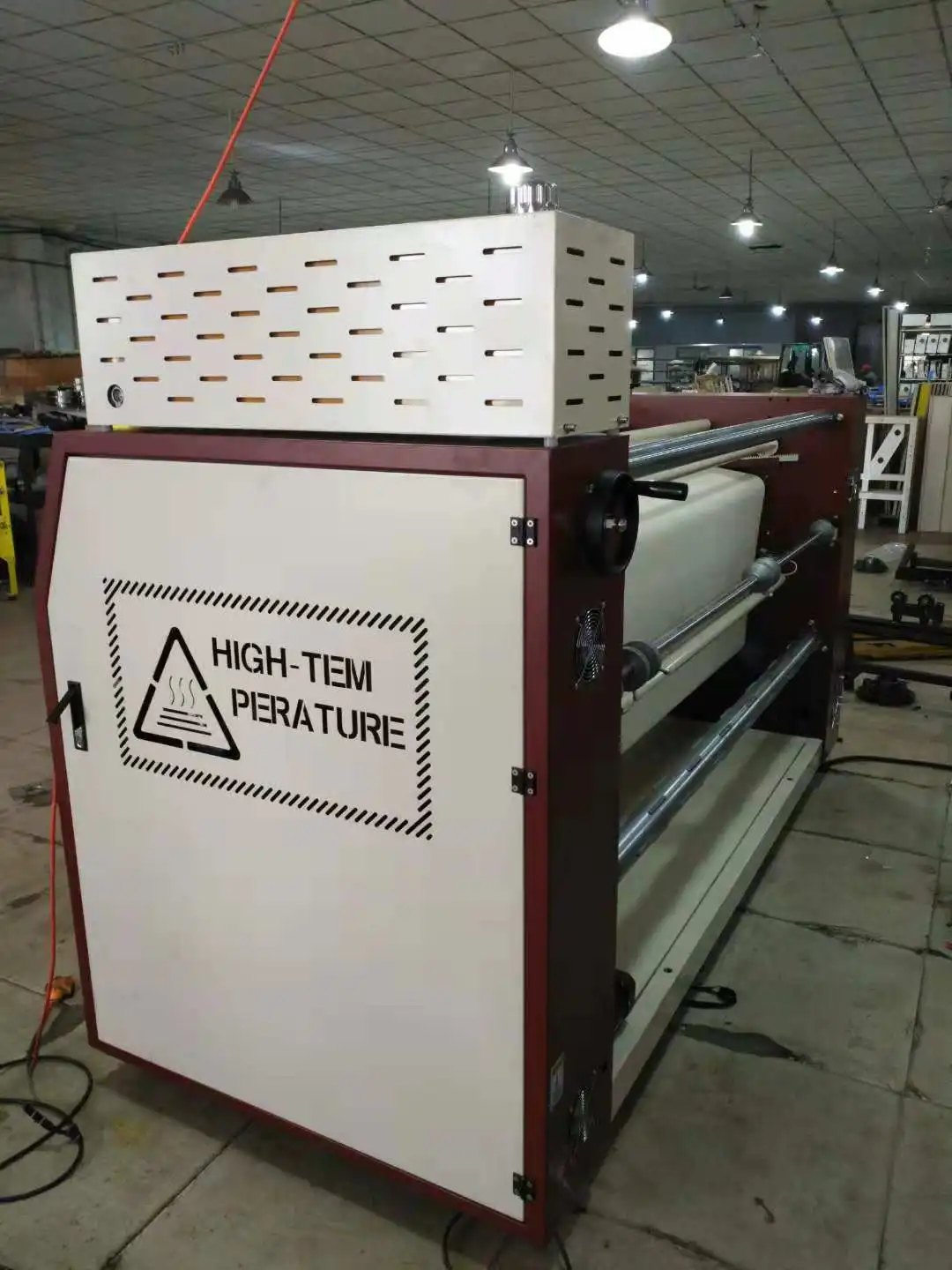

Roller Sublimation Automatic Heat Press Transfer Printing Machine For Sale

Product Overview

Description

Roller Sublimation Automatic Heat Press Transfer Printing Machine For Sale

Parameter:

Items	ROLLER HEAT TRANSFER PRINTING MACHINE
Model	HJD-J901	HJD-J902	HJD-J903	HJD-J904	HJD-J905
Drum Diameter(mm)	200	270	420	600	800
Power	7kw	16kw	23kw	50kw	65kw
Voltage	220V/50Hz (single phase)	380V/50HZ (3phase 4wire)
Heating Method	Oil-based heating pipe
Max transfer width	1050	1700	1700	1700	1900
Blanket width(mm)	1150	1730	1730	1730	1950
Roller machine width	1200	1860	1860	1860	2080
Working Table Area (mm)	W1000*L1280	W2000*L1810	W1510×L1780	L3000×W1780	L customized× W 2000
Max working speed (m/h)	40-70	60-100	120-180	150-230	300-500
Packing Sizes(mm)	1810×800×1410	2680×950×1480	2640×1600×1910	2640×1750×1910	2900×2000×2000
N.W.	400KG	1000KG	1500KG	2000KG	3500KG

    Introduction :

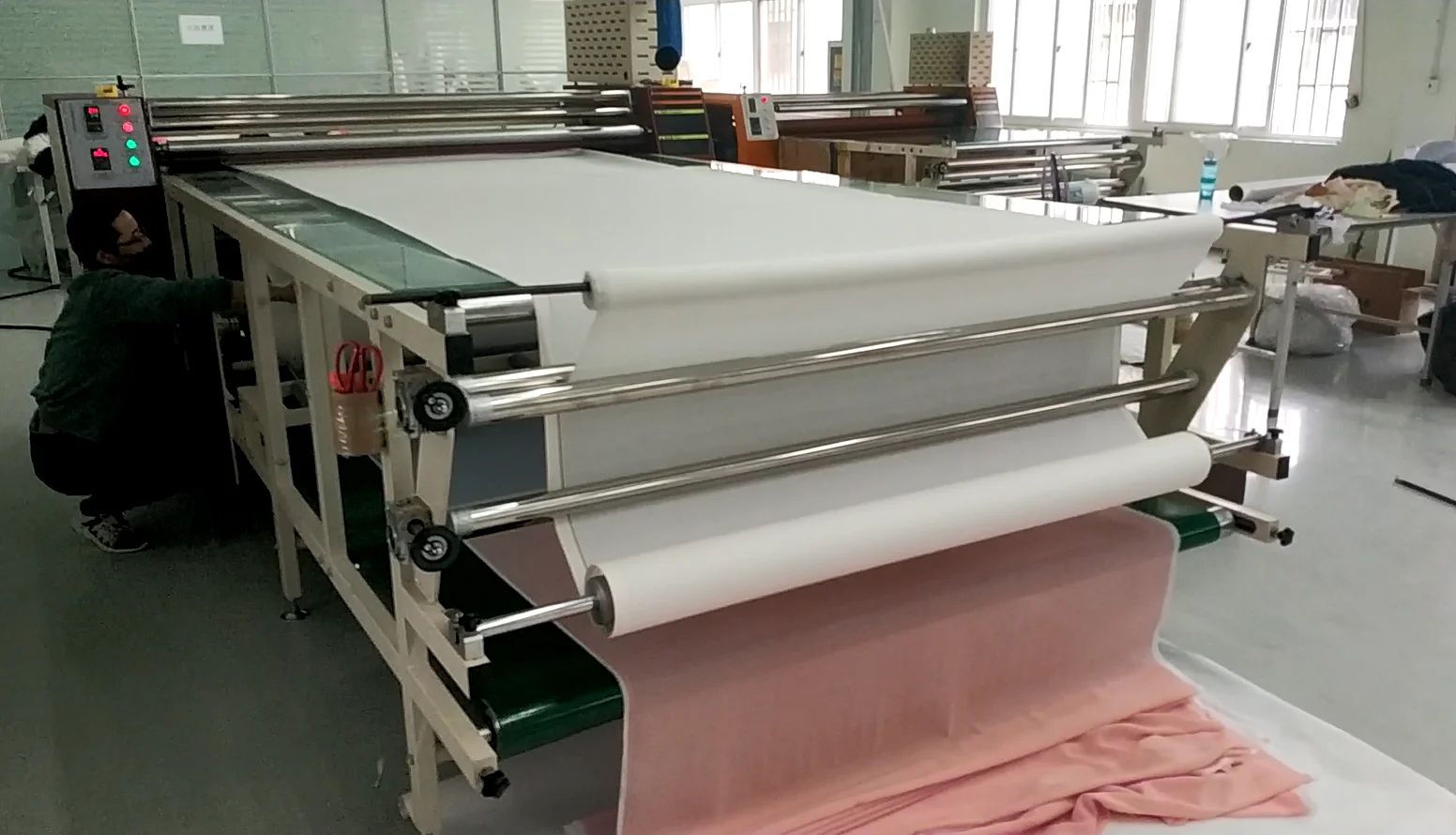

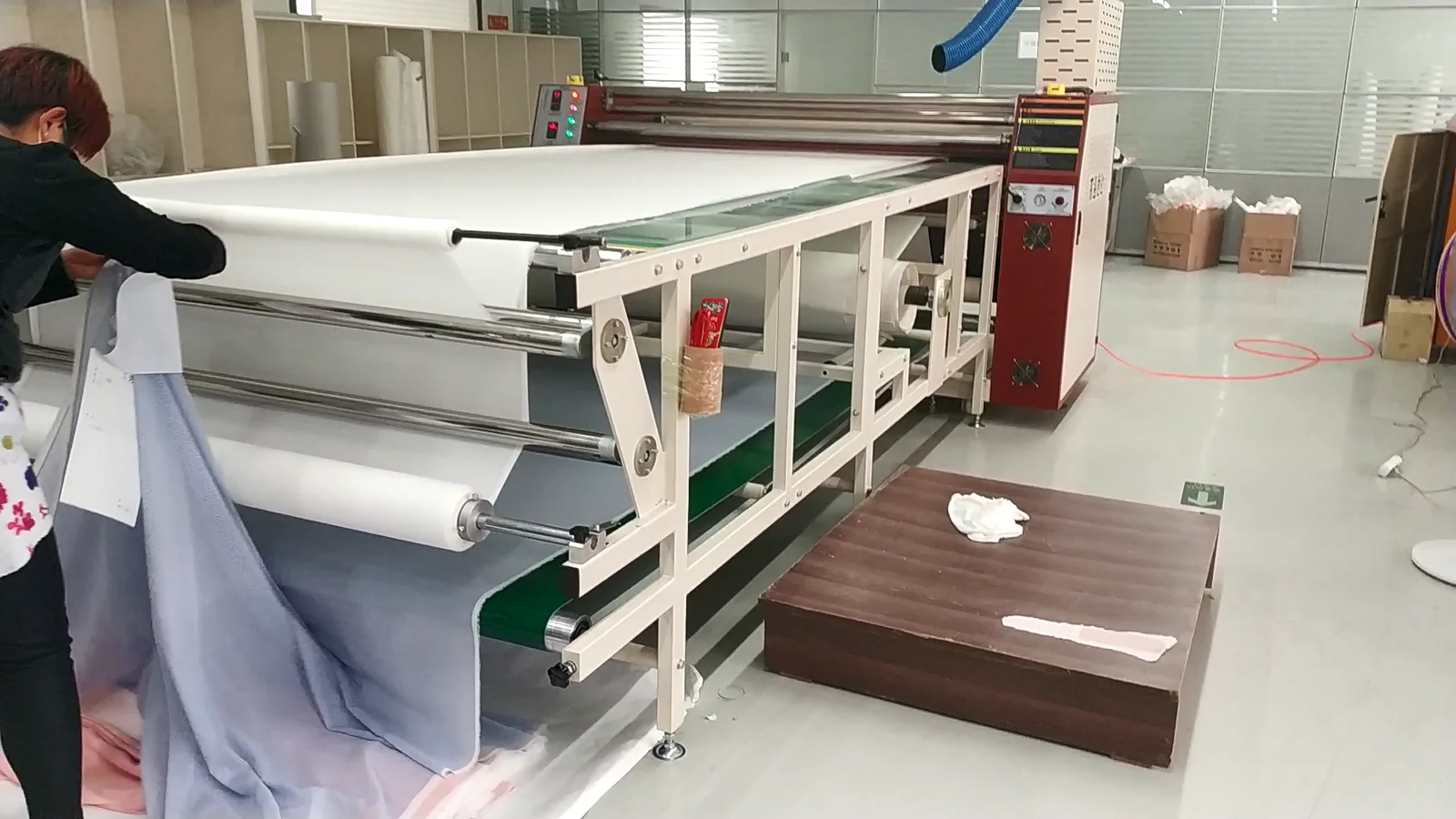

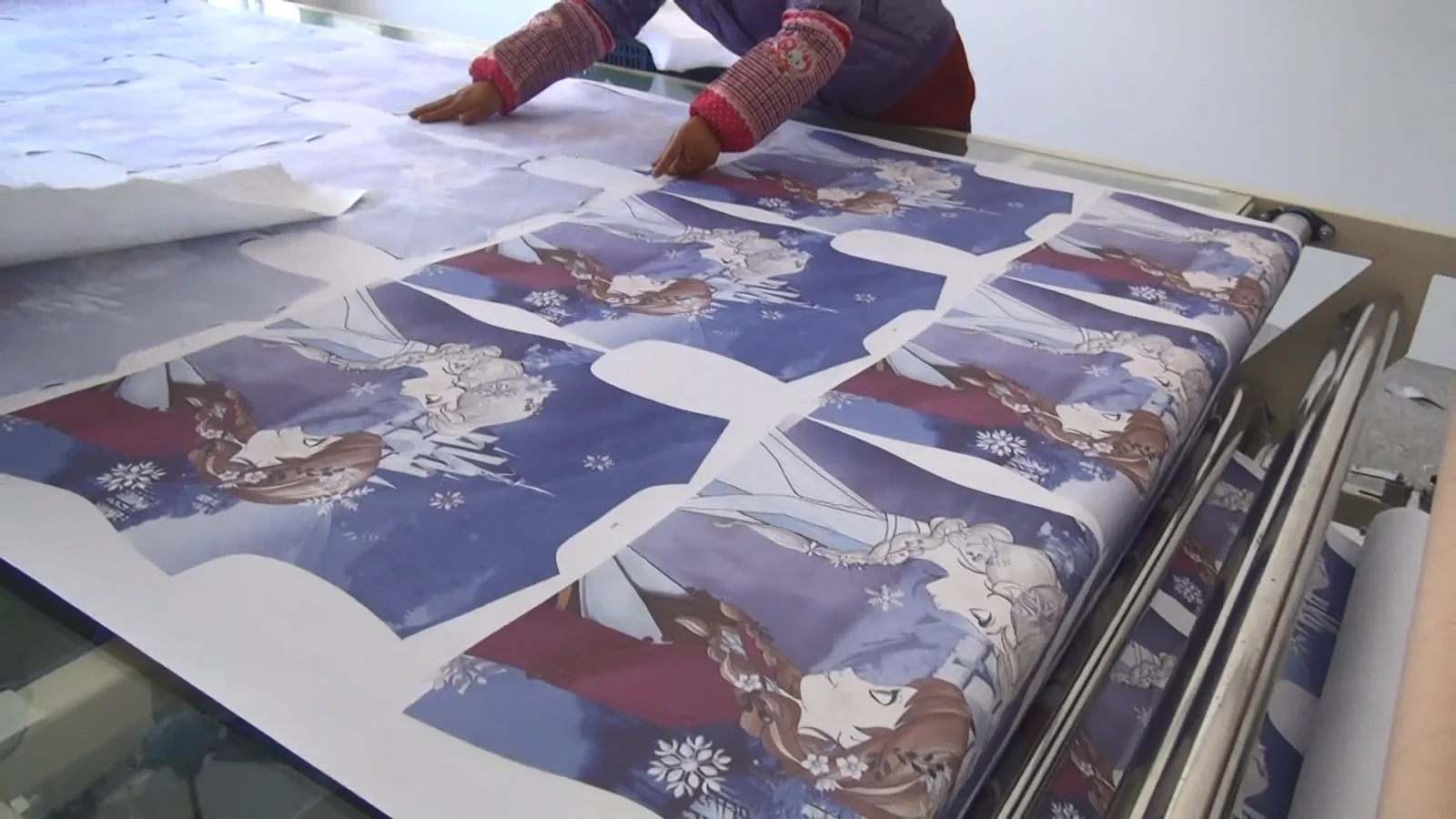

This machine is mainly used for the purpose of the coil materials sublimation transfer printing, multilayer composite material, flannelette or thick material hot drilling.

     The roller heat transfer printing machine adopts double roller core design, which is fuel-efficient and power-saving. It has multi-functions such as electronic non-contact heating module, precise automatic constant temperature control, pneumatic booster, automatic roller winding, inflatable shaft, automatic edge correction etc.

This is the basic parameter introduction; special requirements could be tailor-made according to customers’ request.



Picture of the doubles Box :
