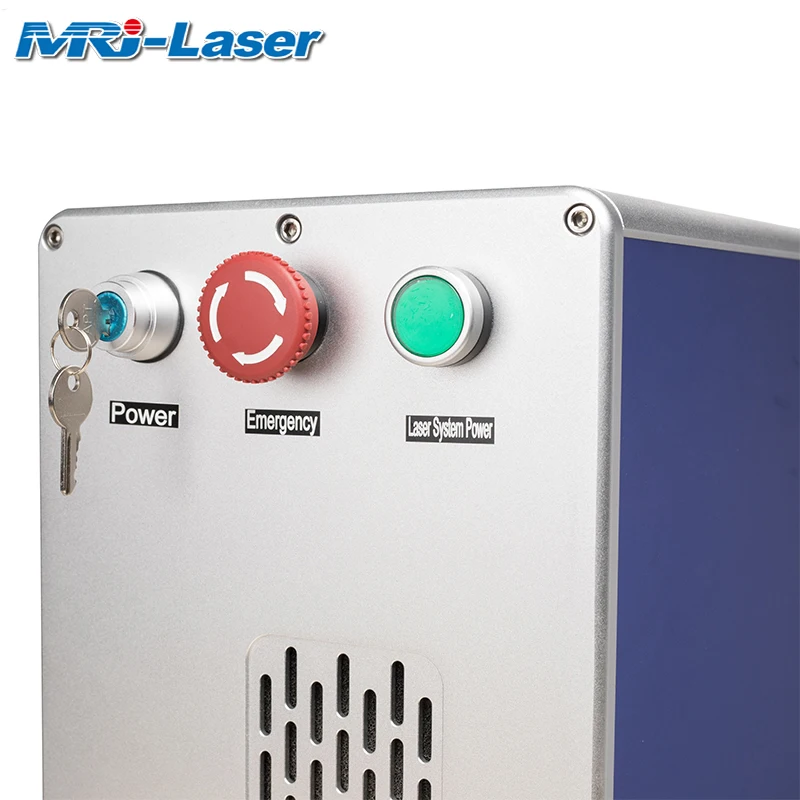

Portable 3D Fiber Laser 20W 30W 50W Color Marking Printing Machine With Motor to Auto up down
- Category: >>>
- Supplier: Chengdu Mrj-Laser Technology Co. Ltd.
Share on (60834982388):
Product Overview
Description

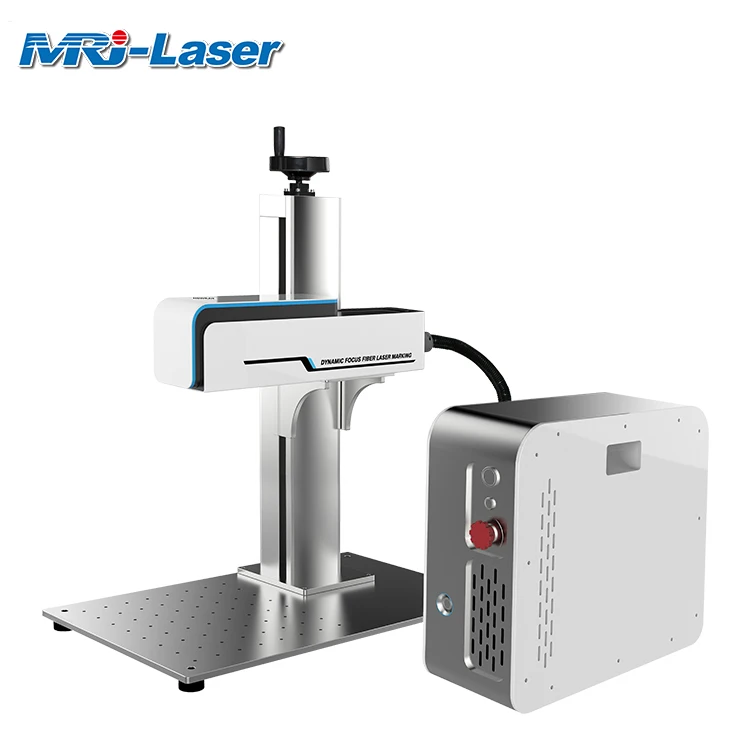

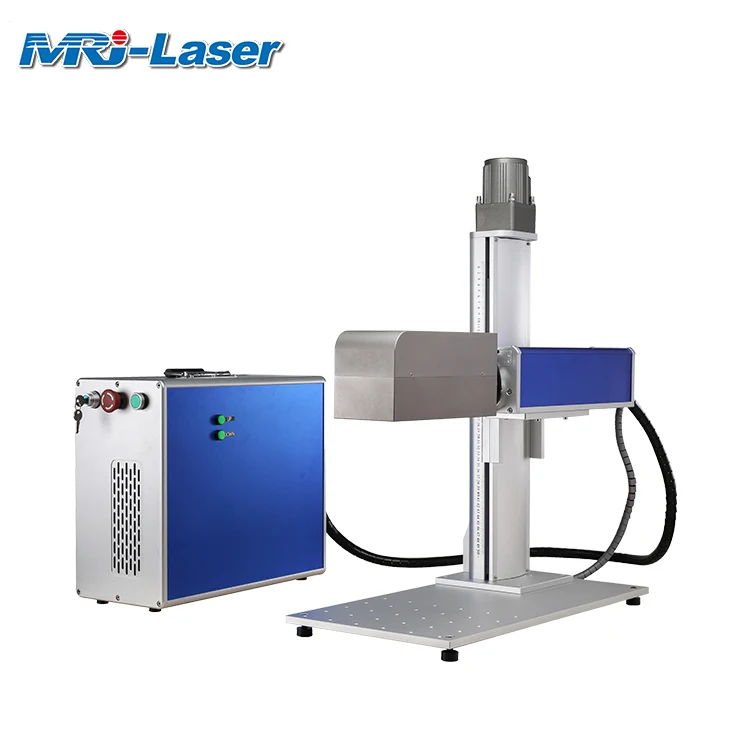

Portable 3D Fiber Laser 20W 30W 50W Color Marking Printing Machine
Equipment Introduction:
¶ MRJ-FL-3D series dynamic focusing fiber laser marking machine can be applied to any curved surface, sphere, step and irregular surface marking;
¶ The laser focal length can be changed through the focusing axis, can also realize deep carving, to meet all 3D marking requirements;
¶ Equipped with MM3D dynamic focus control software to realize high precision marking,deep marking on any shaped objects.
Performance Parameters :
| Model | MRJ-FL-3D20B | MRJ-FL-3D30B | MRJ-FL-3D50A |
| Output Power | 20W | 30W | 50W |
| Pulse Energy | 1.2MJ | 1.3MJ | 1.5MJ |
| Reputation FREQ | 20-80KHz | 30-80KHz | 50-120KHz |
| Laser wavelength | 1064nm | 1064nm | 1064nm |
| Marking Field | 300x300mm | 400x400mm | 600x600mm |
| Min. Line Width | 30um | 30um | 30um |
| Marking Speed | 6000mm/s | 6000mm/s | 6000mm/s |
| Support Font | TrueType Font, AUTOCAD Single Line Font, Custom Font | ||
| 1D Barcode | CODE39/CODE128/ITF/CODEBAR/EAN/UPC, etc | ||
| 2D Barcode | OR/PDF417/Data Maxtrix(ECC200), etc | ||
| Input File | PLT/DXF/DWG/BMP/JPG/JPEG/TLF, etc | ||
| 3D Mode | Support STL Format | ||
| Input Power | Single Phase 110V/220V/50-60Hz | ||
| Power Consumption | ≤600W | ≤800W | ≤1000W |
| Cooling Method | Air Cooling | Air Cooling | Air Cooling |
| Control Interface | USB 2.0 | USB 2.0 | USB 2.0 |

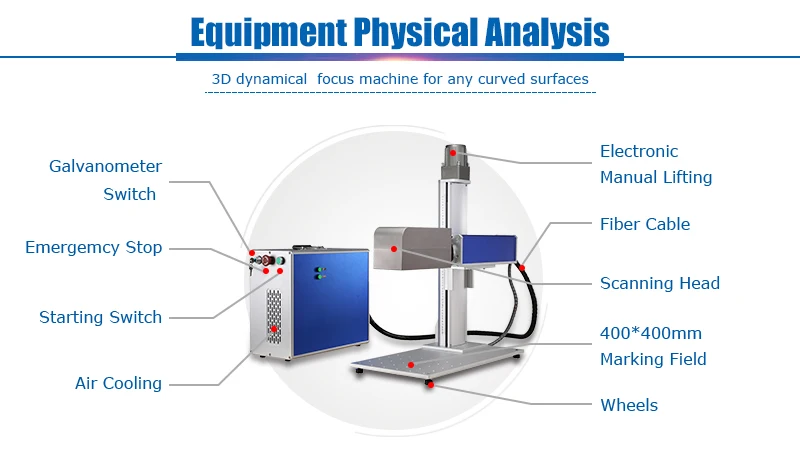

System Characteristic :
♦ The max marking field is 600mm*600mm, the max scan height is 130mm;
♦ The galvanometer scanner focus beam size is 50um, response speed can meet precision filling up to 5000mm/s;
♦ Support 3D model importing, and 2D graphics can be directly coated or projected on the built-in commonly used curved surface;
♦ Equipped with shining blue LED and unique streamlined design of marking head, specially applied for high-end laser market;
♦ Adopt integrated structure, small size, fine sealing, to ensure the stability of long time working.

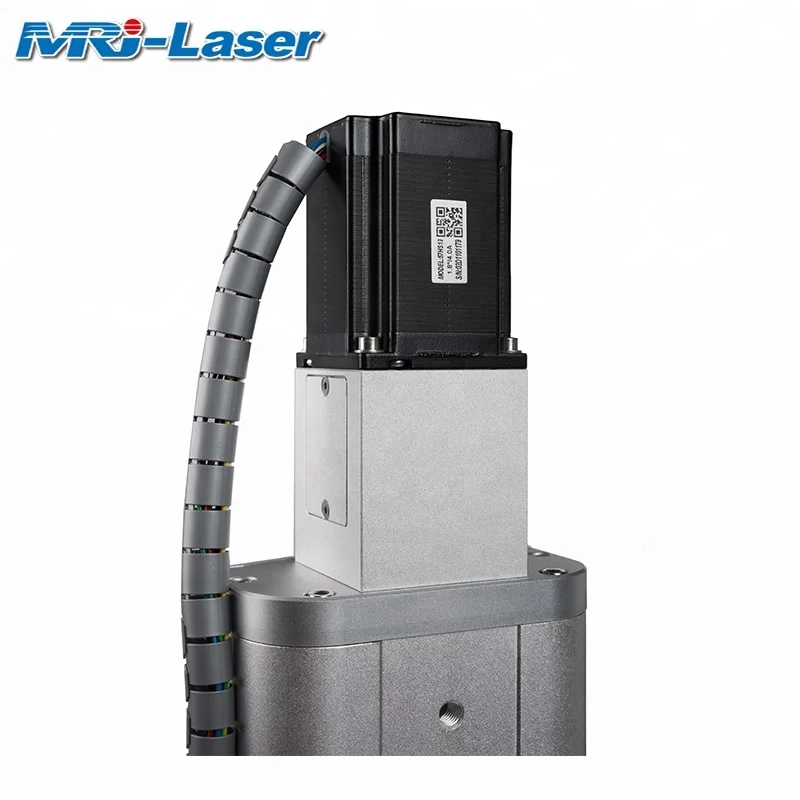

♦ Equip otor for Auto-lifting of the laser head, which is easier to operate and help you find the focal length faster.
Application Field
Applied Industries:
Electronic Components: Resistance, capacitance, chips, printed circuit boards, computer keyboard.
Apparatus And Meter: Panel signs, precision equipment, etc.
Instrument: Panel signs nameplates, precision equipment, etc.
Hardware Tools: Knives, tools, measuring tool, cutting tool, etc.
Automobile Parts: Pistons, piston rings, gears, shafts, bearings, clutch, lights, etc.
Mechanical Parts: Bearings, gears, standard parts, motors, etc.
Daily Necessities: Handicrafts, zipper, key holder, sanitary ware, etc.
Jewelry: Rings Jewelry, gold, silver, etc.
Food package: Plastic packages, etc.
Marking Material:
Metals: Carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, rare metal and alloy steel, gold, silver, titanium, etc.
Non-metals: Plastics, rubber, resin, carton box, etc.
Main Parts:
Fiber Laser Source: IPG, SPI, Raycus, Max, JPT (optional)
Scan Head: SINO-GALVO
Marking Software: EZCAD/self-developed

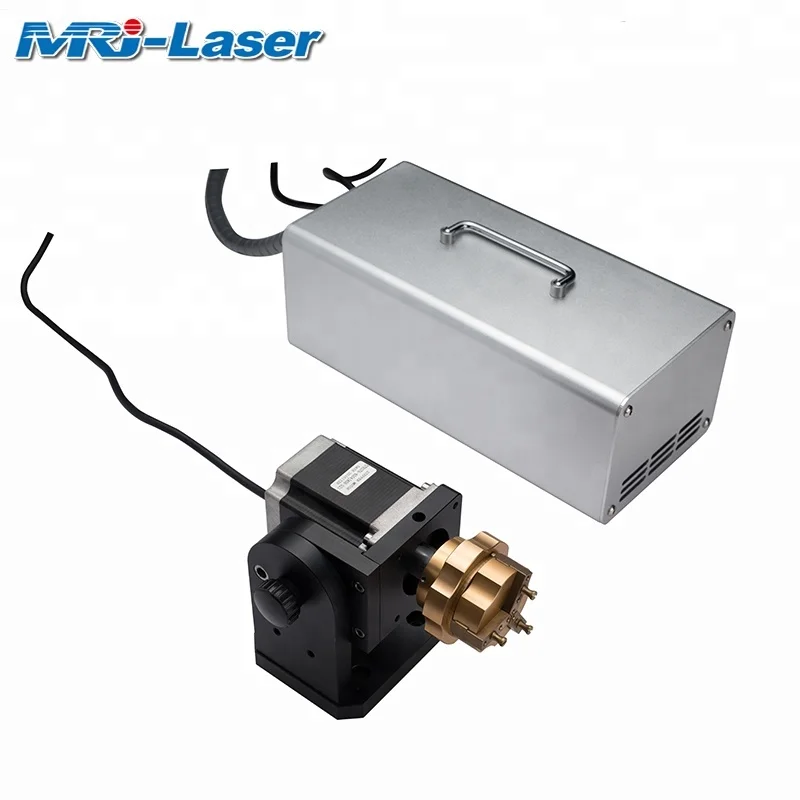

Others: F-theta Lens; Computer,Rotary
More Fuctions: Auto-Focus,Auto-UP-DOWN;Deep carving; Visual positioning; Red light focus and more functions could be customized based on customers' needs.
Superiority:
R & D: Professional engineering design and the smallest size;
Warranty and service: 100,000 hours life time with 3 years warranty and oversea after-sales.
Certificates: Customized products with CE, EN60825 and test certificates.
Packaging & Shipping
1.Durable wooden case or as per required.
2.The delivery lead time would be 7-10 working days after the payment.
3.As for the wholsalers/distributors, we could send the cargo by air, by sea or by railways via reliable forwarder.
Our Services
FAQ
Q1: How can I get suitable machine?
Pls inform us the following things, then we could recommend you the suitable products:
- Marking material
- Marking area and marking depth(if you have such requirements)
- Marking content,then we could mark a sample FYI.
Q2: This is the first time I use this kind of machine, is it easy to operate?
- Firstly,it is quite easy to operate the machine.
- Secondly, user manual and guide video in English will be offered, it can teach you how to operate the machine.
- Thirdly,we can help you by "Teamviewer" online help software for remote control to solve your problem.
- Fourthly, we can communicate by phone, email or other contact ways.
Q3: If the machine has problem in my place,what should I do?
- We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: How long is the delivery time?
- For standard machines, it would be 7-10 days;
- For non-standard machines and customized machines, it would be 15 to 30 days.
Q5: How's the payment?
- Telegraphic Transfer (T/T)/Ali Trade Assurance Payment
Q6: Do You Arrange Shipment For The Machines?
- Yes, we will arrange shipment for you.By sea,by air or express.
- Of course, appointed forwarder is welcome
Contact Information
Shaw
International sales manager
Whatsapp/Wechat/PH: +86 13678128507
E-mail: shaw(@)mrj-lasermark.com
Related Products

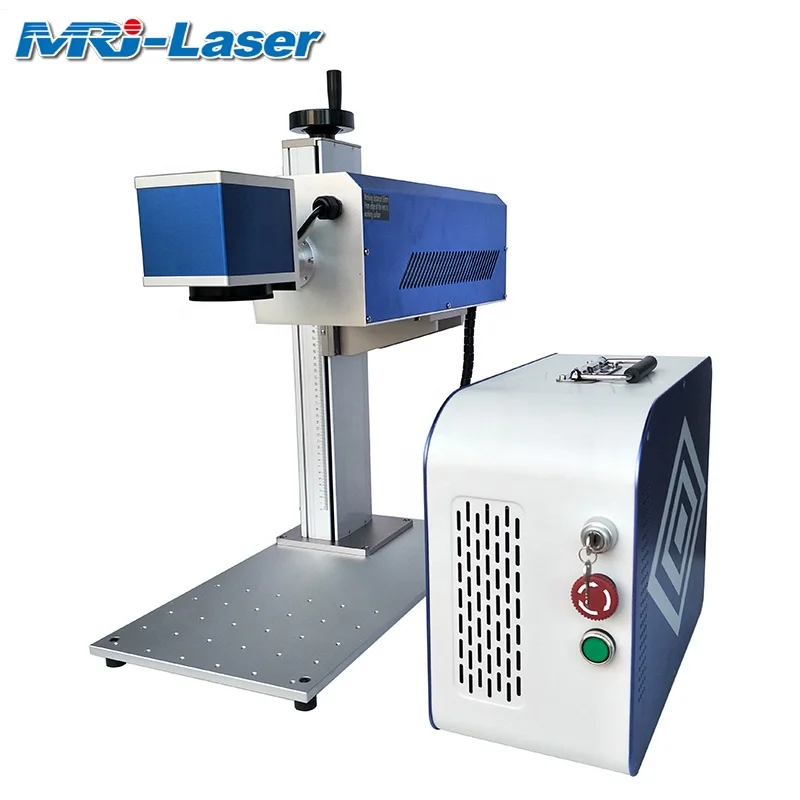

Wood leather CO2 laser marking machine Portable 3D Laser engraving machine Column fiber laser marking machine
