Hot selling Taikan 650 CNC machine centre /Used Cnc engraving and milling machine

Product Overview

Description

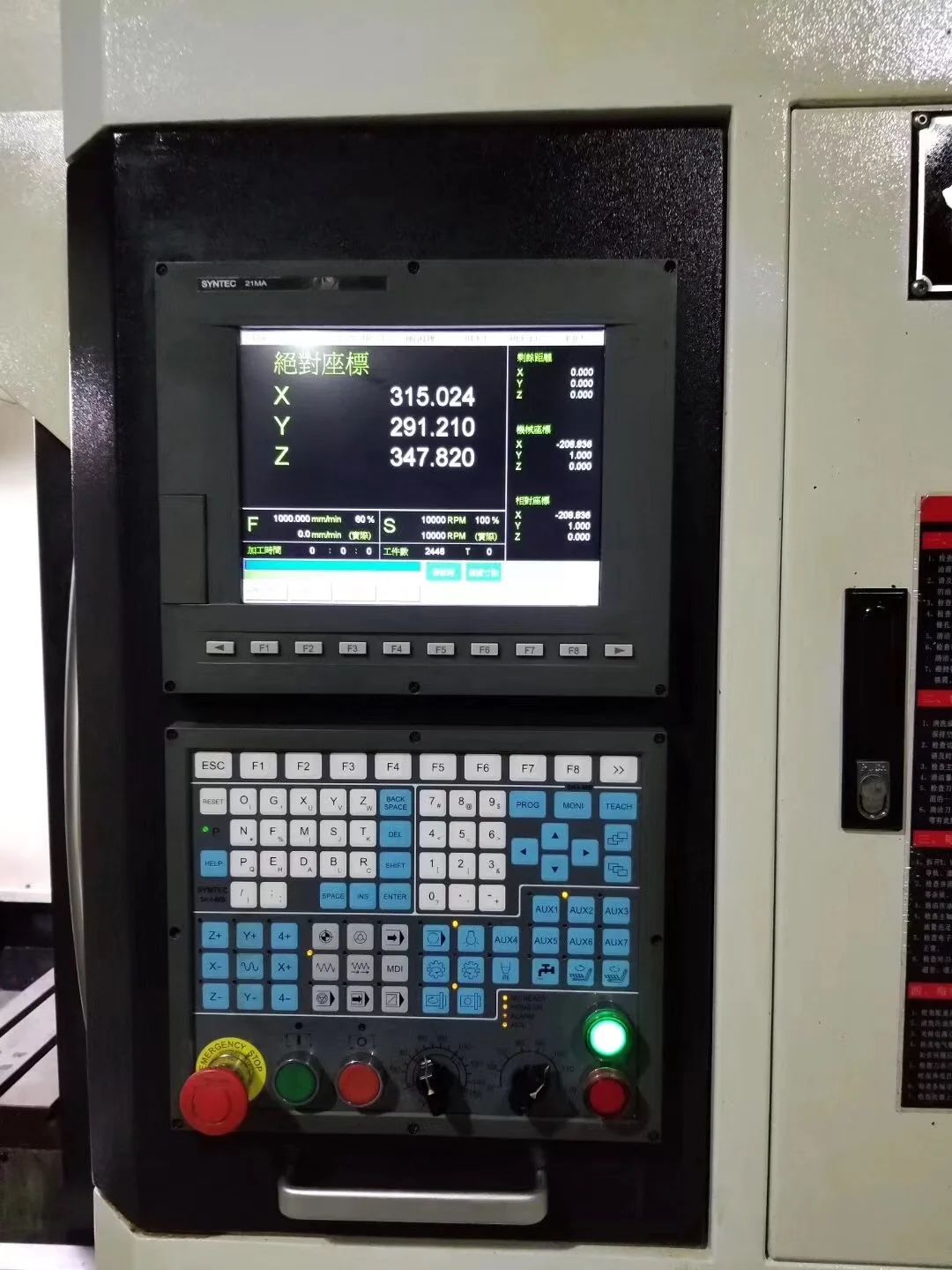

Used Vertical Machining Center SYNTEC System

Spindle increases power

X coordinate stroke mm 1100

Y coordinate stroke mm 600

Z coordinate stroke mm 600

Workbench specifications (length) mm 1200

Workbench specifications (width) mm 600

Workbench heavy load kg 1000

Spindle center to column guide surface mm 675

Spindle end face to table plane mm 150-750

X, Y, Z cutting feed mm / min 1-6000

X, Y, Z fast moving speed m/min 24/36

Spindle speed range r/min 50-8000

Spindle taper BT40/50

Spindle motor power kw 11/15

Workbench T-slot / slot width / slot mm mm 5/18/120

Positioning accuracy mm 300±0.005

Repeat positioning accuracy mm 300±0.003

Machine tool length / width m 3.4/2.4

Machine weight T 7.5
