4G high gain repeater booster with outdoor LPDA yagi antenna

Product Overview

Description

Welcome to Foshan Huarongtong Antenna Co.,Ltd



4G high gain repeater booster with outdoor LPDA yagi antenna



This set  repeater device can cover about 2000 square meters

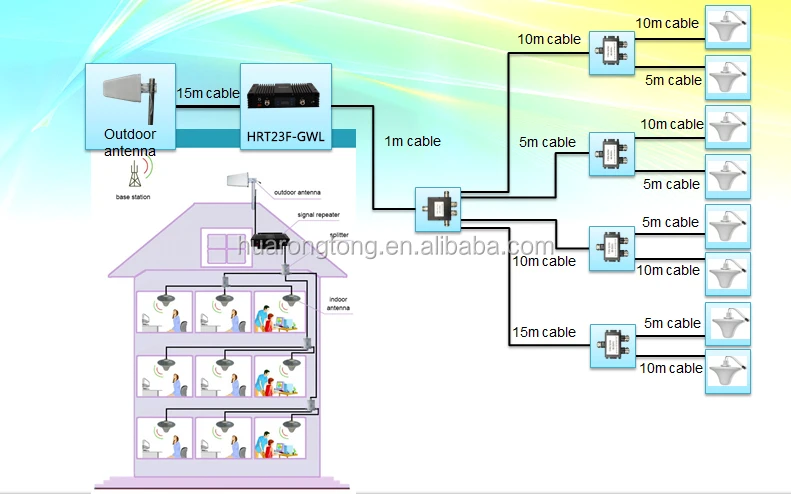

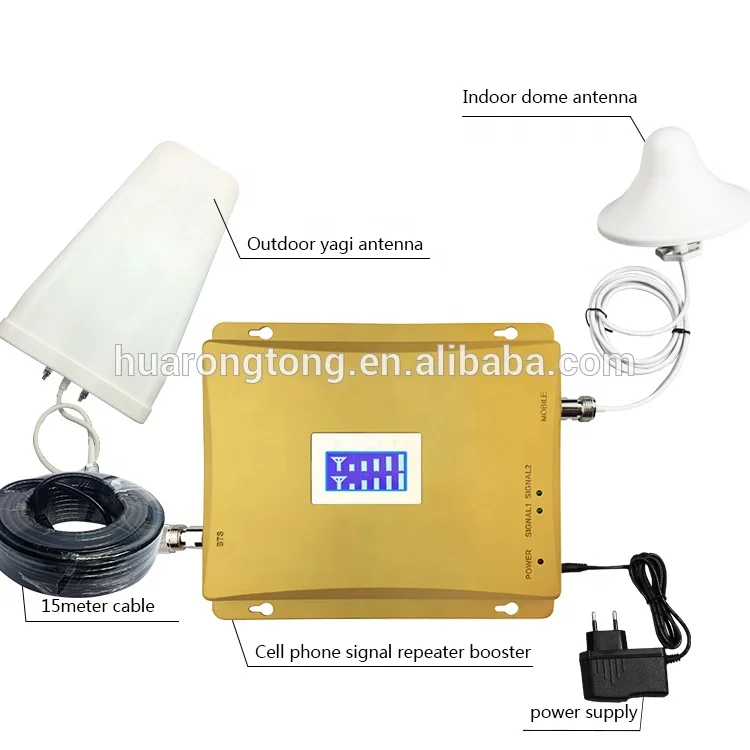

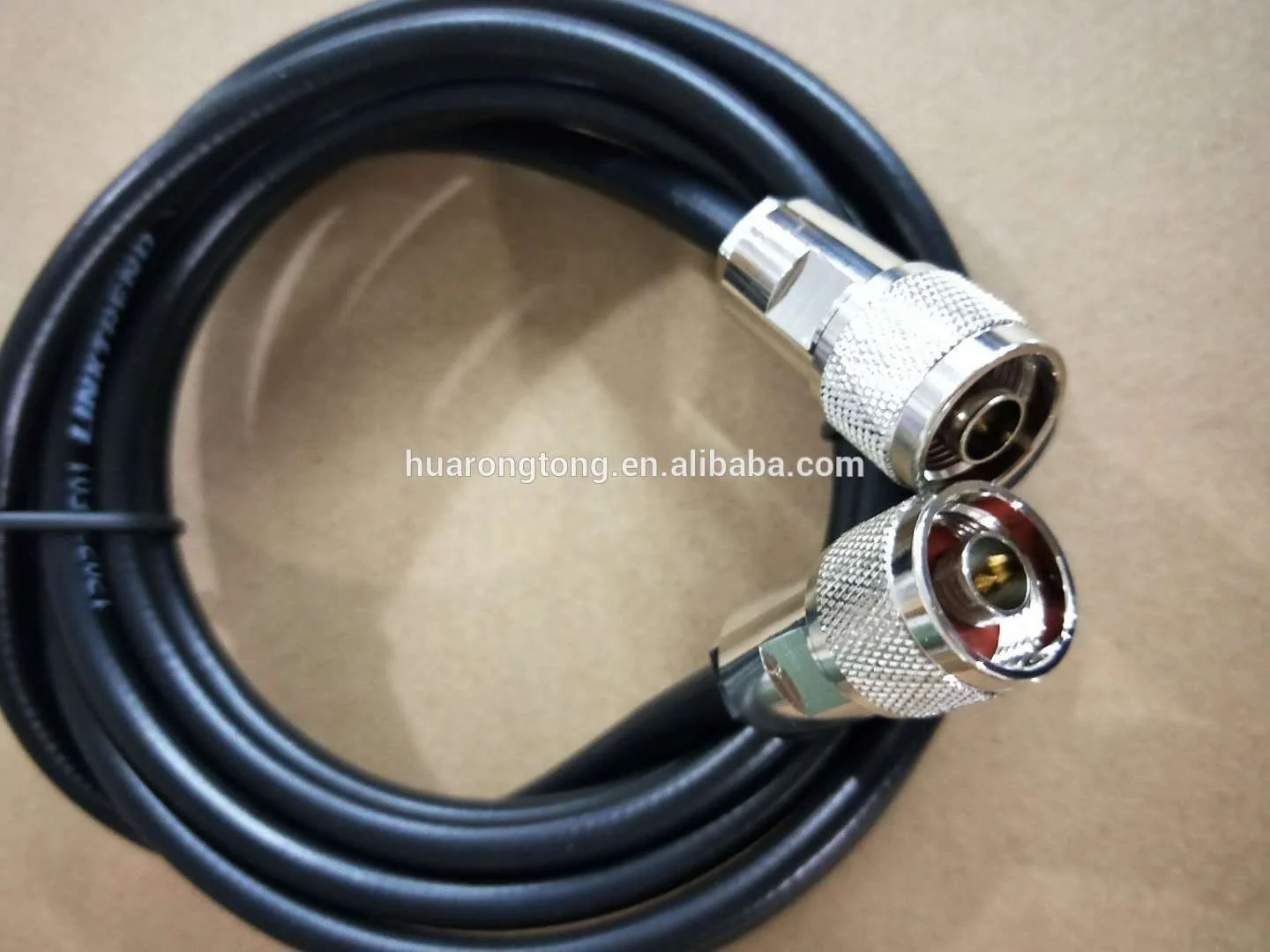

All the set with outdoor antenna +10m cable +repeater+5m cable +indoor antenna

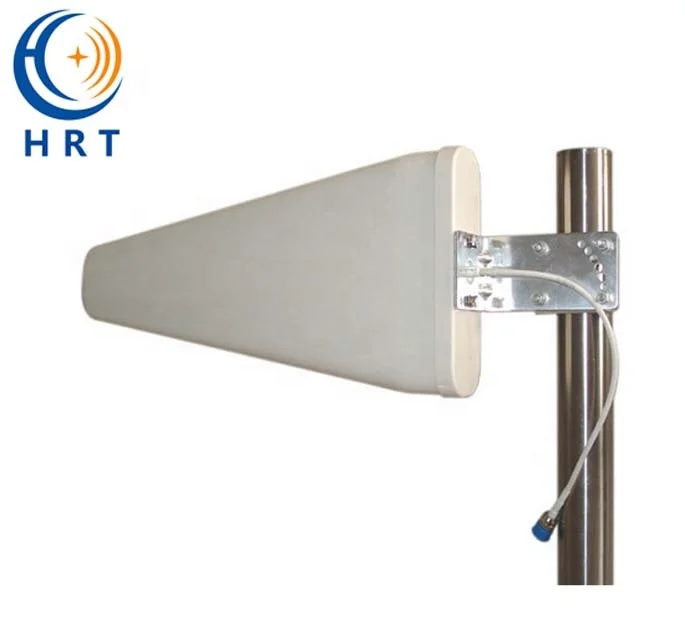

outdoor antenna specification:

Category	LPDA  Antennas
Model	TDJ-0727DSAN12
Frequency Range-MHz	700~960/1710~2700
Gain-dBi	12
Horizontal Beamwidth-°	65/50
Vertical Beamwidth-°	50/40
F/B Ratio-dB	≥18
VSWR	≤1.5
Nominal Impedance-Ω	50
Polarization	Vertical
Maximum Power-W	100
Length-cm	45x21x6.5
Weight-kg	1
connector	N female or Customization
Remarks	Poles mounting





Repeater specification:

Model No		HRT23F-GDW
Parameter data		Uplink	Downlink
Frequency Range		890-915/1710-1775/ 1920-1980 MHz	935-960/1805-1870/ 2110-2170 MHz
Output Power		15±1dBm	20 ±1dBm
Gain		65±2	70±2dB
Bandwidth		Wide Band
Automatic Gain Control		>20dB
Manual Gain Control		31dB in step of 1dB
Ripple in Band		GSM≤4dB,DCS≤4.5dB,WCDMA≤4dB
Intermodulation Products	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -20 dBm
Spurious Emission	9KHz~1GHz	≤ -36 dBm
	1GHz~12.75GHz	≤ -30 dBm
Noise Figure @ max. gain		≤ 7 dB
VSWR		≤2
MTBF		>50000 hours
Power Supply		AC110V~220V   DC+9V/3A
Power Comsumption		< 20W
Impedance		50 ohm
Mechanical Specification
RF Connector		N-Female
Cooling		Heatsink Convection cooling
Dimensions (D x W xH )		270*220*60(mm)
Weight		5KG
Installation Type		Wall Installation
Environment Conditions		IP40
Humidity		<  90%
Operating Temperature		-10℃ ~ 55℃

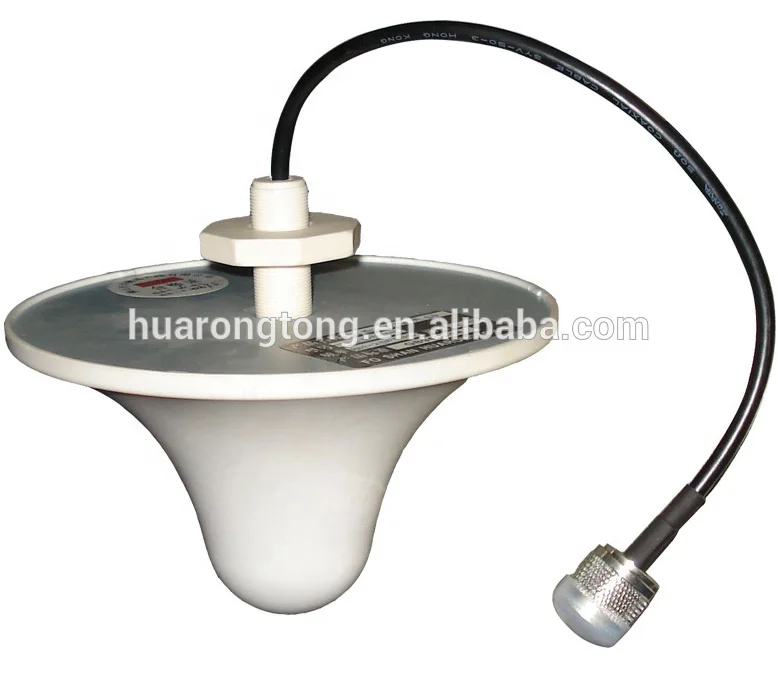

Indoor antenna specification:











if you are interested in our items ,please feel free to contact us
