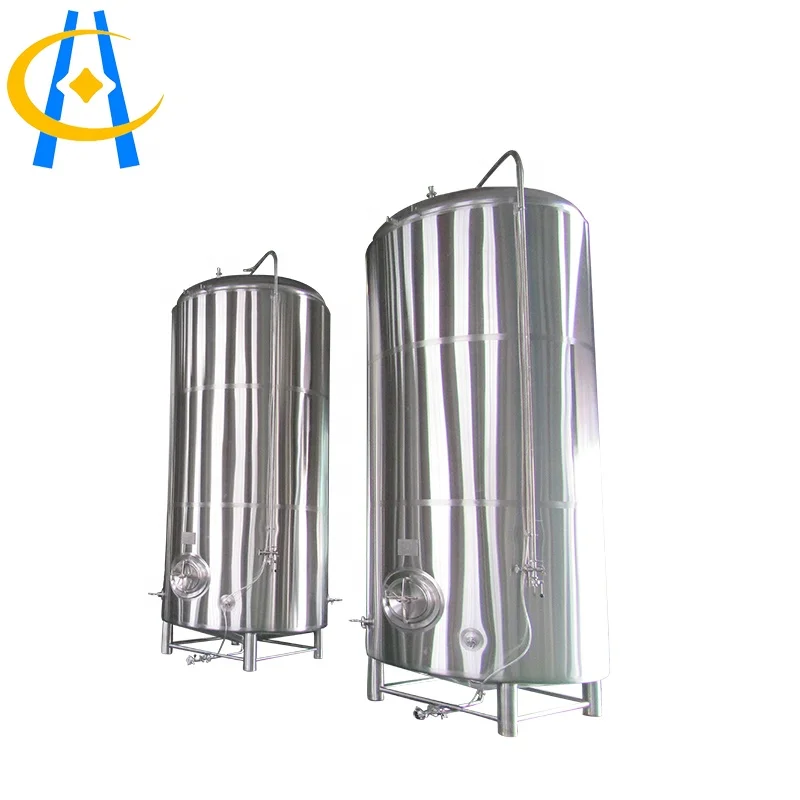

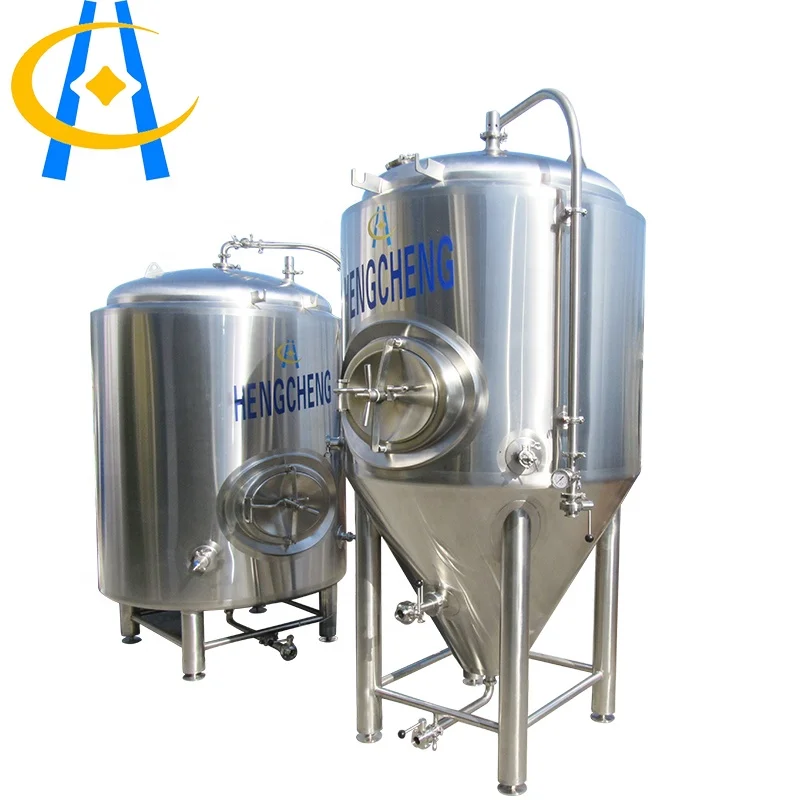

Jacketed stainless steel Bright Beer Tank 500L for Sale for the storage of beer

Product Name

 Jacketed stainless steel  Bright Beer Tank 500L for Sale for the storage of beer

Function:

Bright beer tanks are used to store beer.

Type:

Vertical stacking

Capacity:

gross capacity 500L      effective capacity 625L

Inner shell:

304 stainless steel 3mm thickness

Outer shell:

304 stainless steel 2mm thickness

Surface Treatment

Polishing 0.4-0.6μm. No dead ends

Insulation:

80mm polyurethane

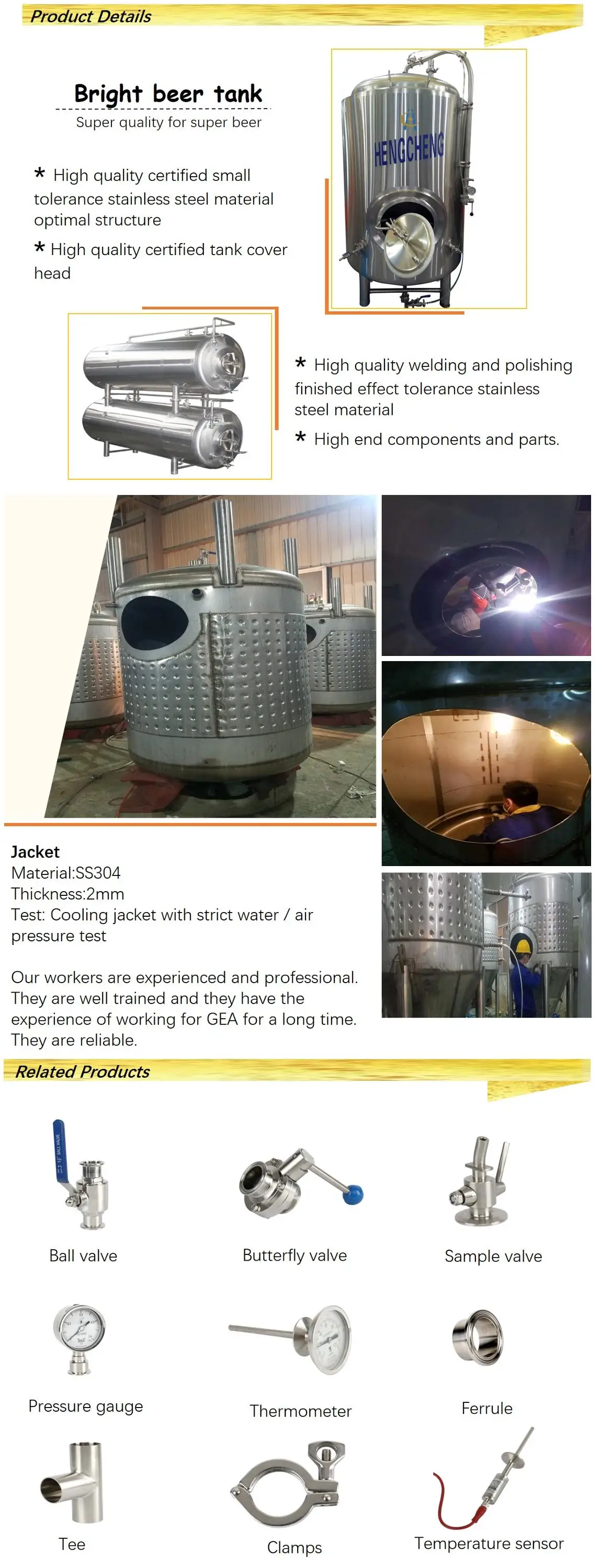

Cooling jacket:

 Dimple plate jacket   304 stainless steel, thickness 2mm

Test

With strict water / air pressure test,air pressure test for 48 hours before delivery

Type of head:

Dished head

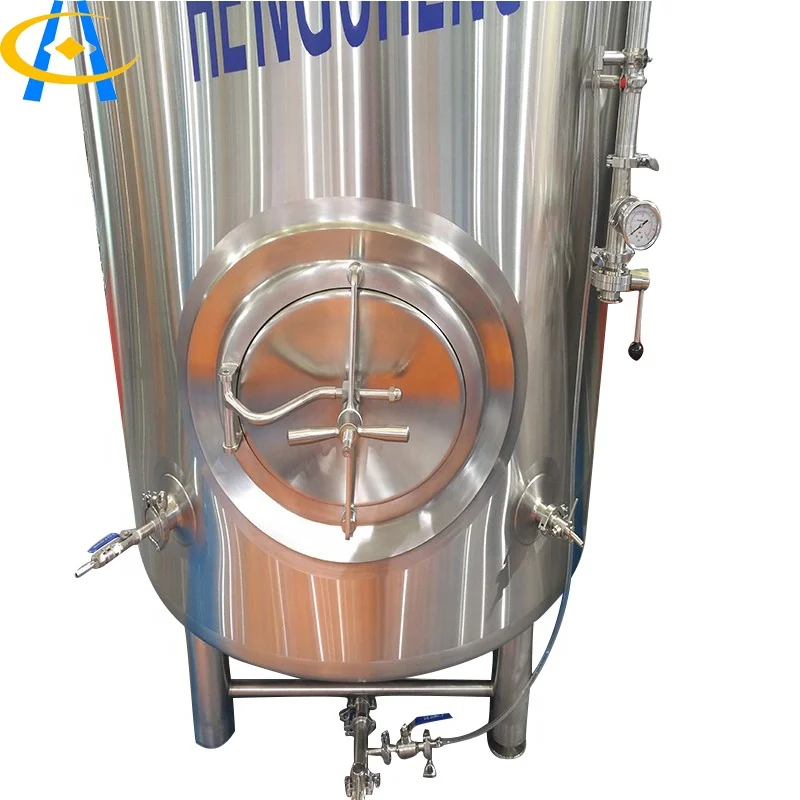

Manway:

Shadowless side Manway

Accessories:

 Sample Valve x1;

 Pressure relief/vacuum valve x1;

Temp. sensor / thermometer x1;

 Carbonation Stone x1;

 Bottom outlet with butterfly valve x1;

 Spraying Ball with down tube x1;

 Stainless pipe legs with adjustable footpads x4;
