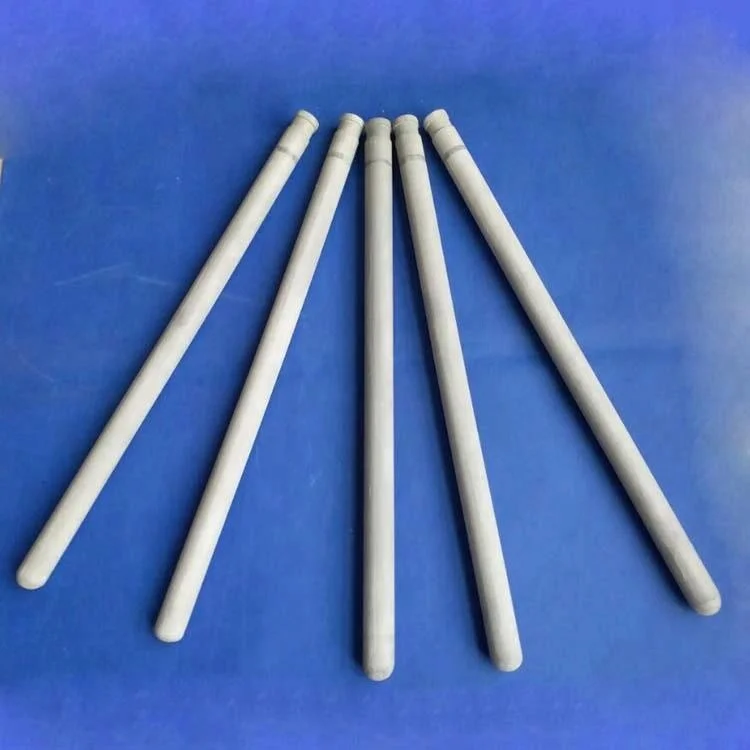

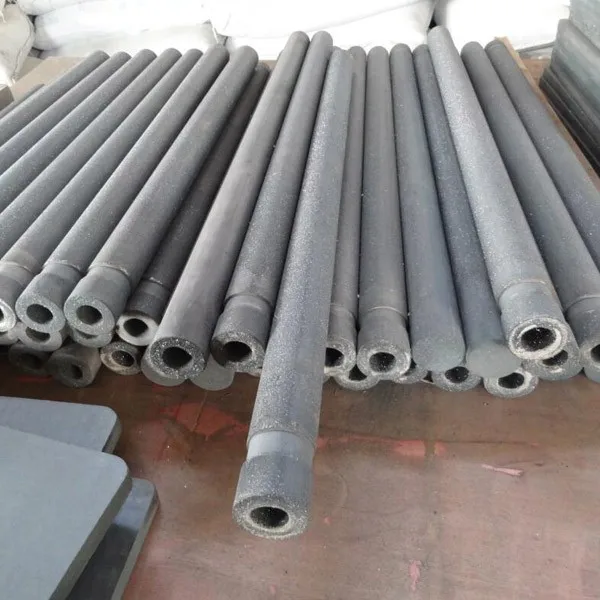

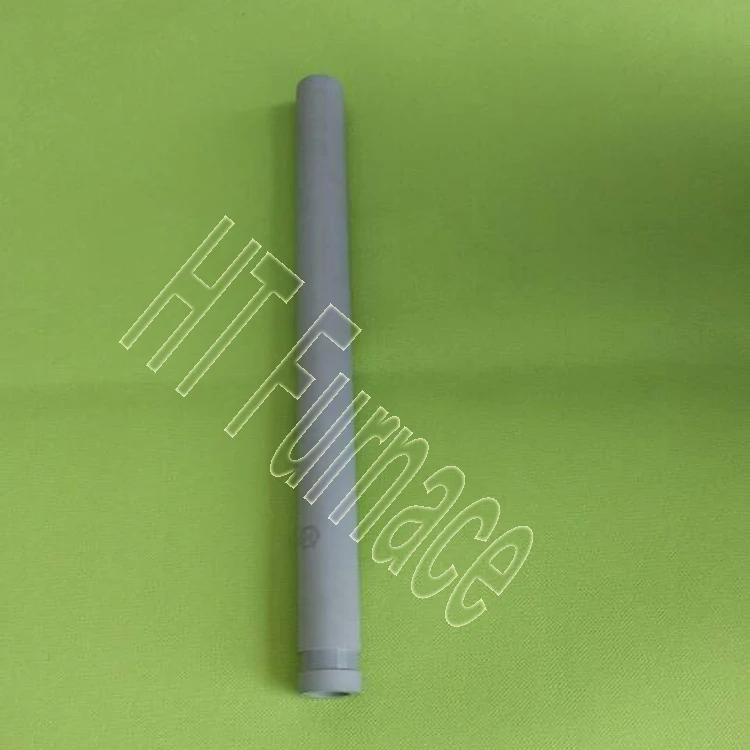

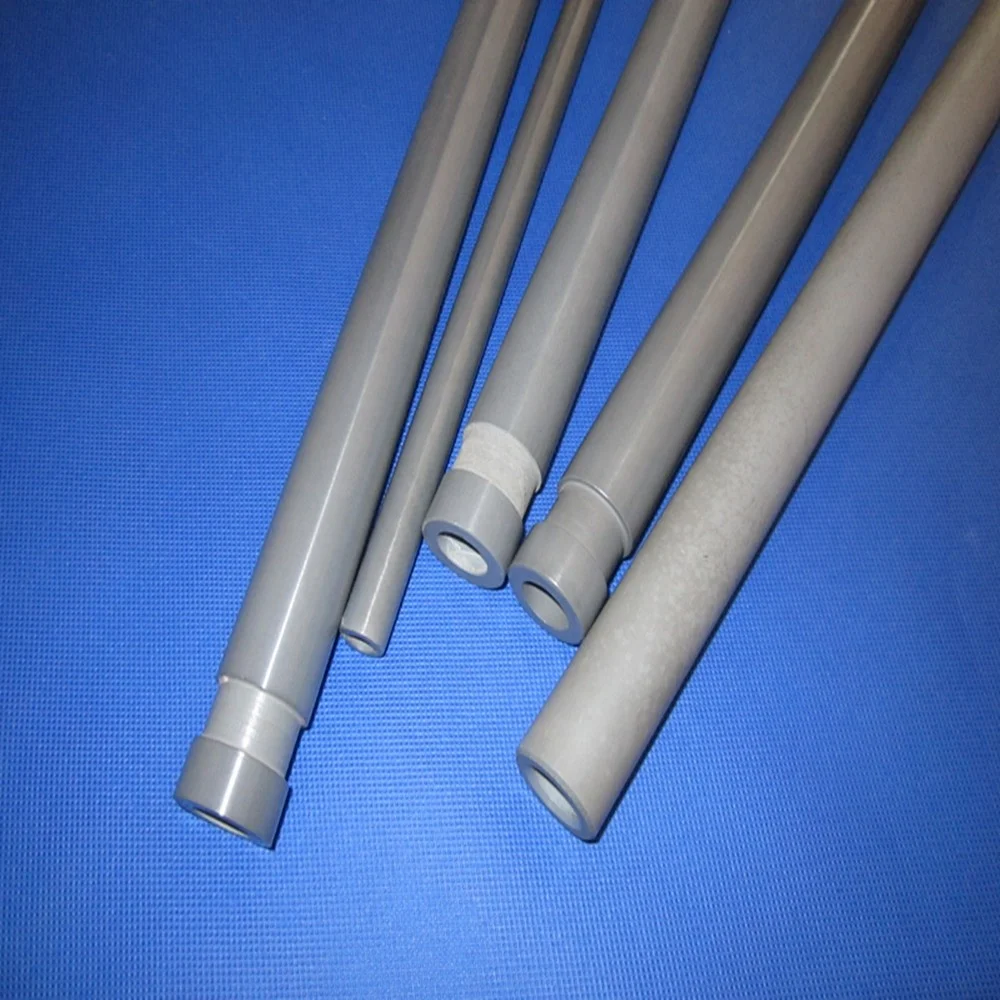

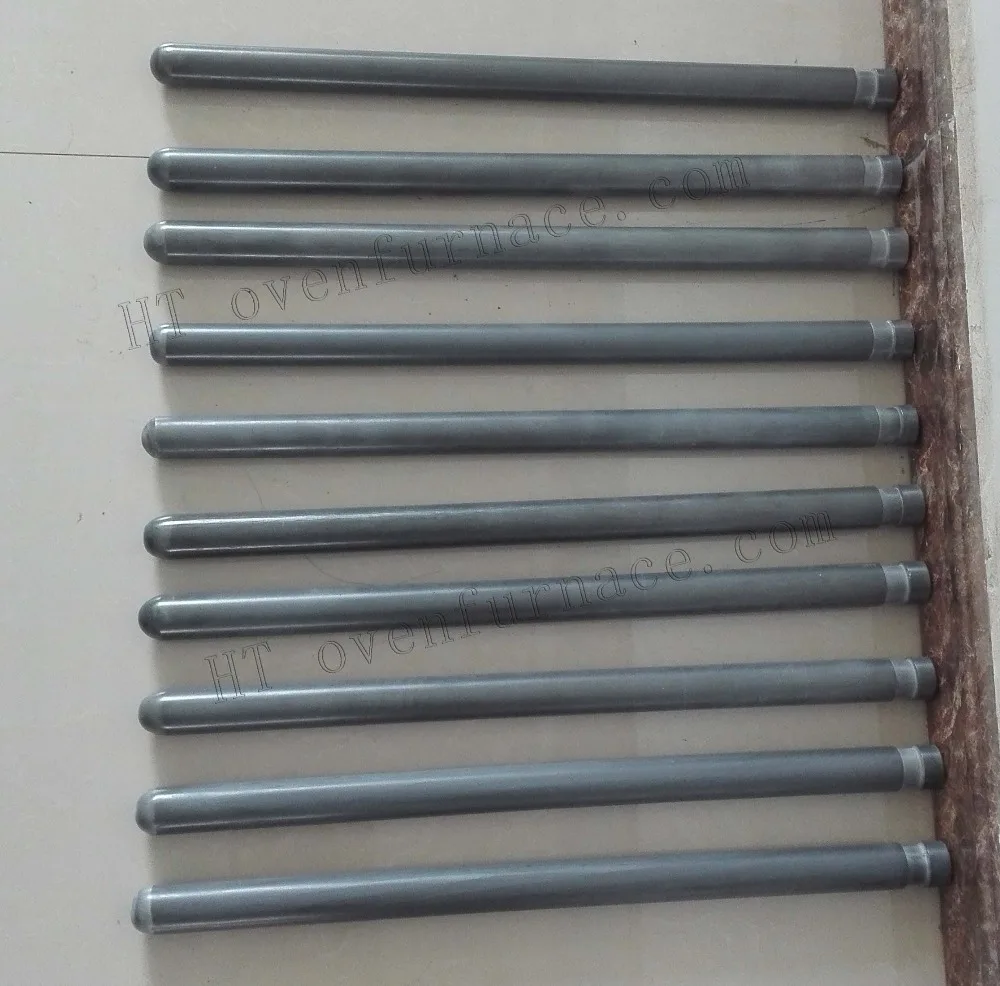

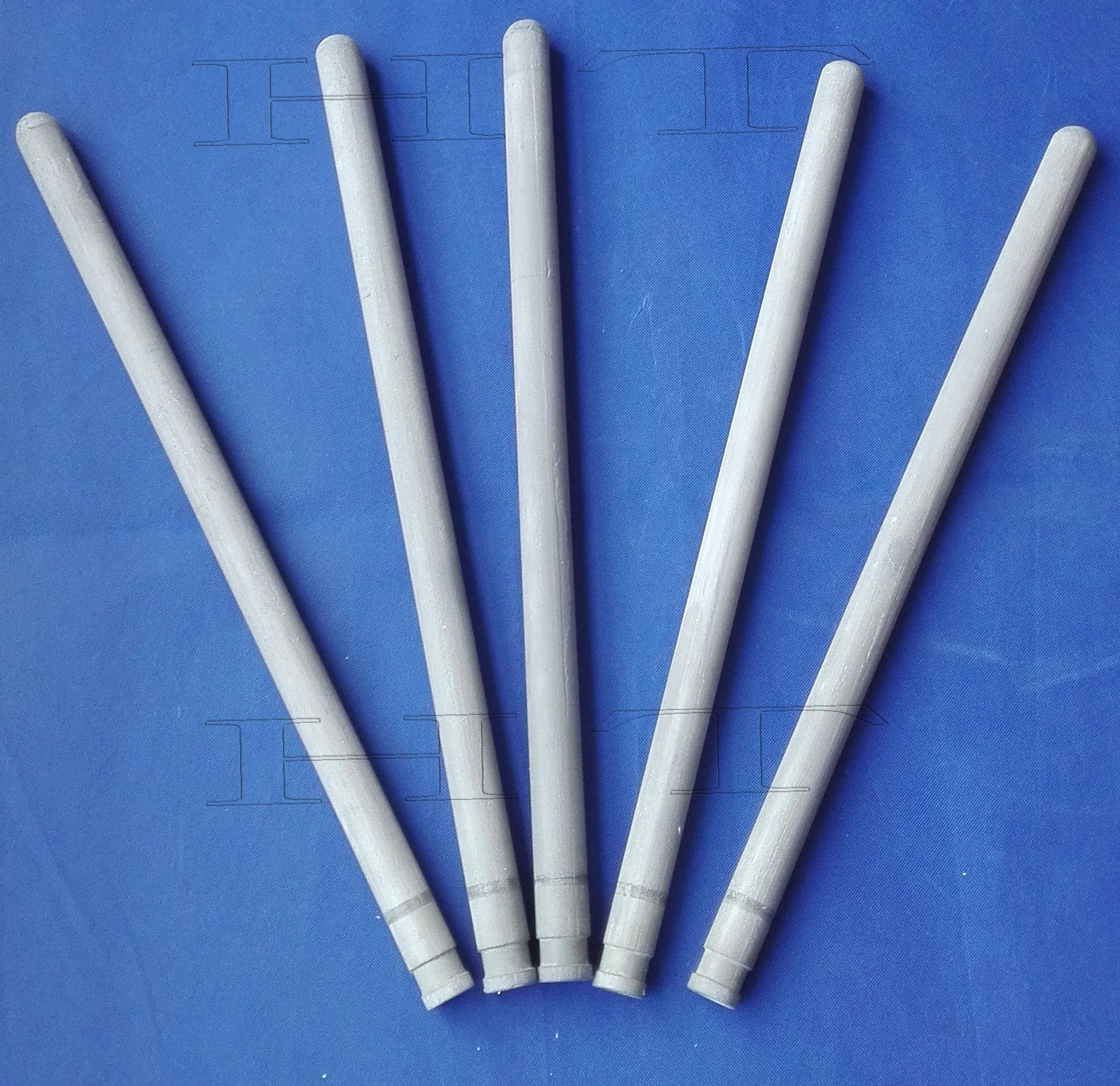

high quality Silicon Nitride tube/Silicon carbide bonded silicon nitride tube

Product Overview

Description

High quality Silicon Nitride tube/Silicon carbide bonded silicon nitride tube

Silicon Nitride is a fully dense, pressureless sintered ceramic specifically compounded to yield an amorphous intergranular phase. Pressureless sintering allows for net shape forming of complex components in a cost effective manner. This grade is isotropic with respect to engineering properties and offers excellent resistance to mechanical fatigue. PSO Si₃N₄ is useful for both large shaped, large cross-sectional structures as well as small, intricate components.

Features:

• Excellent thermal conductivity


• Excellent thermal shock resistance


• Low wetting by aluminum


• Available in a variety of formulations

Benefits:

• Longer life due to reduced dross build-up


• Coupling device reusable; simply attachment with another ceramic tube



1.Properties

Lightweight (60% Lighter than Steel)

High Fracture Toughness

Wear Resistant

High Dielectric Strength

Microwave Transparency

Non Magnetic

Corrosion Resistant

Chemically Inert

Low Coefficient of Thermal Expansion

Thermal Shock Resistance



2.Applications

Logging Tools

Drilling Components

Measuring Wheels

Check Valves

Proprietary Down Hole Components

And Others



3.The major performances of Si3N4 based materials

Sintering process	Density	Bend strength	Hardness	Fracture toughness	Modulus of elasticity
	g/cm3	MPa	HV10	MPa · m1/2	GPa
Gas Pressure Sintering	>3.20	750-1000	1500-1700	7-8	310
