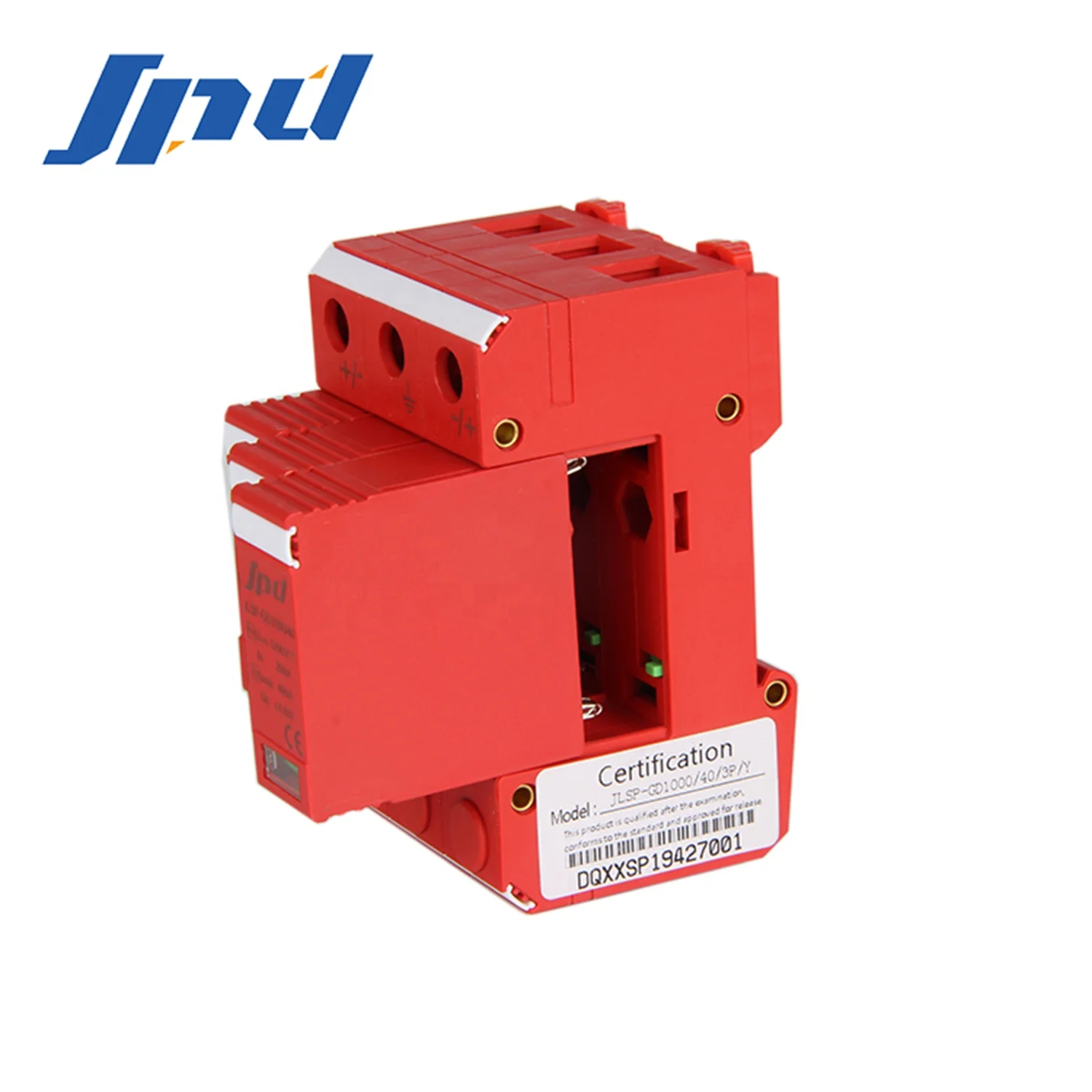

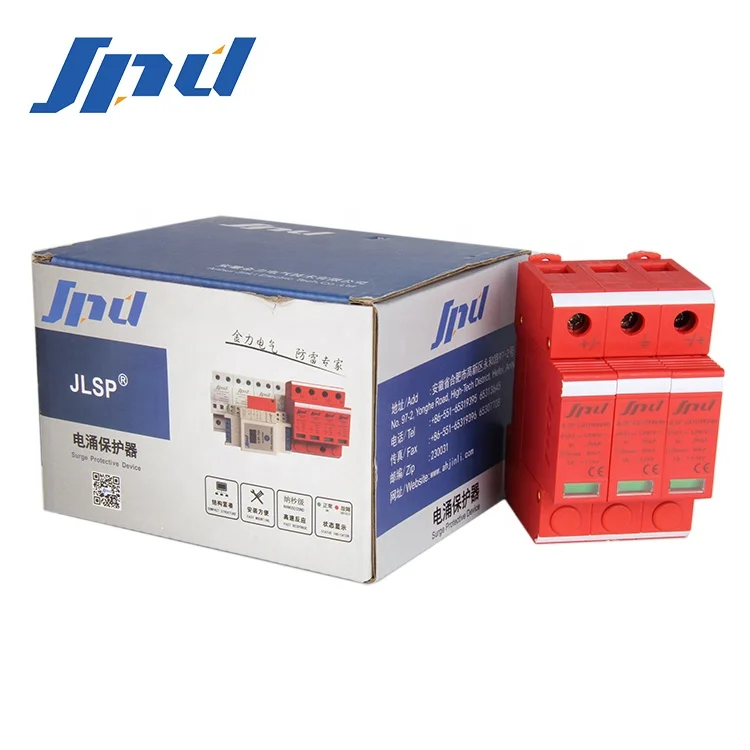

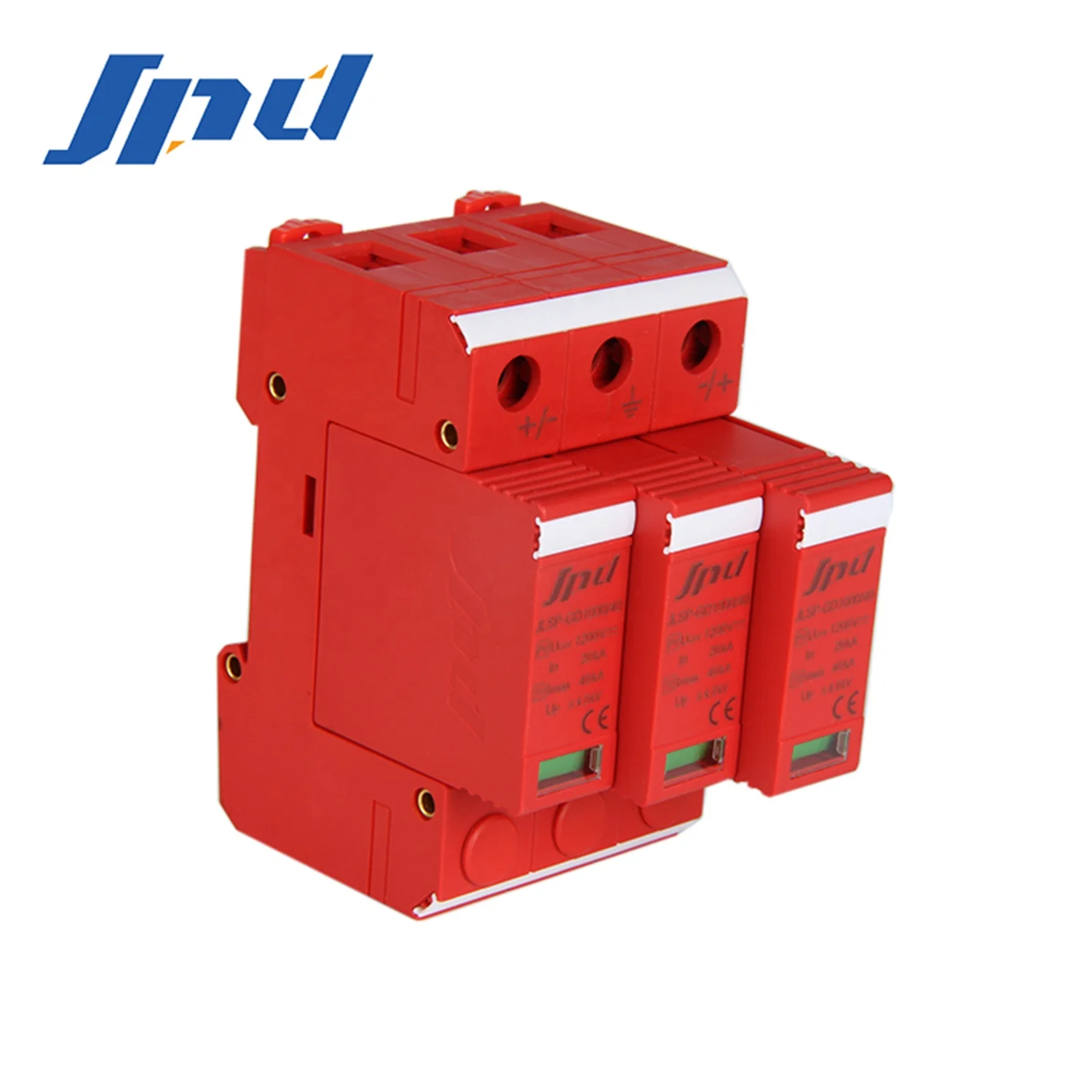

JLSP GD1000/40/3P Type 2 DC lightning protection device solar spd
- Category: >>>
- Supplier: Anhui Jinli Electric Tech. Co. Ltd.
Share on (60835125919):
Product Overview
Description
Company Information
Product Description
Model
| JLSP-GD1000/40 |
IEC Classification
| Class II |
DC Network Un (50/60Hz)(V)
| 1000V DC |
Max. continuous operationg voltage Uc (V)
| 1200V DC |
Nornimal discharge current In (kA)
| 20kA |
Max. discharge current(8/20us) Imax (kA)
| 40kA |
Voltage protection level Up (kV)
| ≤4.0kV |
Max. backup fuse (A)
| 100A DC (gG) |
Response time tA
| ≤25ns |
Capacity of withstand short circuit
| 1000A |
Operating temperature
| -40°C∼+85°C |
Relative humidity
| ≤95%(25°C) |
Max. cross-sectional area of wire
| 25mm2 multi-strand cord |
Dimensions (1P) (W*L*H) (mm)
| 18X90X62 |

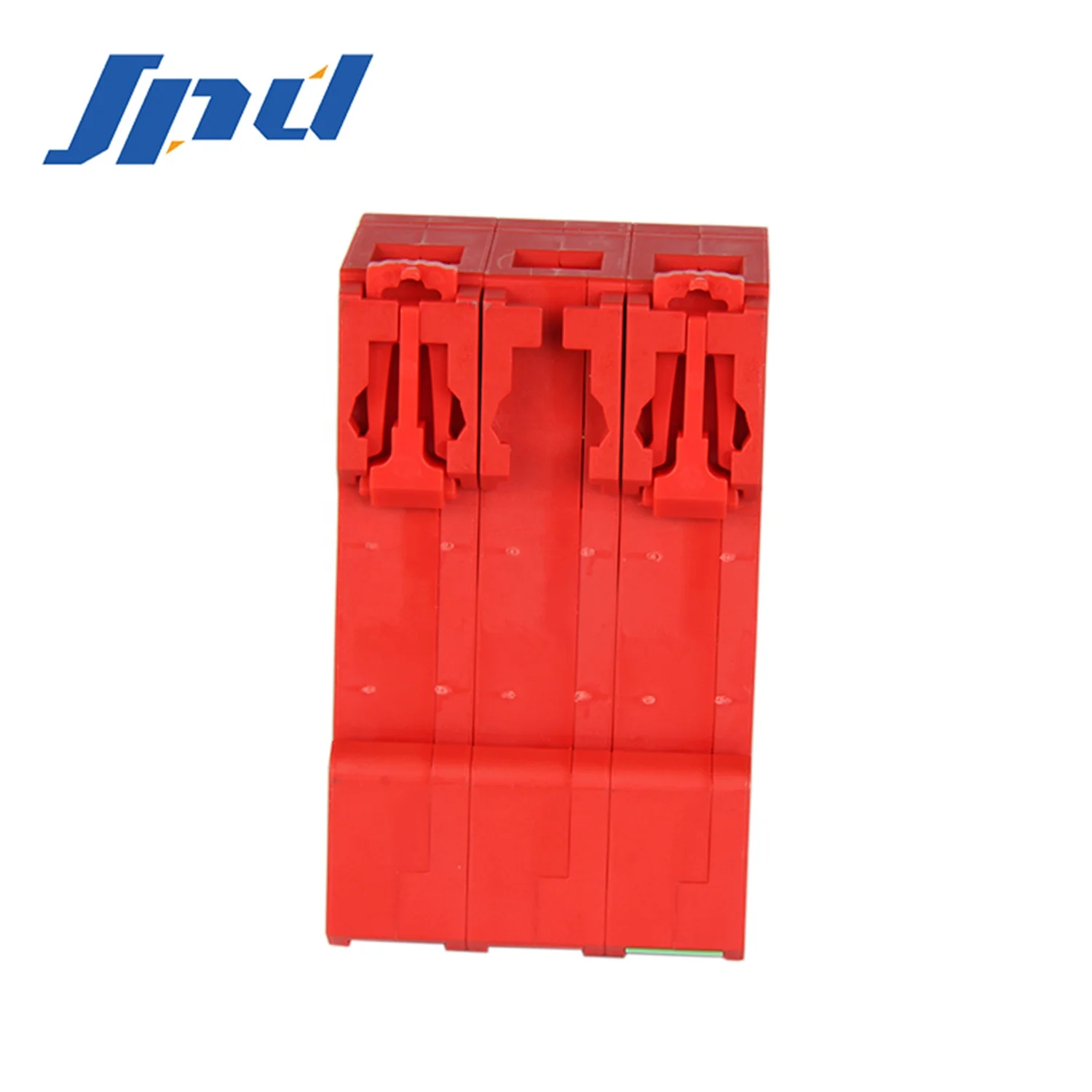

Mounting
| DIN Rail 35mm |
Protection rating
| IP 20 |
Housing material
| PBT |
Flame retardant rating
| V-0 |

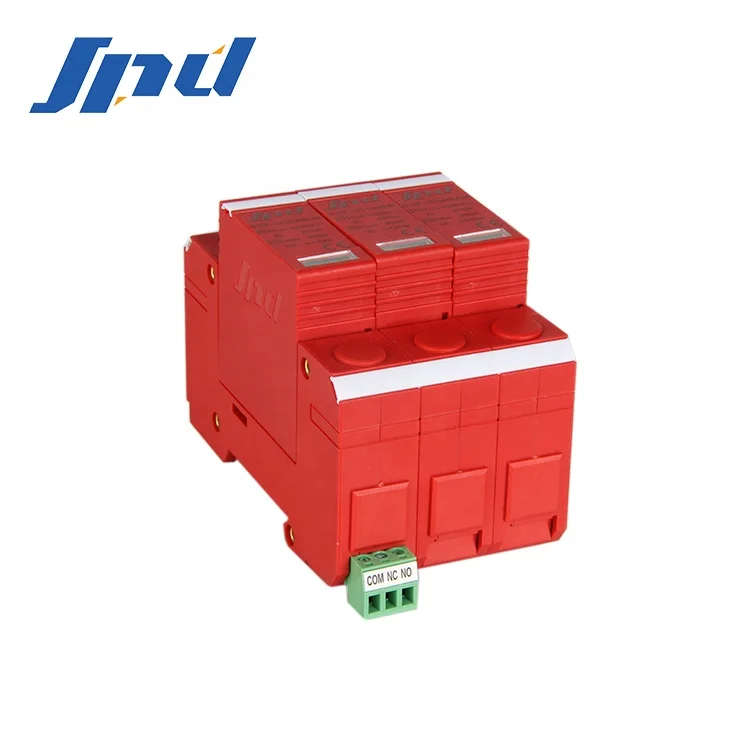

Capacity of remote signaling contact
| 250VAC/0.5A 30VDC/3A |
Max.cross-sectional area of wire for remote signaling contact
| 1.5mm2 multi-strand cord/single cord |
Status indicator
| Normal: Green Malfunction: Red |
Standards compliance
| EN50539-11 IEC61643-31 GB/T 18802.31 |
