24 Volts 48 Volts DC to AC Inverter Micro Inversor Solar 1500 Watts

24 Volts 48 Volts DC to AC Inverter Micro Inversor Solar 1500 Watts are a very high grade and this product is supplied with heavy duty leads fitted with terminal rings for easy connectivity to your battery.

Numerous uses for off grid installations large and small, whether it be in the home, outbuildings, caravan, motorhome, car, truck or boat the power range of inverters give you a 230V power supply wherever you need it.

This power inverters have advantages of being compact, light weight, & low noise, once connected to a 12V battery bank, you get 230V AC directly from the power inverters UK/ USA/EU output socket giving you a stable power supply for running your electrical appliances.

UPS AC charger function allow you a interrupting power supply through battery to AC electricity constantly , charging current 3A-15A optional for various kinds of battery

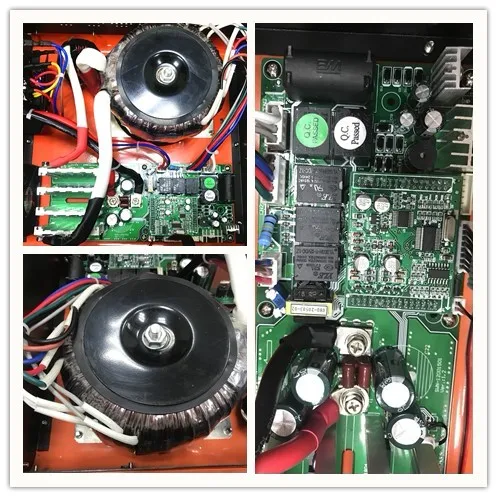

Detailed Images

Specifications

Model	300W	500W	700W	1000W	1200W	1500W
Rated capacity	300W	500W	700W	1000W	1200W	1500W
Peak Power	600W	1000W	1400W	2000W	2400W	3000W
battery voltage	12V/24VDC	12V/24VDC	12V/24VDC	12V/24VDC	12V/24VDC	24VDC
Input
DC input voltage range	12VDC:10.5-15VDC 24VDC:21-30VDC
Mains input voltage range	AC220V:145-275VAC
Mains input frequency range	45-65HZ
Battery low voltage alarm	12VDC:10.5V 24VDC:21V
Battery low voltage protection	12VDC:10V 24VDC:20V
Battery over voltage protection	12VDC:16.7V 24VDC:33.4V
Battery over voltage alarm	12VDC:15V 24VDC:30V
Over power protection	110% more than rated capacity
Temperature protection	≥85℃ alarm ≥90℃ machine shut off
Output Efficiency	≥85%
Output voltage (battery mode)	220VAC±2%
Output frequency (battery mode)	50/60HZ±1%
Output wave form	pure sine wave
Output voltage range (mains mode)	Stabilization output:220VAC±10%
Output voltage range (mains mode)	Tracking automatically
Transfer time	≤8ms
Display	LCD
Thermal method	Cooling fan in intelligent control
	≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
Working mode	P1-p3
inverter alarm setting	when setted to be inverter alarm ON,alarms every 2s-5s;when setted to be inverter alarm OFF,alarms every 3s-5s,it will not alarm
Charging current	0A-15A
Comnunication	Rs232

Packing & Delivery

Size	287*298*135mm
Packing Size	340*330*185mm
N.W	5.5KG	6KG	7KG	9.5KG	10.5KG	11.5KG
G.W	6KG	6.5KG	7.5KG	10KG	11KG	12KG
