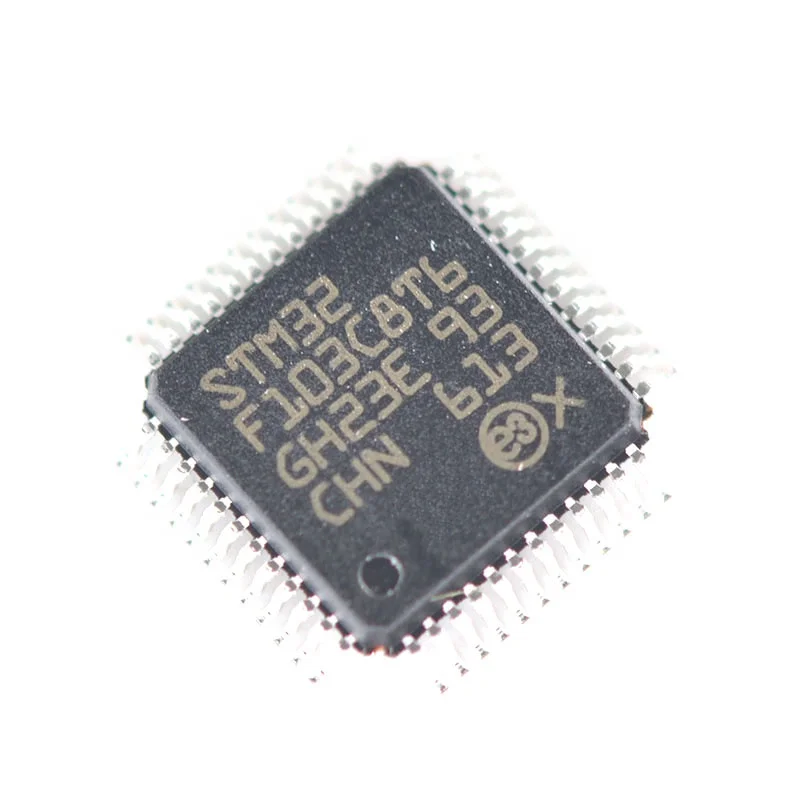

STM32F103C8T6 Microcontroller LQFP-48 STM32 development board chip stm 32 arm
The STM32F103C8T6 is a medium density performance line, ARM Cortex-M3 32bit microcontroller in 48 pin LQFP package. It incorporates high performance RISC core with 72MHz operating frequency, high speed embedded memories, extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103C8T6 features 12bit ADC, timers, PWM timer, standard and advanced communication interfaces. A comprehensive set of power saving mode allows the design of low power applications.
Operating voltage range from 2V to 3.6V 64Kbytes of flash memory 20Kbytes of SRAM CRC calculation unit, 96bit unique ID Two 12bit, 1μs A/D converter (up to 10 channels) 7 channel DMA controller, 3 general purpose timer and 1 advanced control timer 37 fast I/O ports Serial wire debug (SWD) and JTAG interfaces Two SPI, two I2C, three USART, one USB and one CAN interfaces Ambient operating temperature range from -40°C to 85°C
Applications
Embedded Design & Development, Motor Drive & Control, Medical, Portable Devices, Wireless, Industrial, Imaging, Video & Vision, Consumer Electronics, Automotive
Product Category:
ARM Microcontrollers - MCU
Mounting Style:
SMD/SMT
Package / Case:
LQFP-48
Series:
STM32F103C8
Core:
ARM Cortex M3
Data Bus Width:
32 bit
Maximum Clock Frequency:
72 MHz
Program Memory Size:
64 kB
Data RAM Size:
20 kB
ADC Resolution:
12 bit
Number of I/Os:
37 I/O
Operating Supply Voltage:
2 V to 3.6 V
Height:
1.4 mm
Length:
7 mm
Product
MCU
Data RAM Type:
SRAM
Interface Type:
CAN, I2C, SPI, USART, USB
Number of ADC Channels:
10
Product Type:
ARM Cortex M
Supply Voltage - Max:
3.6 V
Supply Voltage - Min:
2 V
