UL Listed TUV LM 80 CE RoHS Ultra High CRI 95 Ra R9 90 Full Spectrum SunLike LED SMD2835 3000K 9.6W 3 step LED Strip Lights
- Category: >>>
- Supplier: Shenzhen Anyhope Technology Limited
Share on (60835182782):
Product Overview
Description

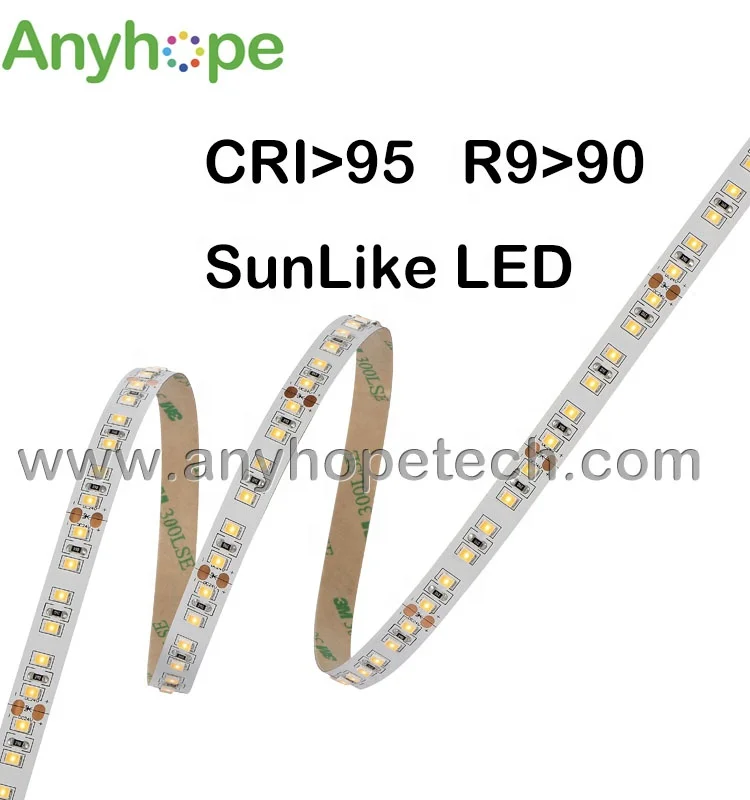

UL Listed TUV LM 80 CE RoHS Ultra High CRI 95 Ra R9 90 Full Spectrum SunLike LED SMD2835 3000K 9.6W 3 Step MacAdam Ellipse LED Strip Lights
FAQ

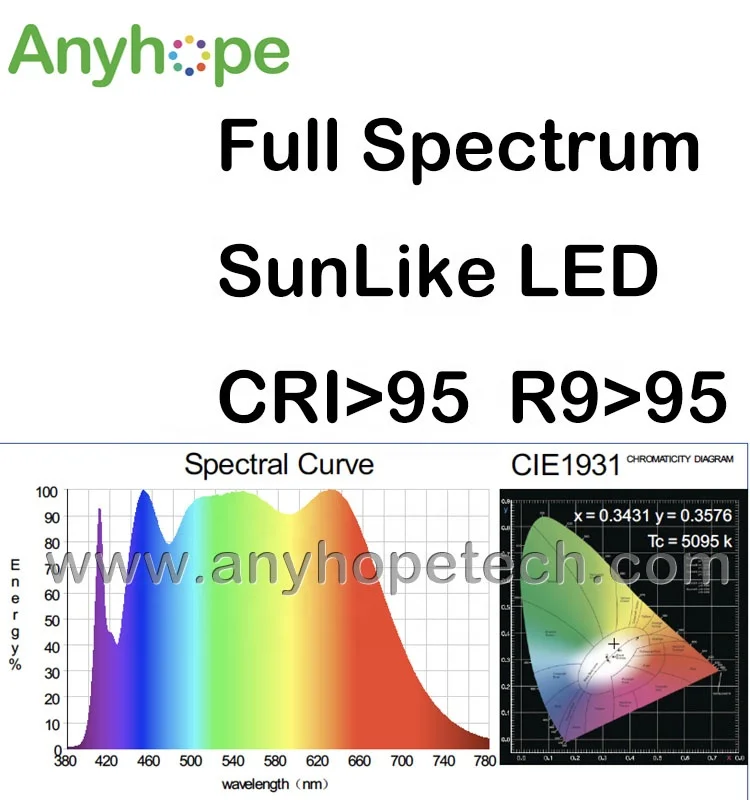

Test report for SunLike LED, Full Spectrum. CRI>95, R9>90.
One Bin Only. MacAdam Ellipse 3 steps, +/-100K.
5 Years Warranty.
UL Listed, LM-80(SMD), CE issued by TUV.
Product Description
There are two types of SMD2835, one is 20mA to replace SMD3528, the other is 60mA to replace SMD5050.
Product Number | AH-2835-12/24-120 (@60mA) AH-2835-12/24-120L (@20mA) |
LED Type | SMD2835 (20mA and 60mA) |
LED Chip | Epistar |
LED Quantity | 120LEDs/Meter (36LEDs/ft), 600LEDs per Reel |
LED Strip Length | 5Meters (16.4ft) per Reel |
LED Pitch (Distance between LEDs) | 8.33mm (0.33in) |

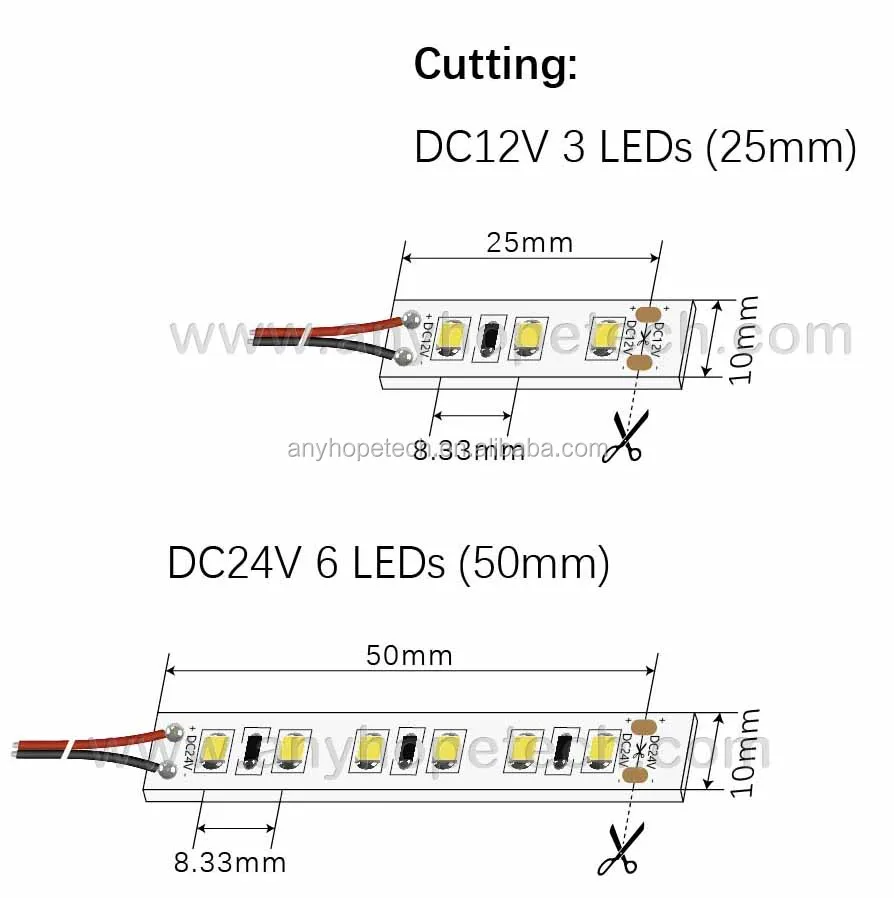

Minimum Cutting Length | 25mm (0.98in) at DC12V 50mm (1.97in) at DC24V |
LEDs Quantity per Cut | 3LEDs at DC12V, 6LEDs at DC24V |
PCB Color | White, Brown, Black |
Strip Width | 6mm (0.24in), 8mm (0.31in), 10mm (0.39in) |
Wire Length | 350mm (13.78in) |
Input Voltage | DC12V, DC24V |
Working Current | @60mA 2.4A/Meter (0.73A/ft) at DC12V 1.2A/Meter (0.37A/ft) at DC24V
@20mA 0.8A/Meter (0.24A/ft) at DC12V 0.4A/Meter (0.12A/ft) at DC24V |
Wattage | @60mA 28.8W/Meter (8.78W/ft), 144W per Reel
@20mA 9.6W/Meter (2.93W/ft), 48W per Reel |
CRI (Color Rendering Index) | 80+, 90+, 95+ R9, R12 ( All R values) >80, >90 |
MacAdam Ellipse | 3 step or 5 step (+/-100K) To ensure color consistency, always use one BIN LED only |
Efficiency | 100 Lumens per watt (+/-10%) |
Luminous Flux (White) | @60mA 3312-3600Lumen/Meter (1010-1098lm/ft)
@20mA 912-1056Lumen/Meter (278-322lm/ft) |
Color Temperature (White) | Warm White: 1800K, 2200K, 2400K, 2700K, 3000K Natural White: 4000K, 5000K Cool White: 6000K 8000K 10000K |
Colors (Intensity measured in mcd not lumens) | Red(620-623nm), Green(520-523nm) Blue(455-465nm), Yellow(587-591nm) Amber(600-605nm), Orange(620-623nm) Purple(397-402nm) UV(Blacklight) [365-370nm, 395-400nm] InfraRed (850nm) Pink (no wavelength, mixture of red and purple) |
| Dimmable | 0-100% Dimmable |
Beam Angle | 120 degree |
IP Rating Suitable locations | IP20 Indoor Use, Dry Location IP62, Silicone coated on strip, Damp locations IP65 and IP67 Splash Resistant IP68 Submersible |
Product Number on different IP Rating | IP20: AH-2835-12/24-120 IP62: AH-E2835-12/24-120 (Silicone glue coated) IP65: AH-F2835-12/24-120 (Silicone tube extrusion) IP67: AH-U2835-12/24-120 (U-shape Silicone Sleeve + Silicone) IP68: AH-S2835-12/24-120 (Silicone Sleeve + Silicone Encased) |
Operating Temperature | -20°C ~ +50 °C / (-4 °F ~ +122 °F) |
Adhesive Backing | 3M™ adhesive tape on the strip’s backside (self adhesive) |
Mounting method | Adhesive backing for IP20, IP62, heat Shrink Tubing are optional
Mounting clips for IP65, IP67, IP68 End caps: 5pc per Reel (Optional) Mounting clips: 10pcs per Reel ( Optional) |
UV Emission | No |
Certifications | UL Listed (cUL, ULus), use Class 2 power supply CE (Issued by TUV Rheinland ) RoHS Compliant, Lead free LM-80 on SMD (9,000hours test) |
Lifetime | 50,000 Hours. Low lumen depreciation |
Warranty | 5 Years |
Company Information
Anyhope Technology Limited is a premier manufacturer of LED Strip Lights, LED Linear Lighting, LED Ceiling Lights and LED Panel Lights in China.
Anyhope was established in Shenzhen China in 2009, moved to Dongguan China in 2015, with 16,000 square meters manufacturing facility, including LED package and SMT workshop, 20 automatic production lines, 150 laboratory equipment and scientific instruments, 500 employees work on site.
All products are LM-80 (SMD), UL, ETL, TUV, CE, RoHS certified, 5-Year Warranty.
Our Services
R&D department continually develope and revise design of new products. Including PCB layout, Electronic design, Mechanical Design, Optical simulation.
Please contact us for Technical Specifications, IES file via email.
Certification:

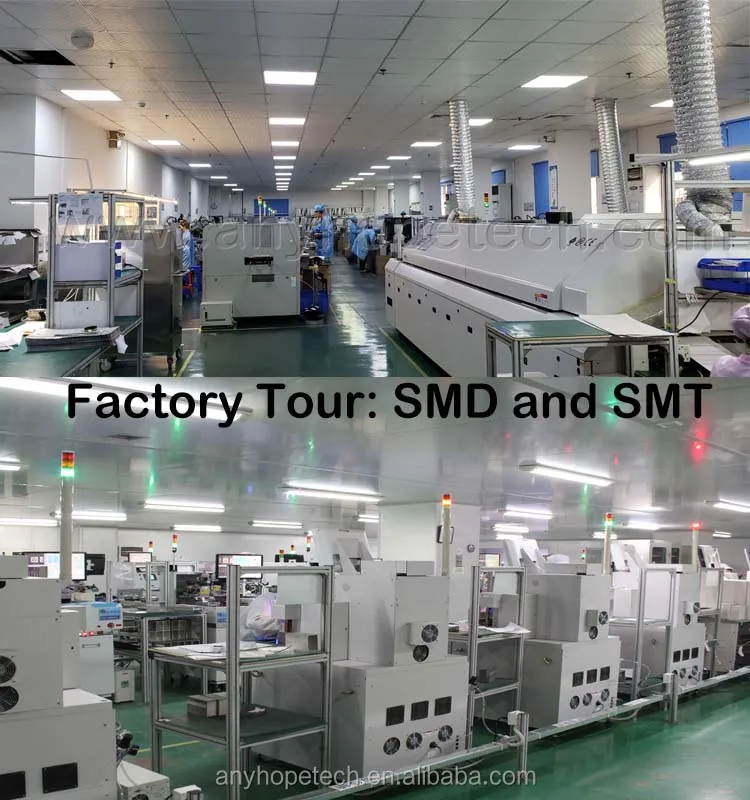

Factory Tour:
SMD ( Surface Mount Device) Work shop, SMT (Surface Mount Technology ) Factory Work Shop.
Related products: 60leds/meter, 180leds/meter, 240leds/meter are available.
