Стандартная Алюминиевая крышка и отражатель ультрафиолетового излучения

Product Overview

Description

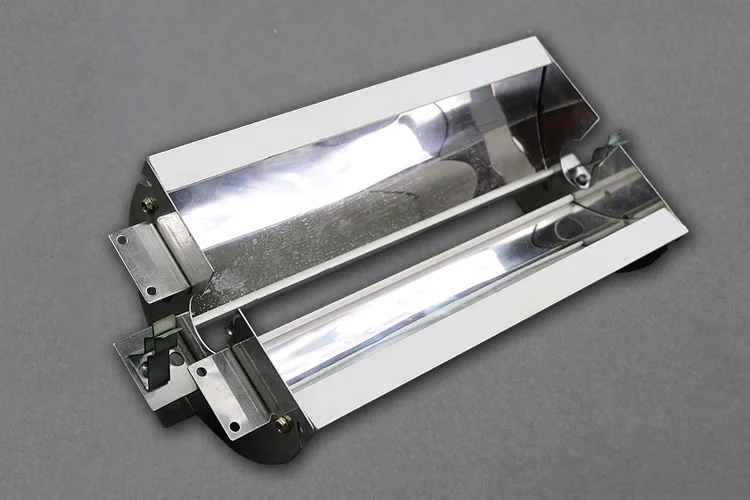

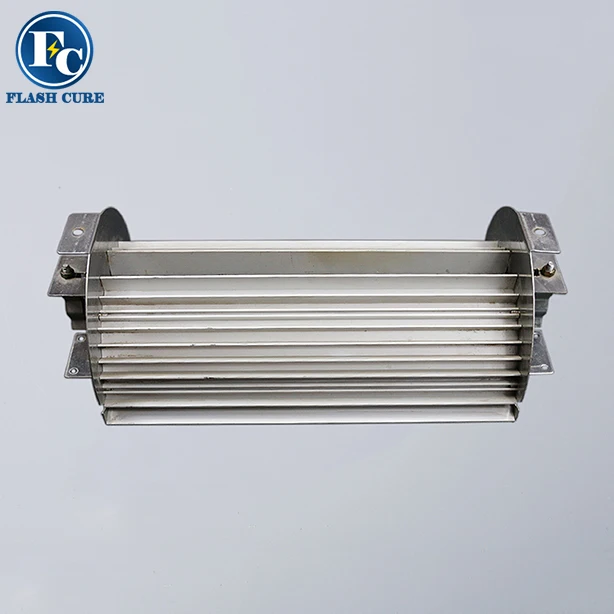

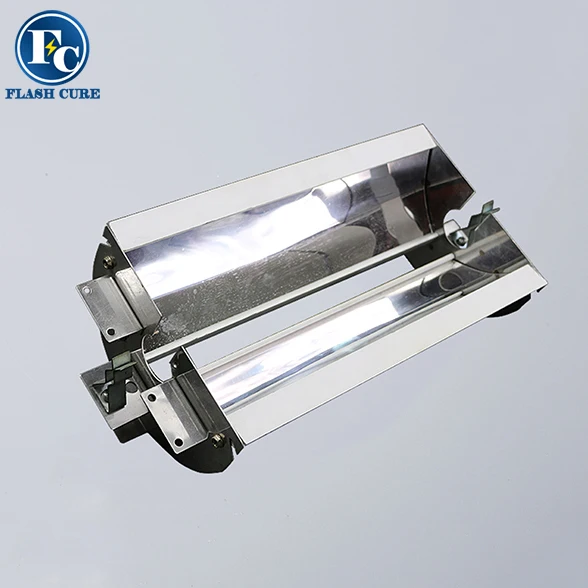

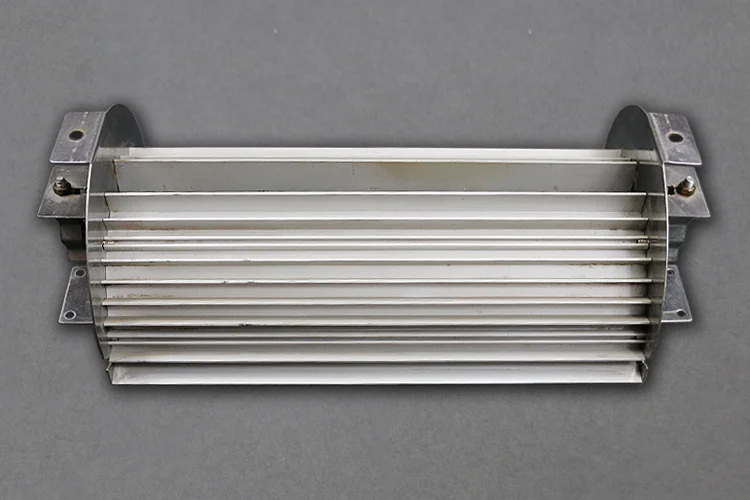

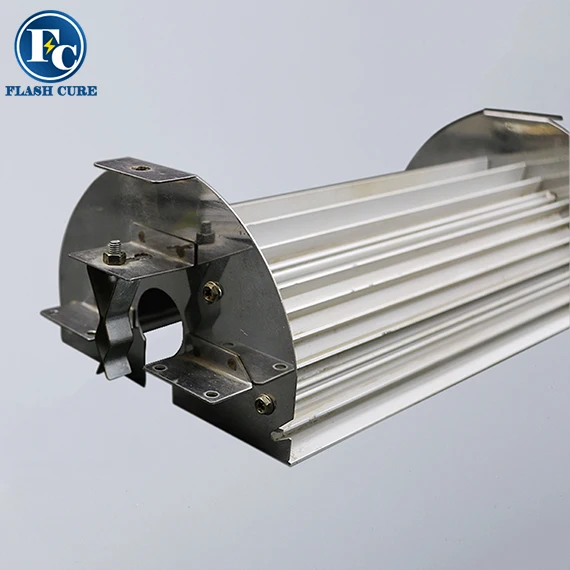

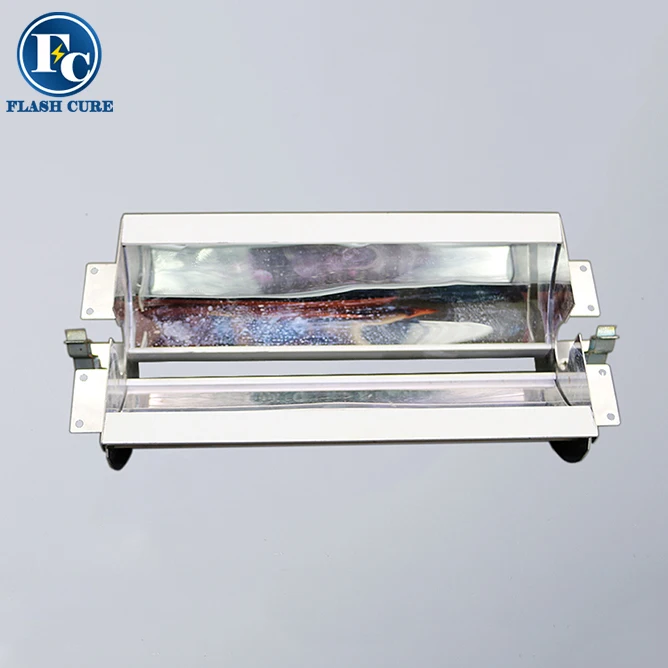

  Standard aluminum UV reflectance uv curing lamp cover and reflector





Description:
More than 50% of the UV energy will be dissipated due to no UV reflector configuration.
UV reflectors can be mounted as part of UV curing system. These are commonly used in generating and enhancing UV output from UV curing arc lamps, metal halide lamps Fe doped or Ga doped.

Features:
UV reflectance > 90%
Customized available
Elliptical type ,parabolic type , specific geometry type
Conducive to heat



Reflecting rate	98% / 95% / 86%
Materials	Standard aluminum
Reflector liner	Imported polished aluminum
Liner thickness	0.3mm ( 12’’) / 0.5mm( 20’’)
Arc bending	Available
Customize made	Available
