Copper nickel tin alloy C50710 JIS MF202 NB109 price of bronze per kg in strip

Product Overview

Description

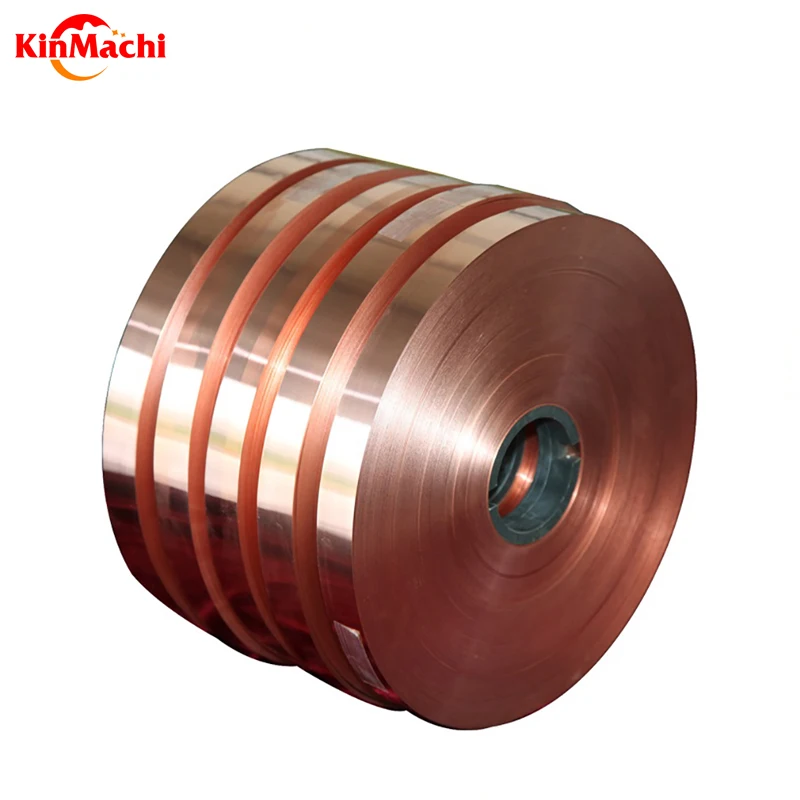

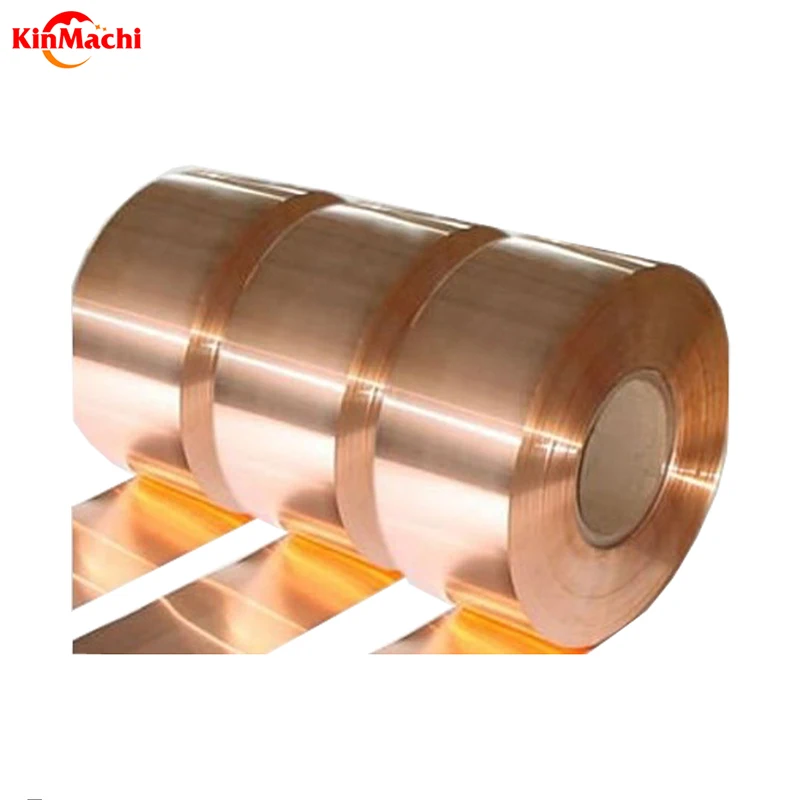

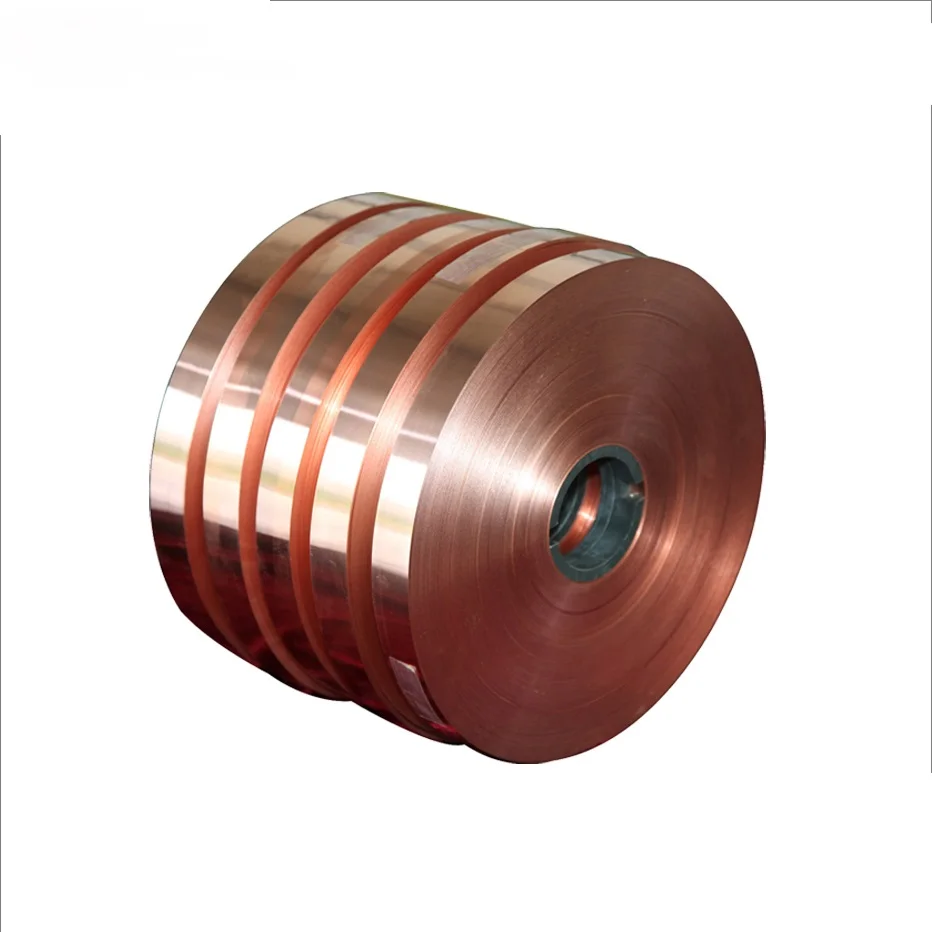

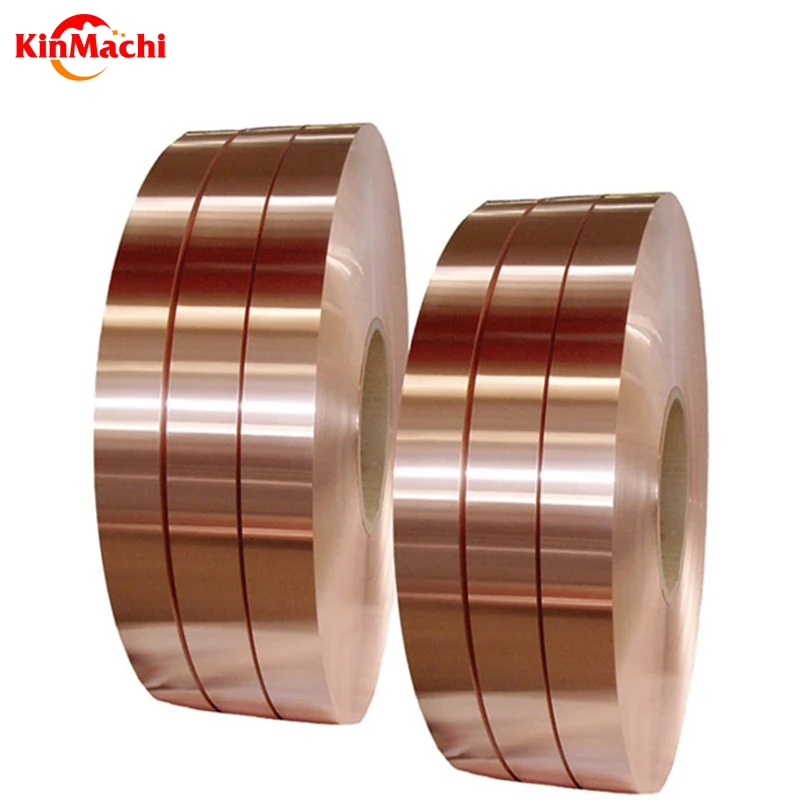

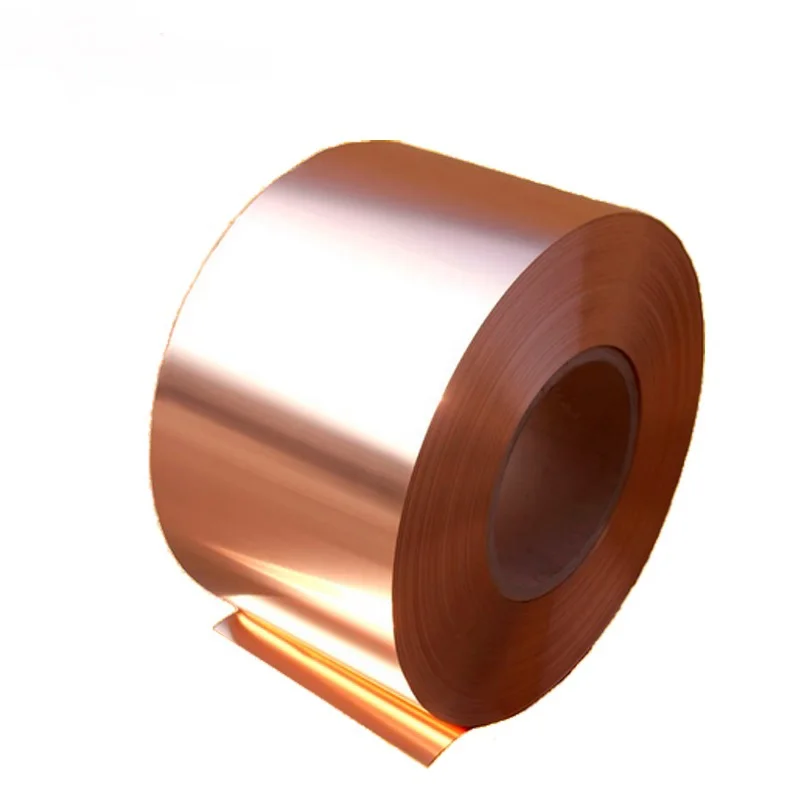

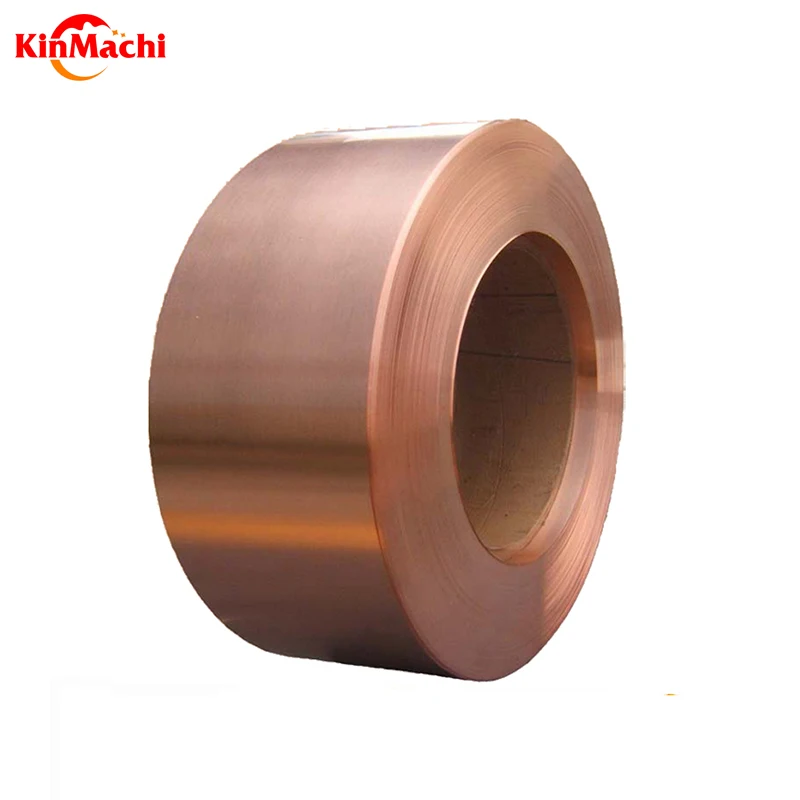

                           C50710 Phosphor bronze strip

Density(g/cm3)	8.88
Electrical conductivity{IACS%(20℃)}	≥32
Modulus of elasticity(KN/mm2)	115
Thermal conductivity{W/(m*K)}	155
Coefficient of thermal expansioon(10-6/℃ 20/℃~100/℃)	17.0





Temper	Tensile Strength	Elongation A50	Hardness
	(Rm,Mpa)	(%)	(HV)
1/2H	410-510	≥15	125-165
H	190-590	≥9	150-185
EH	540-635	≥7	175-205
SH	610-705	≥2	185-215









           Shanghai Kinmachi Industry Co.,Ltd. is a professional servicer of providing metal

materials and solutions for the automotive electronics industry.

           After many years of accumulation and development in the automotive electronics

industry , we accumulated rich experience and a large number of professional data,  we

can  provide new  material  and optimization of  high -performance  and  low-cost, which

including raw materials, electroplating, stamping, assembly, injection moldingand so on.

We  have  become  the first  choice  as a major  service  provider  for  many   automotive

electronics manufacturers.
