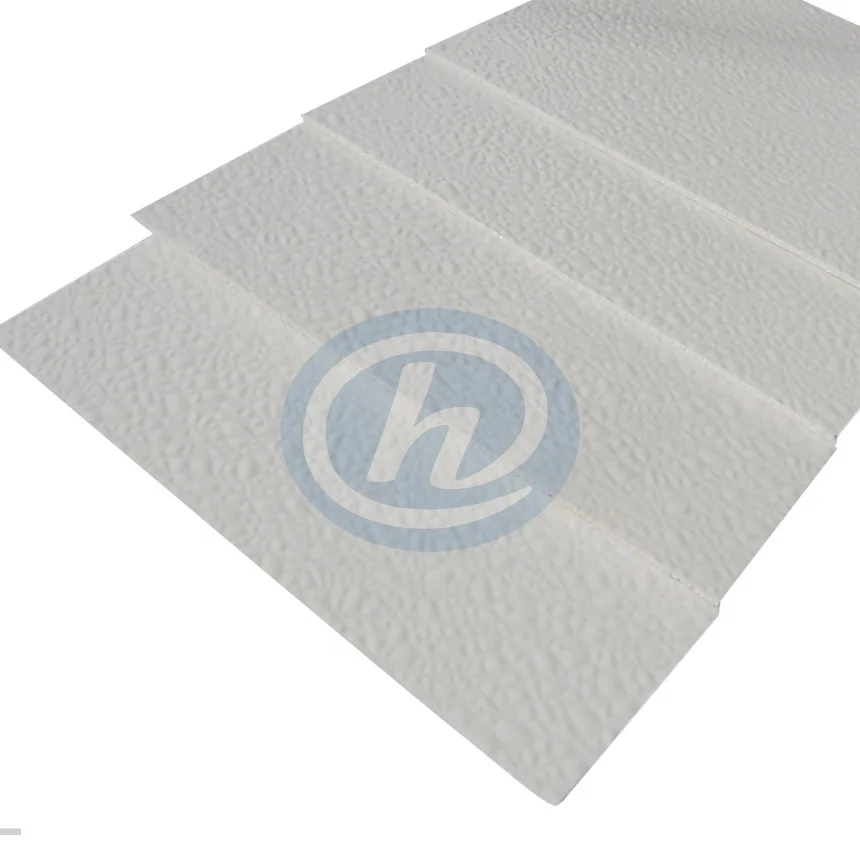

Fiberglass wall panels FRP Hygienic Wall Cladding Panel

Share on (60835292047):


Price:

Quantity:


Product Overview

Description


FRP panel

Fiberglass FRP Hygienic Wall Cladding Panel:

1) Machine continuously made flat panels, no limit on length;
2) Anti-impact: much better stiffness and strength than plastic, due to fiberglass reinforced;
3) Fire resistant: made by thermosetting resin;
4) Mildew resistant: Effectively inhibit the growth of mildew;
5) Easy install: No other tools are needed except for rivet or glue only;
6) Anti-corrosive: stay good condition immerged into 10% Hydrochloric acid or 3% NAOH solvent for long time;
7) Easy cleaning: It can be easy cleaned by steam or high-pressured squirt gun;
8) Extreme temperature resistant: Withstand temperature at -40 -110 degree C for long time;

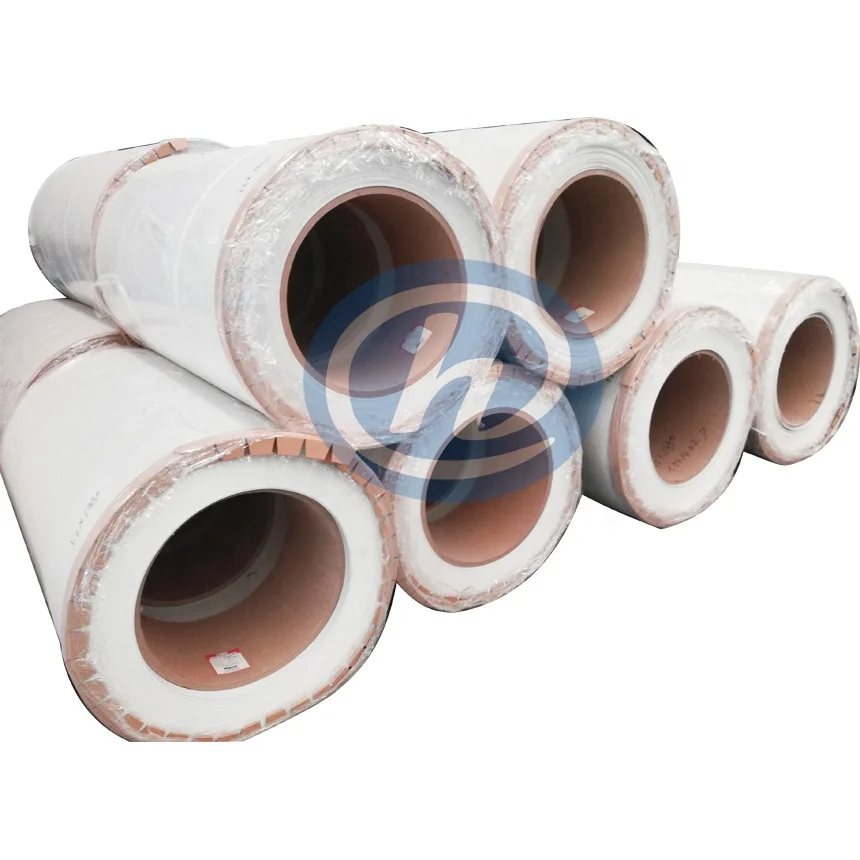

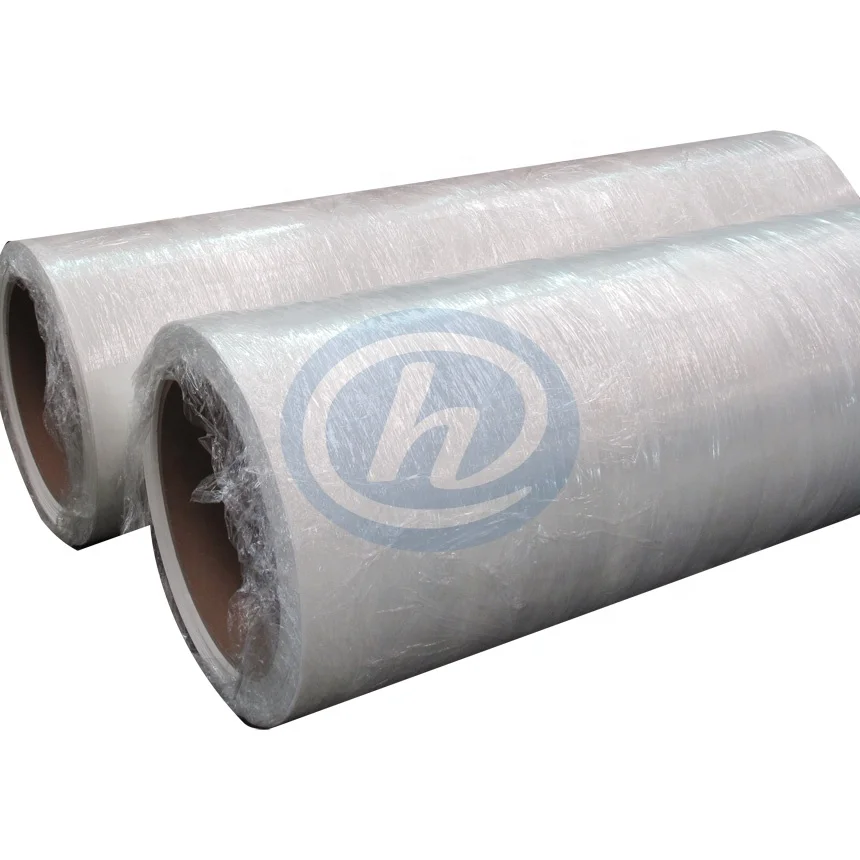

9) Rolled up by machine with 50-100m length as a coil, to save shipping cost.



Thickness:1.2mm-3.0mm
Max width: 2750mm

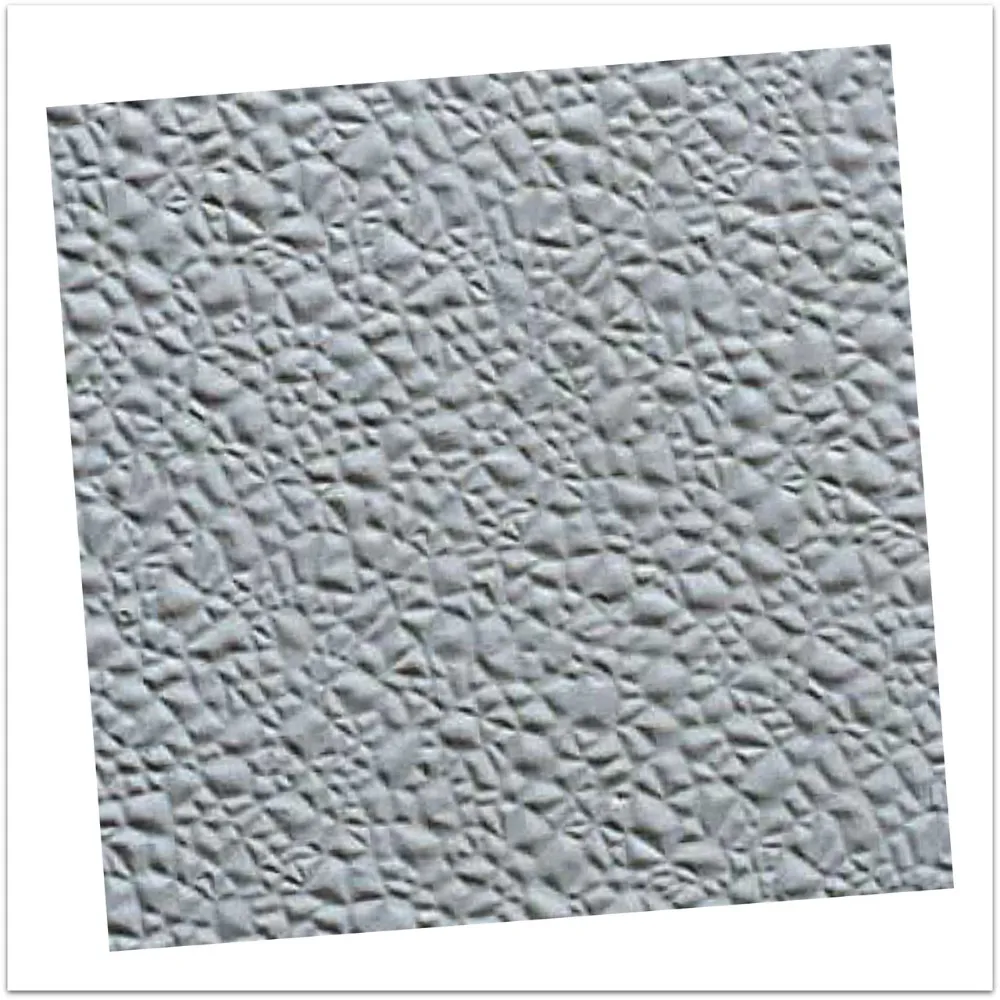

Feature: anti-aging, good decorative surface, impact resistant.

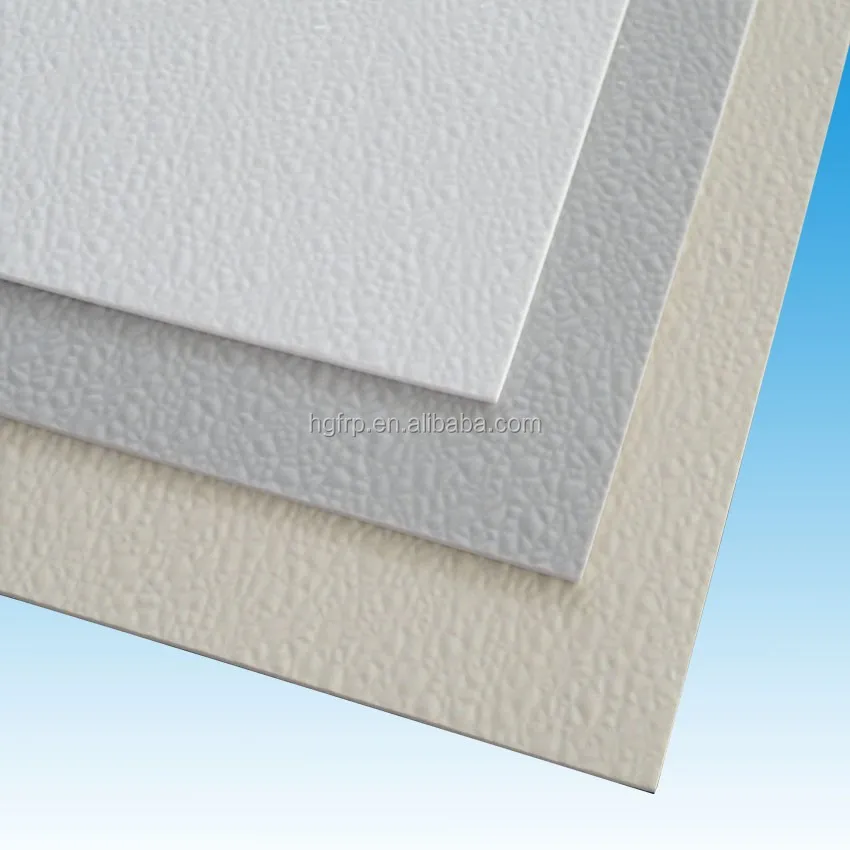

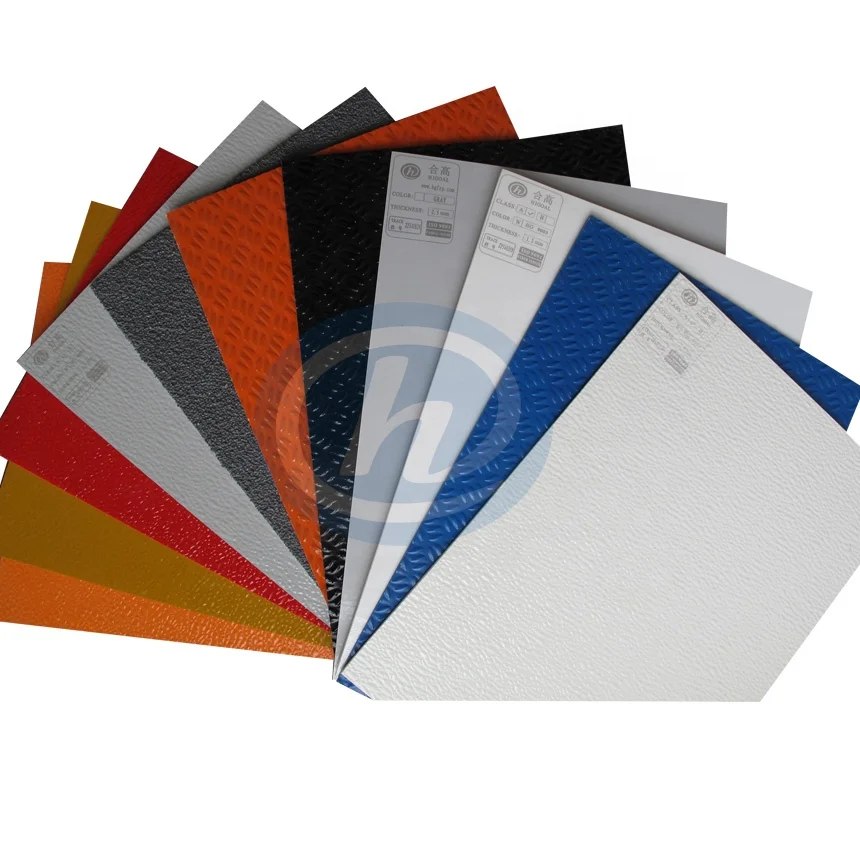

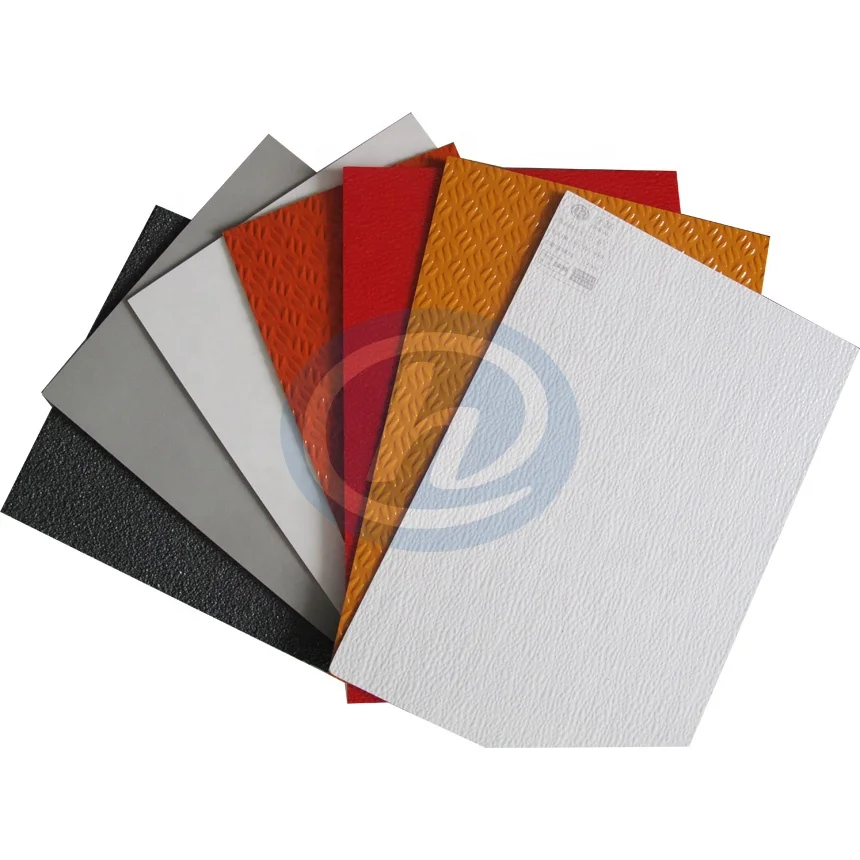

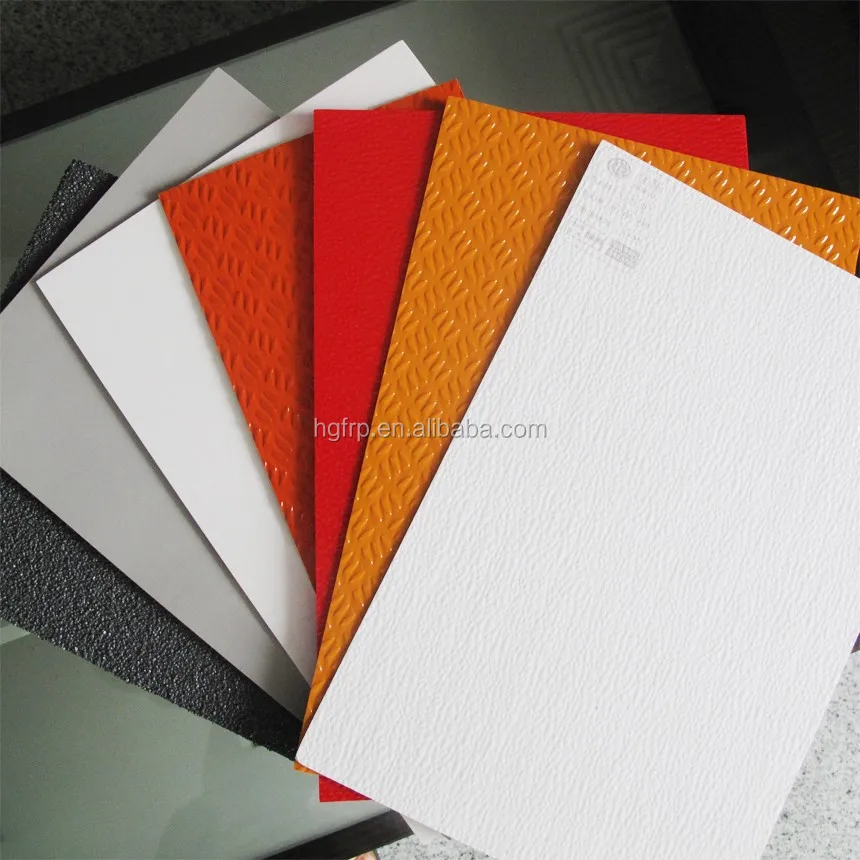

Higoal Panel Color Options

\t

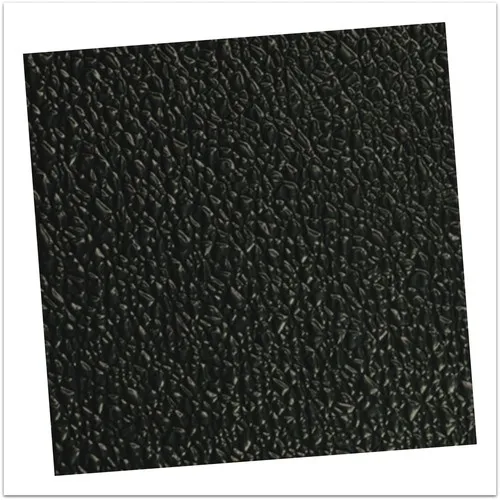

Black
\t
Beige
\t

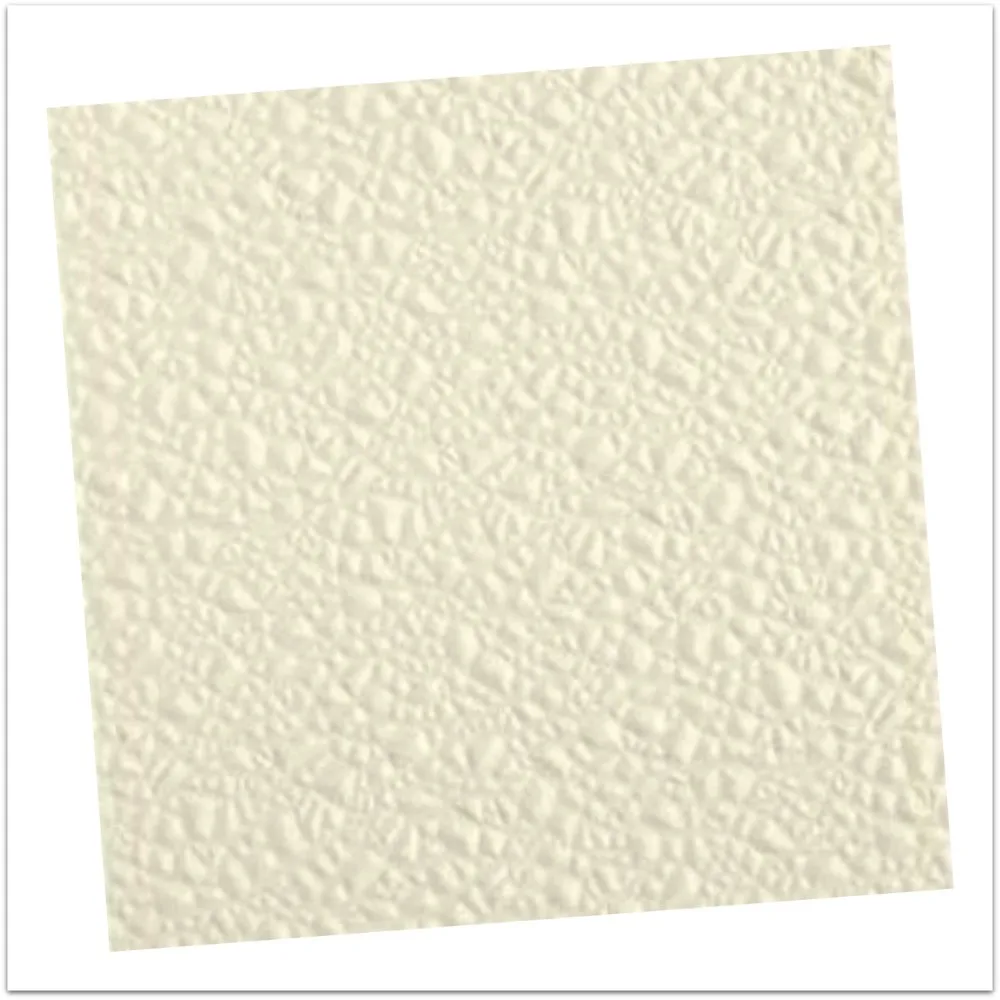

Almond
\t

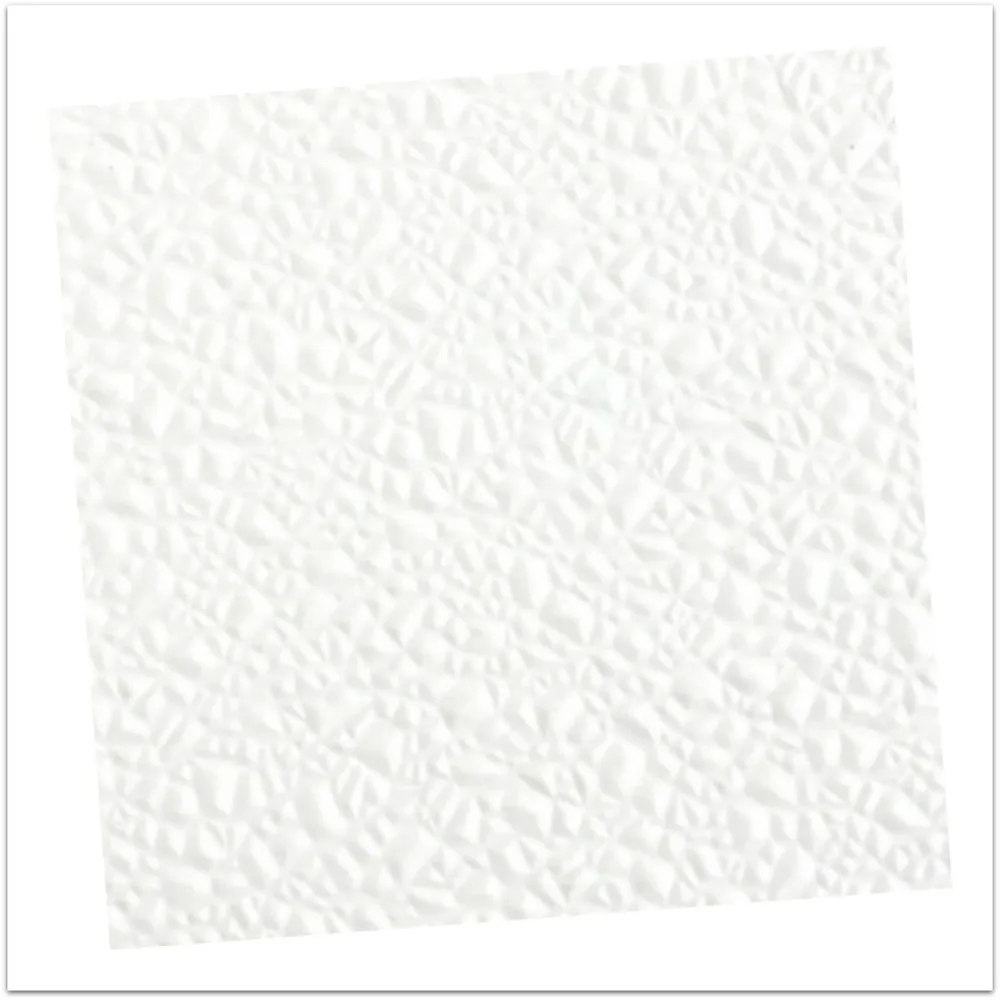

White

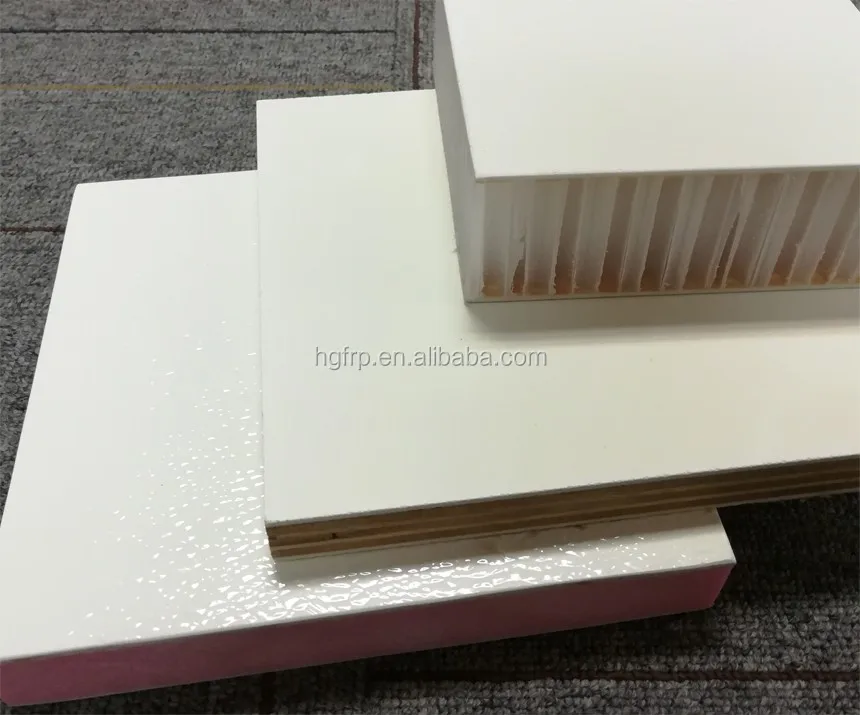

The above mentioned panels can be combined with the froth, gypsum, polywood, aluminium honeycomb ,the lsandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.

Specification
\t
Items
\t
Performance
\t
Material
\t
Gel coating: 300um ISO-phthalic polyester gel coat
Matrix resin: unsaturated polyester resin
Reinforce fiber: E-glass
\t
FRP panel size
\t
Thickness: 1.0mm-3.0mm
Width: ≤2750mm ;   Length: customer length
\t
Tensile strength
\t
≥75MPa
\t
Tensile modulus
\t
≥4800MPa
\t
Bending strength
\t
≥120MPa
\t
Bending modulus
\t
≥5GPa
\t
Impact strength
\t
≥35KJ/m2
\t
Compression strength
\t
≥35MPa
\t
Distortion temperature(1.8MPa)
\t
>230℃
\t
Thermal expansivity
\t
2.4×10-5℃-1
\t
Gravity
\t
1.6-1.7g/cm3
\t
Water Absorption
\t
0.16%/24hrs, 25C
\t
Stickiness
\t
≥42dyne
\t
Approval test standards:
\t
ASTM-E84, RoHS 2002/95/EC
\t
Chemical resistance
\t
Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.
pictures

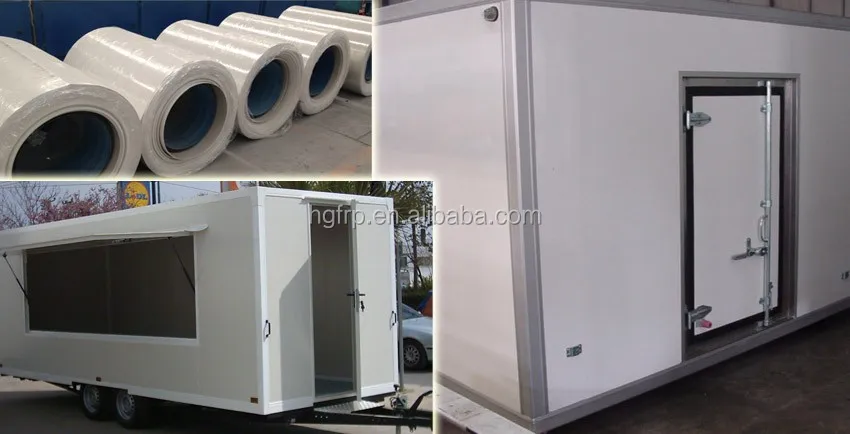

Panel Application
\t\t\t\t\t\t\t\t\tfactory picture \t\t\t\t\t\t\t


Exhibition

Certificate


Packing & Delivery
\t
Fiberglass FRP Hygienic Wall Cladding Panel
\t
Packing
\t
1. Protected by stretch film;
\t
2. Fasten by packing banding and packed on pallet;
\t
Delivery
\t
1. Stock panel: 3 working days.
\t
2. Manufacturing: 1  weeks, or depends on the order quantity.
About Higoal FRP


Professional manufacturer of FRP

-Fiberglass FRP Hygienic Wall Cladding Panel:


Established in Dongguan City in May 1995, Higoal FRP is as a technology enterprise in composite application field, dedicated to manufacturing, developing and marketing high-quality fiberglass products. As pioneer in Chinese composite field, Higoal is more than an unitary manufacturer on FRP products, but a total solution provider for anti-corrosion of industrial building.


Higoal five main products series:


1. FRP gel-coating skylight panel - for lightweight steel structure

2. Anti-corrosion building material - for highly corrosive industrial plant

3. FRP grating - for drainage cover (Anti-corrosion & anti-slip & load-bearing)

4. FRP flat panel - for shelter, carriage, wall

5. FRP pultrusion profile


Higoal owns both advantages of mature technology and competitive price. The design, production and quality service system of international standard, the price of localization and the punctual delivery, enable Higoal and customers develop into a mutually beneficial system.
