NEW Thermo King Refrigerator Freezer Cold Room 45 ft High Cube Reefer Container for sale

Reefer containers or refrigerated containers are used to transport goods requiring temperature-controlled conditions in transit, such as fruit, vegetables, dairy products and meat. They is fitted with a refrigeration unit manufactured by Carrier, Daikin, ThermoKing and Star Cool. During transportation by truck they are powered by Generator Units (Genset) mounted on the truck. 45 ft High Cube Reefer Containers are great for carrying more goods and reduce overall unit cost.

External Size	13720 x 2900 x 2870	MM
Internal Size	11590 x 2294 x 2554	MM

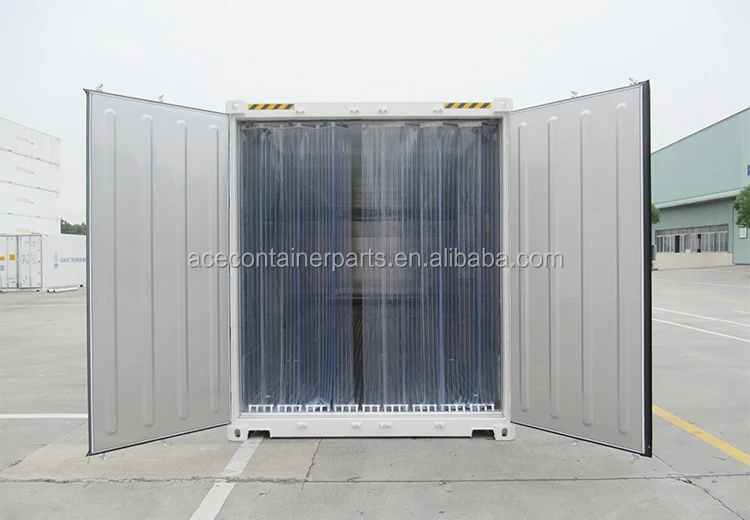

Door Opening	2290 x 2260	MM
Inside Capacity	67	CBM
Maximum Gross Weight	34000	KGS
Tare Weight	4850	KGS
Maximum Payload	29150	KGS
Allowable Stacking Weight (1.8G)	216000	KGS
Inside Temperature Range	-30 to + 30 centigrade
Main Circuit	3 PHASE AC 440, 460V/380, 400, 415 60/50HZ

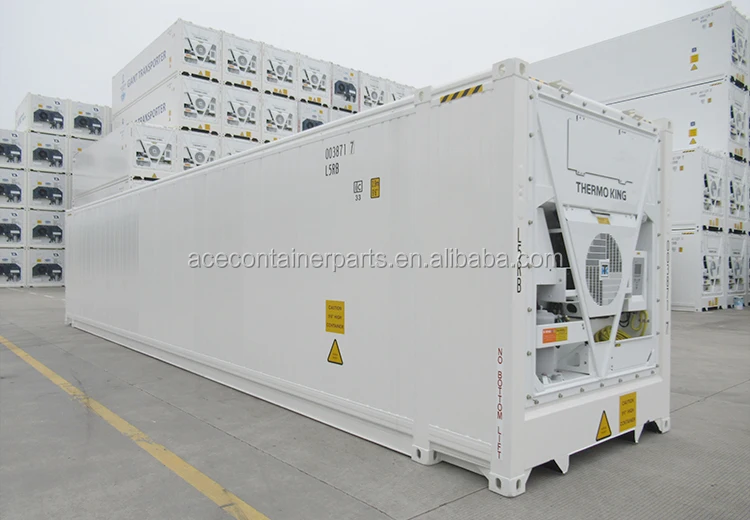

Cooling Machine	Thermo King

Refrigerant:
	R134a	R404a
Molecular Formula:	CH2FCF3	R143a, R125a, R134a
Molecular Weight:	102	******
ODP	0	0
Boiling Point:	-26.1°c	-46.1°c
GWP	0.2	0.6

Heat Leakage(Kcal/Hr.°c)
	20ft Reefer Container	40ft Reefer Container
ISO1496-2:1996	≤26	≤51
ACE Prodcut:	23	43
Result:	Good	Good

Air Leakage(Cbm/Hr):
	20ft Reefer Container	40ft Reefer Container
ISO1496-2:1996	≤10	≤10
ACE Prodcut:	5	5
Result:	Good	Good
