Product Overview

Description


Product Description

The pile driver has three parts: a power source, an exciter, and a transmission shaft that connects the power source and the exciter. The structure is novel, the volume is small, the weight is light, the operation is convenient, the mobility is strong, and the power environment is not limited. Not only can piling vertically, but also beating. Compared with the manual piling work, the labor intensity is low and the work efficiency is high. Instead of the manual piling operation mode, the mechanization of flood control and piling work is realized.

Second, the application of portable flood control and rescue pile driver: blocking the embankment collapse, anti-wave protection dike, grab the top of the embankment, grab the embankment collapse, and strengthen the embankment. It is a new kind of piling machinery specially used for flood control and flood rescue in the flood season, reinforcement and maintenance of the levee before and after the levee, and the embankment of the rivers and lakes. It not only replaces the current manpower-hit operation mode, reduces the labor intensity of manual work, improves the efficiency of piling, but also realizes the mechanization of flood control and piling.

\t
Rated air pressure:


\t
0.4MPa~0.8MPa









\t
Impact frequency:
\t
≥45 times/min
\t
Applicable pile diameter:
\t
≤200mm
\t
Pile hammer movement stroke:

\t
140mm
\t
Air consumption:
\t
3.8 × lOcm / min
\t
Operating temperature:
\t
-5 ° C ~ 60
\t
Impact energy:
\t
110.46N..M
\t
Host weight:
\t
74Kg Flexible shaft length: 4m
\t
Pile driver pile diameter:
\t
60-120mm
\t
Pile driver length
\t
: less than or equal to 3000mm
\t
Pile driving speed of pile driver:
\t
500-1000mm/min

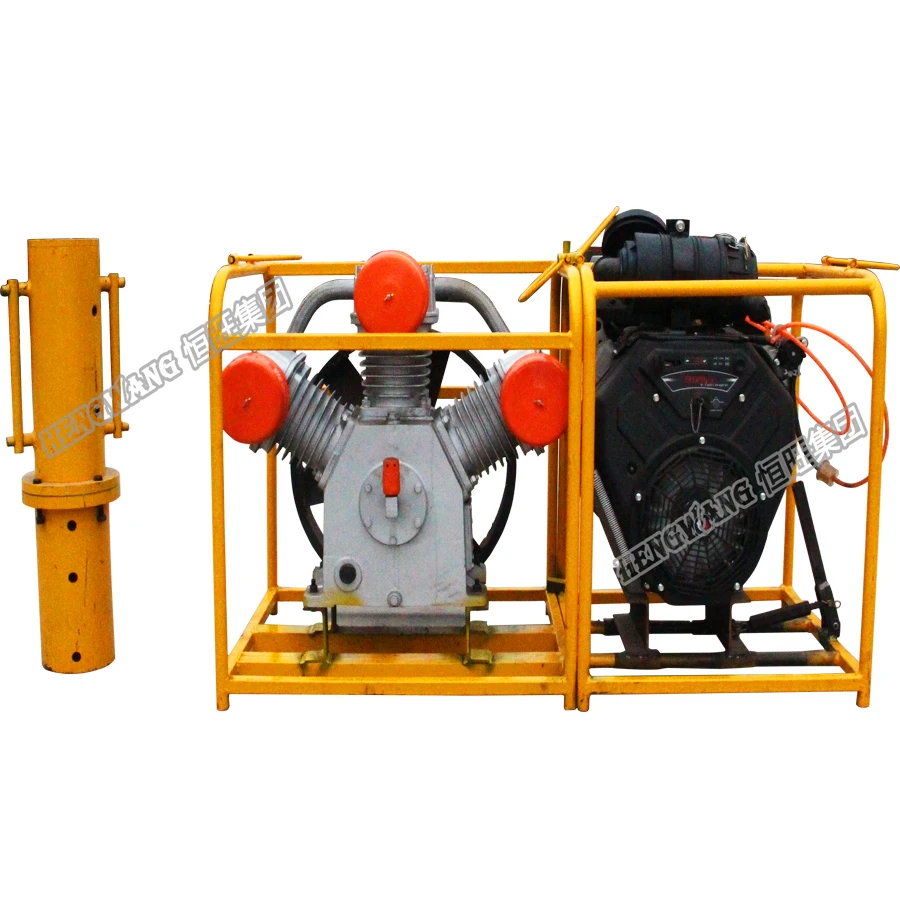

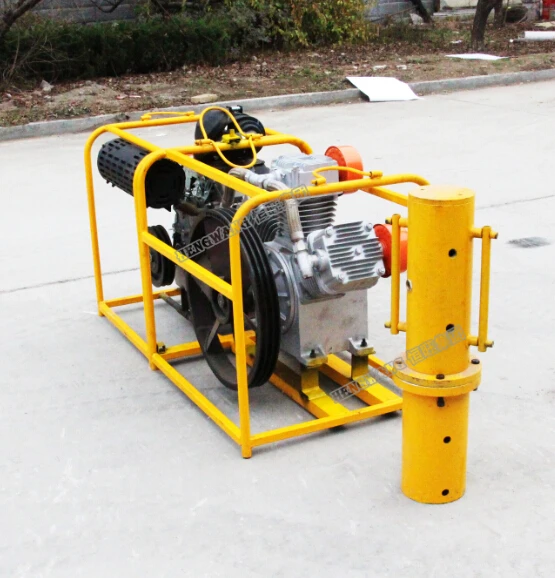

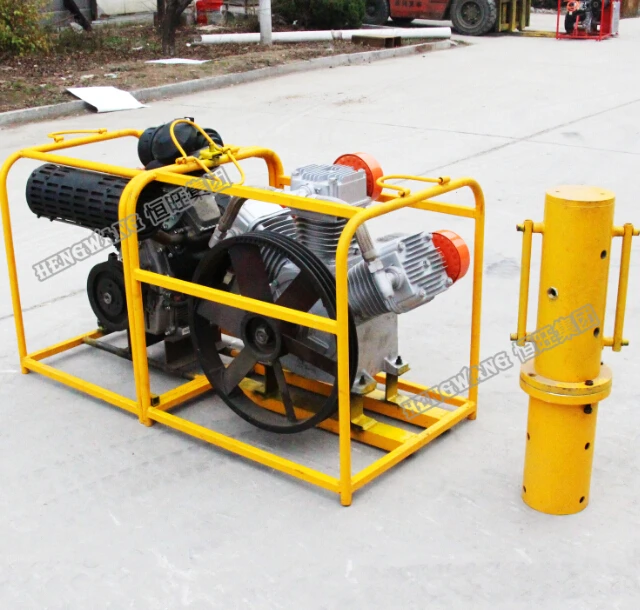

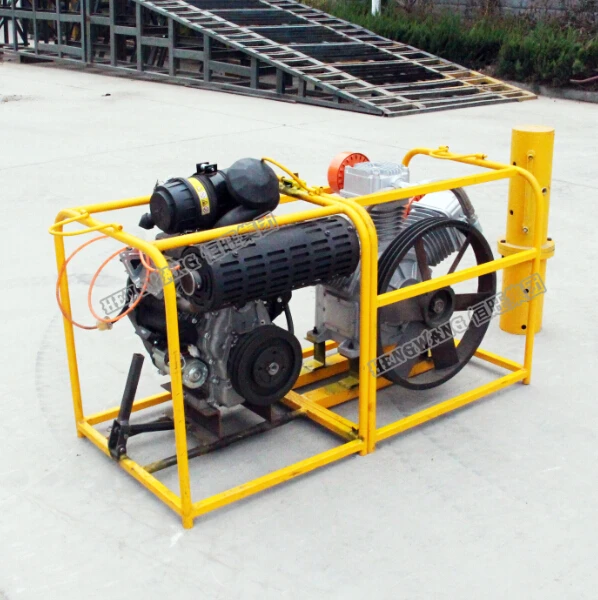

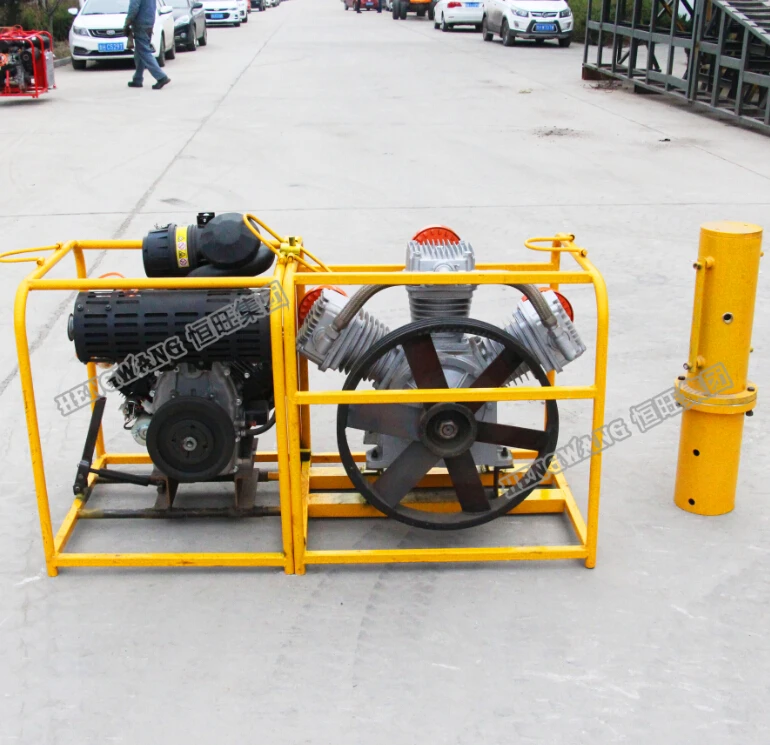

Products Show

Air compressor

Rated air pressure: 0.4MPa~0.8MPa
Impact frequency: ≥45 times/min
Applicable pile diameter: ≤200mm
Pile hammer movement stroke: 140mm
Air consumption: 3.8 × lOcm / min
Operating temperature: -5 ° C ~ 60
Impact energy: 110.46N..M


Pile driver working

Host weight: 74Kg Flexible shaft length: 4m

Pile driver pile diameter: 60-120mm

Pile driver length: less than or equal to 3000mm

Pile driving speed of pile driver: 500-1000mm/min

Our Service


We are pile driver maufacture




Our Company
Packing & Delivery

Packing Details  : wooden case

Delivery Details : 3 days after order
