vakum verpackungsmaschine vertical food vacuum sealing packaging machine big bag shenzhen kimchi cashew vacuum packing machine
- Category: >>>
- Supplier: Zhejiang Ruibao Packaging Machine Co. Ltd.
Share on (60835358003):
Product Overview
Description

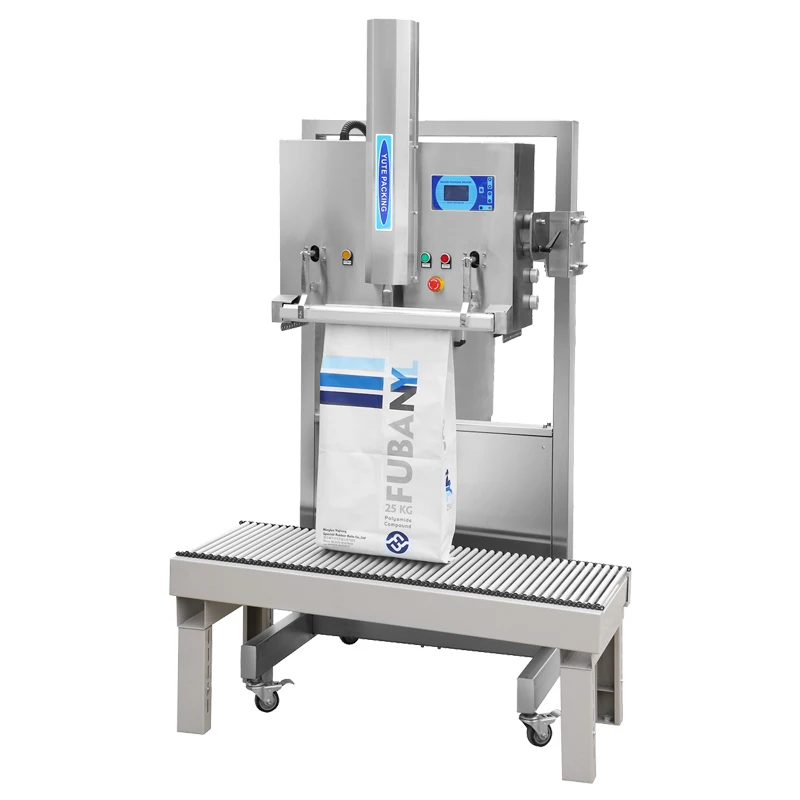

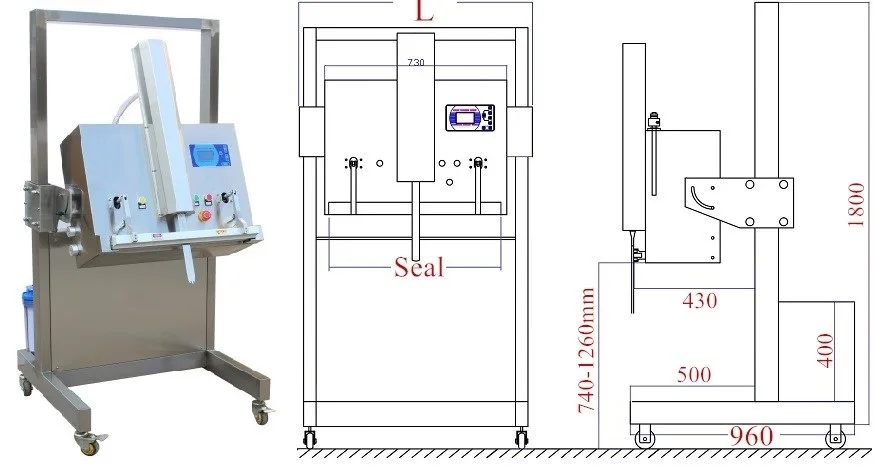

This machine is external vertical vacuum sealer LO series, with 10 memories. It can vacuum + gas fill + seal, and extend the shelf life of food.
Function 1. Sealing only
Function 2. Vacuum-seal
Function 3. Gas fill-seal
Function 4. Vacuum-gas fill-seal
Function 5. Gas fill-vacuum-seal
Function 6. Vacuum-gas fill-vacuum-seal
Function 7. Gas fill-vacuum-gas fill-seal
Function 8. Vacuum-gas fill-vacuum-gas fill-seal
Advantage
--- Supply 8 functions.
--- 1 year warranty
--- 304 SS machine body
--- 600-1200mm seal length.
--- CE certification
--- User start the machine by step the pedal
--- Support different material and thickness of bags.
--- Only cost 15s-20s per cycle.
--- Low gas consumption, and it can fill sufficient gas into bag.
--- Memorize 10 different packing set.
--- Automatic counting packing cycles.
--- Easy to operate and maintain.

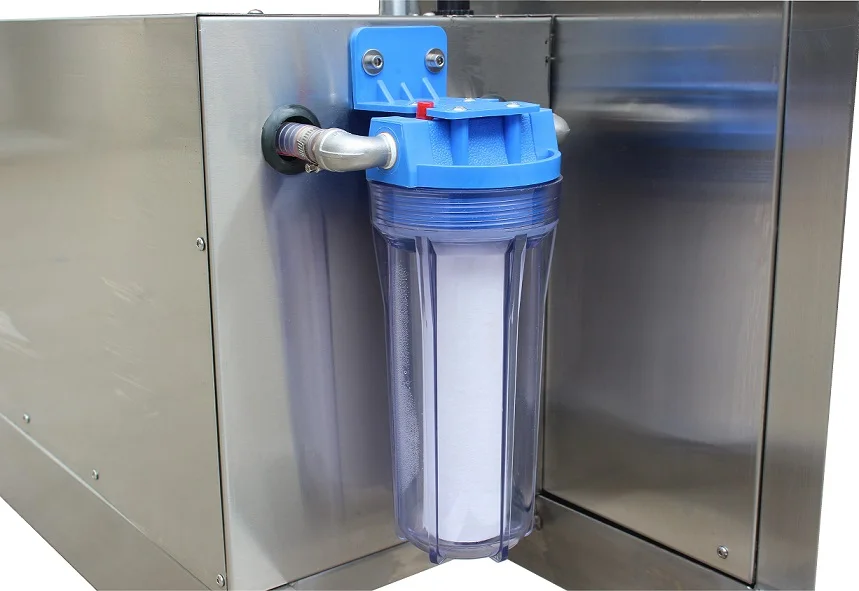

--- Equipped with oil/water separator and dust filter.
--- Installed with brakeable caster. Easy to move and stop.
--- Height/angle of machine head is adjustable.
--- Length of nozzle is adjustable.
--- Special button to clean inside hose automatically.
--- Easy to lift/drop machine head by press up/down button.
--- Flow of gas flush can be adjusted.
--- Low noise.
Application
1. Suitable item. Solid item like beans, cloth, electric components, dry food, tea, fruit, vegetables, hardware etc.
2. Not suitable for powder/liquid, or product which sensitive with pressure.
3. Package weight shall be less than 200Kg.
4. Bag size shall be bigger than 20*30cm.
5. Bag type. Bag with zipper, folder, or 3-seal side.
5. Bag type. Bag with zipper, folder, or 3-seal side.
6. Bag material. Paper, plastic, aluminium. Thick and big bag is acceptable.

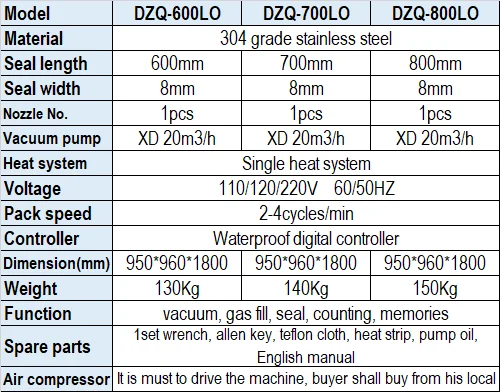

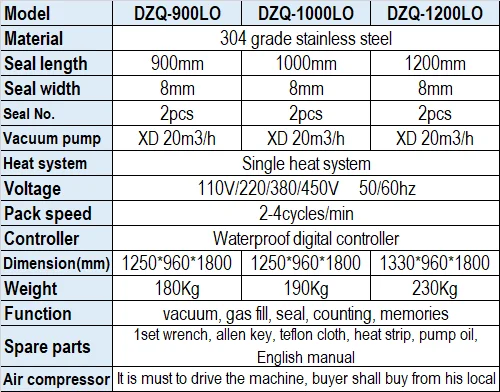

Parameter
1. Price
* DZQ - 600LO, 600mm seal, unit price 2515USD
* DZQ - 700LO, 700mm seal, unit price 2587USD
* DZQ - 800LO, 800mm seal, unit price 2785USD
* DZQ - 900LO, 900mm seal, unit price 2935USD
* DZQ - 1000LO, 1000mm seal, unit price 2999USD
* DZQ - 1200LO, 1200mm seal, unit price 3232USD
If client order more than 5pcs, there is discount.
2. Following will cost additional, maybe you will need it
* Double heat system for thick bag, 100USD
* Air compressor, 260USD
* 304SS rolling conveyor, you can put heavy pack on it, and pull it by hand to move bag, with 1.2m length, +460USD
* For bag wider than 900mm, we suggest automatic bag puller, which cost extra 250USD
* Hand press protect, 130USD
* Oil free pump, 80USD extra
* Separate gas mixer, 1600USD
* Multi nozzles, cost extra 300USD for 2pcs nozzles
* if voltage 380V/50HZ/3phase, price is 50USD higher
* DZQ - 700LO, 700mm seal, unit price 2587USD
* DZQ - 800LO, 800mm seal, unit price 2785USD
* DZQ - 900LO, 900mm seal, unit price 2935USD
* DZQ - 1000LO, 1000mm seal, unit price 2999USD
* DZQ - 1200LO, 1200mm seal, unit price 3232USD
If client order more than 5pcs, there is discount.
2. Following will cost additional, maybe you will need it
* Double heat system for thick bag, 100USD
* Air compressor, 260USD
* 304SS rolling conveyor, you can put heavy pack on it, and pull it by hand to move bag, with 1.2m length, +460USD
* For bag wider than 900mm, we suggest automatic bag puller, which cost extra 250USD
* Hand press protect, 130USD
* Oil free pump, 80USD extra
* Separate gas mixer, 1600USD
* Multi nozzles, cost extra 300USD for 2pcs nozzles
* if voltage 380V/50HZ/3phase, price is 50USD higher

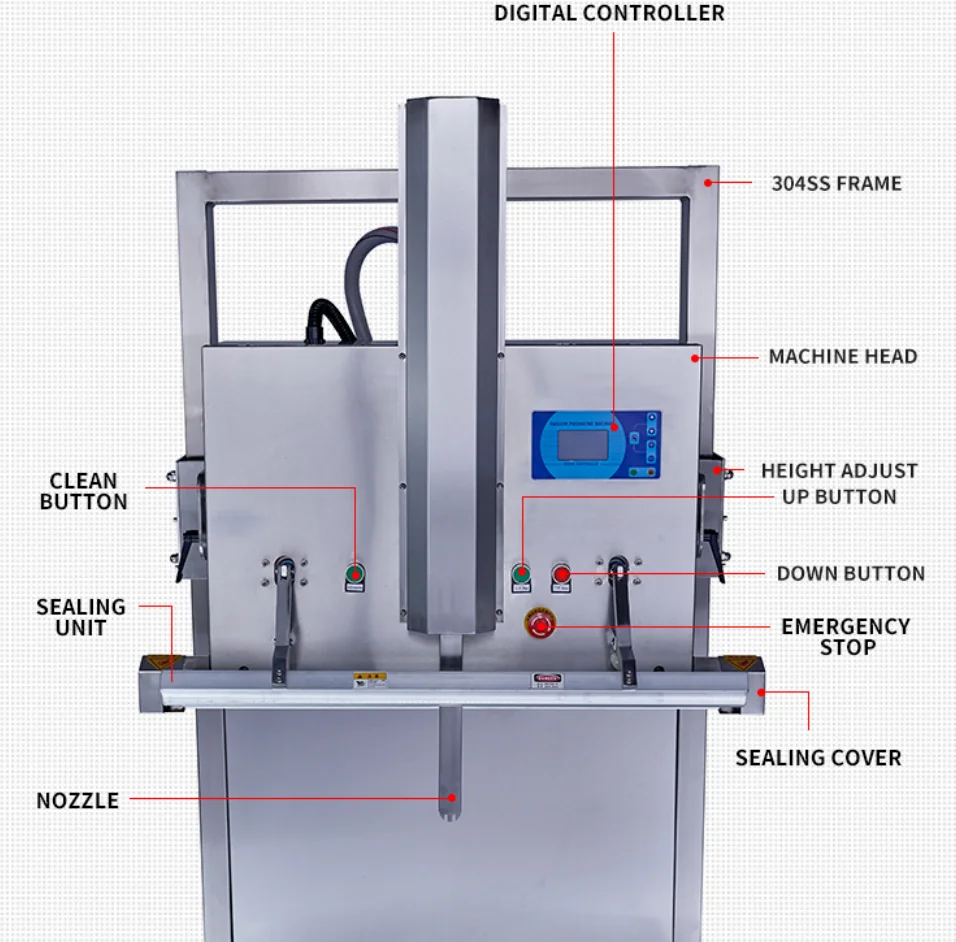

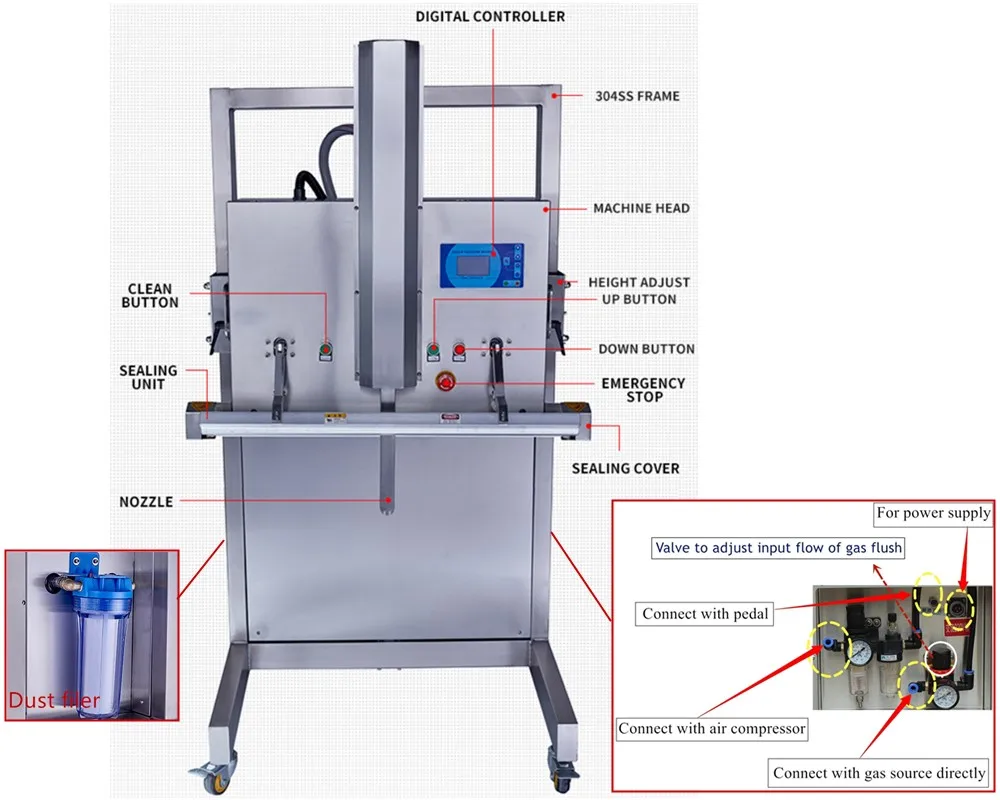

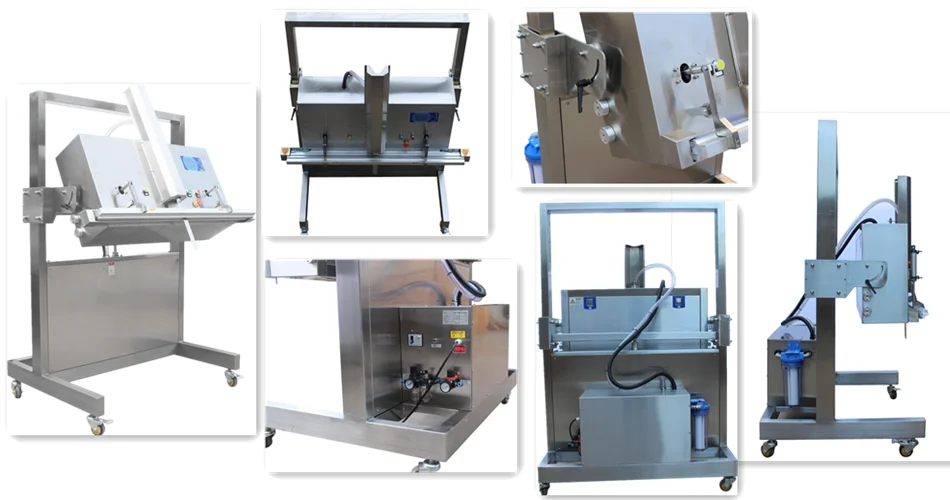

Machine details and more device
Waterproof controller
1. Memory. Client can store 9 sets in the controller.
2. Work mode. Client can choose different function here.3. Client can set time for vacuum / gas fill / seal / cool this page.
--------------------------------------

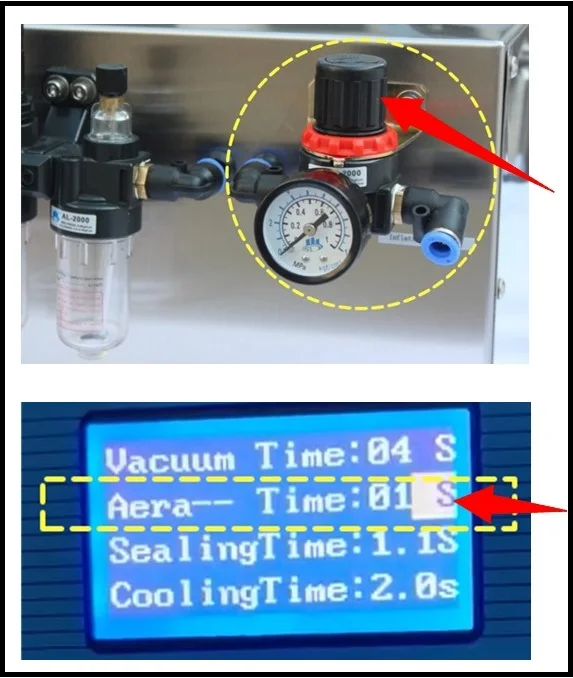

How to adjust gas fill
1. We leave a hole here for gas fill, just connect it with gas bottle directly.
2. Turn this cap, you can adjust gas input flow. It shall be lower than 0.2Mpa.3. On control panel, you can adjust time for gas fill.
-----------------------------------------

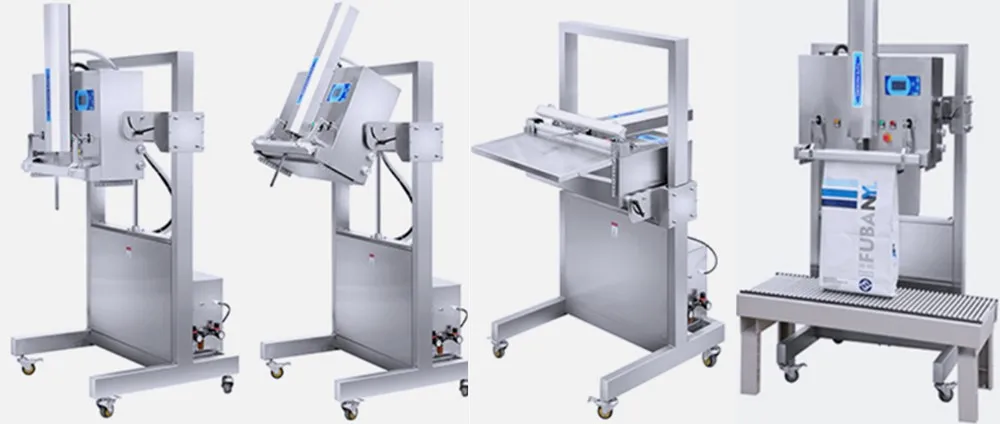

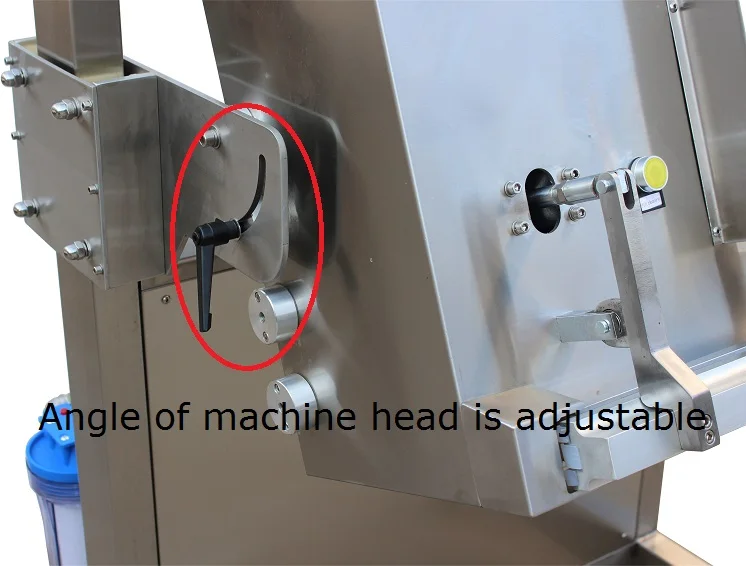

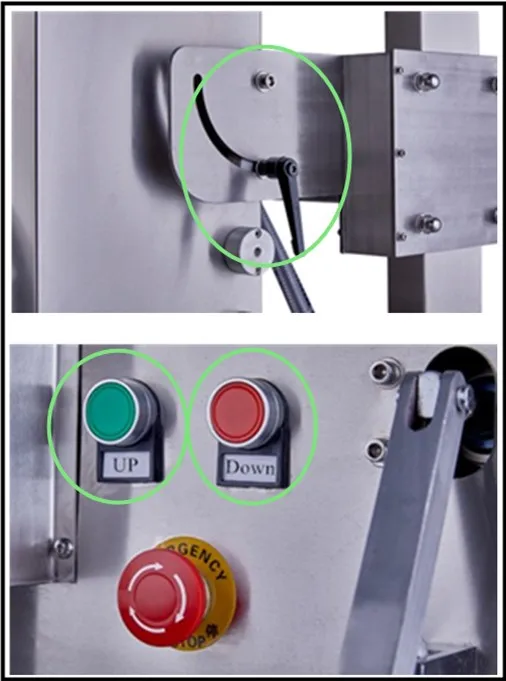

Adjustable machine head
1. Adjust it for different angle of machine head.
2. Press Up/Down button, the machine head will move up/down automatically.
About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
We-chat/whats-app: 008615057546776
Email: emma.vac(at)cnruibao.cn
