Product Overview
Description
Product Description
1. Model: AWL (Customized Design)
2. Standard: GB
3. Certification: ISO9001, CE
Features

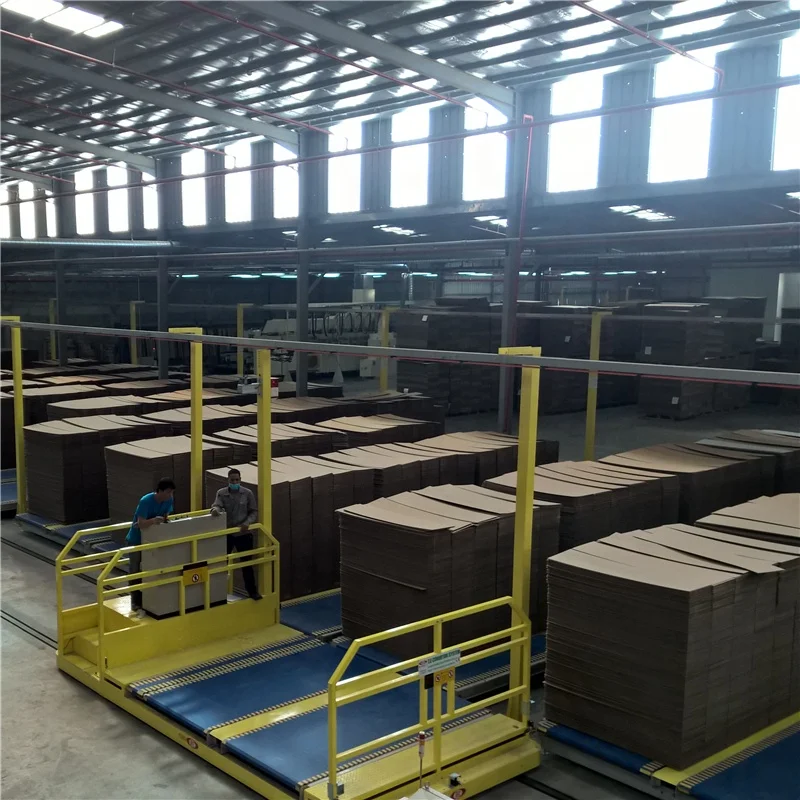

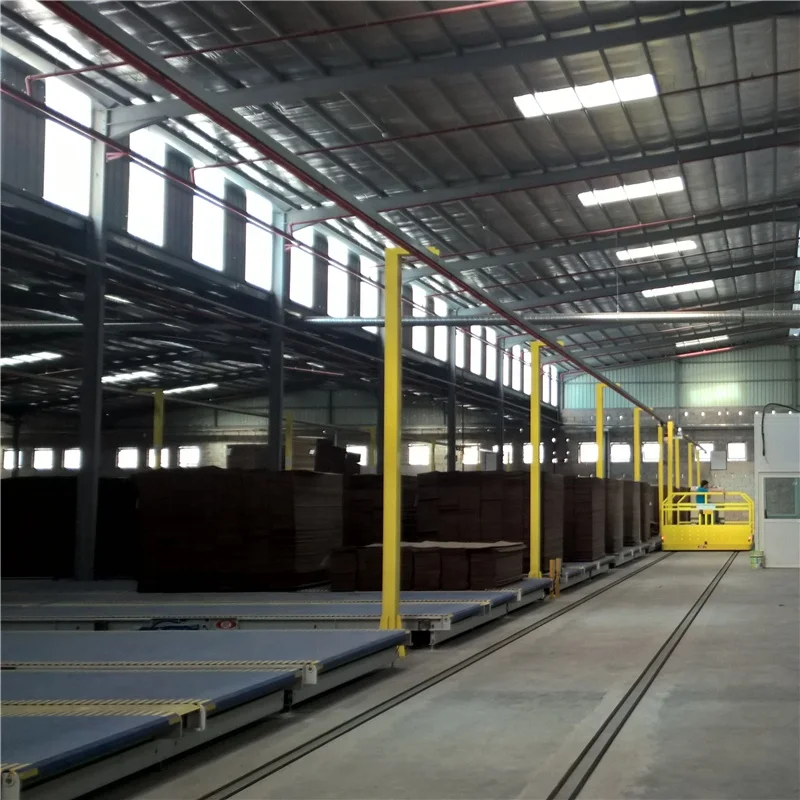

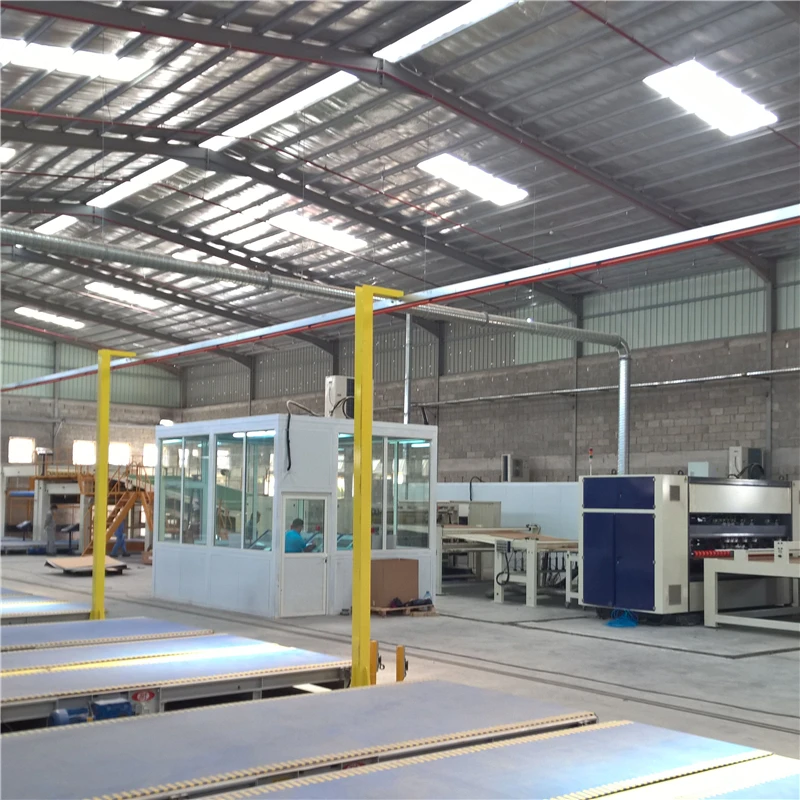

RGV Rail type cardboard Auto logistics and storage system
Can connect with PLM or ERP System, Digital management of orders and cardboard storage
Bar code tag printing and scanning, Info storage in Computer
Product Name | Fully-Auto Cardboard Logistic and Storage System (RGV) |
Production Line Suitable | Down Stacker, Max. 400m/min |
Production line width | 1200-3000mm |
Control | PLC, connect PLM or ERP system |
Support Weight | Max. 5 tons conveying |
Belt | Tank belt |
Design | According to customer's situation |
Information Marker | Printer and code bar scaning |
Auto Pallet Loading system | Option |
Auto sheet counter | Option(Stnadard: Output by height Stacker) |
Deliver day | 90 days |
Installation | By supplier |
Warranty | 1 year |

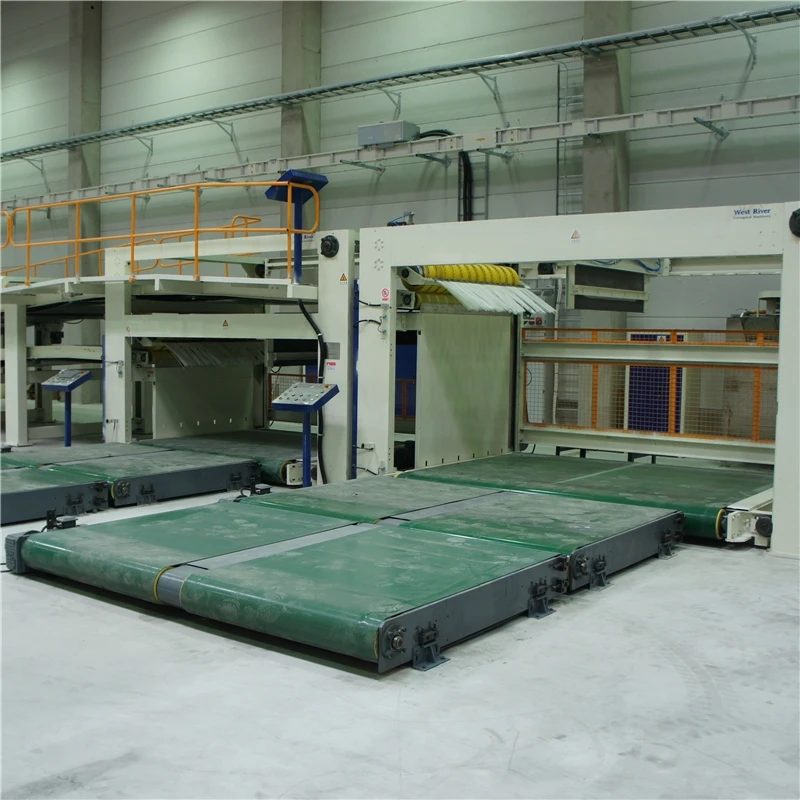

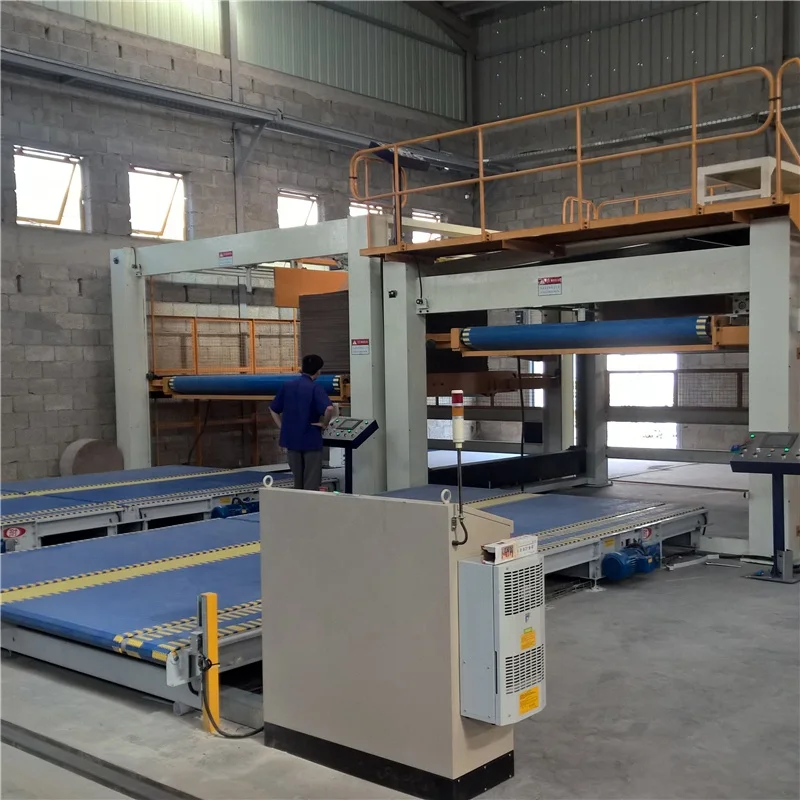

Product Show
Our Company
Engineers Service To Different Countries
Exhibistions Global
Our Factory
China National Standard Set Up By West River
Certifications
ISO 9001
CE
Cardboard Production
Other Machines

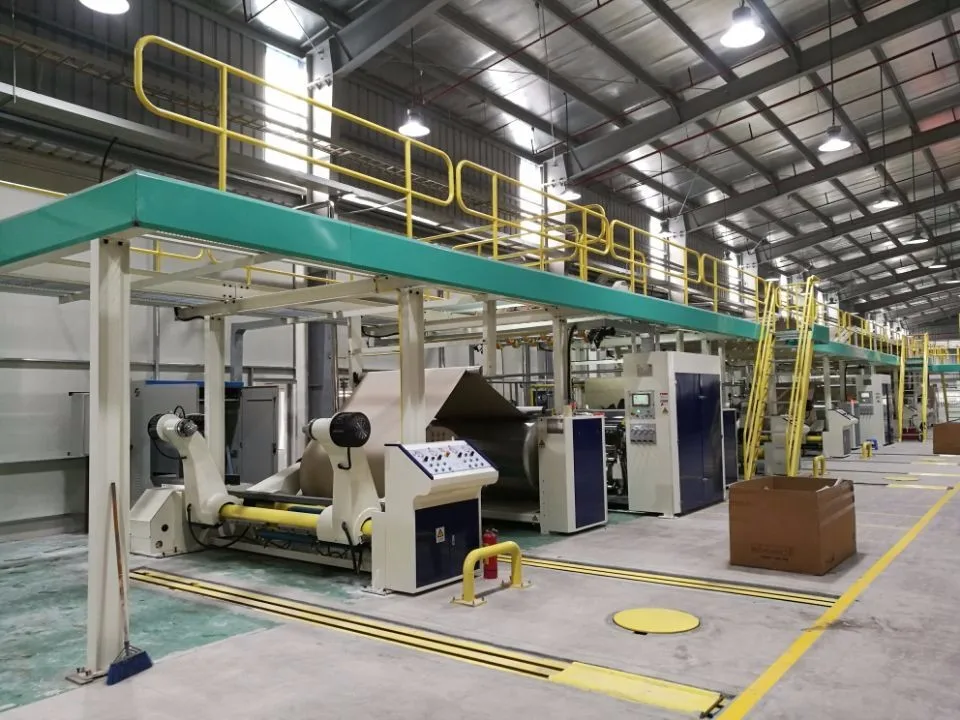

COMPLETE CORRUGATED CARDBOARD PRODUCTION LINE
*Siemens profibus control system
*Intelligent tempearture control and steam saving system
*Automatic tension and balance tension control
*International advanced intelligent pressure loading system, vector pressure loading control
*High speed and low noise control
*Provide free customized whole carton plant design, auto logistics design, equipment placement and installation, ERP system connection, local employee training
*Modular design, easy for upgrate and Maintenance
Hydraulic Mill Roll Stand
*Made of QT450(cast iron), Single arm loads 3000kg
*Internal expanding type Clamp chuck without damage roll paper core
*Multi-point brake realizes perfect tension balance control
*Heavy rail track to convey roll paper smoothly
*Auto-centering device ensure the centering of Roller paper
*Connect to the PLC network to realize synchronous control

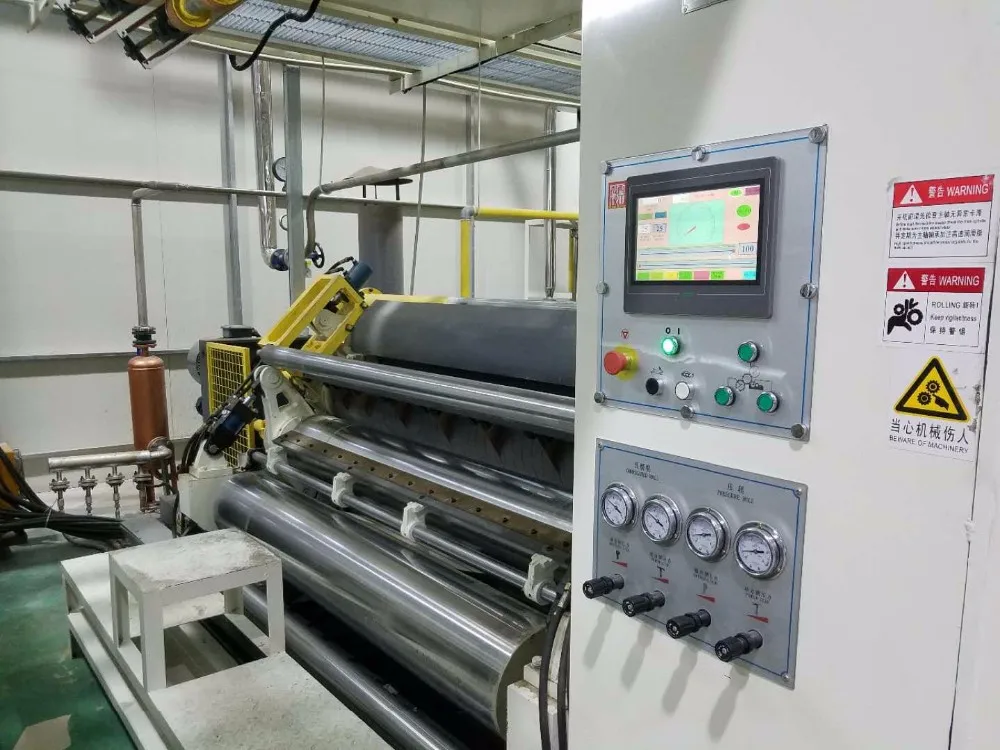

Single Facer
*Industrial 4.0 Design, user-friendly interface, achieve data statistic and automation
*Centering control adjustment
*Auto contol gluing thickness accoding to speed, might set up by operator to EMS memory
* International directly drive mode, easy for maintenance
*Cast Iron modular low noise design
*PLC network control through Profibus control system
*Auto Paper Brake Detecting

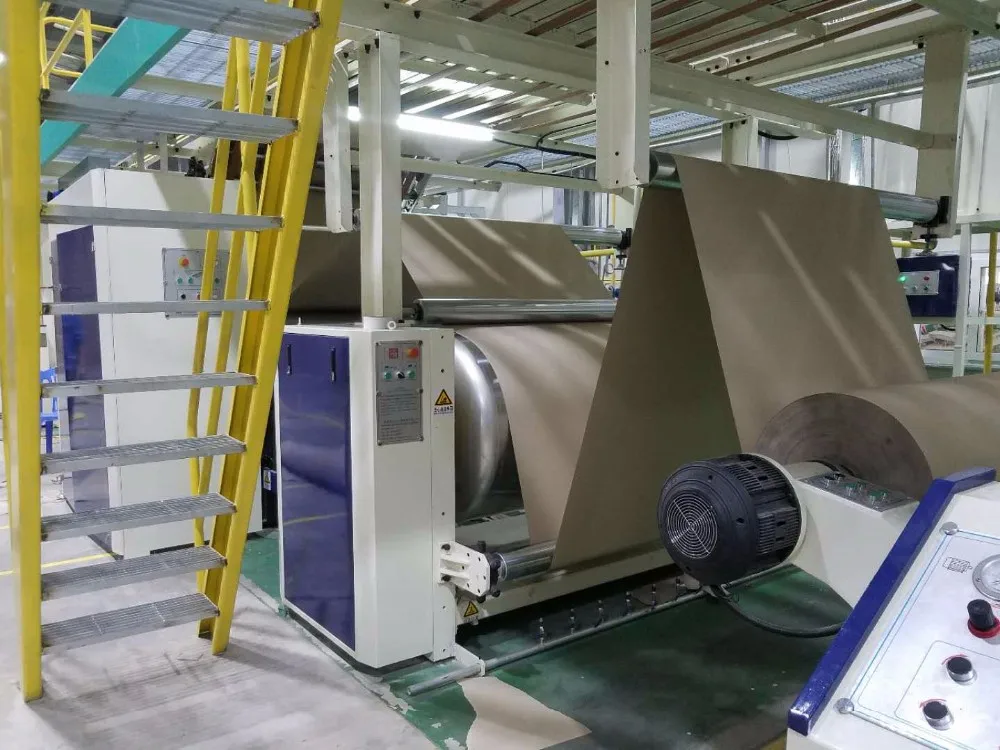

Pre-Heater
*PLC control Wrap Angle 60-280 degree adjustment according to the speed to realized high quality cardboard production
*Tension balace shaft control
*Chinese national standard of high-pressure boiler plate
*Rotary structure meet the high speed production
*Modular design, able to form a multi-preheater
*Can be equipped with sprayer to adjust moiture of kraft paper
Span Bridge
*European design, high rigidity stell compound structure paper guiding device
*PLC network control optimize paper quantity accumulation on the bridge, realize zero crease
*Automatic tension control and correction system, each layer of single face board and liner paper adhere accurately
Glue Machine
*Modular design, ensure single face board enter the glue machine with smooth and small angle, reduce paper braking ratio
*Simple touch screen interface, PLC servo control system, easy for maintenance
*Paper braking auto detection

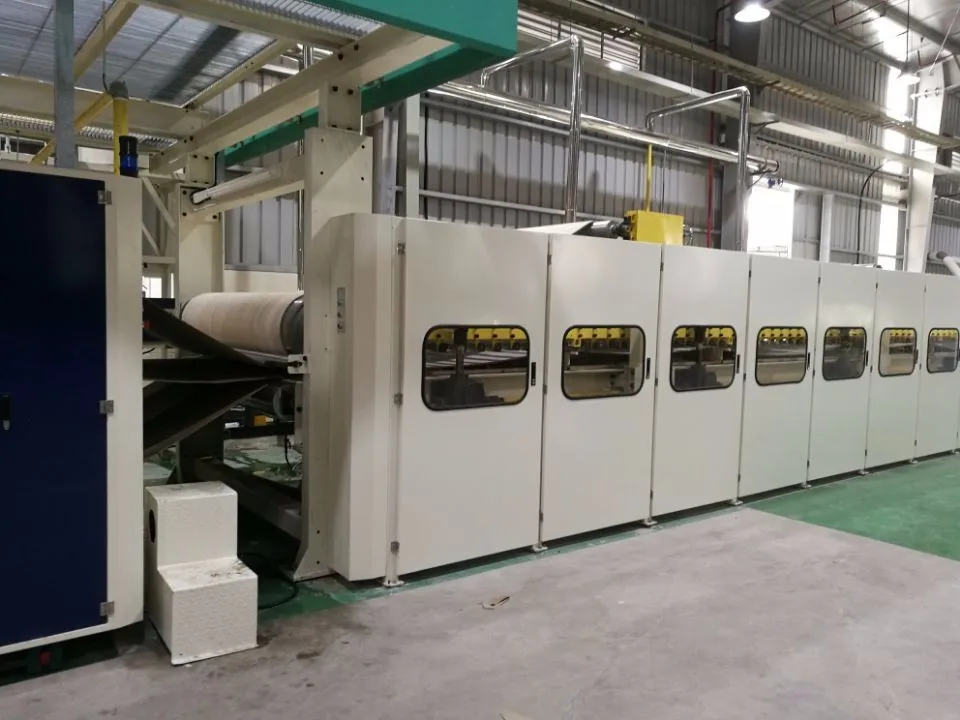

Double Facer
*European advanced energy-saving design, up to 30% energy saving
*Intellgent vector press control, auto adjust according to different type of cardboard production
*High-pressure hot plates of high performance thermal compensation, achieve quick gelatinization
*Automatic temperature control system fit into different cardboard production
*Heavy dual power drive section, Paper entry pretection to avoid danger

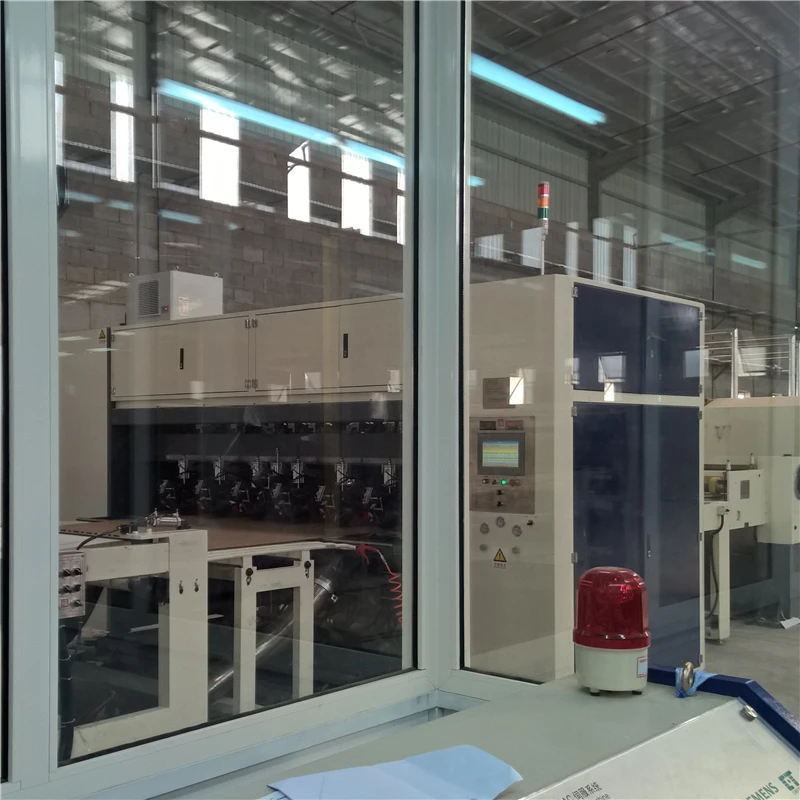

Computer Control Slitter Scorer
*Adopted indrustrial ethernet, perfect control with dry section
*Realize 0s order change production with Rotary shearer, waste reduce up to 35cm, auctomatic arrange orders
*High precision ball screw and liner guide rail, 3s perfect accurate positioning, 0 score distance
* equipped with displacement memory function, eliminate accumulating errors, could assure long-term precision stability, order change precision ± 0.5mm
Cut-Off Machine
*Duel Phase AC servo motor, direct drive,
*UK.CT control system
*Module group of the high voltage capacitance, collect power fed back by each breke, might save 30% electric power
*Indrustrial ethernet connection with whole system

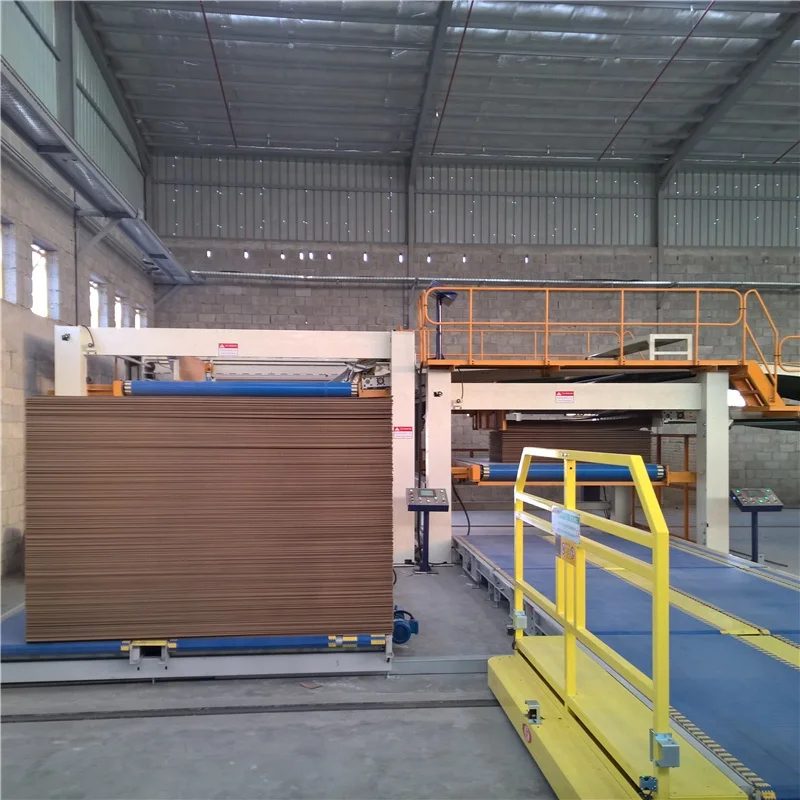

PLC Control Automatic Conveyor And Stacker
*German Siemens servo system
*Up to 300 m/min
Auto Splicer
*Increase up to 35% production speed
*Paper splicing distance reduce below to 10cm
Auto Tension Control And Correction Device
Auto Glue Making System

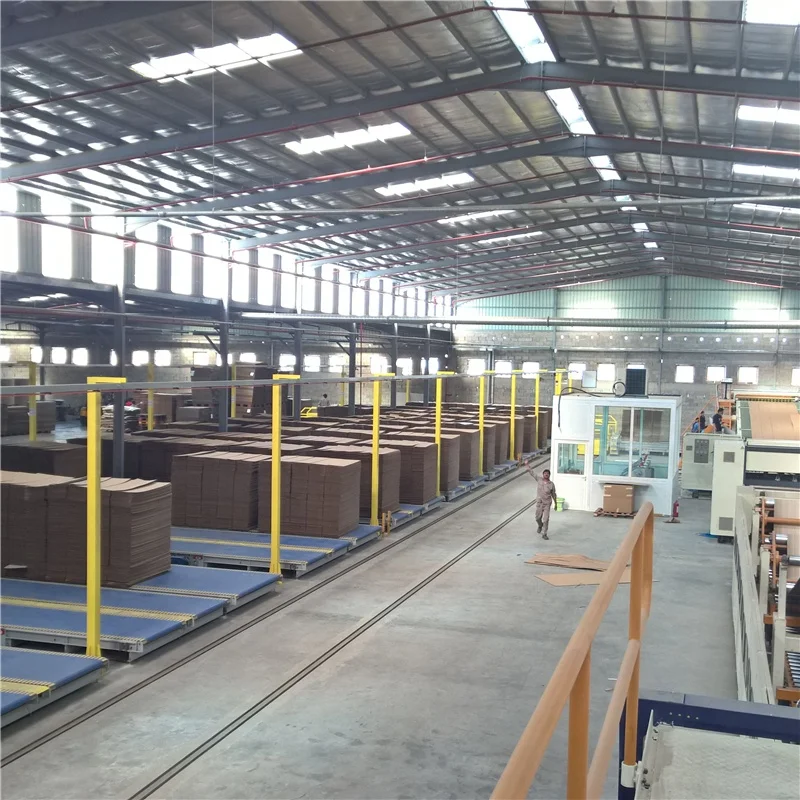

Customer Image
KOREA KOPAC
Based in Vietnam to serve Samsung there, they produce high quality cardboards for TV and other household applicances package.
FAQ
1Q: Are you the manufacturer?
A: Yes, we are the professional manufacturer.
2Q: Where are your factory located in ?
A: Our factory located in Zhaoqing city, Guangdong, China
3Q: Where is the nearest airport of factory ?
A: The nearest airport is Guangzhou Baiyun International airport. It take 1.5 hours from Guangzhou to Zhaoqing factory by car. We are glad to pick you up at the airport.
4Q: What is your business process?
A: Talk about requirements, confirm details, sign a sales contract, pay for deposit, arrange production, test machines, buyer pay for the balance payment, arrange shipment.
5Q: How to control machine quality ?
A: All material are environmental protection,non-pollution
We have professional technicists to supervising to production
Our professional department to examine about every production process
6Q:What can you do if the machine broken?
A: The warranty period is 1 year. If the broken parts can't repair, we can send the new parts to replace the broken parts for free, but you need to pay the freight. After warranty period, we can negotiate to the problems, and we supply the technical support for the whole life of the equipment.
