China Supply Pad Printing Thickness Steel Plate for Microprint Machine

Product Overview

Description

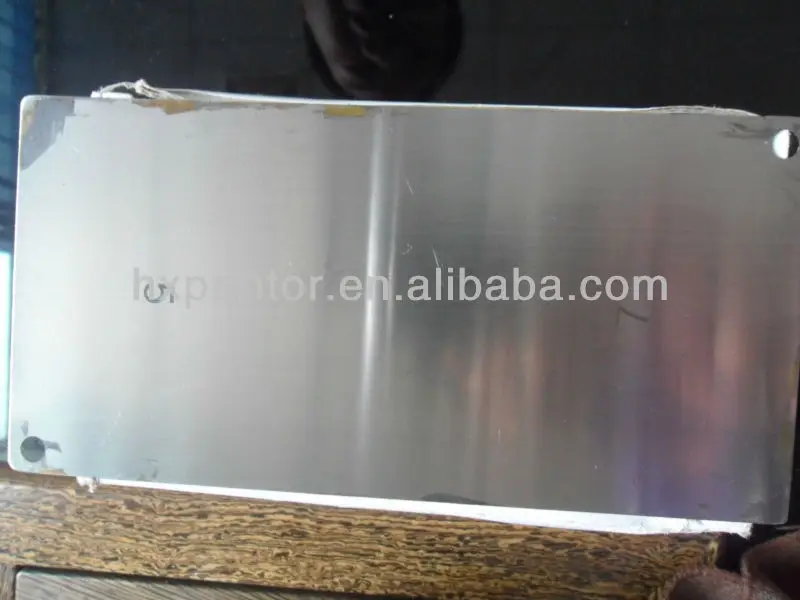

Pad printing steel  plate ( Y-01A )





Heattreatment Hardness	HRC 63+/-1
Clichés Surface Finish Roughness	Black Surface---Ra0.1μm Bright Surface---Ra0.01μm Mirror Surface---Ra0.001μm
Clichés Surface Parallel	For Open Type Pad Printers……500:0.05mm For Cup Type Pad Printers……500:0.005mm
Clichés Machining Thickness	Common thickness: 9.8-10.2mm Special thickness: 8mm,9mm,12mm, 13mm, 15mm Other thickness can be customized.
Clichés Plates Common Size	70x140mm,75x100mm,75x150mm,75x200mm… 100x100mm,100x150mm,100x200mm,100x215mm, 100x250mm… 150x150mm,150x300mm,150x350mm… 200x200mm,200x500mm,200x550mm… Other thickness can be customized.
Clichés Machining Size	Any special size clichés can be made to order.





*10",10"*10"etc







Excellent performance in pad printing



Easy to expose and etch

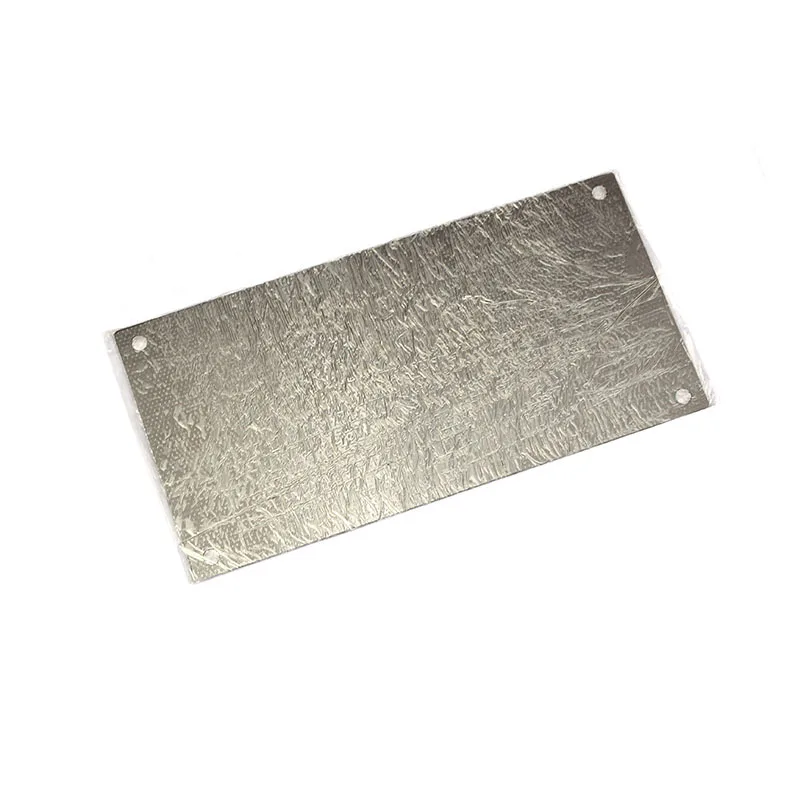

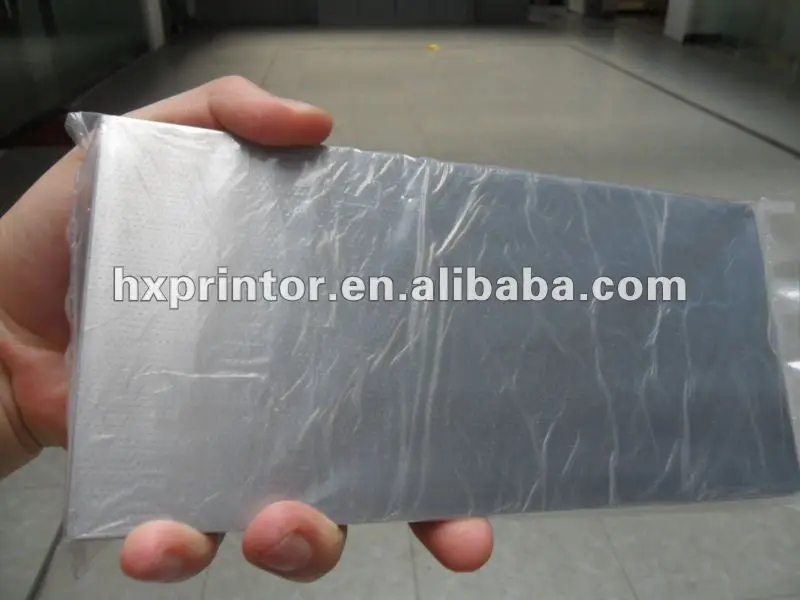

Option for thickness: 0.25/0.3/0.5mm



Low cost and reliable quality



Custom-made size is available



can help customer etching  logo



you can require emulsion or not, and we can drill hole position according to your requirement.



Parameter;

Meterial: Sweden's top steel

Heat treatment surface hardness: HRC64±1
Surface planeness:  closed plate≤500:0.005mm

Surface degree of finish: ≤Ra0.005μm

Scrape:  0.3million times

thickness:0.25/0.3/0.5±0.01mm

Main specification: 3"*3",3'*4', 4"*4",4"*6", 4"*8",4*12",6"6",6"*8", 10"*8"



*10",10"*10"etc
