High quality 50A 600V power voltage battery terminal connector
- Category: Connectors >>>
- Supplier: Shenzhen,Green,Power,Technology,Co.,Ltd.
Share on:
Product Overview
Description

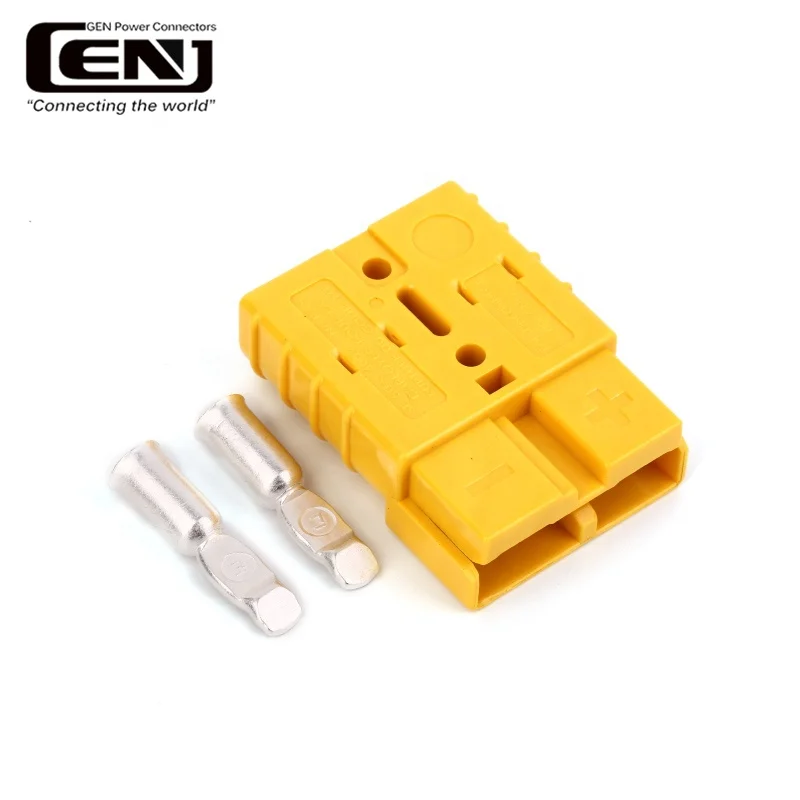

High quality 50A 600V power voltage battery terminal connector
Product Description
| Application | Electric vehicles;Medical equipment;Power supply;Electric equipment; |
| Maximum wire insulation diameter | 0.44inches 11.2mm |
| Insulation withstanding test voltage | 2200v |
| Contact retention force | 50lbf |
| Avg.connection/disconnect | 15ibf |
| Operating temperature range | -20°to105° -4°to221° |
| Flammability rating of housing material | UL94-VO |
Hot Selling
Company Information
Our Advantage
Prouduction Process
FAQ
1. About selecting terminals
The terminals can be selected according to the wire size. Each terminal has different aperture, which is convenient for customers. For example, (50A600V plug terminals have three models, respectively, 5915 terminals can be connected to 10/12AWG wire, 5952 terminals can be connected to 8AWG wire, 5900 terminals can be connected to 6AWG wire. )
2. Plastic shell color selection
(Unipolar) color modular housing, providing intuitive identification of the correct matching connection; (bipolar) the same color can be inserted, while different color can not be inserted for the different interface design. Colored modular housings provides visual identification of proper mating connector. (Only Gray and Black can be matched ).
3.About wire processing(OEM)
According to customer samples, we can provide OEM wire processing
4.Plug working life
No load (terminal insertion and removal times 10000) with load (120V hot swap 250 times)
5.Plug operating temperature range
-20°C105°C If you have special requirements,we can customize according to customer requirements.
