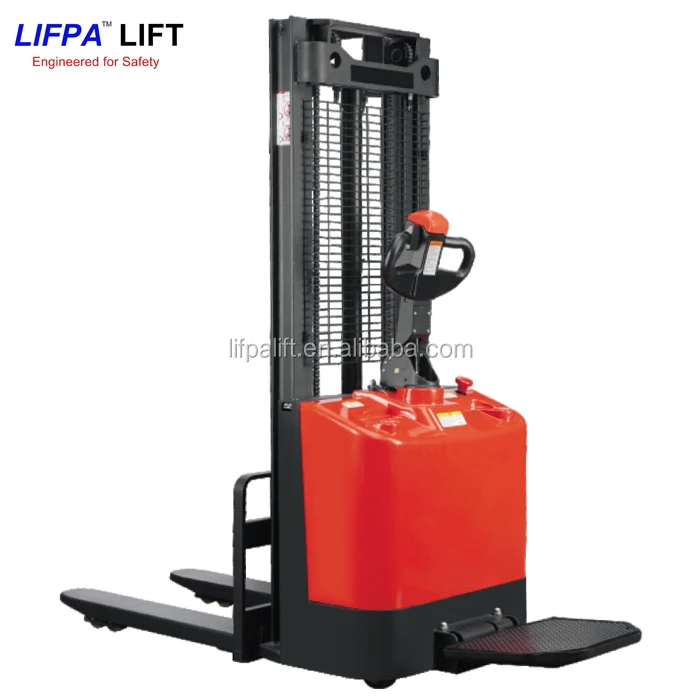

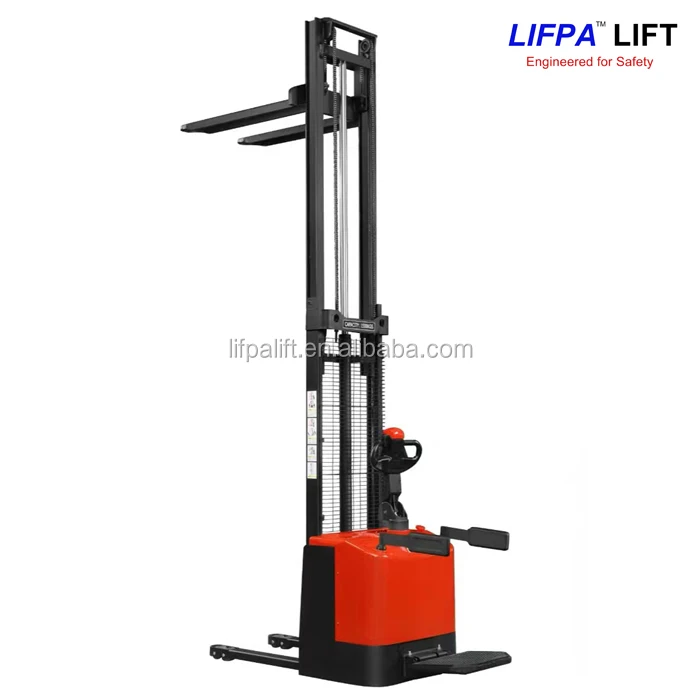

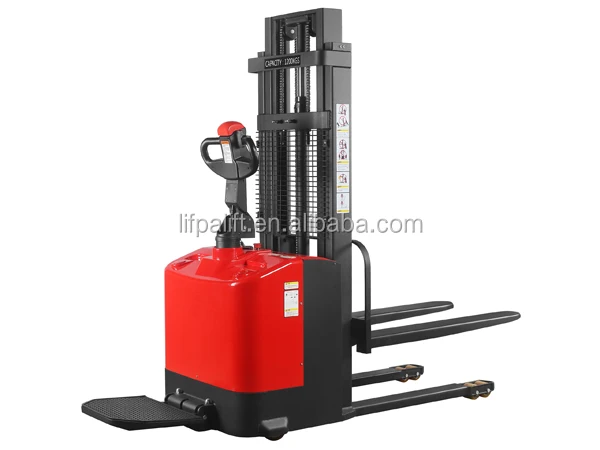

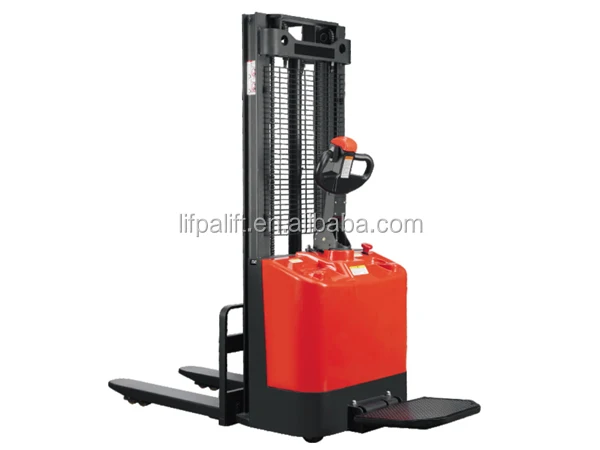

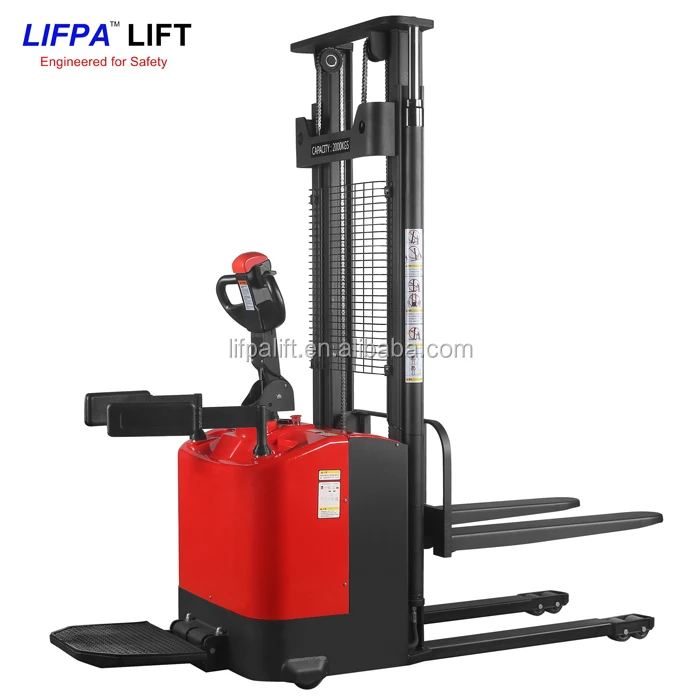

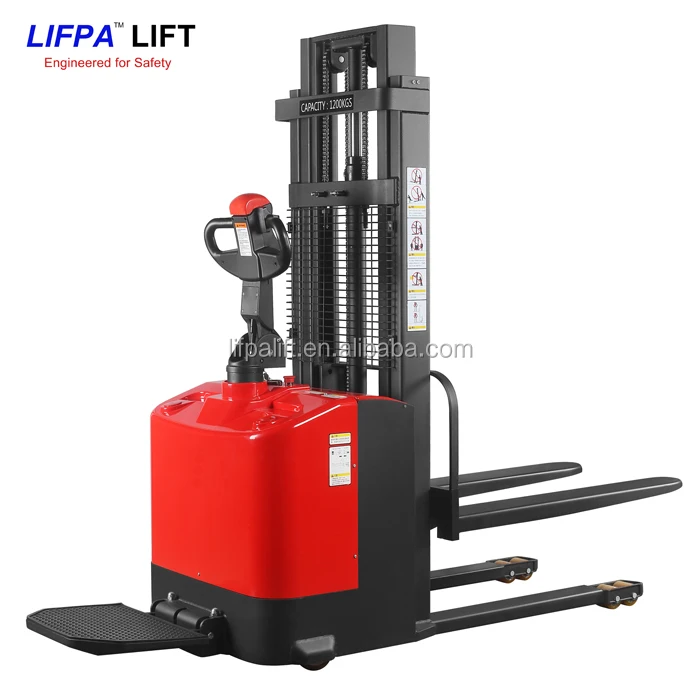

1500kg hydraulic electric forklift price

Product Overview

Description





Real Pictures







Product Highlights

• Multifunctional control handle
• Electric power disconnect push button
• Wide field of vision of the mast design
• Built-in digital battery level gauge
• Key-operated On/Off control for safety and security
• Heavy duty tandem load wheels
• Foldable stand-on platform
• AC 110V-220V / 50-60Hz battery charger available
• Straddle-leg model for double-face pallets available

• Custom size and specs available





Main Parameters

Model		ES-1516-B	ES-1525-B	ES-1530-B
power		electric	electric	electric
operator type		rider	rider	rider
load capacity	kg	1500	1500	1500
load center	mm	500	500	500
lift height	mm	1600	2500	3000
lowered height	mm	90	90	90
fork size - th/w/l	mm	60 / 160 / 1150	60 / 160 / 1150	60 / 160 / 1150
overall fork width	mm	560 / 680	560 / 680	560 / 680
mast collapsed height	mm	2065	1815	2065
mast extended height	mm	2065	3032	3532
overall length - w. / w. o. platform	mm	2275 / 1845	2275 / 1845	2275 / 1845
overall width	mm	800	800	800
ground clearance	mm	30	30	30
turning radius	mm	1280	1280	1280
work aisle width - 800x1200	mm	1975	1975	1975
battery voltage	V/Ah	24 / 80	24 / 80	24 / 80
traction motor	kW	0.75	0.75	0.75
lift motor	kW	2.20	2.20	2.20
travel speed - w./w.o. load	/h	4.0 / 4.2	4.0 / 4.2	4.0 / 4.2
weight - less battery	kg	545	595	620





	Standard fully electric pallet  stacker, load is up to 2000kg.  Model: ES-A
	Advanced pedestrian electric  pallet stacker, lifting height is up  to 5.00mts with Triple mast.  Model: EW-A
	Regular Walkie type stacker  Model: EW-B
	Counter-Balanced Electric Stacker  Model: EC
	Semi Electric Pallet Stacker  Model: EA





CONTACT US FOR MORE DETAILS NOW!
