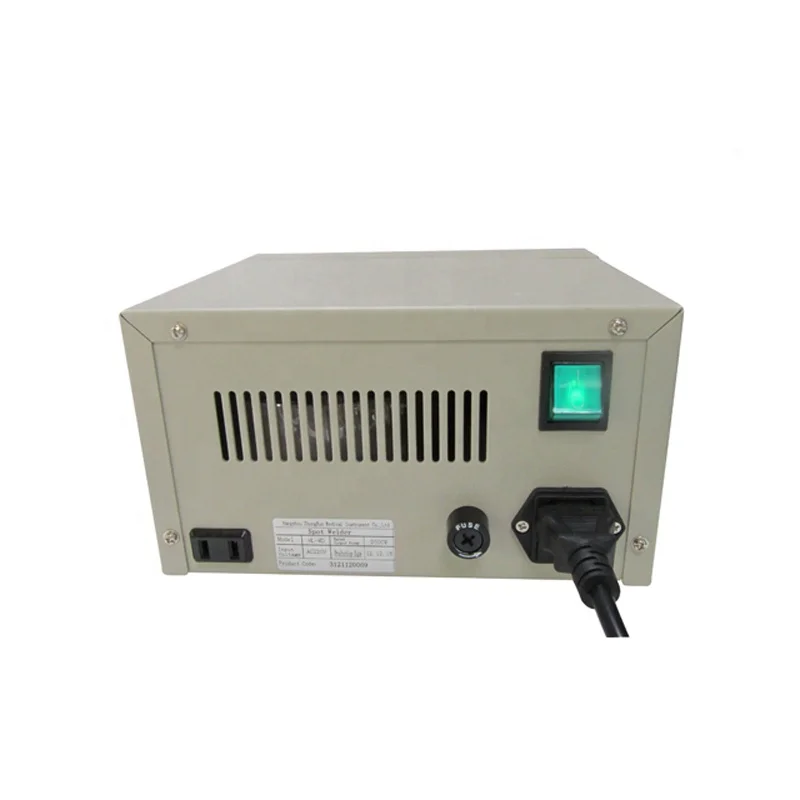

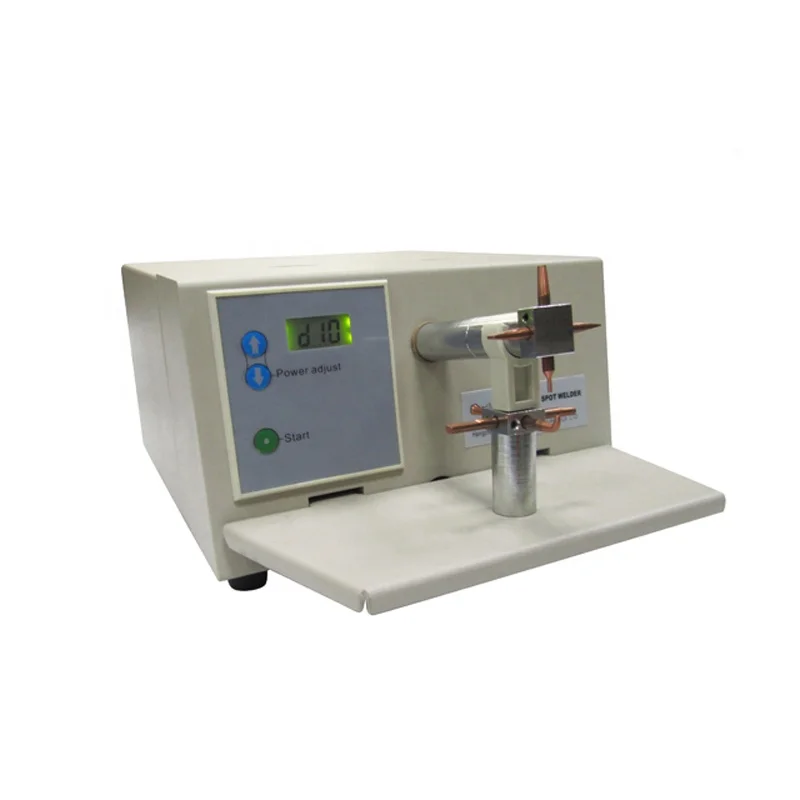

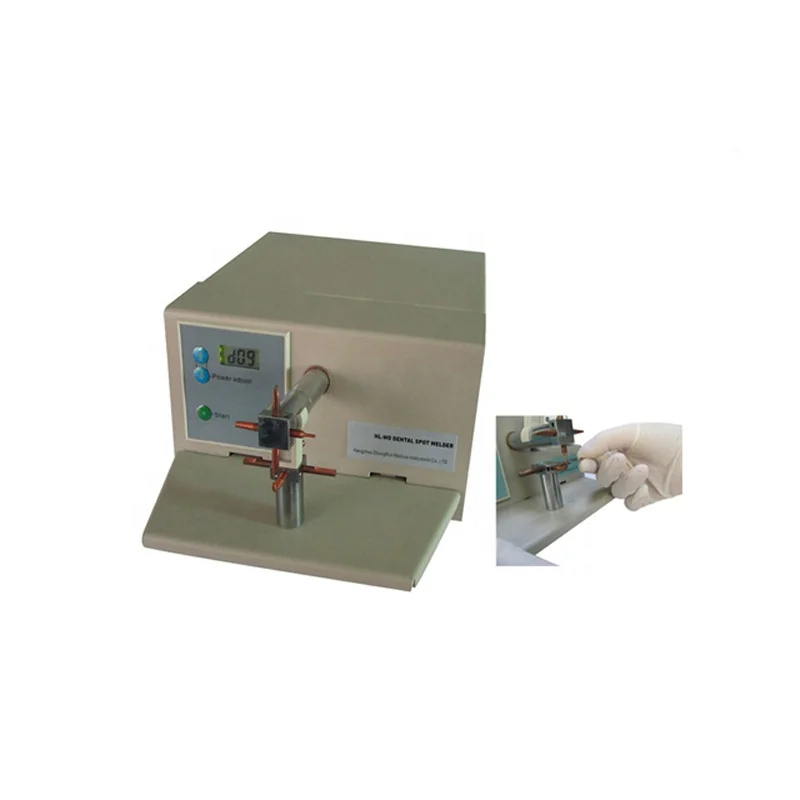

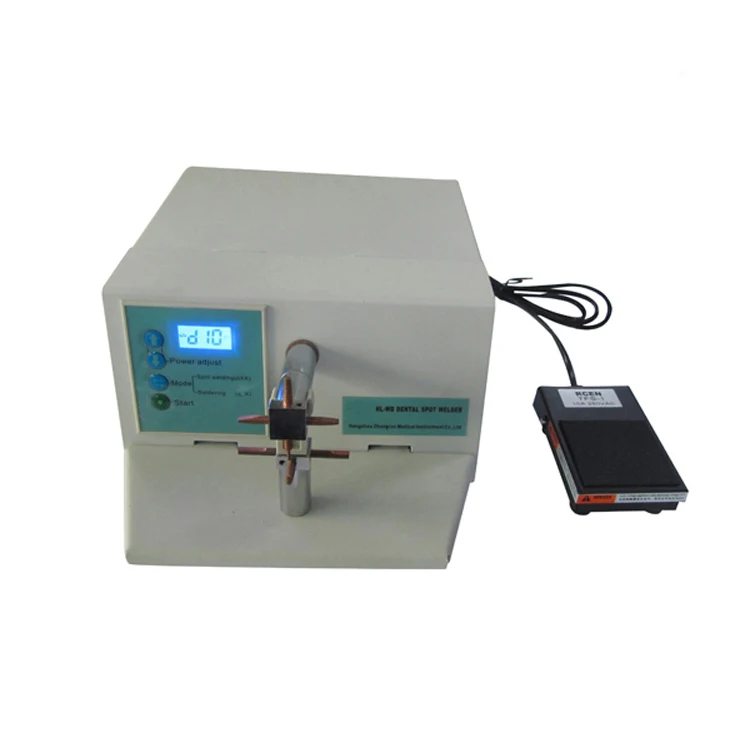

Mini Dental Orthodontics Spot Welder

Product Overview

Description

Technical Parameters

voltage	AC 110V, 60 Hz; AC 220V, 50 Hz
transformer output power	2000W
output voltage	5V
power	instantaneous maximum current 20A
energy adjustment	spot welding 1 ~ 30 files brazing 1 ~ 9 files
safety type	a type I type B



The main technical parameters:

1. Power supply: AC220V, 50Hz, or 110V, 60HZ

2, power: instantaneous maximum current 20A

3, transformer output power: 2000W, output voltage: 5V

4. Erroneous operation alarm: When the working status does not match the setting mode, Err is displayed.

5, safety type: a type I type B

6, transformer over-temperature protection: 85 °C

7, energy adjustment: spot welding 1 ~ 30 files brazing 1 ~ 9 files

8, welding workpiece size: Φ0.2mm ~ Φ1.8mm stainless steel wire

9, fuse: Φ5×20mm, 20A





the main features of this machine:

1. Using microprocessor control system, reliable quality and high control accuracy.

2. Use the digital tube to display the working status and power parameters, and adjust the parameters through the membrane keys, which is convenient and concise.

3. The safety performance is good, and it has various functions such as overheat protection, improper display and alarm.

4. With the function of welding parameter memory, the status of the parameter value at the time of the last shutdown is automatically set when the power is turned on, so that the parameter is not adjusted in the same situation.

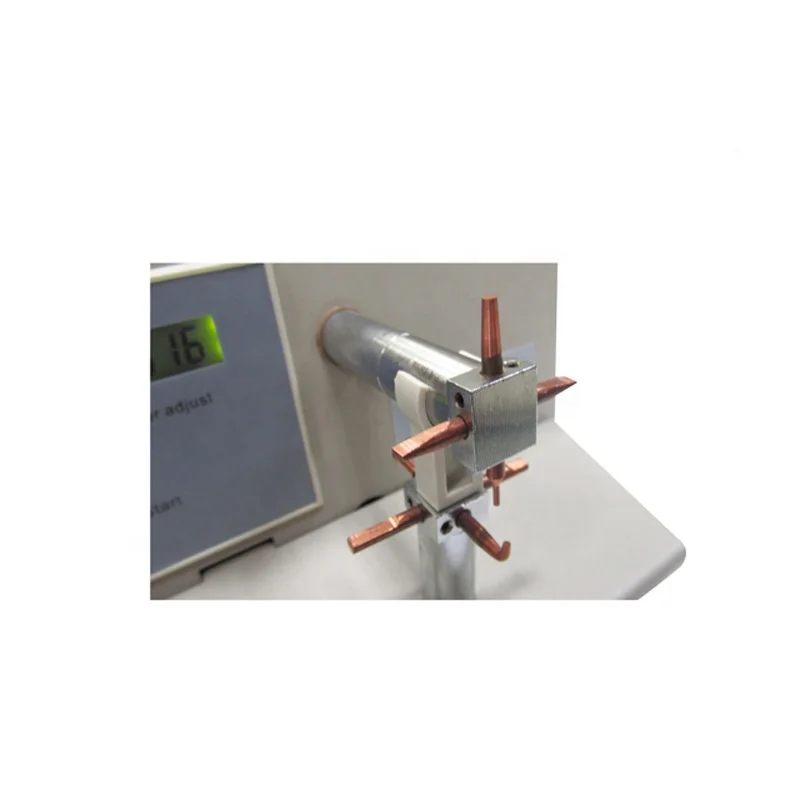

5. There are many combinations of welding electrodes, which can be freely adjusted to adapt to different weldments.



A variety of types to meet the needs of different customers; making the dentist easy to use, easy to operate

Our spot welder can not only use in dental market, but also can use in the Jewelry industry



The product agrees to EN ISO13485:2003+AC 2009 standard,which is approved by the system authentication of TÜV Rheinland LTD, and also gained the CE certificate.
