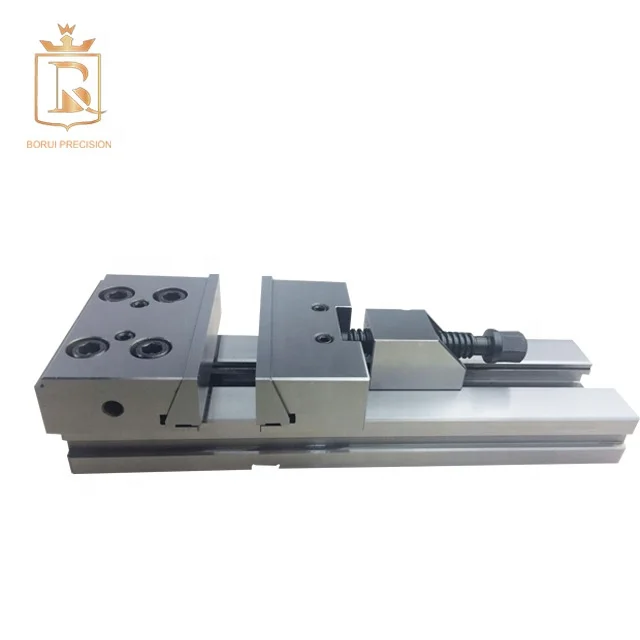

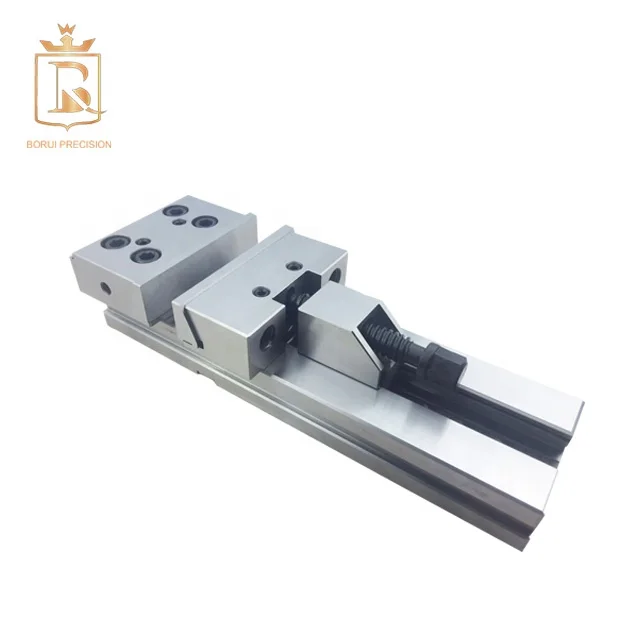

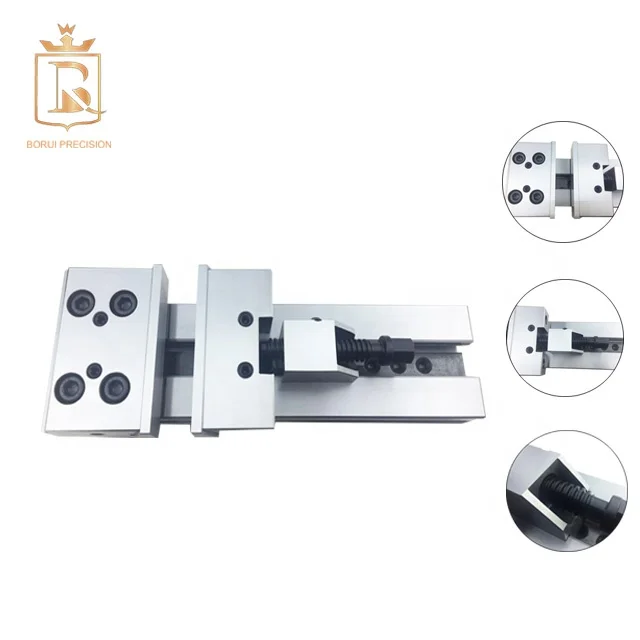

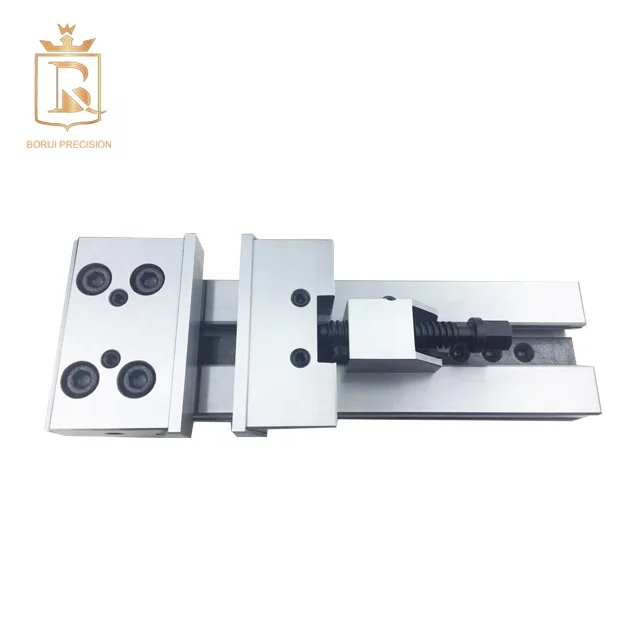

  • GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ
GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ

GT100 прецизионная модульная тиска 100 мм для фрезерного станка с ЧПУ

Share on (60835480326):


Price:195,00 $ - 235,00 $

Quantity:


Product Overview

Description


Product Parameter
\t
 Model Number
\t
B( In mm)
\t
H( In mm)
\t
Smax( In mm)
\t
L( In mm)
\t
Max Clamping Force
\t
GT100-I
\t
100
\t
30
\t
100
\t
270
\t
3000
\t
GT125-I
\t
125
\t
40
\t
150
\t
345
\t
3000
\t
GT150A-I
\t
150
\t
50
\t
200
\t
420
\t
5000
\t
GT150B-I
\t
150
\t
50
\t
300
\t
520
\t
5000
\t
GT150C-I
\t
150
\t
50
\t
400
\t
620
\t
5000
\t
GT175A-I
\t
175
\t
60
\t
200
\t
455
\t
6000
\t
GT175B-I
\t
175
\t
60
\t
300
\t
555
\t
6000
\t
GT175C-I
\t
175
\t
60
\t
400
\t
655
\t
6000
\t
GT175D-I
\t
175
\t
60
\t
500
\t
755
\t
6000
\t
GT175E-I
\t
175
\t
60
\t
600
\t
855
\t
6000
\t
GT200A-I
\t
200
\t
65
\t
200
\t
495
\t
10000
\t
GT200B-I
\t
200
\t
65
\t
300
\t
595
\t
10000
\t
GT200C-I
\t
200
\t
65
\t
400
\t
695
\t
10000
\t
GT200D-I
\t
200
\t
65
\t
500
\t
795
\t
10000
\t
GT200E-I
\t
200
\t
65
\t
600
\t
895
\t
10000
\t
GT300A-I
\t
300
\t
800
\t
200
\t
535
\t
12000
\t
GT300B-I
\t
300
\t
800
\t
300
\t
635
\t
12000
\t
GT300C-I
\t
300
\t
800
\t
400
\t
735
\t
12000
\t
GT300D-I
\t
300
\t
800
\t
500
\t
835
\t
12000
\t
GT300E-I
\t
300
\t
800
\t
600
\t
935
\t
12000
\t
GT300F-I
\t
300
\t
800
\t
700
\t
1035
\t
12000
\t
GT300G-I
\t
300
\t
800
\t
800
\t
1135
\t
12000

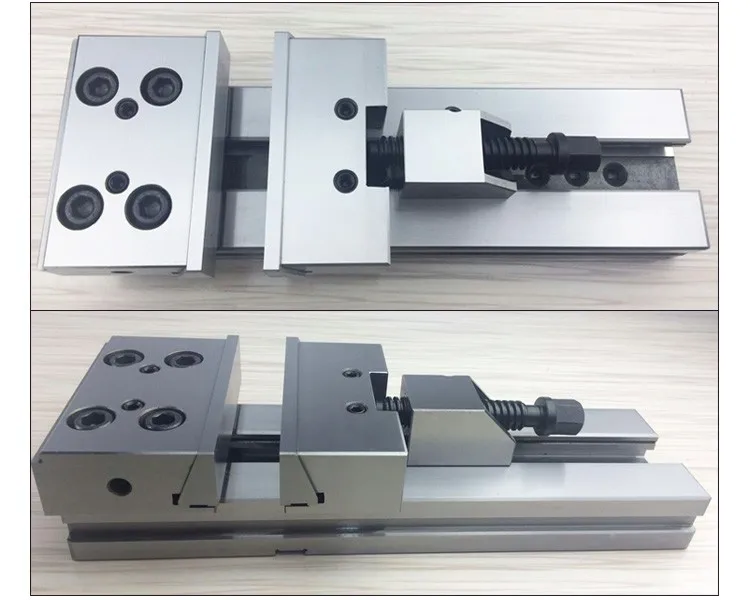

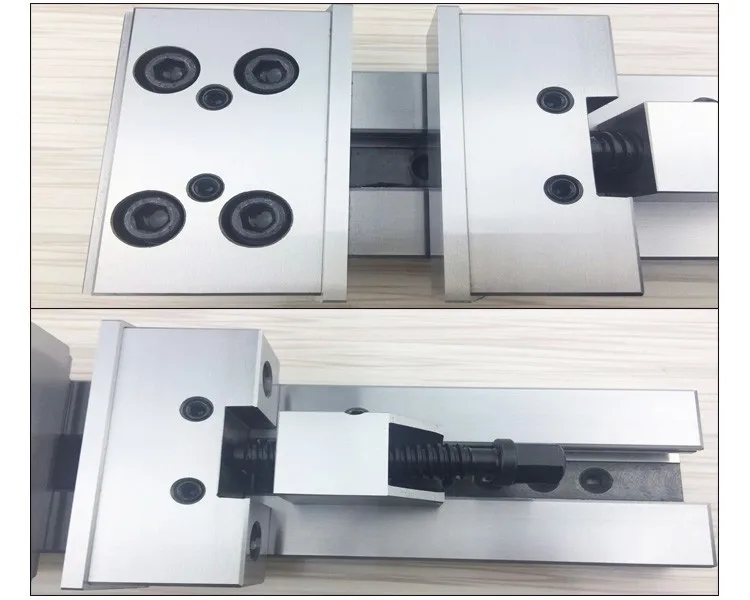

Real Shooting

GT Series Precision Modular Vises are designed to be used on standard and CNC machines for precision grinding and milling. The vises could be set up individually or work in multiples, on tables or palletised components depending on the machined material dimensions.
* Made from hardened high grade alloy steel 20CrMnTi.

* The hardness of working surface is HRC58-62
*Application : Mainly for cnc machine center

Characters:

* Perpendicular accuracy: 0.005mm/100mm.

   Parallelism: 0.005mm/100mm.

* Fine ground to a mirror finish.

* Quickly to clamp and easy to operate, simple dismantle the screw bar when worn

* Fixed Jaw, Moveable Jaw and Screw Block have Tapped Hole

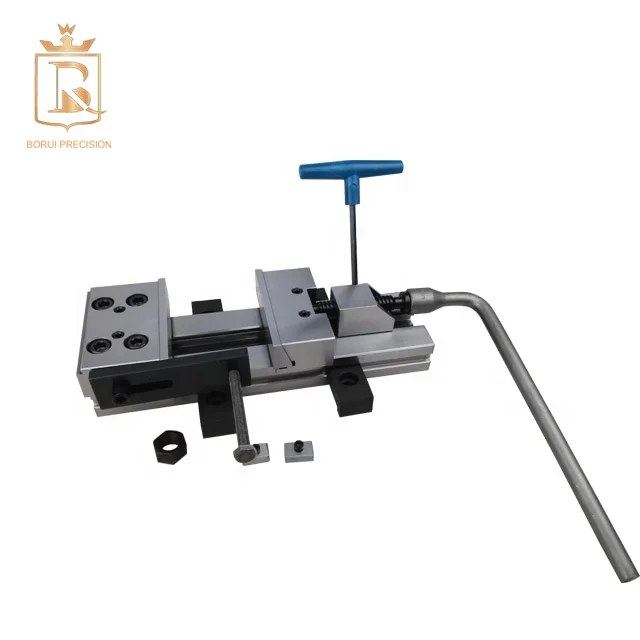

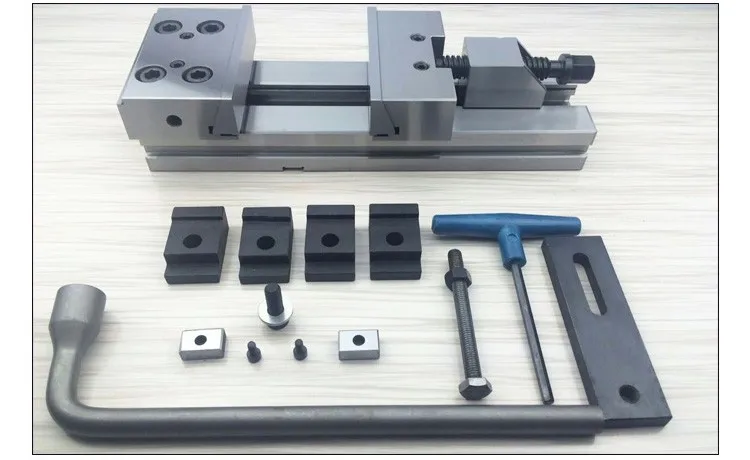

Accessories:
*L-wrench, T-wrench, vise holding clamp, work stop with main bolt, positioning key-nuts etc.

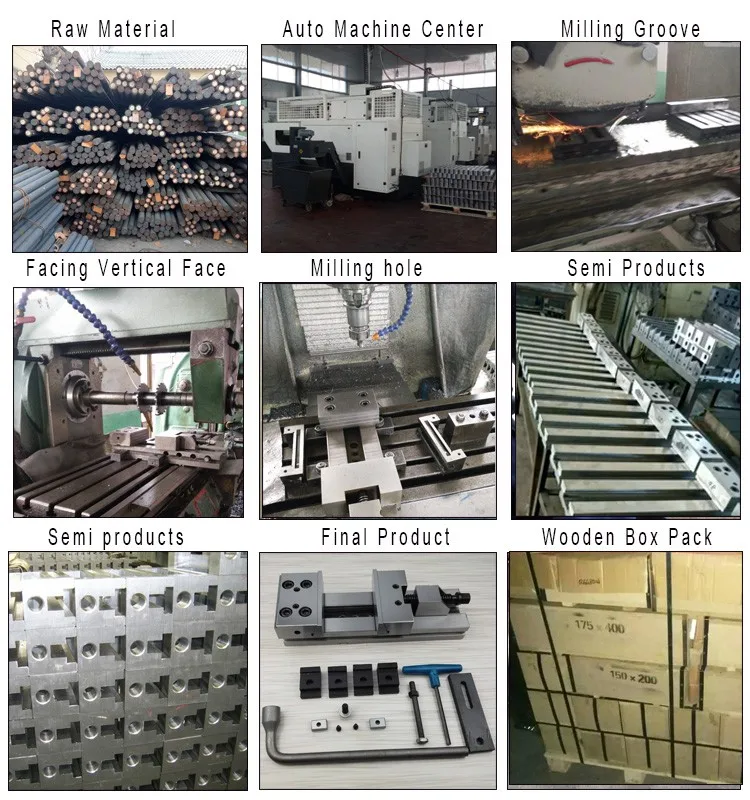

About Production

We've been producing cnc precision vise for 10 years. Our technic is quite advanced to produce high end vises . Our vise take much share of our sales. We have exported vises to many countries in the world such USA, Italy ,Germany, Middle East..etc. No matter you resell or use by yourself, our vise will satisfy you very much in quality and price. Welcome to give me inquiry.

Vise Series

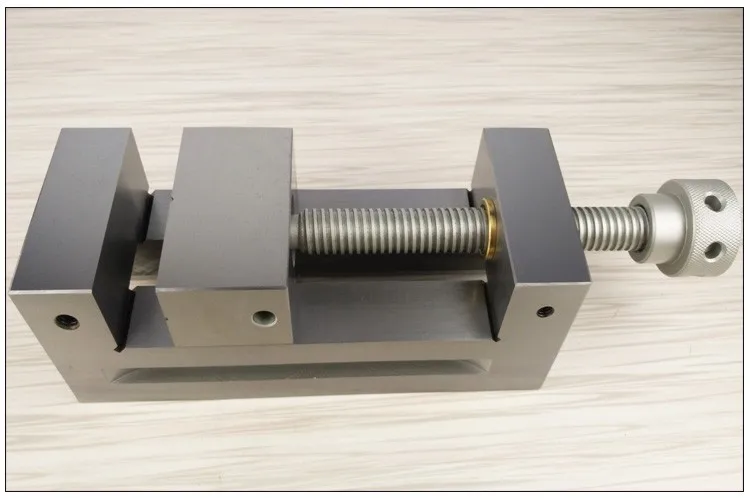

Precision QGG Vise

*Material: high quality alloy steel 20CrMnTi

*Hardness: HRC58-62

*Precision:0.005mm/100mm

*Used for precision measurement and inspection,precision grinding,EDM and wire-cutting machine

*Guarantee high accuracy in any position


PS: Welcome to click below pic to check its more details

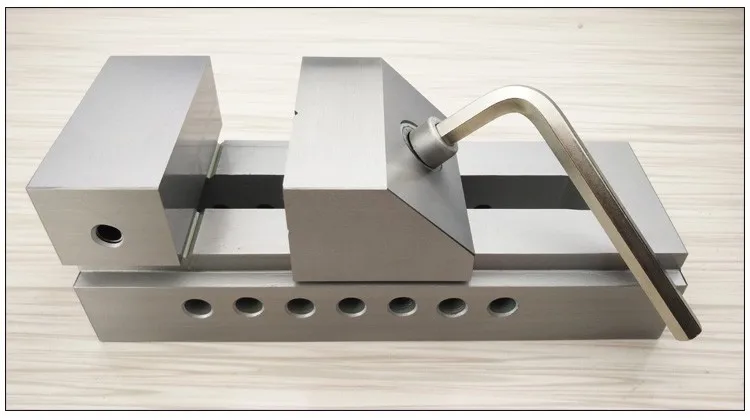

Precision QKG Vise

*Material: high quality alloy steel 20CrMnTi
*Hardness: HRC58-62
*Precision:0.005mm/100mm
*Used for precision measurement and inspection,precision grinding,EDM and wire-cutting machine
*Guarantee high accuracy in any position


PS: Welcome to click below pic to check its more details

At exhibition
Contact me

Amy Ma (Sales Manager)

Dezhou Borui Precision Co.,ltd

Add: Dezhou City ,Shandong Province, China


Tel/whatsapp:0086 18153403517

Skype: bigring66

QQ:573268586
