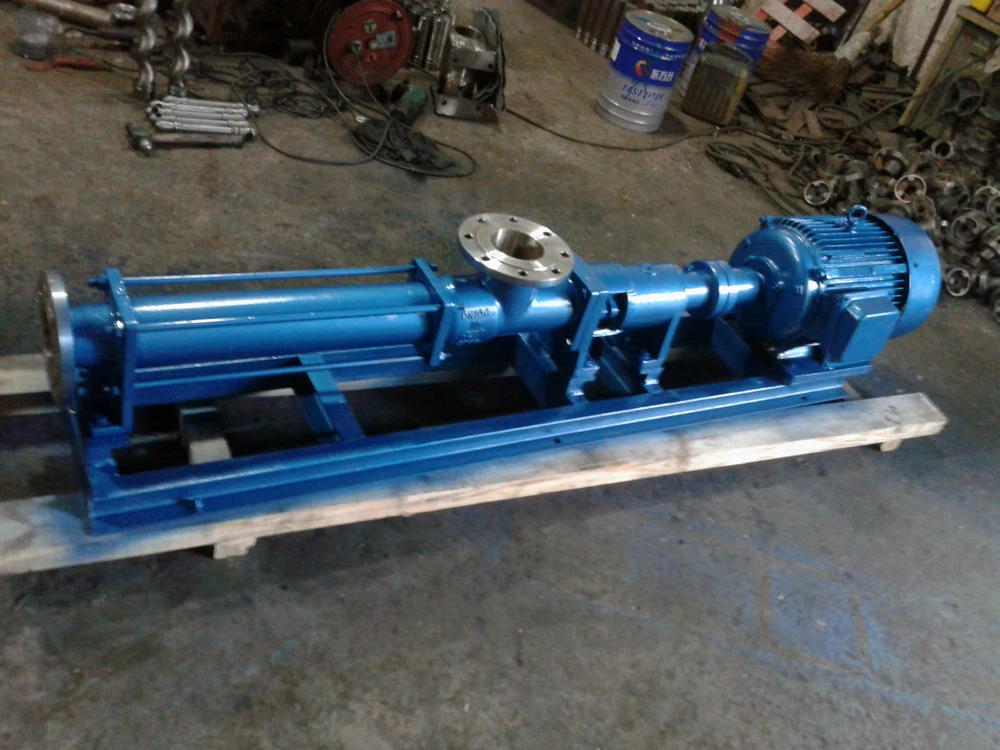

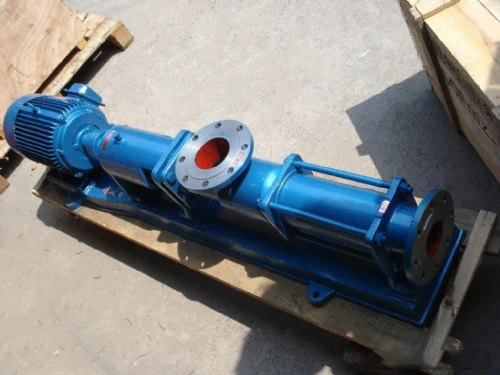

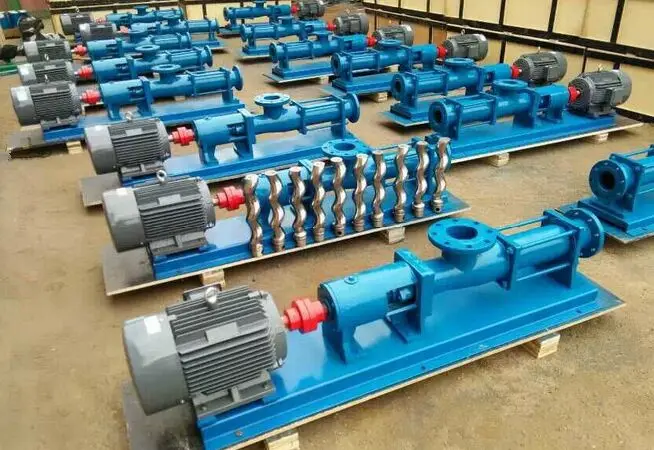

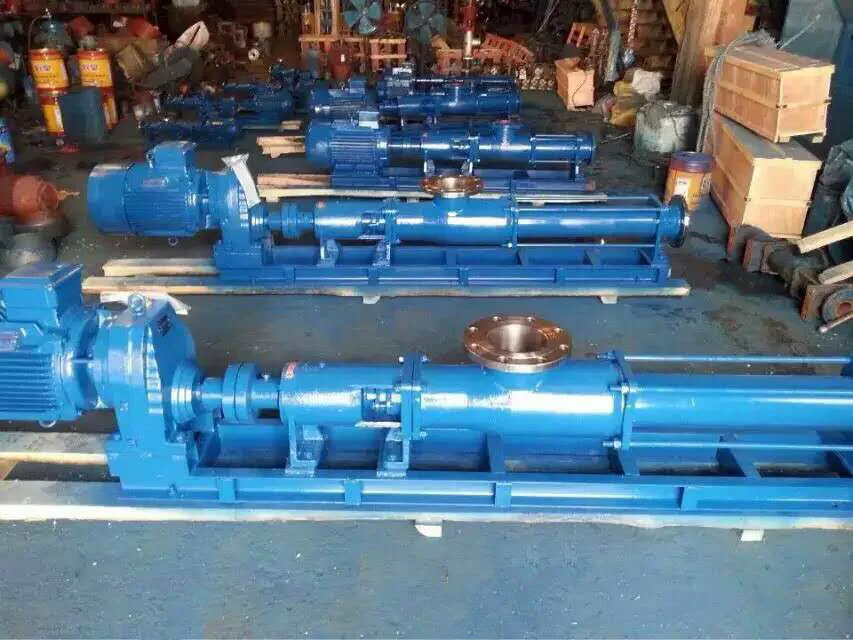

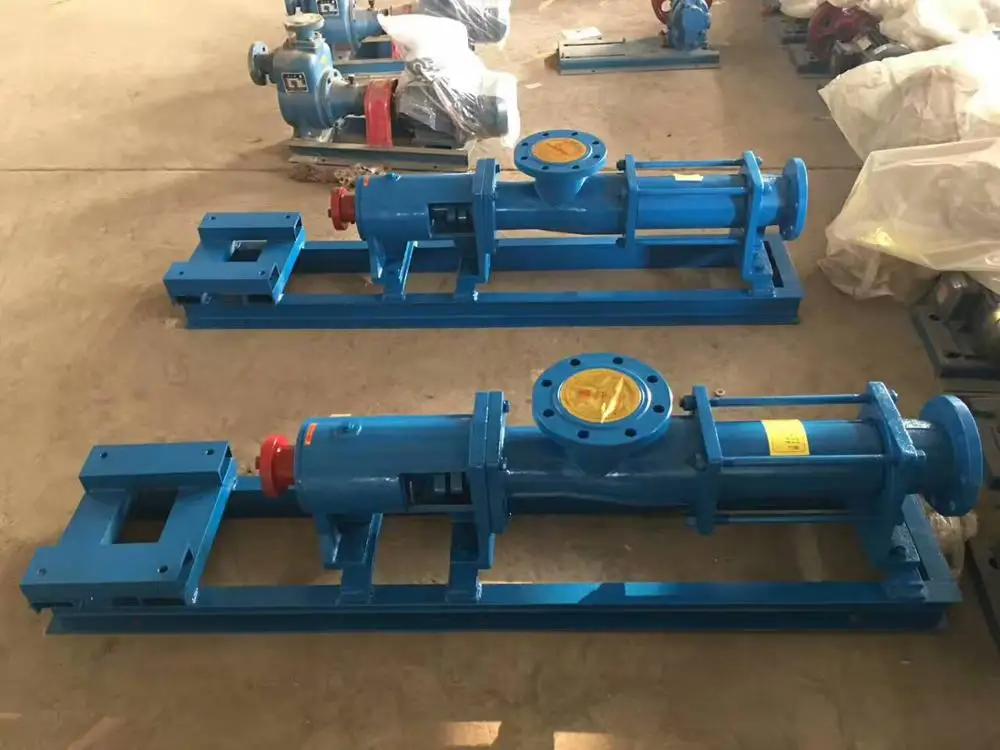

G моно насос с одним винтом, тяжелый шламовый насос с прогрессивной полостью

Introduction

G mono/single screw pump/ progressive cavity pump for slurry and oil belongs to the rotor type positive displacement pump, it is depend on the screw meshing with liner on the discharge and suction cavity to conveying liquid volume change.It is a kind of method of pressurized screw pump, a main working parts by bushing has a double helix cavity (stator) and the stator cavity and its meshing single-head screw screw (rotor).When the input shaft through the universal joint drive making planets revolving around the center of the stator, rotor stator, rotor, vice is continuous mesh form sealed cavity, the seal chamber volume invariably uniform axial movement, the medium from the suction end of deputy to the stator, rotor pressure side, the suction medium sealed cavity through the stator without stirring and destruction.

Advantage

1. slight wear and long life;

2. small vibration and low noise;

3. high pressure and efficiency;

4. simple structure,easy disassemble and assembly;

5. small volume and light weight;

Performance scope:

1.Capacity:0.8-150m3/h ;

2.Head:60-120m ;

3.Motor power:0.75-90kw ;

4.Temperature: -20-80degree;

5.Speed:50-960rpm ;

Application

1. Petro-industry;

2. Chemical  industry and Pharmacy;

3. Environment industry;

4. Mineral products engineering industry;

5. Food industry;

6. Papermaking industry;

Structure

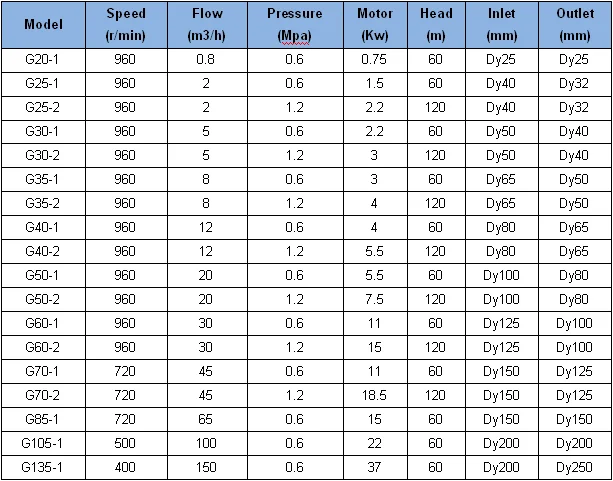

Data sheet(part of parameters)

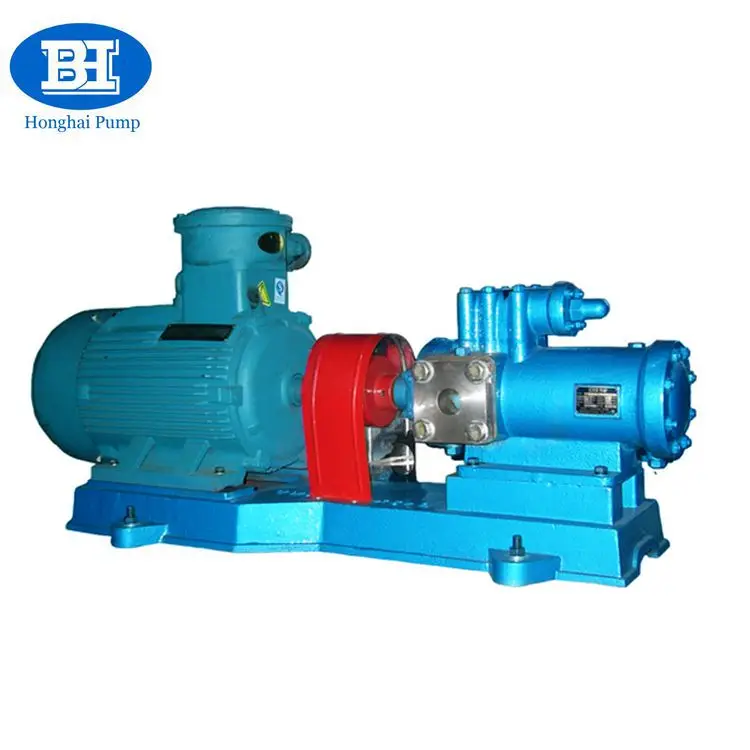

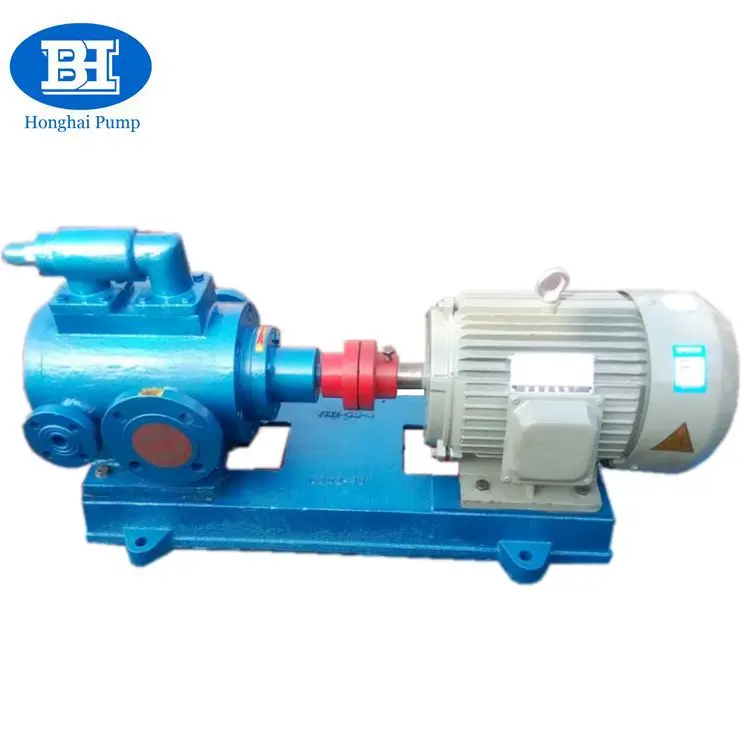

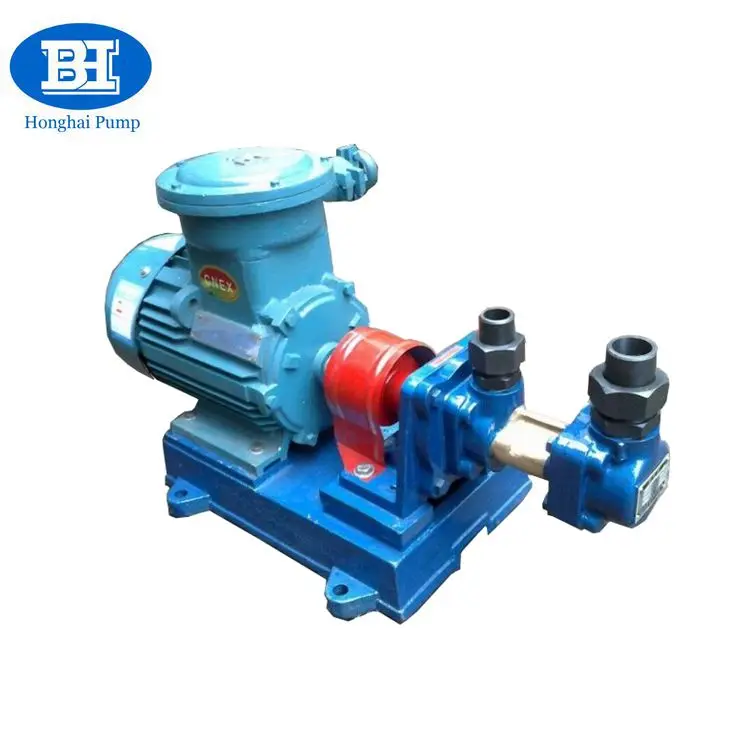

Other screw pumps
