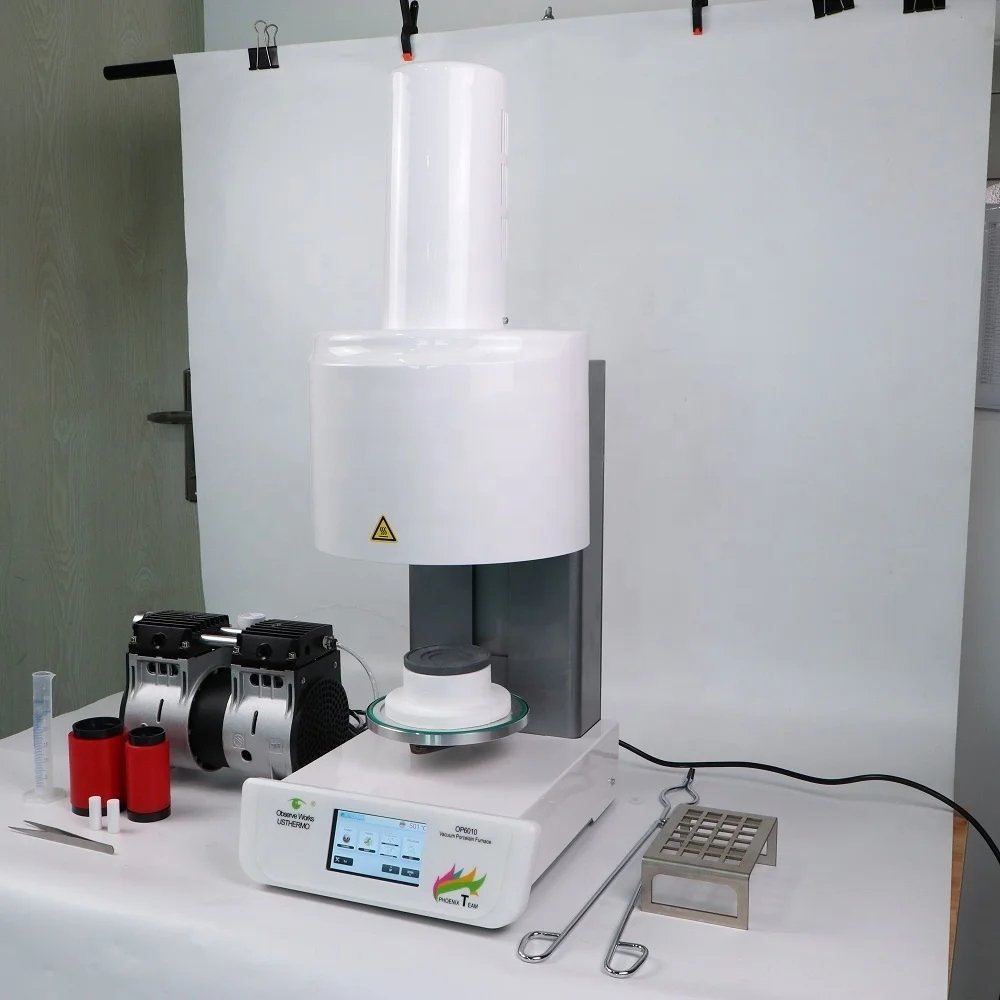

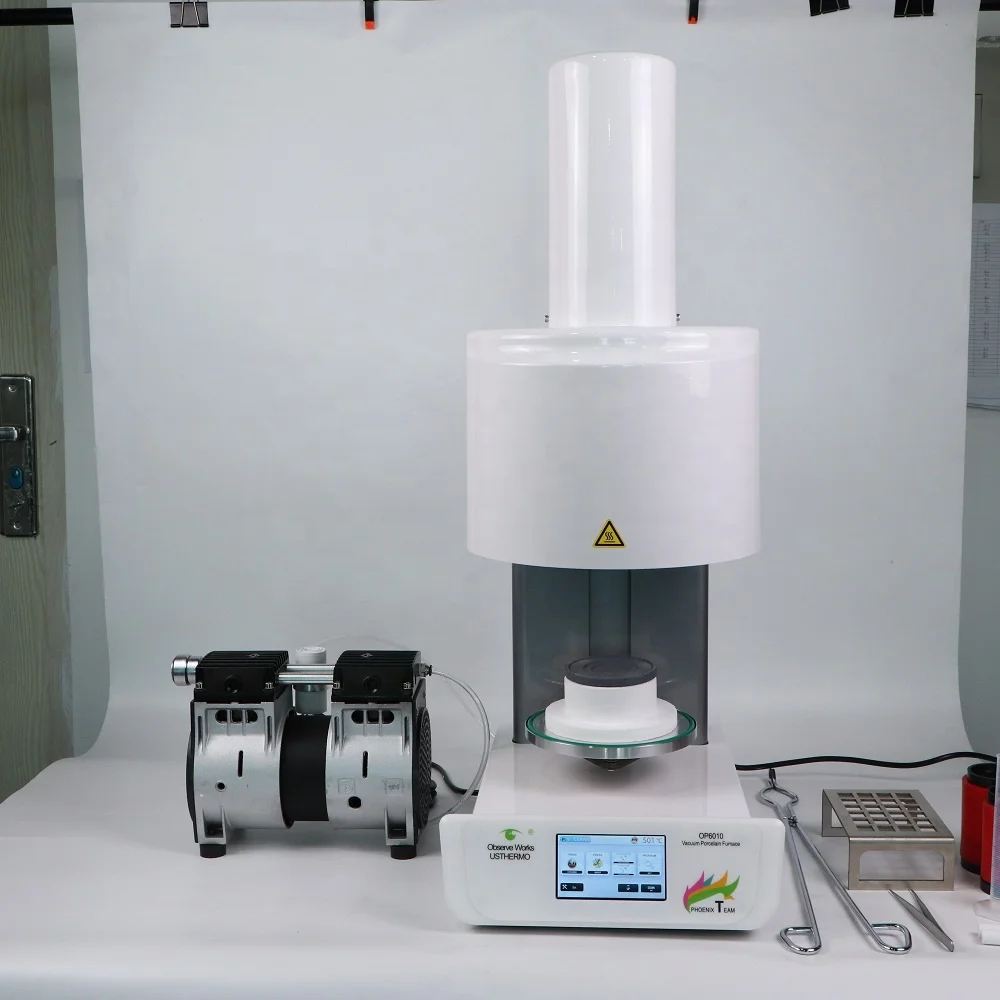

Fully Automatic Dental Press Furnace for Ingots to make veneer Ingots Press Oven

Fully Automatic Dental Press Furnace for Ingots

It can be work as Porcelain Furnace and Press Furnace.

Dental Press Furnace
The dental press furnace is a premium combination furnace of the latest generation of the Programat series.
This highly innovative, efficient and user-friendly furnace model optimally combines sophisticated design and advanced technology.

High quality of the function of temperature adjustment automatically, ensure the actually temperature error within +/-1.
Easy to operate,compact size,the smallest size in the world at present.
Precision stepper motor drive, the smooth and jitter-free functioning, noise-free,Speed programmable.
Spiral quartz chamber of furnace
Temperature adjustment automatically before every firing procedure.

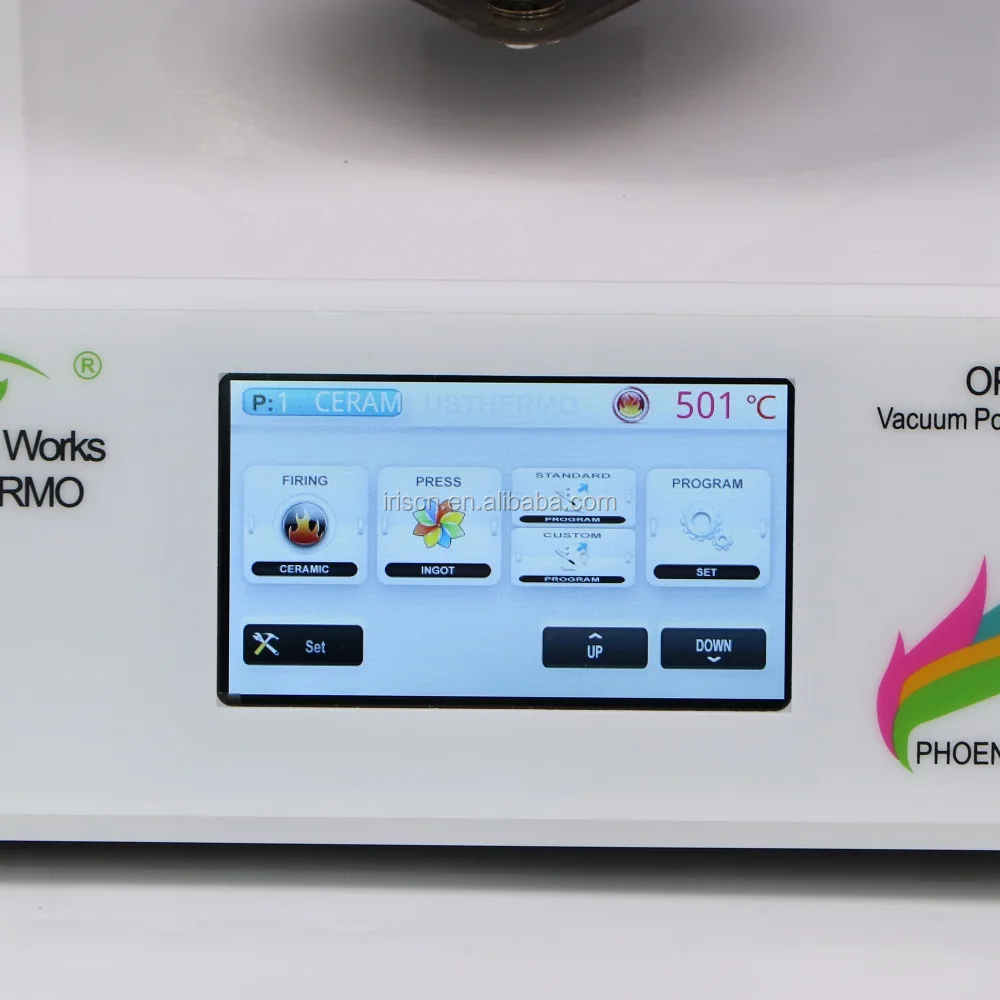

True color touch screen, the operation is simple and convenient.
USB port can easily connect to the computer service program.
Built in 99 program.
Optical status display.

OPERATION:
The velocity of temperature increasing: 200℃/min max. (392°F /minute)
The max temperature: : 1200℃ max (2283°F)
The time which can be kept at the max temperature: 2 H
Vacuum level:1-101%
ELECTRIC POWER:
Operation range:100-120V 50/60HZ 230V 50/60HZ
Electric current:14.5ampere@110V 7.0ampere@230V
Power:max 1500w
- 4 -
TYPICAL SPECIFICATION:
WXDXH :width 27cm Depth 36cm Height 70cm
Usable measure (firing chamber)::9cm(3.5")
Net weight:23Kg
Weight include the package:26.5Kg

Indoor use
Ambient temperature: 2°C to 40°C
Relative humidity 80% at 31°C
Maximum altitude: 1500 m (Special Model:3500m)
Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage
