Brand new industrial fiber oem ethernet switch with great 12/24/48 ports fiber switch

Product Overview

Description



Brand new industrial fiber oem ethernet switch with great price



Overview

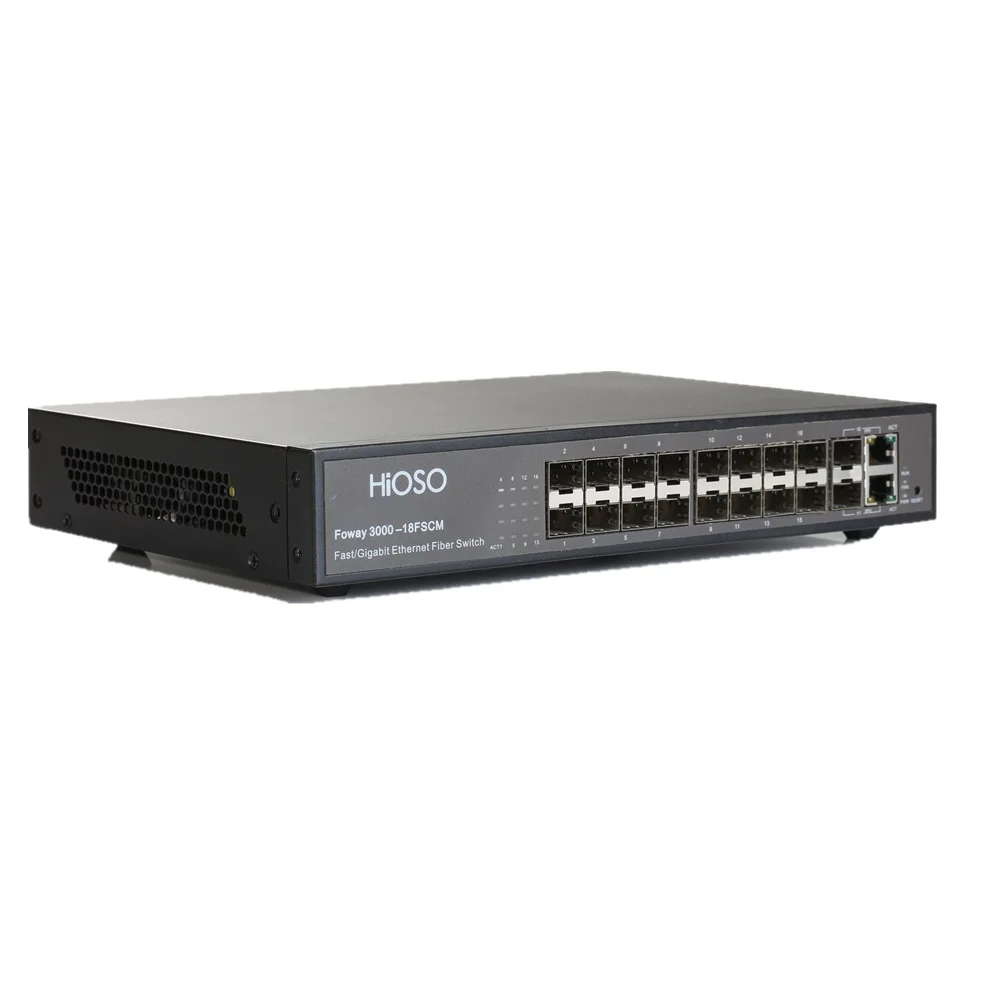

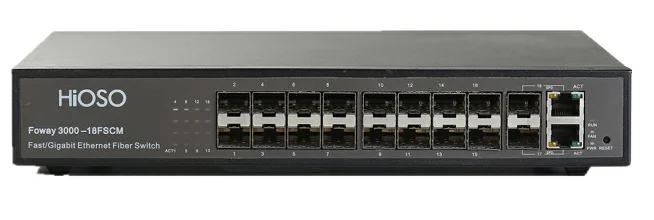

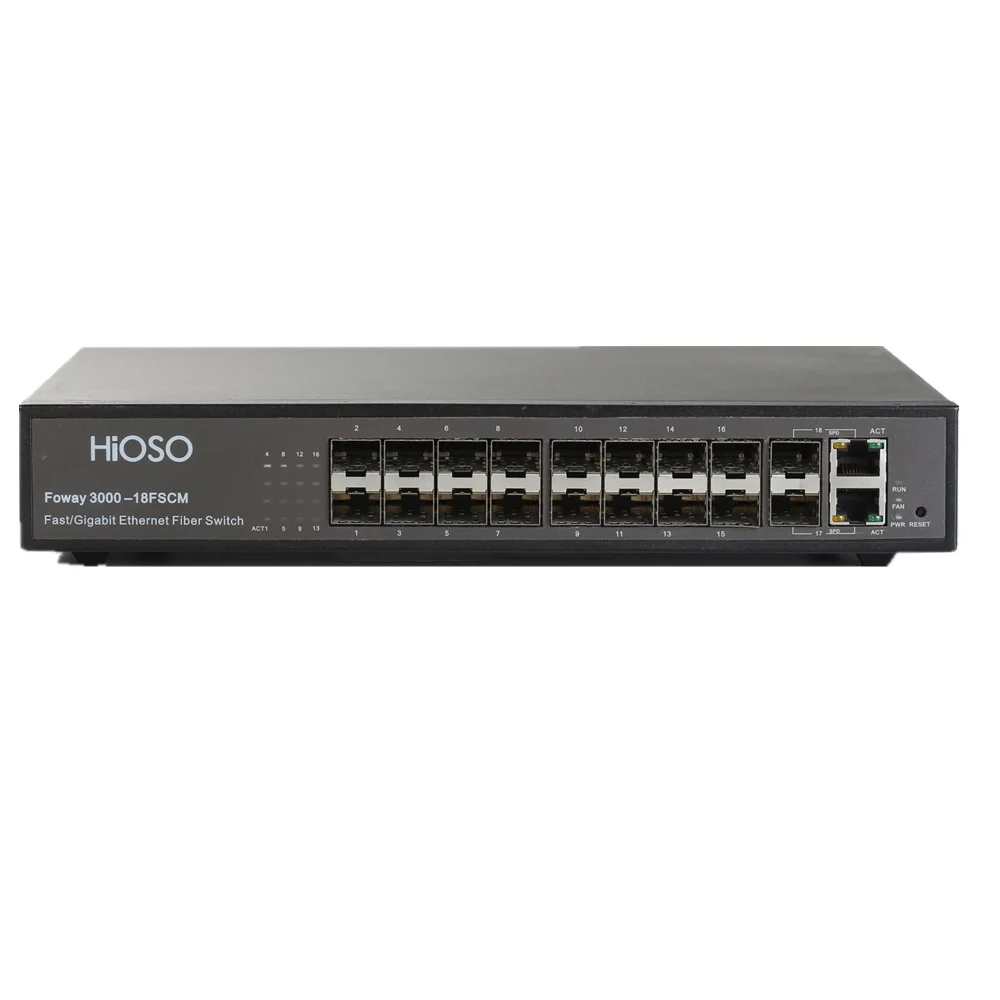

HiOSO FOWAY3000-18FSCM is a 18 ports 100M and1000M hybrid all optic fiber switch. It offers 16 100M SFP fiber ports access and 2 Gigabit Combo port (100/1000M SFP port or 10/100/1000M adaptive RJ45 Ethernet optional) uplink.



FOWAY3000-18FSCM supports SFP modules hot plug, and supports to work with fiber switches, fiber converters and other devices witch fiber ports. It supports WEB management; applies to security system, electric system, traffic system requirements.





Character

l  Support maximum 16 SFP fiber ports and 2 GE Combo port (SFP fiber port/RJ45 port interchange)

l  Support SFP hot plug

l  Support each port full rate, full-duplex non-blocking forwarding

l  Support 8K MAC learning, 2Mbit storage and forward cache space, 7.2G back plane bandwidth

l  Supports to substitute central fiber converter, simplify network structure, lower network establishing cost,       reduce device fault

l  All optic ports, strengthen the an-interference ability

l  Metal casing design, better for heat dissipation, supports 1U rack installation





Technical Specification



Parameter	Specification
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, , IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit Ethernet, , IEEE802.1d Spanning Tree, IEEE802.1w Rapid Spanning Tree, IEEE802.1s Multiple Spanning Tree, IEEE802.1q VLAN, IEEE802.1p QoS
Wavelength	SFP module: 850nm/1310nm/1550nm
Distance	100M SFP   multi-mode: 2Km             Single-mode: 20/40/60/80/100/120Km Single-fiber single-mode: 25/40/60/80/100/120Km 1000M SFP  multi-mode:220mfiber 62.5/125μm)/ 550m(fiber 50/125μm)              Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km Cat5:100m
Port	16 100M SFP fiber ports: 100Mbps 2 Gigabit Combo ports:1 Gbps, 100/1000M SFP&10/100/1000M RJ45
MAC	8K
Buffer memory space	2Mbit
Bit error rate	<1/1000000000
MTBF	100000 hours
Power	AC100~240V 50/60HZ
Power consumption	20W
Working temperature	-10~60℃
Storage temperature	-40~80℃
Humidity	5%~90% non-condensing
Dimension	44mm (H)×277mm(W)×190mm (D)

















































































Order  Information

Type	Management	Ports
FOWAY3000-18FSC	NO	16 100M SFP ports +2 Gigabit Combo uplink ports
FOWAY3000-18FSCM	YES	16 100M SFP ports + 2 Gigabit Combo uplink ports

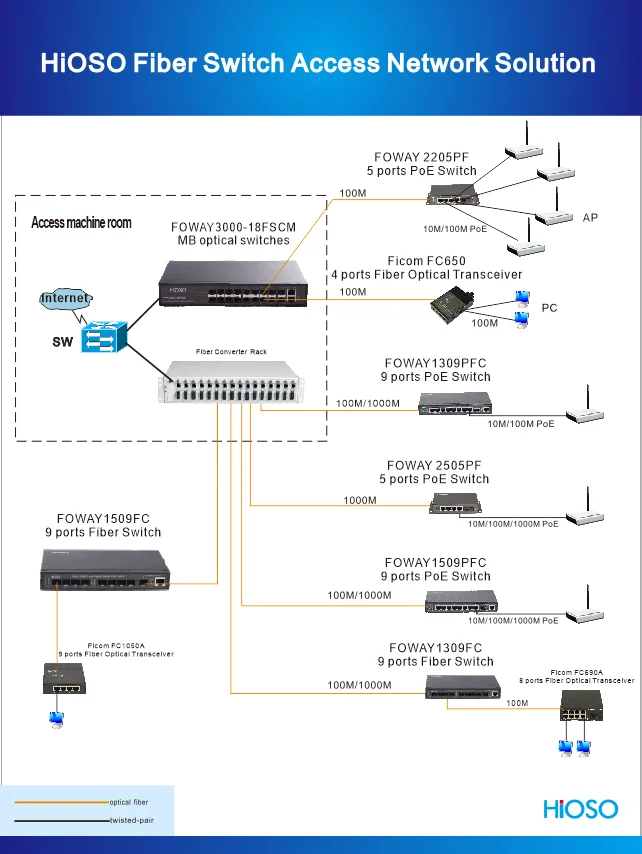

Solutions
