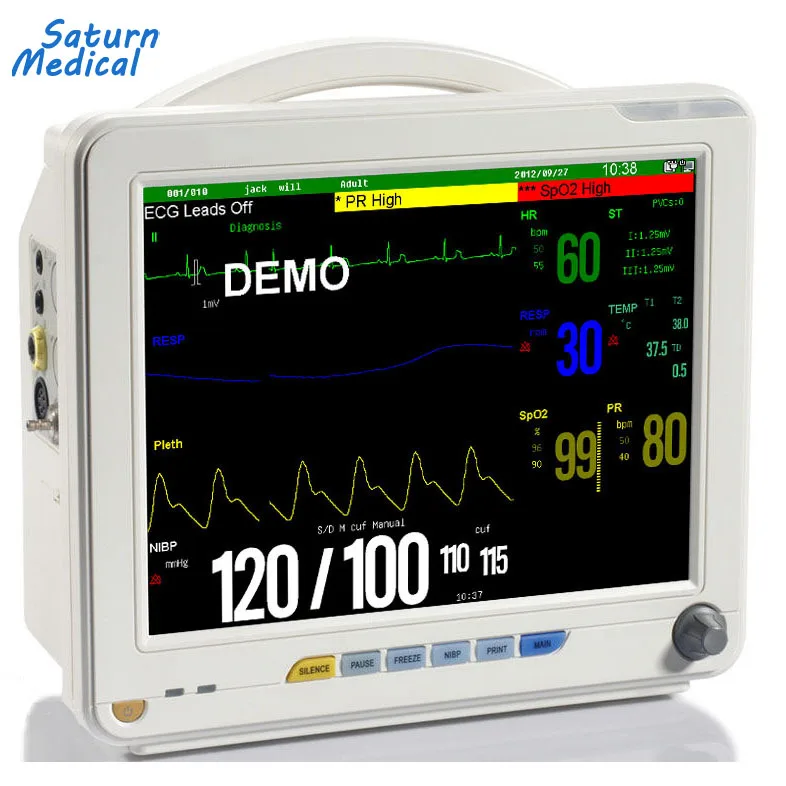

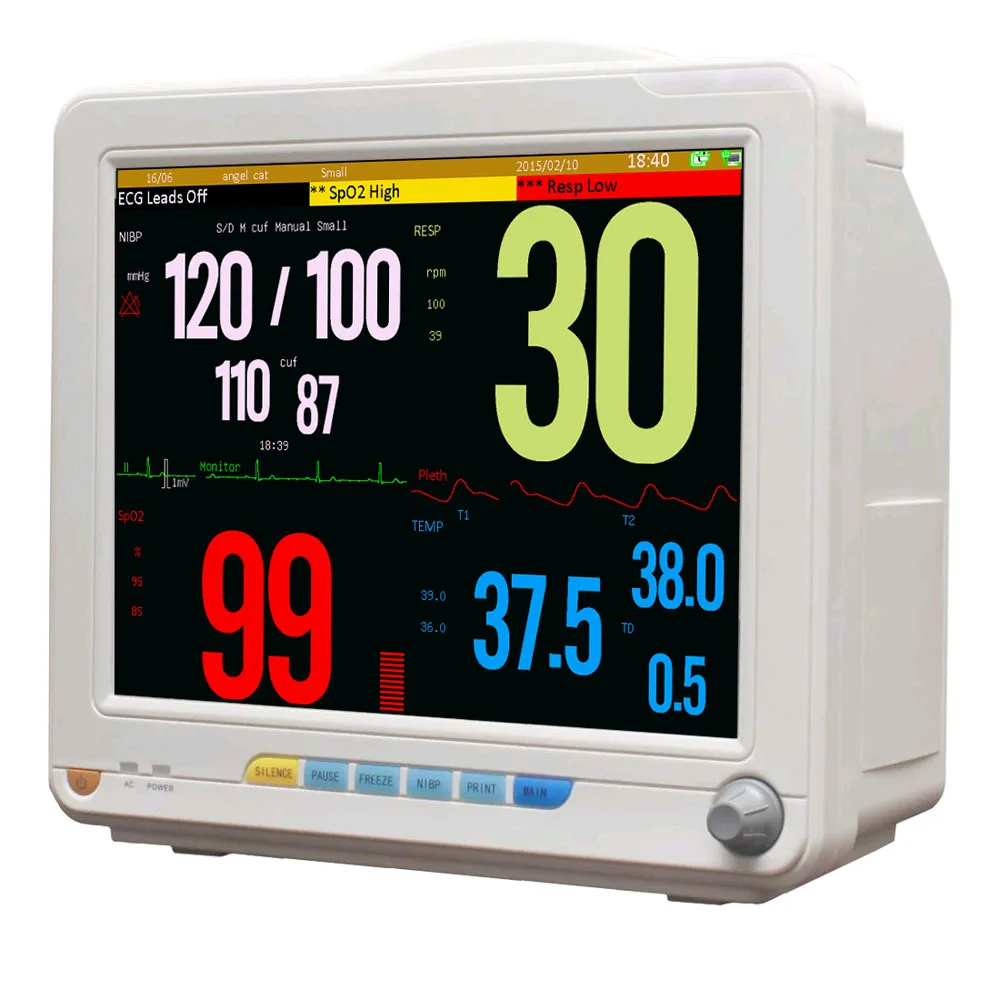

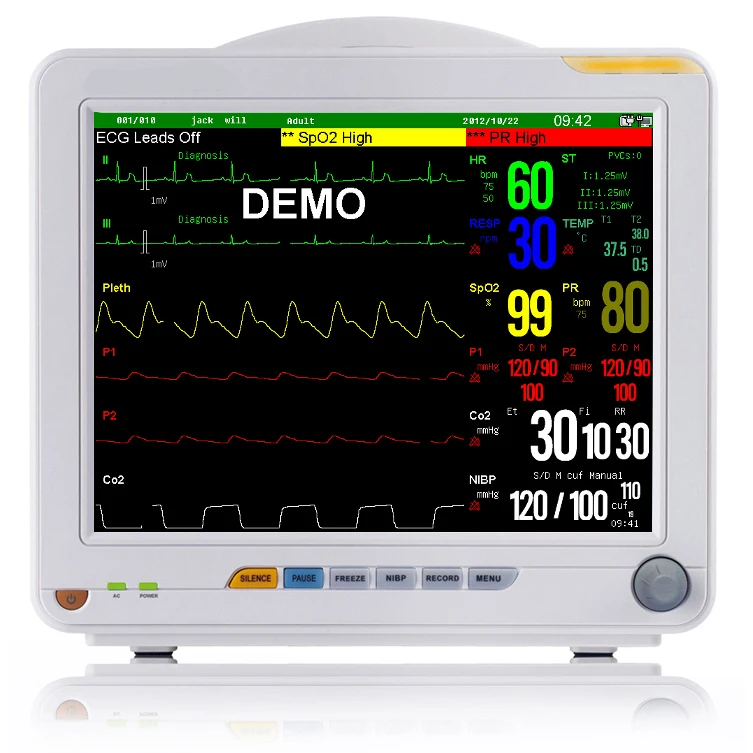

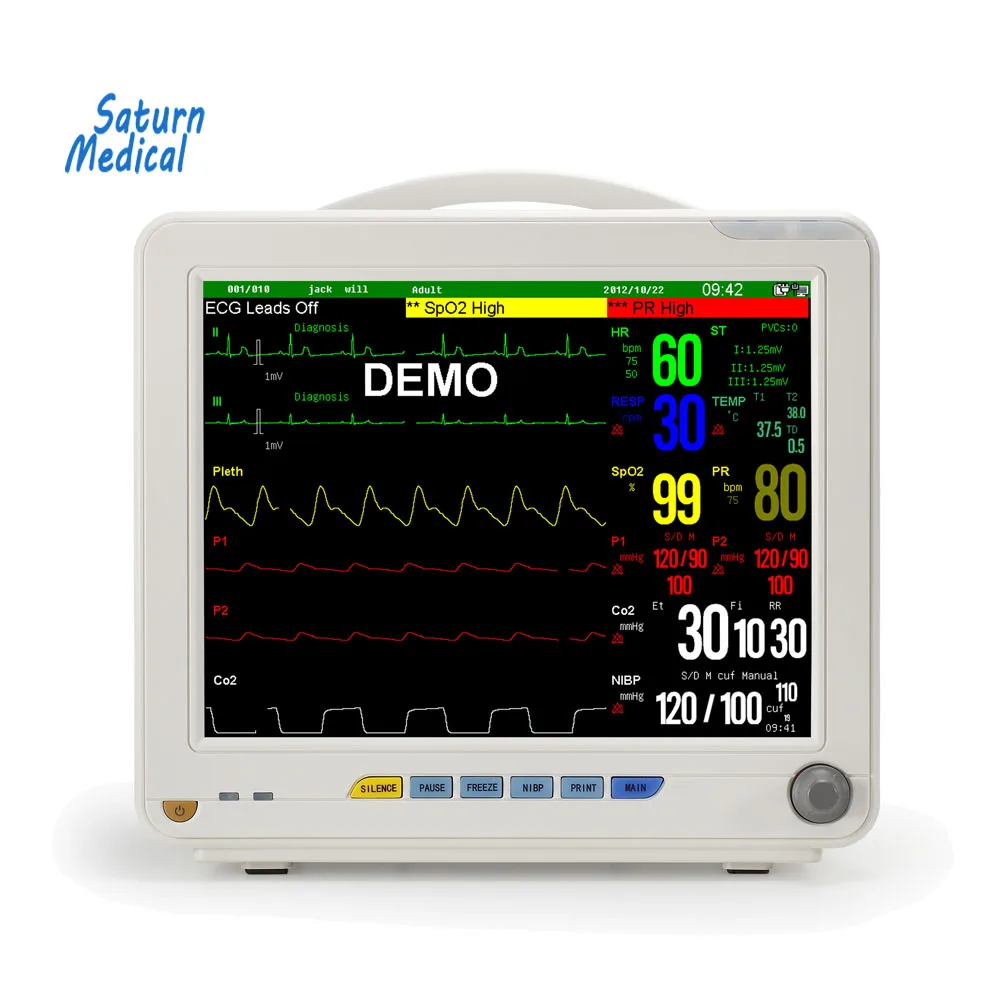

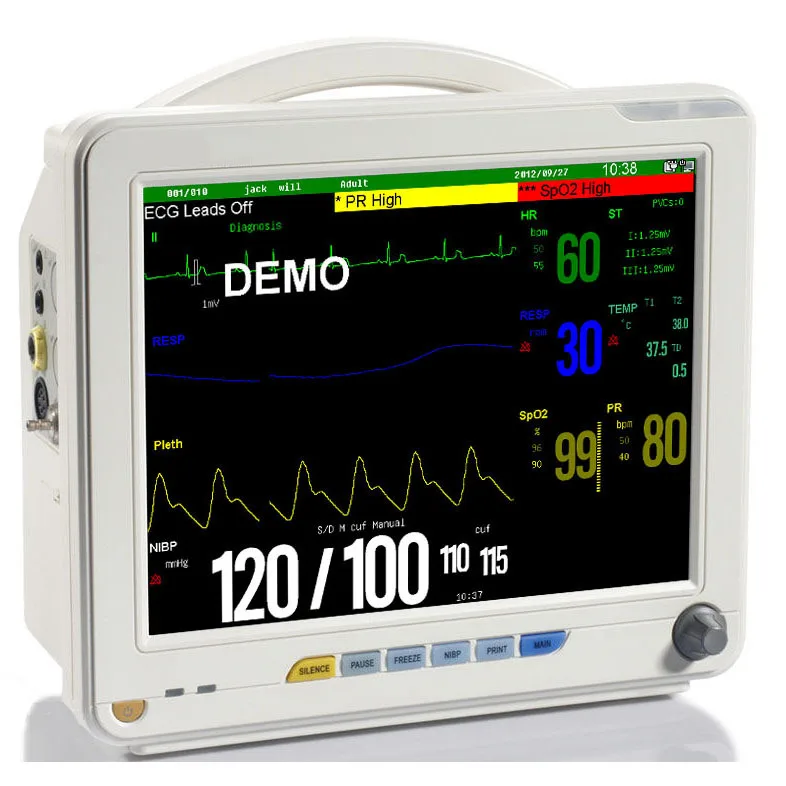

Factory price 12.1 inch multi parameter animal veterinary Vital Signs Monitor for vet cat dog pet

       Features &Benefits:

1. 12.1” color TFT display, high resolution: 800×600dpi;

2. Separated para board: ECG, NIBP, SpO2 board;

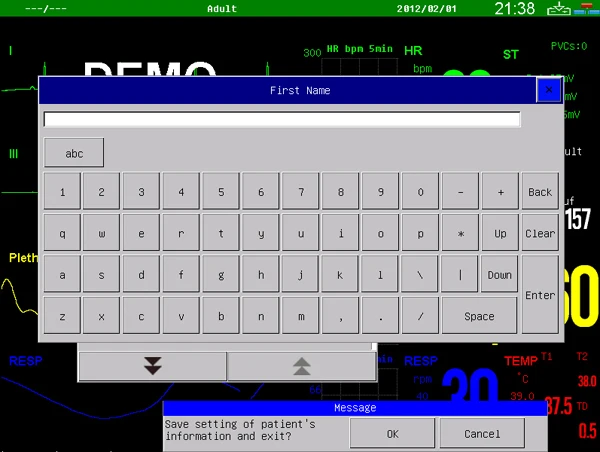

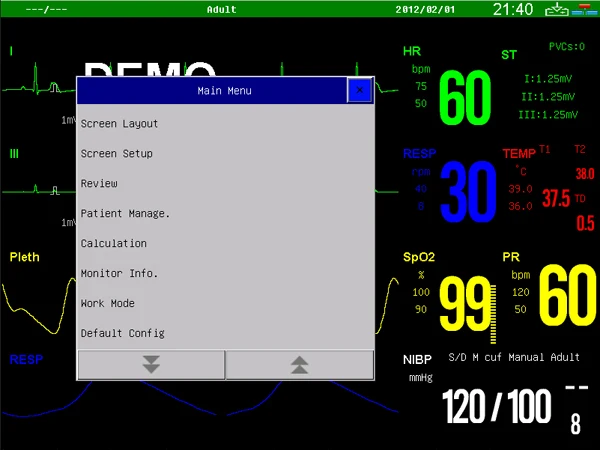

3. Full touch-screen enables intuitive operation by clicking one the specific parameters or the waveform in real time, standard configuration includes the navigation knob.

4. Real time S-T segment analysis, and ARR analysis;

5. SpO2 Pitch Tone Variation and Drug Dose Calculation;

6. Parameter waveform and characters color selectable

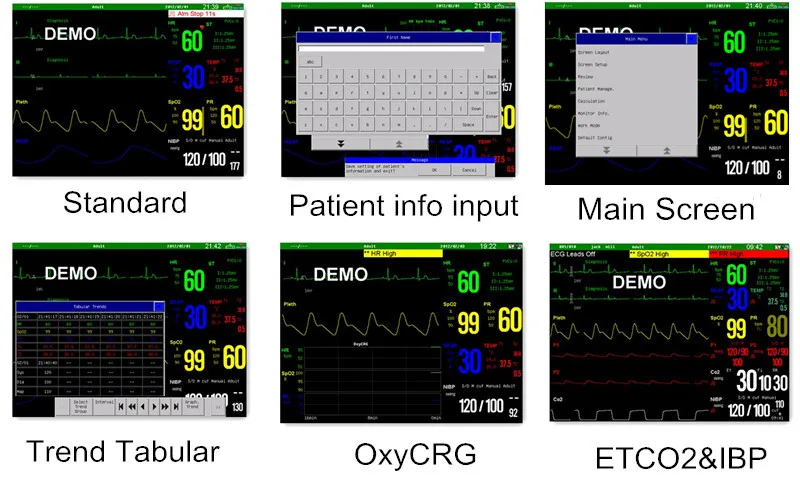

7. Multi-display: Standard, Large font, Trend Coexis, OxyCRG dynamic

8. Standby mode for Energy saving and suspend monitoring;

9. 7-lead ECG waveforms display in phase;

10. Capture dynamic waveforms;

11. Built-in rechargeable lithium battery, and battery volume checking,

12. AC power checking

13. Efficient resistance to interference of defibrillator and HF knife;

14.  F-6 SpO2 technology, VS NELLCOR accuracy;

15. Networking capacity and TCP/IP networking platform enable abundant future upgrade

16. Time delay switch-off function keep the monitor data restart monitor;

17. Complete and flexible mounting solution for transportation and in-patient monitoring

Standard parameters: 5-lead ECG, SpO2(F-5),NIBP, TEMP,RESP,PR,HR.

Optional: Touch Screen, Thermal Recorder, 3/12-lead ECG, 2/4-IBP,4-TEMP,2-SpO2, Nellcor/Masimo SpO2,BIS, Phaisein/ Respironics Multi-gas, ICG/CO, FHR, FM, TOCO,

Performance Specifications

Display:       12.1”color TFT

Rolling and refreshing waveform display

Resolution: 800×600

Multi display selectable including:

Large-font display

Trend coexist display

OxyCRG dynamic view display.

Bed-to-bed view display

Trace:             9 waveforms(7 ECG, 1 SPO2 and 1 RESP)

Sweep speed:12.5mm/s,25mm/s,50mm/s

Indicator:          Power/battery indicator light

QRS beep and alarm sound

Battery:           Rechargeable lead acid cell, 12v/4AH

Max.24 hour for charging, 4 hours for continue working

Trend:             Parameter graphic and tabular trends:

5s/piece,8 hours;

1min/piece,168 hours(24hour×7days)

5min/piece,1000 hours.

Storage:           NIBP: 1000 groups

Alarm: 200 groups

Full disclosure waveforms: 3600S

SD card external storage

Alarm:         User-adjustable High, Medium and Low limits 3-level

 Audible and visual alarm

Networking:        Connected to central monitoring system

TCP/IP netting platform

Recorder:         Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type:    Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Build-in, thermal array

Plethysmogram caveform:2 channels

Record mode: manual, on alarm, time-defined

Recording width: 50mm

Printing speed: 50mm/s

Recording type:  Frozen waveform record

NIBP recall record

Trend table record

Alarm record

Fixed -time record

Miscellaneous

Safety:

Safety level: Class I, type CF

Dimension and Weight

Dimension:      28*42*48cm

G.Weight:        <6.5KG

Operation Environment

Temperature:    Working 0~+40℃

Transportation and storage –20~+60℃

Humidity:       working≤85%

Transportation and storage≤93%

Power:          AC 100-240,50/60Hz

Patient range:    Neonate,pediatric,and adult patients

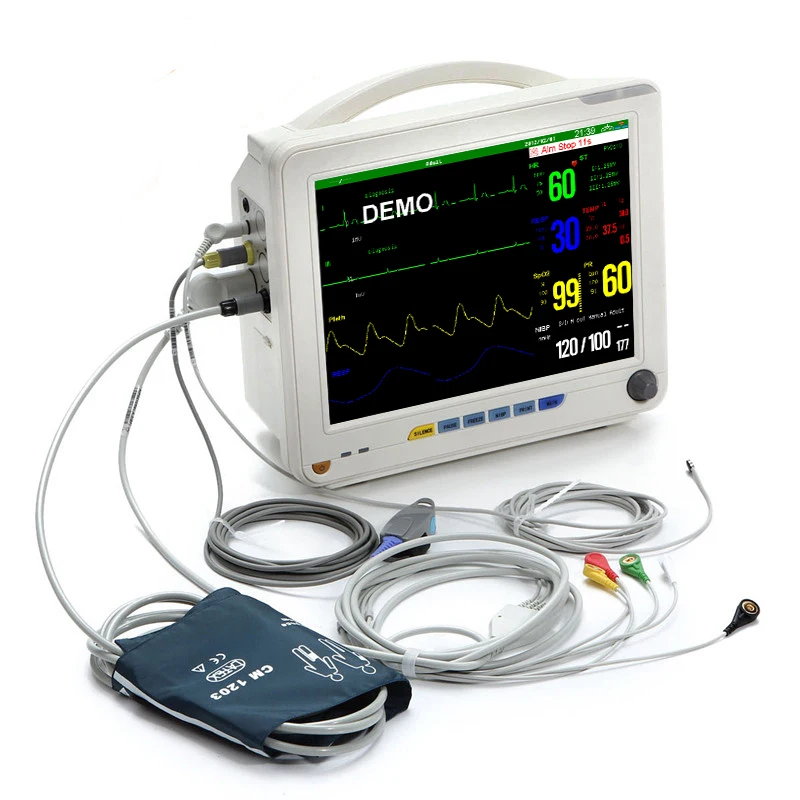

Accessories supplies

(1) 5 lead ECG cable

(2) 1 spo2 probes

(3) 1 NIBP probe

(4) 1 temp probe

(5)1 ground connecting liner

(6) Chest electrode (10pcs/set)
