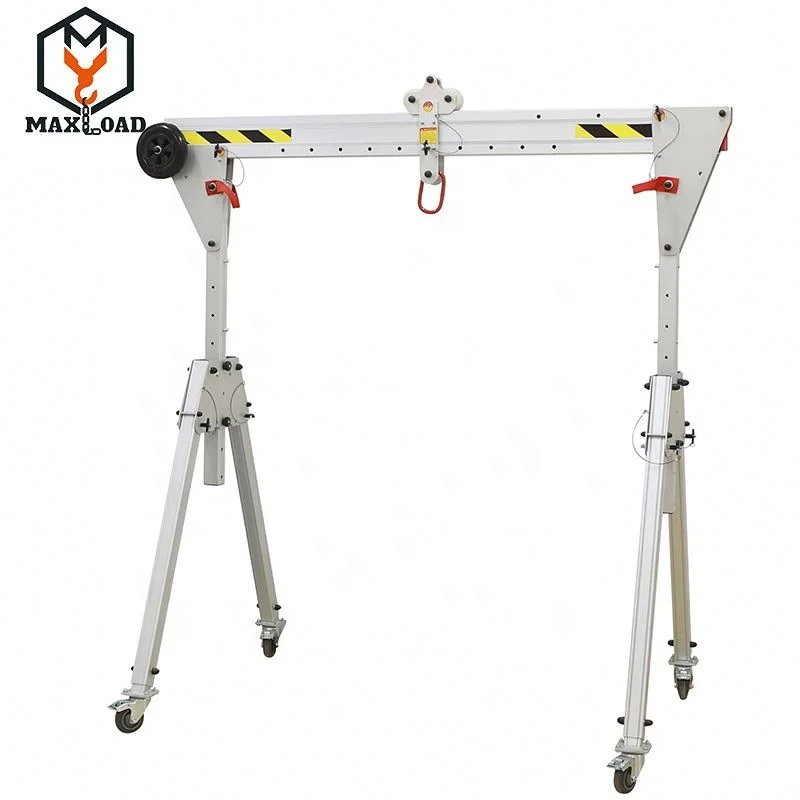

Industrial Portal Crane Gantry Crane for Portable 1 ton
Lightweight, portable and safe, the innovative and unique PORTA-GANTRY lifting system range is designed for easy transport, rapid assembly and safe use. Maxloadc&h offers a range of configurations, lift-ratings and personnel lifting options.
General Drawing
Below 500kg Aluminium Alloy Portable Portal Crane
Model
Dimension Parameter (mm)
N.W (kG)
A
B
C
E
F
G
H
J
K
L
PRGS20
2000
2076
1100-1500
1914-2114
2064-2264
1158
1850-2050
2190
415
440
33
PRGS23
2300
2376
1200-1800
2376
34
PRGS40
4000
4076
2700-3500
4076
40
PRGM20
2000
2076
1100-1500
1818-2218
1968-2368
1215
1755-2155
2076
34
PRGM23
2300
2376
1200-1800
2376
34
PRGM40
4000
4076
2700-3500
4076
40
PRGT20
2000
2076
1100-1500
2092-2992
2242-3142
1586
2028-2928
2631
38
PRGT23
2300
2376
1200-1800
2631
39
PRGT40
4000
4076
2700-3500
4076
44
Over 1 ton Aluminium Alloy Portable Portal Crane
S.W.L (kg)
Model
Dimension Parameter (mm)
Leg Weight (kg)
Wheel Size
D
E
F
H
G
1000
S
1605-2355
5x150
2675
2007-2757
1212
33
85x150
M
2101-2851
5x150
3171
2503-3253
1429
40
85x150
I
2188-3188
5x200
3499
2581-3581
1726
46
85x200
T
2879-4079
6x200
4399
3281-4481
2011
51
85x200
2000
S
1605-2355
5x150
2675
2007-2757
1212
33
85x150
M
2101-2851
5x150
3171
2503-3253
1429
40
85x150
I
2188-3188
5x200
3499
2581-3581
1726
46
85x200
T
2879-4079
6x200
4399
3281-4481
2011
51
85x200
3000
S
1660-2410
5x150
2730
2062-2812
1212
55
85x200
M
2156-2906
5x150
3226
2558-3308
1429
60
85x200
I
2188-3188
5x200
3499
2581-3581
1726
70
85x200
T
2879-4079
6x200
4399
3281-4481
2011
82
85x200
5000
I
2181-3181
5x200
3592
2717-3717
1736
97
125x200
T
2849-4049
6x200
4487
3412-4612
2021
106
125x200
Product Advantage
500kg up to 5000kg Various Loading Capacity
Maximum combined personnel lifting capacity up to 2000kg (depending on model)
EN795:1997 certified - as part of an EN363 compliant system (500 & 1000 - 3 persons, 2000, 3000 & 5000 - 5 persons)
All models suitable for use in ATEX Zone 2 explosive atmospheres
With easy on-site assembly within manual handling guidelines:
- 4 portable parts assembled on just 4 bolts - Simple ‘scissoring’ assembly in just 2-3 minutes
ERGONOMIC

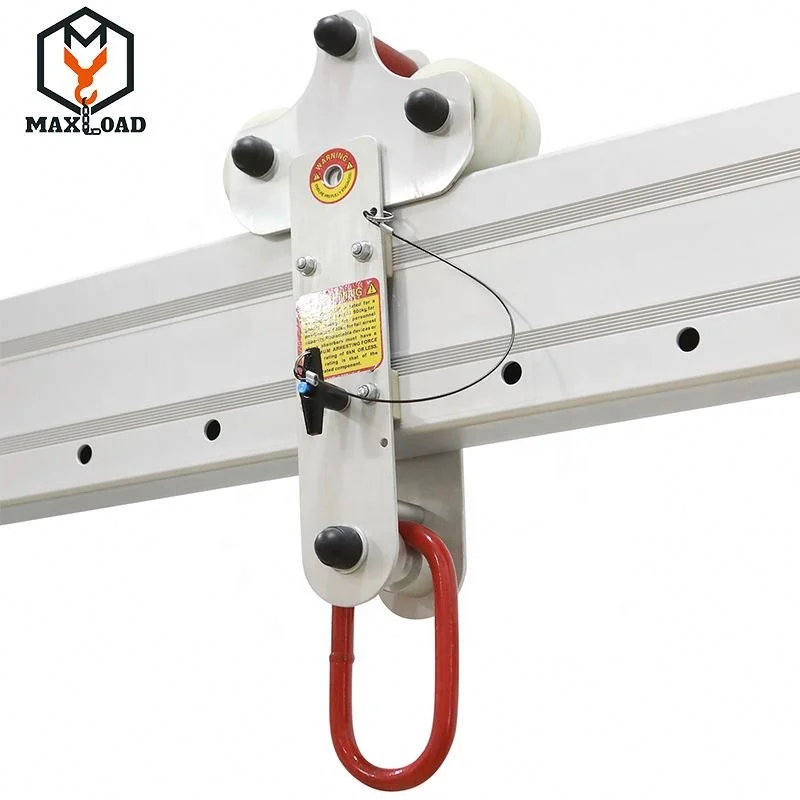

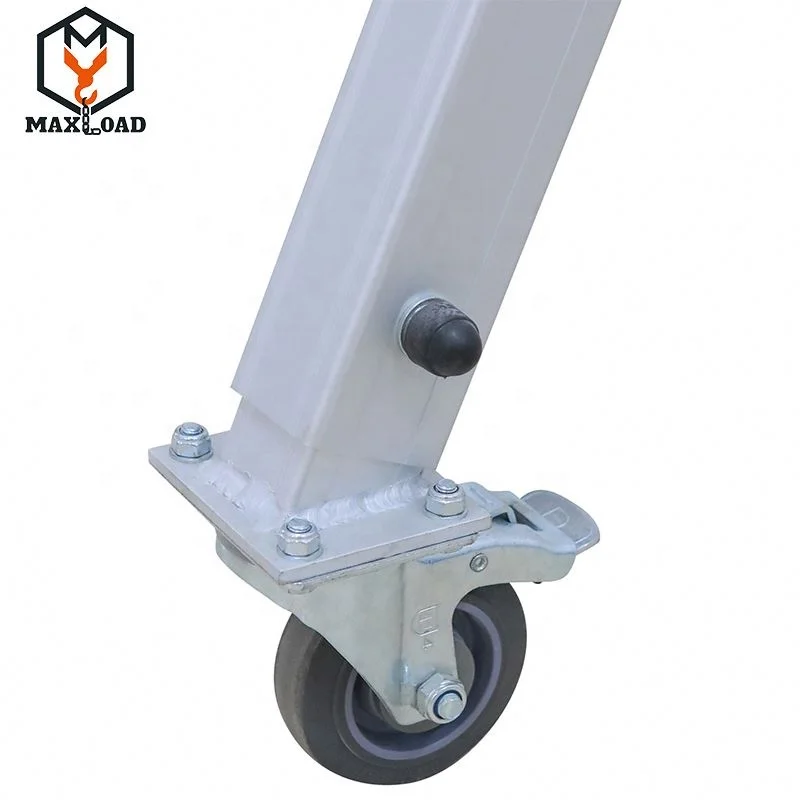

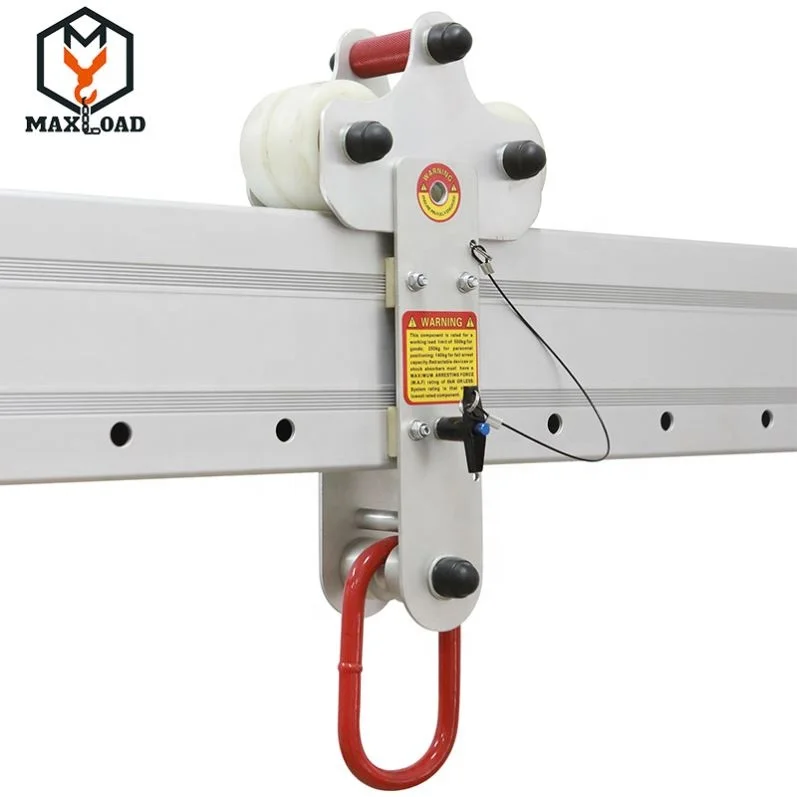

- 360° swivel-locking castors as standard - Simple, manual height & span adjustment - Ultra-safe captive trolley - Ergonomic design of profiles and handles

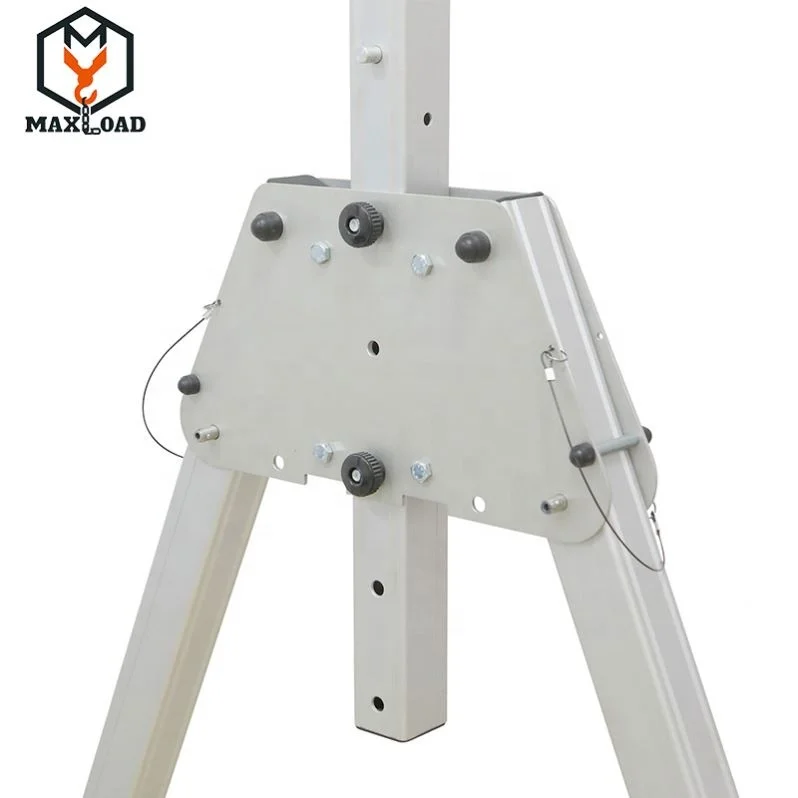

Bolted structure, lateral beam and leg bracing features
Variety of standard configurations available, plus customisation for specific requirements and interchangeable components.
