Elliptical cylinder carbide burr double cut dental burs
- Category: >>>
- Supplier: Zigong Taichang Carbide Co. Ltd.
Share on (60835593380):
Product Overview
Description
Rotary Burrs

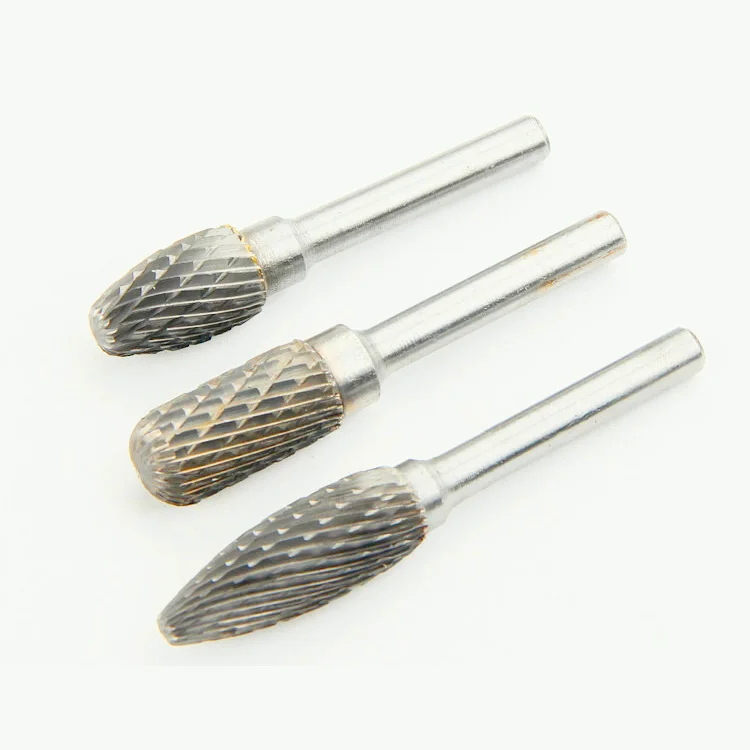

Elliptical cylinder carbide burr double cut dental burs
Note:
1. Fixture concentricity of better supporting the driving tool is strictly prohibited and supporting the use of different heart clamps,
2. Using the handle must be clamped, clip positive, shaking phenomenon is strictly prohibited during the operation
3. The cutting direction should move smoothly from right to left, do not too much force, to prevent bouncing, impact
4. Handle longer than 80MM should slow down operation to prevent the chip flying, please use protective glasses.
| Grades of Carbide Tungsten Burr | ||||
| China Grade | ISO grade | Density(g/cm3) | Hardness(HRA) | TRS(Mpa) |
| YG6 | K20 | 14.95 | 91 | 1800 |
| YG6X | K10 | 14.95 | 92 | 1800 |
| YKM6A | K10 | 14.95 | 92.5 | 1800 |
| YG8 | K30 | 14.7-14.8 | 90 | 1950 |
| YT5 | P30 | 13 | 90.8 | 1900 |
| YT14 | P10-20 | 11.5 | 91.5 | 1500 |
| YT15 | P10-20 | 11.3 | 91.8 | 1450 |
| YW1 | M10-20 | 13.1 | 91.5 | 1600 |
| YW2 | M10-20 | 13.1 | 91 | 1600 |
| YS25 | P25 | 12.8 | 91.5 | 1900 |
| YC30S | P30 | 12.8 | 91 | 2000 |
| ZP35 | P35 | 12.8 | 91 | 2000 |
| YC40 | P35 | 13.2 | 90 | 1850 |
Product Detail
| Type | Power Tool Parts |
| Material | YG7,K25,cemented,TCT,Tungsten carbide |
| Production Process | CNC |
| Cut | Standard/single/Double/ Aluma |
| Shape | cylinder, cone, ball, tree,etc |
| Head Hardness | 90-91HRA |

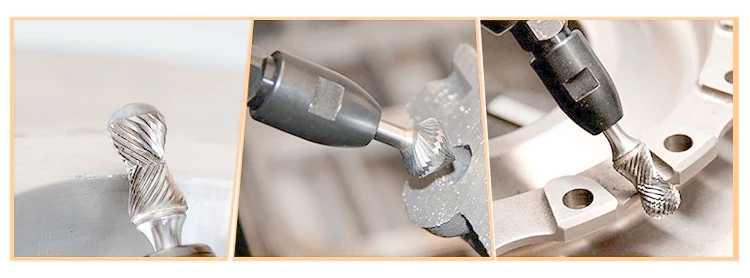

| Application | mold and pattern making, die grinder, surface cleaning and maintenance |
| Usage | Mainly used in the pneumatic or electric-driven tools |
| OEM | available |
| Certificate | ISO 9001:2015 |
| Product Keywords | elliptical cylinder carbide burr,double cut carbide burr,dental carbide burs |
Our Services
Company Information
Taichang Carbide Co., Ltd. is a leading carbide products manufacturer in China. We have specilized in producing various tungsten carbide products such as carbide inserts, carbide tips, carbide brazed blade, carbide bushing, carbide nozzle and so on.
With more than 10 years experience in this area, we have built a excellent quality control system from the process of the manufacturing to finished products testing.Strict quality control system keeps each product of us can precisely according to your requirment.
Within two hours from our factory to Chongqing port or air port, the traspotation is very convenient and the freight fee is cheap.
All of our engineers are famous university graduated, we can supply our customers the best customized products and service. since they are so professional.
EQUIPMENTS
DOST presses
Pressure sintering furnace
Cobalt magnetic measuring instrument
Market
Packaging & Shipping
Packing steps
Work flow
FAQ
Q: What material do you use to produce the products?
A: Our material are all virgin WC podower which is purchased from the leading manufacturers of tungsten carbide in China, we have built long time and very good business relationship with them and we can get the high quality raw materials with very competitive price.
Q: How about the quality of your products?
A: All of our finished products will be tested at least four times by different engineers, and the producing process is strictly accoding to the requirment of the "ISO 9001 quality control system“.Actually, the quality control system of our company is much more strict than the standard of the "ISO9001 quality control system ".
Q: How many kinds of tungsten carbide tips can you supply?
A: We are professional manufacturer of tungsten carbide products, our products cover tungsten carbide tips, tungsten carbide inserts, tungsten carbide bushing, mould, milling drill tips, carbide ball tips, tungsten carbide plate, tungsten carbide raw tips, tungsten carbide wear resistent tool parts, etc.
We can also produce customized products if you can provide us the drawings and detail information of the products you need since we have our own factory and advanced equipments.
Q: What about the shipment?
A: If the total weight of the cargo is less than 10kgs, we can send you the cargo by express, if the weight of the cargo is heavier than 10kgs, the cargo will be transported by sea.
Q: Are free samples available?
A: Yes, free samples are available. You are welcomed to ask for samples before place a order, but you should pay for the cost of the sample and the freight fee at first, if you can place a order in the future, we will reduce the total cost of the samples and the freight fee from the total value of the order.
