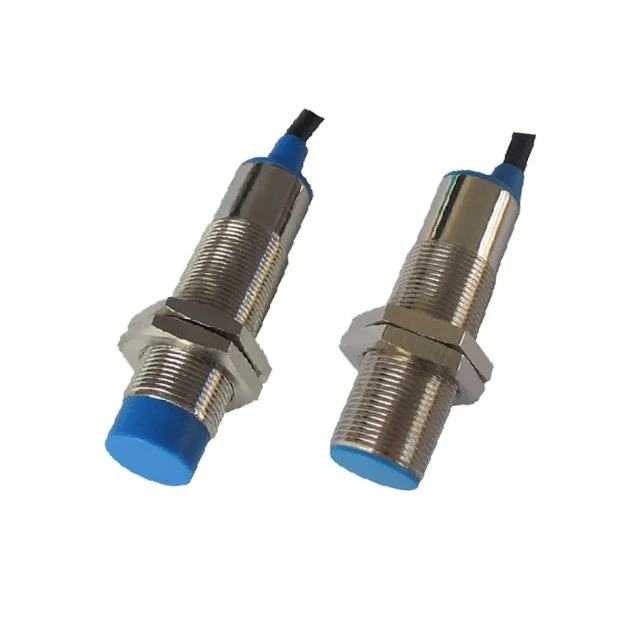

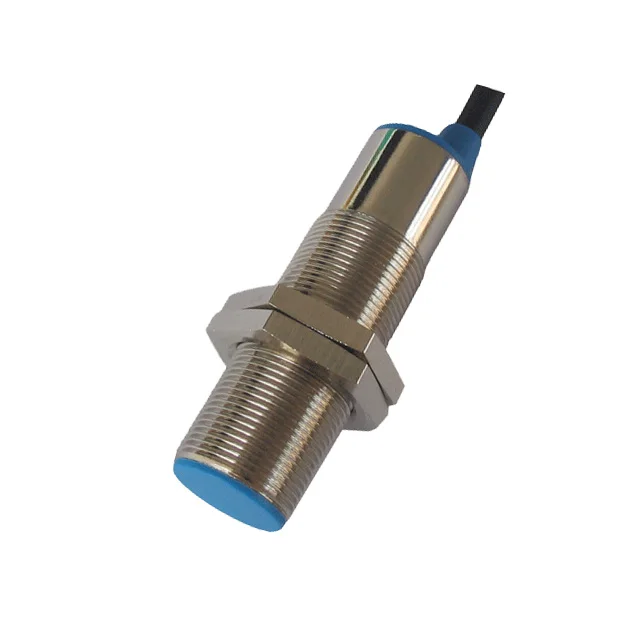

M18 Metal Iron Detect Position Inductive Proximity Switch Sensor NPN/PNP 4 Wires 5Vdc/12V/24VDC IP67 Waterproof (IBEST)

Product Overview

Description

IBEST M18 Cable Type Inductive Proximity Sensor/Switch

NPN/PNP NO+NC Output 4 Wires/Flush 5mm or Non-Flush 8mm



1. Features :

--     Inductive proximity sensor, style: cylinder, diameter: 18mm.
--     Detect Distance: Unshielded 5mm or shielded 8mm type . (Extended distance is available, Flush 7-8mm or non-flush 9-10mm)
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

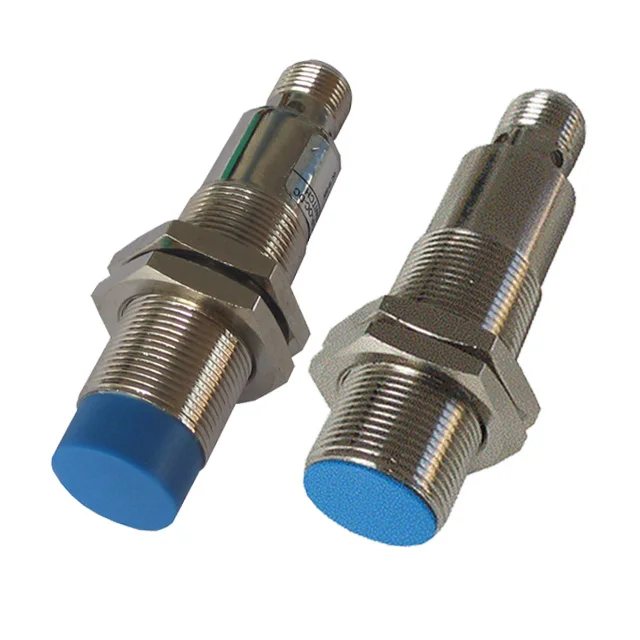

--     Connection mode: with 2 meter PVC cable. (M12 connector type is available also)

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals.
--     Over load, short circuit protection , against polarity reversal.
--      IP ratings: IP67.

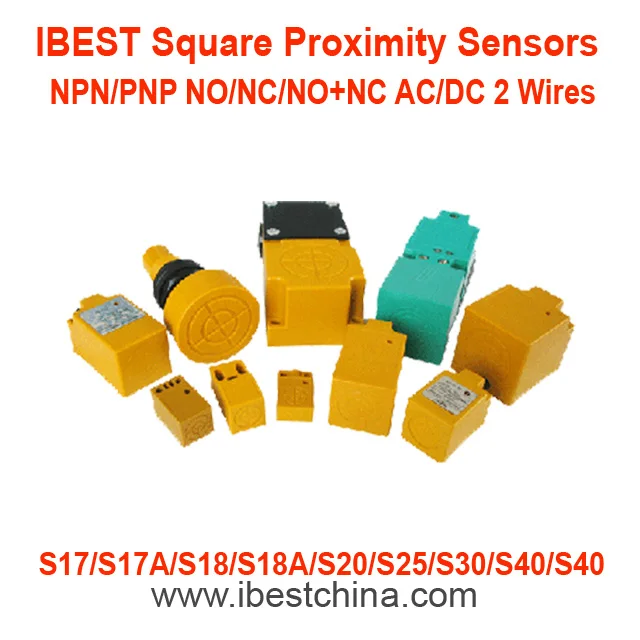

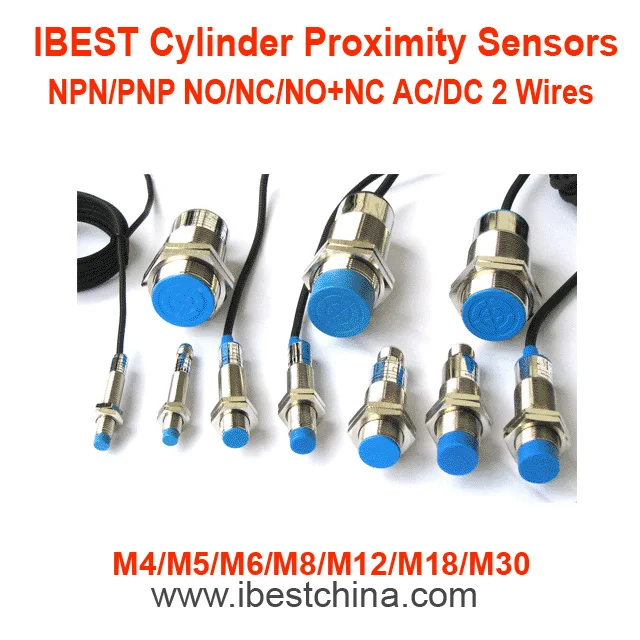

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

--      Reliable quality to replace famous brands .

2.Ordering code:

Model and Type	Output type	Mounting distance	Current output	Power supply	Connector model	Buy
IPS-18NO5B	NPN NO	5mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-18NC5B	NPN NC	5mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-18NO8B	NPN NO	8mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPS-18NC8B	NPN NC	8mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPS-18NOC5B	NPN NO+NC	5mm,shielded	≤200mA	DC 10-30V	4 Wire
IPS-18NOC8B	NPN NO+NC	8mm,unshielded	≤200mA	DC 10-30V	4 Wire
IPS-18PO5B	PNP NO	5mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-18PC5B	PNP NC	5mm,shielded	≤200mA	DC 10-30V	3 Wire
IPS-18PO8B	PNP NO	8mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPS-18PC8B	PNP NC	8mm,unshielded	≤200mA	DC 10-30V	3 Wire
IPS-18POC5B	PNP NO+NC	5mm,shielded	≤200mA	DC 10-30V	4 Wire
IPS-18POC8B	PNP NO+NC	8mm,unshielded	≤200mA	DC 10-30V	4 Wire
IPS-18DO5B	DC 2 Wire NO	5mm,shielded	≤200mA	DC 10-30V	2 Wire
IPS-18DC5B	DC 2 Wire NC	5mm,shielded	≤200mA	DC 10-30V	2 Wire
IPS-18DO8B	DC 2 Wire NO	8mm,unshielded	≤200mA	DC 10-30V	2 Wire
IPS-18DC8B	DC 2 Wire NC	8mm,unshielded	≤200mA	DC 10-30V	2 Wire
IPS-18AO5C	AC 2 Wire NO	5mm,shielded	≤300mA	AC 90-250V	2 Wire
IPS-18AC5C	AC 2 Wire NC	5mm,shielded	≤300mA	AC 90-250V	2 Wire
IPS-18AO8C	AC 2 Wire NO	8mm,unshielded	≤300mA	AC 90-250V	2 Wire
IPS-18AC8C	AC 2 Wire NC	8mm,unshielded	≤300mA	AC 90-250V	2 Wire



3. Technical Specifications:

Property project Specific parameter Mounting distance shielded: 5mm / unshielded : 8mm (Or  special extended distance) Sensing distance shielded: 0-4.5mm / unshielded : 0-7.2mm Power supply DC 10-30V / AC 90-250V Frequency DC:  ≤800Hz / AC:≤20Hz Current output DC:≤ 200mA / AC: ≤ 300mA Ambient temperture -15-+65 C Protection DC:Over-Load & short circuit protection. IP rating IP67 Water Spray Resistant

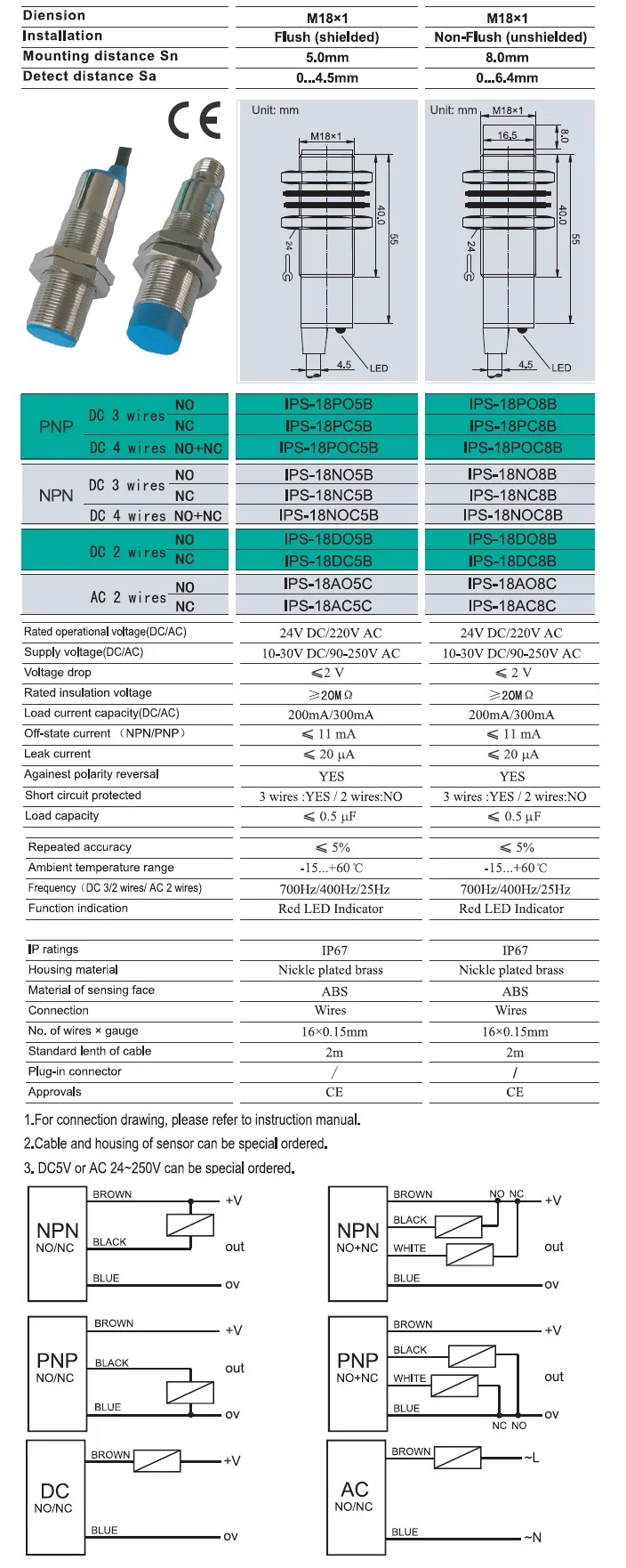

4. Dimensions:
